2022 TOYOTA HILUX light

3945-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)
NOTICE
QDiscs and adapters that cannot be used
Do not use the following types of discs.
Also, do not use 8 cm (3 in.) disc adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the disc insert/eject function.
O Discs that have a diameter that is not 12 cm (4.7 in.)
O Low-quality and deformed discs
O Discs with a transparent or translucent recording area
O Discs that have tape, stickers or CD-R labels attached to them, or that
have had the label peeled off
Q Player precautions
Failure to follow the precautions below may result in serious damage to the
discs or the player itself.
O Do not insert anything other than discs into the disc slot.
O Do not apply oil to the player.
O Store discs away from direct sunlight.
O Never try to disassemble any part of the player.

4305-10. Bluetooth®
HILUX_OM_OM0K513E_(EE)
Bluetooth®
QWhen using the Bluetooth® audio/phone
O In the following situations, the system may not function.
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or metal material covers or touches the device
O There may be a delay if a cellular phone connection is made during
Bluetooth® audio play.
O Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
O This system is not guaranteed to operate with all Bluetooth® devices.
Q When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 418)
Q About Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

433
6Interior features
HILUX_OM_OM0K513E_(EE)
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................. 434
Automatic air conditioning
system ............................. 441
Heated steering wheel/
seat heaters ..................... 450
6-2. Using the interior lights
Interior lights list ................. 453
• Personal/interior light
main switch.................... 454
• Personal/interior
lights .............................. 454
• Interior light.................... 454
6-3. Using the storage features
List of storage features ...... 456
• Glove box ...................... 457
• Console box .................. 457
• Cup holders ................... 458
• Bottle holders ................ 459
• Auxiliary boxes .............. 460
Luggage compartment
features............................ 463
6-4. Using the other interior
features
Other interior features ........ 464
• Sun visors...................... 464
• Vanity mirror .................. 464
• Clock ............................. 465
• Power outlets................. 466
• Grocery bag hooks ........ 468
• Coat hooks .................... 469
• Armrest .......................... 469
Using the steering wheel
audio switches ................. 470

4516-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K513E_(EE)
Turns the steering wheel heater
on/off
The indicator light comes on when
the heater is operating.
The heated steering wheel can be used when the engine switch is in the “ON”
position (vehicles without smart entry & start system) or IGNITION ON mode
(vehicles with smart entry & start system).
QFront seats
Turns on the front left seat
heater
The indicator light comes on.
Turns on the front right seat
heater
The indicator light comes on.
This illustration is for a left-hand drive vehicle. The switch posi-
tion differs for right-hand drive vehicles.
QRear seats (if equipped)
Turns on the rear left seat
heater
The indicator light comes on.
Turns on the rear right seat
heater
The indicator light comes on.
Heated steering wheel
Seat heaters
1
2
1
2

4526-1. Using the air conditioning system and defogger
HILUX_OM_OM0K513E_(EE)
OThe seat heaters can be used when the engine switch is in the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system).
O When not in use, press the seat heater switch to turn the seat heater off.
The indicator light turns off.

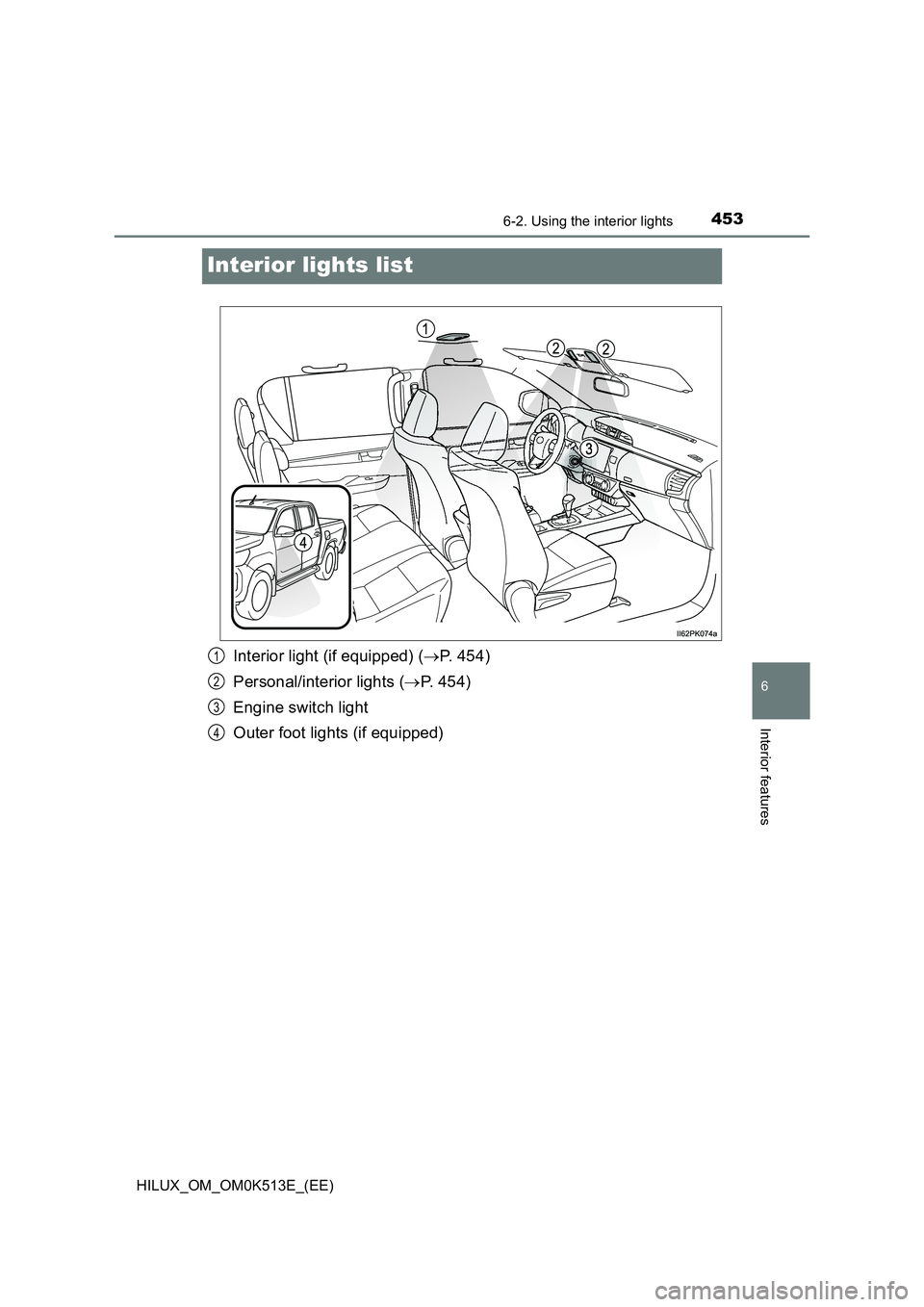

4536-2. Using the interior lights
HILUX_OM_OM0K513E_(EE)
6
Interior features
Interior lights list
Interior light (if equipped) (P. 454)
Personal/interior lights ( P. 454)
Engine switch light
Outer foot lights (if equipped)
1
2
3
4

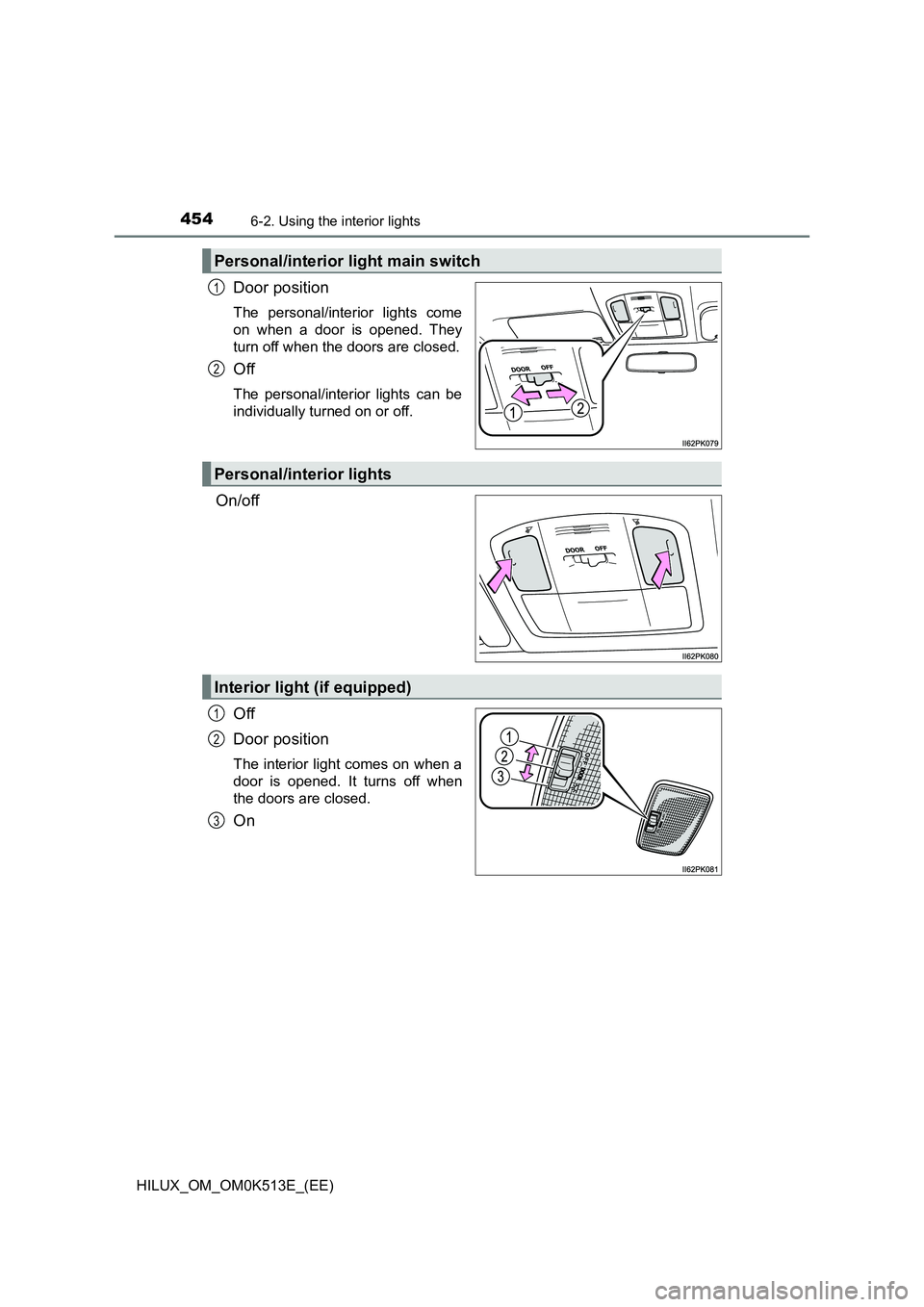

4546-2. Using the interior lights
HILUX_OM_OM0K513E_(EE)
Door position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are closed.
Off
The personal/interior lights can be
individually turned on or off.
On/off
Off
Door position
The interior light comes on when a
door is opened. It turns off when
the doors are closed.
On
Personal/interior light main switch
1
2
Personal/interior lights
Interior light (if equipped)
1
2
3

4556-2. Using the interior lights
HILUX_OM_OM0K513E_(EE)
6
Interior features
OIlluminated entry system:
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with smart entry & start system
The lights automatically turn on/off according to engine switch mode,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
O If the following lights remain on when the engine switch is turned to the
“LOCK” position (vehicles without smart entry & start system) or off (vehicles
with smart entry & start system), the lights will go off automatically after 20
minutes:
• Personal/interior light
• Interior light (if equipped)
• Engine switch light
NOTICE
To prevent battery discharge, do not leave the lights on longer than neces-
sary when the engine is not running.
