2022 TOYOTA COROLLA traction control

8
Toyota Motor Europe NV/SA, Ave-
nue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com

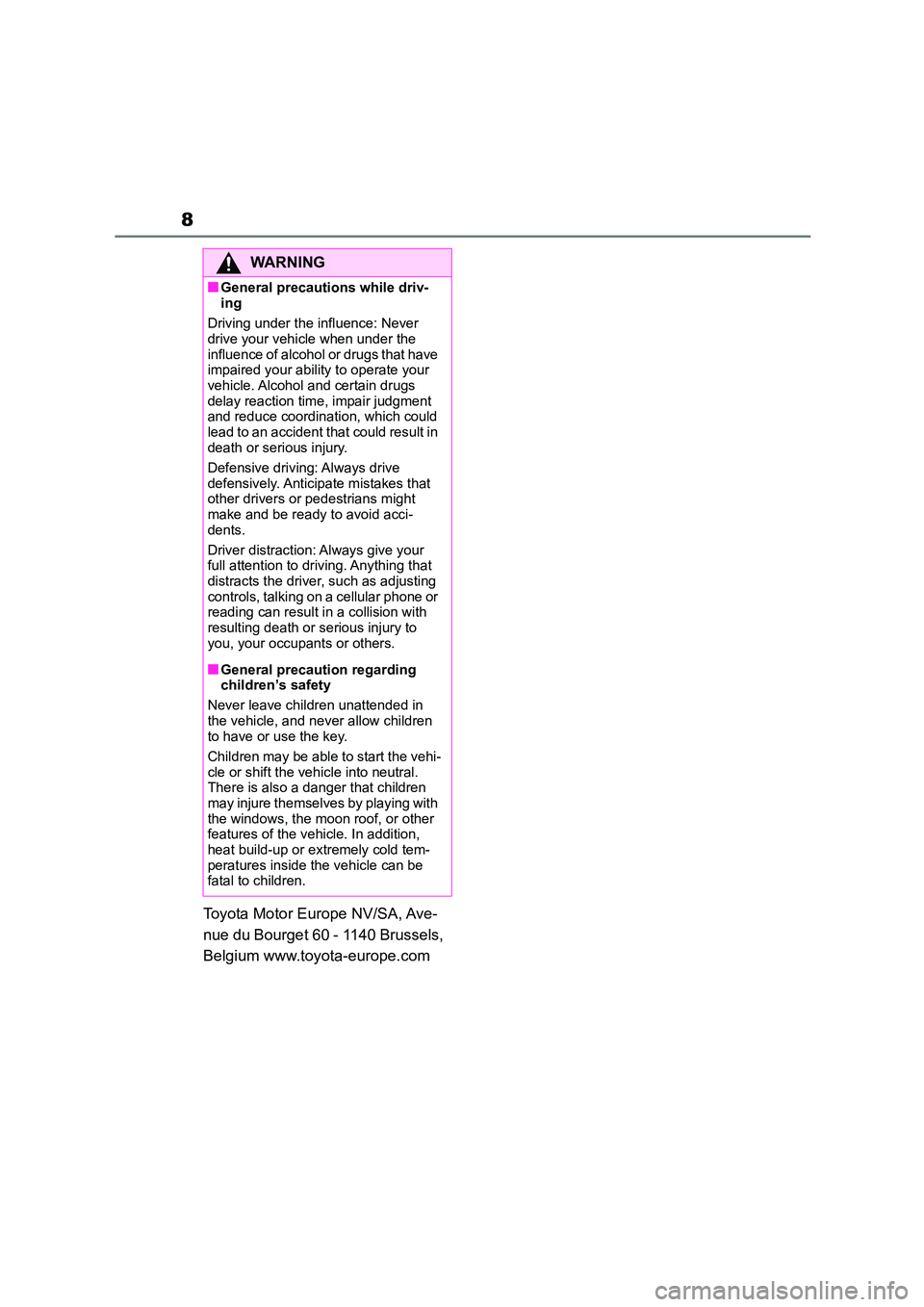

WA R N I N G
■General precautions while driv-
ing
Driving under the influence: Never drive your vehicle when under the
influence of alcohol or drugs that have
impaired your ability to operate your vehicle. Alcohol and certain drugs
delay reaction time, impair judgment
and reduce coordination, which could
lead to an accident that could result in death or serious injury.
Defensive driving: Always drive
defensively. Anticipate mistakes that other drivers or pedestrians might
make and be ready to avoid acci-
dents.
Driver distraction: Always give your
full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in
the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi-
cle or shift the vehicle into neutral. There is also a danger that children
may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold tem-
peratures inside the vehicle can be fatal to children.

3164-5. Using the driving support systems
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when
the brakes are applied suddenly, or
if the brakes are applied while driv-
ing on a slippery road surface
■Brake assist
Generates an increased level of
braking force after the brake pedal
is depressed when the system
detects a panic stop situation
■VSC (Vehicle St ability Control)
Helps the driver to control skidding
when swerving suddenly or turning
on slippery road surfaces.
■VSC+ (Vehicle Stability Con-
trol+)
Provides cooperative control of the
ABS, TRC, VSC and EPS.
Helps to maintain directional stabil-
ity when swerving on slippery road
surfaces by controlling steering per-
formance.
■TRC (Traction Control)
Helps to maintain drive power and
prevent the drive wheels from spin-
ning when starting the vehicle or
accelerating on slippery roads
■Active Cornering Assist (ACA)
Helps to prevent the vehicle from
drifting to the outer side by perform-
ing inner wheel brake control when
attempting to acce lerate while turn-
ing
■Hill-start assist control
Helps to reduce the backward
movement of the vehicle when
starting on an uphill
■EPS (Electric Po wer Steering)
Employs an electric motor to
reduce the amount of effort needed
to turn the steering wheel.
■Emergency brake signal
When the brakes are applied sud-
denly, the emergency flashers auto-
matically flash to alert the vehicle
behind.
■Secondary Collision Brake (if
equipped)
When the SRS airbag sensor
detects a collisi on and the system
operates, the brakes and brake
lights are automatically controlled
to reduce the vehicle speed and
help reduce the poss ibility of further
damage due to a secondary colli-
sion.
Driving assist systems
To keep driving safety and per-
formance, the following sys-
tems operate au tomatically in
response to various driving sit-
uations. Be aware, however,
that these systems are supple-
mentary and should not be
relied upon too heavily when
operating the vehicle.
Summary of the driving
assist systems

317
4
4-5. Using the driving support systems
Driving
■When the TRC/VSC systems are operating
The slip indicator light will flash while the
TRC/VSC systems are operating.
■Disabling the TRC system
If the vehicle gets stuck in mud, dirt or snow, the TRC system may reduce
power from the engine to the wheels.
Pressing to turn the system off may
make it easier for you to rock the vehicle
in order to free it.
To turn the TRC system off, quickly
press and release .
The “Traction Control Turned OFF” will
be shown on the multi-information dis-
play.
Press again to turn the system
back on.
■Turning off both TRC and VSC sys-
tems
To turn the TRC and VSC systems off,
press and hold for more than 3
seconds while the vehicle is stopped.
The VSC OFF indicator light will come
on and the “Traction Control Turned
OFF” will be shown on the multi-infor-
mation display.*
Press again to turn the system
back on.
*: On vehicles with PCS (Pre-Collision
System), PCS will also be disabled
(only Pre-Collision warning is availa-
ble). The PCS warning light will come
on and a message will be displayed
on the multi-information display.
( P.208)
■When the message is displayed on
the multi-information display show-
ing that TRC has been disabled
even if has not been pressed
TRC is temporary deactivated. If the
information continues to show, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Operating conditions of hill-start assist control
When the following four conditions are
met, the hill-start assist control will oper- ate:
●Vehicles with a Multidrive: The shift lever is in a position other than P or N
(when starting off forward/backward
on an upward incline).
●Vehicles with a manual transmission:
The shift lever is in a position other than R when starting off forward on an
upward incline, or the shift lever is in
R when starting off backward on an upward incline.
●The vehicle is stopped
●The accelerator pedal is not
depressed
●The parking brake is not engaged
■Automatic system cancelation of
hill-start assist control
The hill-start assist control will turn off in any of the following situations:

562Alphabetical Index
Engine immobilize r system .......... 74
Tire inflation pressure .................. 444
Maintenance data ...................... 533
Warning light .............................. 475
Tire pressure warning system
Function ..................................... 431
Initializing ................................... 442
Installing tire pressure warning
valves and transmitters ............ 441
Registering ID codes.................. 443
Warning light .............................. 475
Tires
Chains ........................................ 322
Checking .................................... 429
Emergency tire puncture repair kit
................................................. 482
If you have a flat tire........... 482, 498
Inflation pressure ....................... 444
Replacing ................................... 498
Rotating tires .............................. 431
Size ............................................ 533
Snow tires .................................. 321
Spare tire ................................... 498
Tire pressure wa rning system .... 431
Warning light .............................. 475
Tools ...................................... 484, 499
Top tether anchorages ................... 58
To w i n g
Emergency towing ..................... 465
Towing capacity.......................... 524
Towing eyelet ............................. 467
Trailer towing ..................... 153, 158
Toyota parking assist-sensor
Function ..................................... 263
Warning message ...................... 266
Toyota Safety Sense
AHB (Automatic High Beam) ..... 181
Dynamic radar cruise control ..... 238
Dynamic radar cruise control with
full-speed range ....................... 227
LDA (Lane Departure Alert with
steering control) ....................... 219
LTA (Lane Tracing Assist) .......... 209
PCS (Pre-Collision System) ....... 202
RSA (Road Sign Assist) ............. 254
Traction Control (TRC) ................. 316
Trailer towing ........................153, 158
Transmission
Driving mode select switch.........314
Gear Shift Indicator .................... 170
If the shift lever cannot be shifted
from P ......................................166
M mode ..............................167, 168
Manual transmission ..................169
Multidrive .................................... 165
TRC (Traction Control) ................. 316
Trip meters ................................ 86, 91
Trunk .............................................. 118
Smart entry & start system ......... 119
Trunk grip ...................................120
Trunk light...................................120
Trunk opener .............................. 119
Wireless remote control ............. 119
Trunk features ............................... 399
Trunk light .....................................120
Wattage ......................................535
Turn signal lights
Replacing light bulbs ..................456
Turn signal lever ......................... 171
Wattage ......................................535
U
USB charging port ........................401
USB port ........................................328
V
Vanity lights...................................406
Wattage ......................................535
Vanity mirrors................................406
Vehicle data recording ..................... 7
Vehicle identification number ...... 524
Vehicle information display ........... 97
Vehicle Stability Control (VSC) ....316
Vehicle Stability Control+ (VSC+) 316
VSC (Vehicle Stability Control) ....316
VSC+ (Vehicle Stability Control+) 316
