2022 TOYOTA BZ4X FLUID

548
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
For details, consult with at any autho-
rized Toyota retailer or Toyota autho- rized repairer, or any reliable repairer as soon as possible.
WARNING
■When removing the 12-volt bat-tery terminals
Always remove the negative (-) termi-
nal first. If the positive (+) terminal contacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks and death or serious injury.
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-mable gas that may be emitted from
the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal
and that it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+”
terminal to come into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of
the jumper cables to come into con- tact with each other.
●Do not smoke, use matches, ciga-rette lighters or allow open flame near the 12-volt battery.
■12-volt battery precautions
The 12-volt battery contains poison- ous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the follow-ing precautions when handling the
12-volt battery:
●When working with the 12-volt bat- tery, always wear safety glasses
and take care not to allow any bat- tery fluids (acid) to come into con-tact with skin, clothing or the vehicle
body.
●Do not lean over the 12-volt battery.
●In the event that battery fluid (acid) comes into contact with the skin or
eyes, immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be received.
●Always wash your hands after han-dling the 12-volt battery and other
battery-related parts.
●Do not allow children near the 12-
volt battery.
■When replacing the 12-volt bat-
tery
●When the vent plug is close to the hold down clamp, the battery fluid
(acid) may leak.
●For information regarding battery
replacement, contact any autho- rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
NOTICE
■When handling jumper cables
When connecting the jumper cables,
ensure that they do not become entangled in the cooling fan.

549
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
1Stop the vehicle in a safe place
and turn off the air conditioning
system.
2 Leave the EV system operating
and carefully lift the hood.
3 Check if the cooling fan is oper-
ating.
If the fan is operating:
Wait until the “EV System over-
heated Output power reduced”
message disappears and then
stop the EV system. If the mes-
sage does not disappear, call
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
If the fan is not operating:
Stop the EV system immediately
and call any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
4 After the EV system has cooled
down, inspect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
If your vehicle overheats
When “EV System overheated
Output power reduced” is
shown on the multi-informa-
tion display, your vehicle may
be overheating.
NOTICE
■Cooling system coolant
The radiator coolant is exclusive for radiator usage. Damage may occur when water or any other type of cool-
ant is used, so never use any other fluid. When there is no “Toyota Genu-ine Traction Battery Coolant”, immedi-
ately contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Correction procedures

558
Owners Manual_Europe_M42D76_en
9-1. Specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
Charging rates:
Quick charge
Slow charge
15 A max.
5 A max.
Front eAxle
Fluid capacity*3.9 L (4.1 qt., 3.4 Imp.qt.)
Fluid typee-Transaxle Fluid TE
NOTICE
■Front eAxle fluid type
Using transaxle fluid other than the above type may cause abnor mal noise or
vibration, or ultimately damage the front eAxle of your vehicle .
Rear eAxle (AWD models)
Fluid capacity*3.1 L (3.3 qt., 2.7 Imp. qt.)
Fluid typee-Transaxle Fluid TE
NOTICE
■Rear eAxle fluid type
Using transaxle fluid other than the above type may cause abnor mal noise or
vibration, or ultimately damage the rear eAxle of your vehicle.
Brakes
Pedal clearance*158 mm (2.28 in.) Min.*3
62 mm (2.44 in.) Min.*4
Pedal free play1.0 - 6.0 mm (0.04 - 0.24 in.)

559
9
Owners Manual_Europe_M42D76_en
9-1. Specifications
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf, 66 lbf)
while the EV system is operating.
*2: Make sure to confirm that the brake system warning light (yell ow) does not illumi-
nate. (If the brake system warning light illuminates, refer to P.515)
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
18-inch tires
20-inch tires
Parking brake indicator*2
When pushing the parking brake switch for 1 to
4 seconds: turns off
When pulling the parking brake switch for 1 to 4
seconds: comes on
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size235/60R18 103H
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Front: 260 kPa (2.6 kgf/cm2 or bar, 38 psi)
Rear: 260 kPa (2.6 kgf/cm2 or bar, 38 psi)
Wheel size18  7 1/2 J
Wheel bolt torque140 N•m (14.3 kgf•m, 103 ft•lbf)
Tire size235/50R20 104V XL
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Front: 260 kPa (2.6 kgf/cm2 or bar, 38 psi)
Rear: 260 kPa (2.6 kgf/cm2 or bar, 38 psi)
Wheel size20  7 1/2 J
Wheel bolt torque140 N•m (14.3 kgf•m, 103 ft•lbf)

580
Owners Manual_Europe_M42D76_en
Alphabetical Index
Air conditioning filter................... 496
Front seat concentrated airflow
mode (S-FLOW) ...................... 425
Heated Windshield Defroster ..... 426
Remote Air Conditioning System427
“SYNC” mode............................. 423
Automatic door locking and unlock-
ing systems ................................ 188
Automatic headlight leveling system
..................................................... 260
Automatic light control system ... 259
Auxiliary box lights ...................... 431
Auxiliary boxes ............................. 436
Average power consumption ...... 176
Average vehicle speed ................. 178
B
Back door ...................................... 189
Back door opener switch............ 191
Hands Free Power Back Door ... 194
Luggage compartment light 191, 195
Power back door ........................ 192
Power back door opener and closer
switch ....................................... 193
Power back door switch ............. 193
Wireless remote control ..... 183, 192
Back-up lights
Replacing light bulbs .................. 504
Battery (12-volt battery)
If the 12-volt battery is discharged
................................................. 544
Preparing and checking before win-
ter ............................................ 411
Replacing ................................... 547
Warning light .............................. 515
Battery (traction battery)................ 82
Charging ............................ 121, 129
Location ....................................... 82
Specification............................... 556
Traction battery cooler ............... 115
Traction battery heater ............... 114
Warning messages..................... 160
Battery Electric Vehicle driving tips
....................................................... 91
Blind Spot Monitor (BSM) ............324
Enabling/disabling the system.... 325
Bottle holders................................ 436
Brake
Brake Hold ................................. 257
Fluid ........................................... 558
Parking brake .............................254
Regenerative braking ................... 83
Warning light .............................. 515
Brake assist...................................406
Brake Hold ................................. 257
Brake Override System ................ 230
Break-in tips .................................. 230
Brightness control
Instrument panel light control ..... 175
BSM (Blind Spot Monitor) ............324
Enabling/disabling the system.... 325
C
Camera
Driver monitor.....................276, 282
Front camera .............................. 276
Toyota Teammate Advanced Park
................................................. 372
Card holders.................................. 436
Care
Aluminum wheels .......................457
Brake calipers ............................ 457
Exterior ....................................... 456
Interior ........................................459
Seat belts ...................................459
Cargo and luggage .......................235
Cargo hooks .................................. 437
CCID (Charging Circuit Interrupting
Device)......................................... 100
Indicator ..................................... 102
Operation ...................................102
Center console light ..................... 431

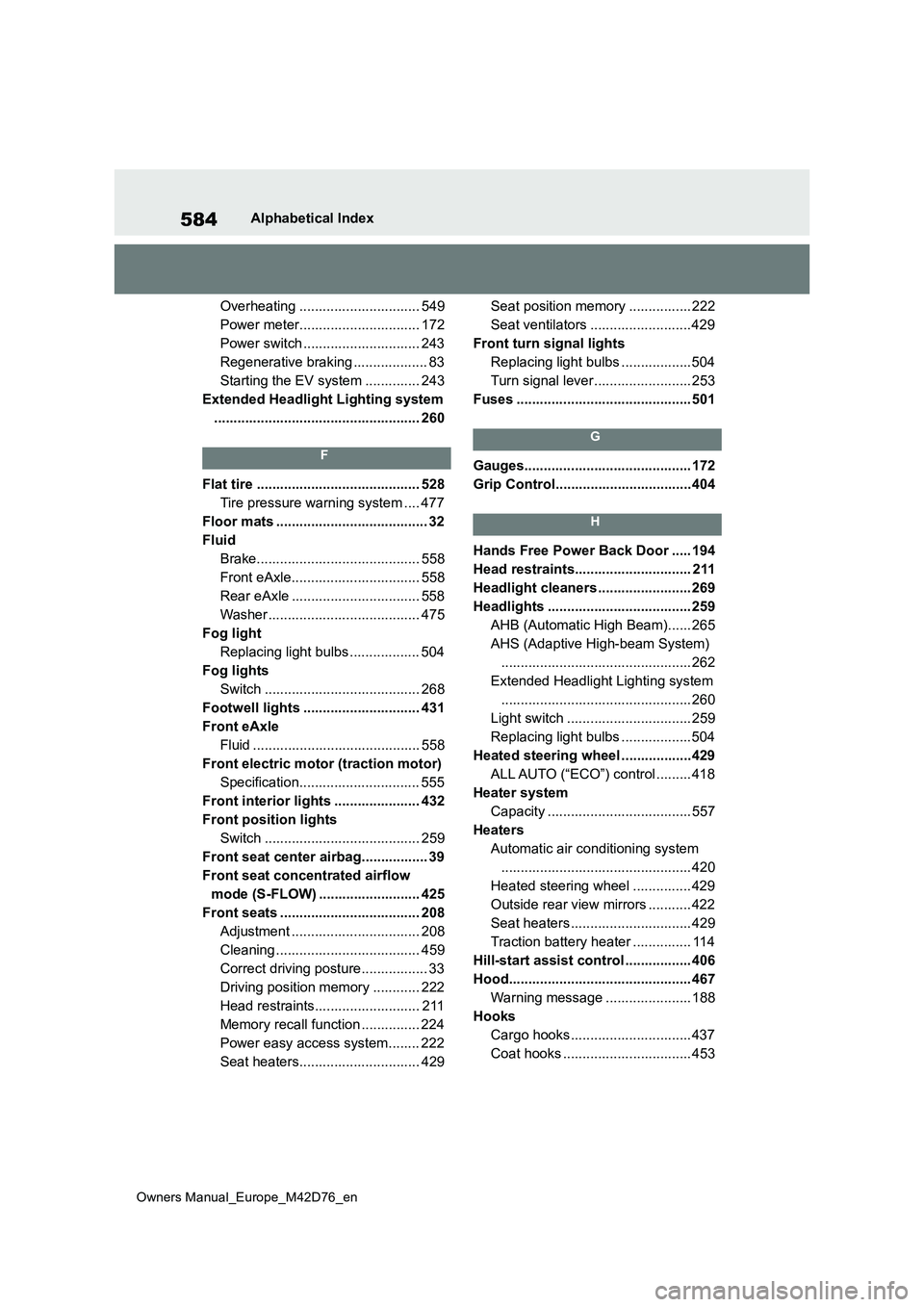

584
Owners Manual_Europe_M42D76_en
Alphabetical Index
Overheating ............................... 549
Power meter............................... 172
Power switch .............................. 243
Regenerative braking ................... 83
Starting the EV system .............. 243
Extended Headlight Lighting system
..................................................... 260
F
Flat tire .......................................... 528
Tire pressure warning system .... 477
Floor mats ....................................... 32
Fluid
Brake.......................................... 558
Front eAxle................................. 558
Rear eAxle ................................. 558
Washer ....................................... 475
Fog light
Replacing light bulbs .................. 504
Fog lights
Switch ........................................ 268
Footwell lights .............................. 431
Front eAxle
Fluid ........................................... 558
Front electric motor (traction motor)
Specification............................... 555
Front interior lights ...................... 432
Front position lights
Switch ........................................ 259
Front seat center airbag................. 39
Front seat concentrated airflow
mode (S-FLOW) .......................... 425
Front seats .................................... 208
Adjustment ................................. 208
Cleaning ..................................... 459
Correct driving posture................. 33
Driving position memory ............ 222
Head restraints........................... 211
Memory recall function ............... 224
Power easy access system........ 222
Seat heaters............................... 429
Seat position memory ................ 222
Seat ventilators .......................... 429
Front turn signal lights
Replacing light bulbs ..................504
Turn signal lever ......................... 253
Fuses ............................................. 501
G
Gauges........................................... 172
Grip Control...................................404
H
Hands Free Power Back Door ..... 194
Head restraints.............................. 211
Headlight cleaners ........................ 269
Headlights ..................................... 259
AHB (Automatic High Beam)...... 265
AHS (Adaptive High-beam System)
................................................. 262
Extended Headlight Lighting system
................................................. 260
Light switch ................................ 259
Replacing light bulbs ..................504
Heated steering wheel ..................429
ALL AUTO (“ECO”) control ......... 418
Heater system
Capacity ..................................... 557
Heaters
Automatic air conditioning system
................................................. 420
Heated steering wheel ............... 429
Outside rear view mirrors ........... 422
Seat heaters ............................... 429
Traction battery heater ............... 114
Hill-start assist control ................. 406
Hood............................................... 467
Warning message ...................... 188
Hooks
Cargo hooks ............................... 437
Coat hooks ................................. 453

588
Owners Manual_Europe_M42D76_en
Alphabetical Index
Power windows
Door lock linked window operation
................................................. 220
Jam protection function .............. 219
Operation ................................... 219
Window lock switch .................... 221
Pre-Collision System (PCS) ......... 283
Enabling/disabling the system ... 293
Function ..................................... 283
Warning light .............................. 520
R
Radar cruise control .................... 316
Radar cruise control (dynamic radar
cruise control) ............................ 307
RCD (Rear Camera Detection) ..... 348
Enabling/disabling the system ... 349
RCTA (Rear Crossing Traffic Alert)
..................................................... 343
Enabling/disabling the system ... 344
Rear Camera Detection (RCD) ..... 348
Enabling/disabling the system ... 349
Rear Crossing Traffic Alert (RCTA)
..................................................... 343
Enabling/disabling the system ... 344
Rear eAxle
Fluid ........................................... 558
Rear electric motor (traction motor)
Specification............................... 556
Rear fog light
Replacing light bulbs .................. 504
Switch ........................................ 268
Rear interior lights ....................... 432
Rear seat
Folding down the rear seatbacks210
Rear seats ..................................... 209
Adjustment ................................. 209
Head restraints........................... 211
Rear turn signal lights
Replacing light bulbs .................. 504
Turn signal lever ........................ 253
Rear view mirror
Inside rear view mirror................ 216
Outside rear view mirrors ........... 217
Rear window defogger ................. 422
Regenerative braking ..................... 83
Warning lights.............................515
Remote Air Conditioning System 427
Replacing
Electronic key battery ................. 499
Fuses ......................................... 501
Light bulbs .................................. 504
Tires ........................................... 488
Replacing the tire.......................... 488
Road Sign Assist (RSA) ............... 304
Roof luggage carrier..................... 235
RSA (Road Sign Assist) ............... 304
S
Safe Exit Assist (SEA)
Enabling/disabling the system.... 330
SEA (Safe Exit Assist) ..................328
Enabling/disabling the system.... 330
Seat belt reminder light ................ 517
Seat belt shoulder anchor height
Adjustment ................................... 37
Seat belts ......................................... 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint system installation. 49
Cleaning and maintaining the seat
belt ........................................... 459
Emergency Locking Retractor ...... 37
How to wear your seat belt..... 34, 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer ......... 517
Seat belt pretensioners ................ 37
SRS warning light.......................516
Seat heaters .................................. 429

592
Owners Manual_Europe_M42D76_en
Alphabetical Index
U
USB charging ports ...................... 445
Utility vehicle precautions
Off-road driving .......................... 414
Utility vehicle precautions .......... 414
V
Vanity lights
Vanity lights ................................ 444
Vanity mirrors ............................... 444
Vanity lights ................................ 444
Vehicle data recording ..................... 7
Vehicle identification number...... 554
Vehicle information display ......... 178
Vehicle Stability Control (VSC).... 406
Ventilators (seat ventilators) ....... 429
VSC (Vehicle Stability Control).... 406
W
Warning buzzers
Acceleration Suppression at Low
Speed ...................................... 286
Approach warning ...................... 313
Brake hold .................................. 521
Brake Override System .............. 516
Brake system ............................. 515
Break suggestion function.......... 301
Cruise control ............................. 519
Drive-Start Control ..................... 516
Dynamic radar cruise control ..... 520
Electric power steering............... 517
Hands off steering wheel warning
(LDA) ....................................... 301
Hands off steering wheel warning
(LTA) ........................................ 296
LDA (Lane Departure Alert) 299, 518
LTA (Lane Tracing Assist) .. 294, 518
Open door .......................... 186, 188
Open window ............................. 220
PARK ASSIST OFF .................... 519
PCS (Pre-Collision System) ....... 520
Pre-collision warning ..................284
Seat belt ..................................... 517
Speed Limiter .............................520
SRS airbag ................................. 516
Tire pressure .............................. 518
Toyota parking assist-sensor.... 338,
519
Warning lights ............................... 515
ABS ............................................ 516
Brake hold operated indicator .... 521
Brake Override System .............. 516
Brake system .............................515
Charging system ........................ 515
Cruise control indicator .............. 519
Drive-Start Control ..................... 516
Driving assist information indicator
................................................. 519
Dynamic radar cruise control indica-
tor ............................................. 520
Electric power steering ............... 517
LDA indicator .............................. 518
LTA indicator ............................... 518
PARK ASSIST OFF indicator ..... 519
Parking brake indicator .............. 521
Pre-collision system ................... 520
Seat belt reminder light .............. 517
Slip indicator............................... 520
Speed Limiter indicator .............. 520
SRS airbag ................................. 516
Tire pressure .............................. 518
Toyota parking assist-sensor OFF
indicator ...................................519
Traction battery charge .............. 517
Warning messages .......................523
Washer
Headlight cleaners ..................... 269
Low washer fluid warning message
................................................. 475
Preparing and checking before win-
