5-4. Using the driving support systems
bz4x.2203.ev.vh
2 Select the file which includes the
previously checked system ver-
sion.
If a software update is available, a
notification will be displayed on the
multimedia display. Follow the
instructions displayed on the
screen.
When the software is updated, the
way functions are used may
change and functions may be
added.
For details about changes or addi-
tions, check the Owner’s Manual
website.
■Software update precautions
●After a software update has been per-
formed, it will not be possible to revert to a previous version.
●Depending on the communication environment and the content of an update, a software update may take
several hours. Although an update will be suspended when the power switch is turned off, it will resume when the
power switch is changed back to ON.
●Toyota Safety Sense can still be used
while a software update is being per-
formed.
●In the following situations, a software update may be performed automati-
cally: • When a possible system issue or other safety related issue is cor-
rected*1
• When a legal issue is corrected*1
• When small corrections which do not
affect system operation or perfor-
mance are made*2
*1: All available updates may be installed
and the software updated to the most
current version.
*2: A notification screen will not be dis-
played.
■Checking the driving assist func- tion update notification
The following items can be checked or performed.
●Software version, update details, pre-cautions, use methods, etc.
●A link to display the software update history
●Software update
Updating the software

275
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
Toyota Safety Sense
The Toyota Safety Sense con-
sists of the driving assist sys-
tems and contributes to a safe
and comfortable driving expe-
rience:
WARNING
■Toyota Safety Sense
The Toyota Safety Sense operates under the assumption that the driver will drive safely, and is designed to
help reduce the impact to the occu- pants in a collision and assist the driver under normal driving condi-
tions. As there is a limit to the degree of recognition accuracy and control performance that this system can pro-
vide, do not overly rely on this sys- tem. The driver is solely responsible for paying attention to the vehicle’s
surroundings and driving safely.
■For safe use
●Do not overly rely on this system. The driver is solely responsible for paying attention to the vehicle’s sur-
roundings and driving safely. This system may not operate in all situa-tions and provided assistance is
limited. Over-reliance on this sys- tem to drive the vehicle safely may lead to an accident resulting in
death or serious injury.
●Do not attempt to test the operation
of the system, as it may not operate properly, possibly leading to an accident.
●If attention is necessary while per-forming driving operations or a sys-
tem malfunction occurs, a warning message or warning buzzer will be operated. If a warning message is
displayed on the display, follow the instructions displayed.
●Depending on external noise, the volume of the audio system, etc., it may be difficult to hear the warning
buzzer. Also, depending on the road conditions, it may be difficult to recognize the operation of the sys-
tem.
■When it is necessary to disable
the system
In the following situations, make sure to disable the system.
Failure to do so may lead to the sys- tem not operating properly, possibly leading to an accident resulting in
death or serious injury.
●When the vehicle is tilted due to
being overloaded or having a flat tire
●When driving at extremely high speeds
●When towing another vehicle
●When the vehicle is being trans-
ported by a truck, ship, train, etc.
●When the vehicle is raised on a lift
and the tires are allowed to rotate freely
●When inspecting the vehicle using a drum tester such as a chassis dynamometer or speedometer tes-
ter, or when using an on vehicle wheel balancer
●When the vehicle is driven in a sporty manner or off-road
●When using an automatic car wash
●When a sensor is misaligned or
deformed due to a strong impact being applied to the sensor or the area around the sensor
●When accessories which obstruct a sensor or light are temporarily
installed to the vehicle

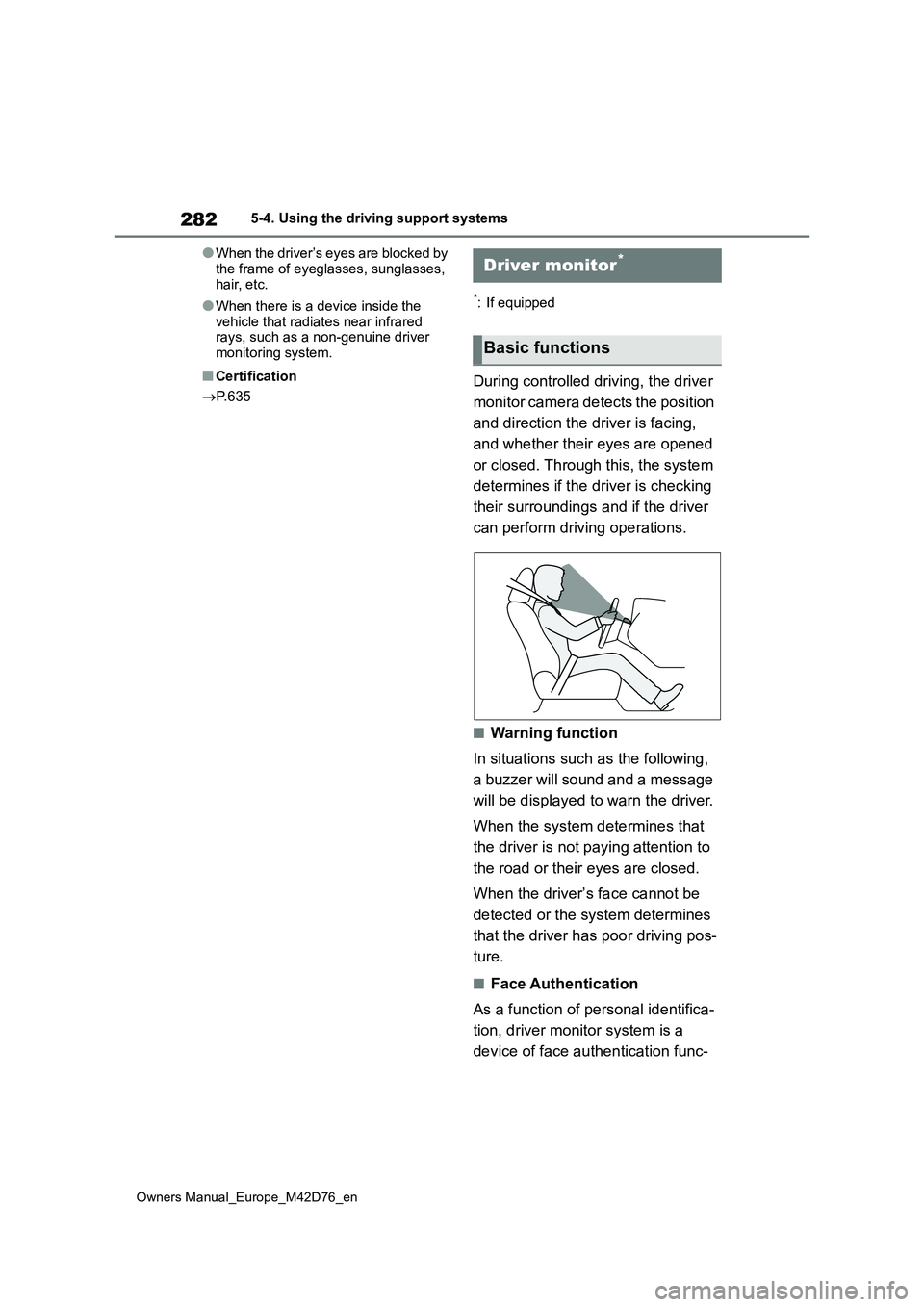

282
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
●When the driver’s eyes are blocked by
the frame of eyeglasses, sunglasses, hair, etc.
●When there is a device inside the vehicle that radiates near infrared rays, such as a non-genuine driver
monitoring system.
■Certification
 P. 6 3 5
*: If equipped
During controlled driving, the driver
monitor camera detects the position
and direction the driver is facing,
and whether their eyes are opened
or closed. Through this, the system
determines if the driver is checking
their surroundings and if the driver
can perform driving operations.
■Warning function
In situations such as the following,
a buzzer will sound and a message
will be displayed to warn the driver.
When the system determines that
the driver is not paying attention to
the road or their eyes are closed.
When the driver’s face cannot be
detected or the system determines
that the driver has poor driving pos-
ture.
■Face Authentication
As a function of personal identifica-
tion, driver monitor system is a
device of face authentication func-
Driver monitor*
Basic functions

284
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
The system can detect the follow-
ing as detectable objects. (Detect-
able objects differ depending on the
function.)
 Vehicles
 Bicycles*
Pedestrians
 Motorcycles*
*: Detected as a detectable object only
when being ridden.
■Pre-collision warning
When the system determines that
the possibility of a collision is high,
a buzzer will sound and an icon and
warning message will be displayed
on the multi-information display to
urge the driver to take evasive
action.
If the detectable object is a vehicle,
moderate braking will be performed
with the warning.
“Pre-Collision System”
If the system determines that the
accelerator pedal is strongly
depressed, the following icon and
message will be displayed on the
multi-information display.
“Accelerator Pedal is Pressed”
■Pre-collision brake assist
If the system determines that the
possibility of a collision is high and
the brake operation by the driver is
insufficient, the braking power will
be increased.
■Pre-collision brake control
If the system determines that the
possibility of a collision is extremely
WARNING
●Although the pre-collision system is designed to help avoid or help
reduce the impact of a collision, its effectiveness may change accord-ing to various conditions. Therefore,
it may not always be able to achieve the same level of perfor-mance. Read the following items
carefully. Do not overly rely on this system and always drive carefully.
• For safe use: P. 2 7 5
■When to disable the pre-colli- sion system
When it is necessary to disable the system: P. 2 7 5
Detectable objects
System functions

285
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
high, the brakes are automatically
applied to help avoid the collision or
reduce the impact of the collision.
■Emergency steering assist
If the system determines that the
following conditions are met, assis-
tance will be provided to help
enhance vehicle stability and pre-
vent lane departure. During assis-
tance, in addition to the pre-
collision warning, the following icon
will be displayed on the multi-infor-
mation display.
 The possibility of a collision is
high
 There is sufficient space within
the lane to perform evasive
steering maneuvers
 The driver is operating the steer-
ing wheel
During assistance, the pre-collision
warning will operate and a mes-
sage will be displayed to warn the
driver.
■Intersection collision avoid-
ance support (left/right turn)
In situations such as the following,
if the system determines that the
possibility of a collision is high, the
pre-collision warning and pre-colli-
sion braking will operate. Depend-
ing on the intersection, assistance
may not operate correctly.
 When turning left/right at an
intersection and crossing the
path of an oncoming vehicle
 When turning left/right and an
oncoming pedestrian or bicycle
is detected
■Intersection collision avoid-
ance support (crossing vehi-
cles)
At an intersection, etc., if the sys-
tem determines that the possibility
of a collision with an approaching
vehicle or motorcycle is high, the
pre-collision warning and pre-colli-
sion braking will operate. Depend-
ing on the intersection, assistance
may not operate correctly.

286
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
■Acceleration Suppression at
Low Speed
When driving at a low speed, if the
accelerator pedal is strongly
depressed and the system deter-
mines that there is a possibility of a
collision, EV system output will be
restrained or the brakes will be
applied weakly to restrict accelera-
tion. During operation, a buzzer will
sound and a warning indicator and
message will be displayed on the
multi-information display.
“Accelerator Pedal is Pressed”
WARNING
■Pre-collision braking
●When the pre-collision braking function is operating, a large amount of braking force will be
applied.
●Pre-collision braking function is not intended for remain stopped. If the vehicle is stopped by pre-collision
braking function, the driver should operate the brakes as necessary.
●The pre-collision braking function may not operate if certain opera-tions are performed by the driver. If
the accelerator pedal is being depressed strongly or the steering wheel is being turned, the system
may determine that the driver is tak- ing evasive action and possibly pre-vent the pre-collision braking
function from operating.
●If the brake pedal is being
depressed, the system may deter- mine that the driver is taking eva-sive action and possibly delay the
operation timing of the pre-collision brake control.
■Acceleration Suppression at Low Speed
If the steering wheel is being turned,
the system may determine that the driver is taking evasive action and possibly prevent the Acceleration
Suppression at Low Speed function from operating.
■Emergency steering assist
●The emergency steering assist will be canceled when the system
determines that lane departure pre- vention control has completed.
●Depending on operations per-formed by the driver, emergency steering assist may not operate or
operation may be canceled.
• If the accelerator pedal is
depressed strongly, the steering wheel is turned heavily, the brake pedal is depressed, or the turn sig-
nal lever is operated, the system may determine that the driver is tak-ing evasive action and the emer-
gency steering assist may not operate.

293
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
• When a detectable object is too close
to the vehicle • When there is insufficient space to perform evasive steering maneuvers
or an obstruction exists in the evasion direction• When there is an oncoming vehicle
 The pre-collision system can be
enabled/disabled through a cus-
tomize setting. ( P.568)
The system is enabled each time the
power switch is turned to ON.
 When the system is disabled, the
PCS warning light will illuminate
and a message will be displayed
on the multi-information display.
“Pre-Collision System OFF”
 The pre-collision setting can be
changed on the customize set-
tings. ( P.568)
 When the pre-collision warning
timing is changed, the emer-
gency steering assist (excluding
the active steering function) tim-
ing will also be changed. When
“Later” is selected, the emer-
gency steering assist (excluding
the active steering function) will
not operate in most cases.
 Vehicles with a driver monitor
camera: When the system deter-
mines that the driver is not facing
forward, the pre-collision warning
and emergency steering assist
will operate at the “Earlier” tim-
ing, regardless of the user set-
ting.
 When the dynamic radar cruise
control is operating, the pre-colli-
sion warning will operate at the
“Earlier” timing, regardless of the
user setting.
Changing the pre-collision
setting

294
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
When driving on a road with
clear lane lines with the dynamic
radar cruise control operating,
lane lines and preceding and
surrounding vehicles are
detected using the front camera
and radar sensor, and the steer-
ing wheel is operated to maintain
the vehicle’s lane position.
Use the this function only on highways
and expressways.
If the dynamic radar cruise control is
not operating, the function will not oper-
ate.
In situations where the lane lines are
difficult to see or are not visible, such as
when in a traffic jam, support will be
provided using the path of preceding
and surrounding vehicles.
If the system determines that the steer-
ing wheel has not been operated for a
certain amount of time or the steering
wheel is not being firmly gripped, the
driver will be alerted via a display and
this function will be temporarily can-
celed.
If the steering wheel is firmly gripped,
the function will begin operating again.
 When the function is operating, if
the vehicle is likely to depart from
its lane, the driver will be alerted
via a display and buzzer.
When the buzzer sounds, check the
area around the vehicle and carefully
operate the steering wheel to move the
vehicle back to the center of the lane.
LTA (Lane Tracing
Assist)
LTA functions
