For your information....................... 6
Reading this manual .................... 12
How to search .............................. 13
Pictorial index .............................. 14
1-1. For safe useBefore driving ...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant classification system ......... 48
Safety information for children ............................. 53
Child restraint systems ........ 54
Installing child restraints ...... 58
Exhaust gas precautions ..... 68
1-2. Emergency assistance Safety Connect.................... 69
1-3. Hybrid system Hybrid system features ....... 75
Hybrid system precautions ....................... 79
1-4. Theft deterrent system Immobilizer system ............. 86
Alarm ................................... 88 2. Instrument cluster
Warning lights and indicators ........................... 92
Gauges and meters ............. 98
Multi-information display .... 102
Head-up display................. 123
Energy monitor/ consumption screen ........ 130
3-1. Key information Keys................................... 138
3-2. Opening, closing and locking the doors
Doors ................................. 142
Trunk ................................. 148
Smart key system .............. 152
3-3. Adjusting the seats Front seats......................... 159
Rear seats ......................... 161
Driving position memory .... 163
Head restraints .................. 168
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 170
Inside rear view mirror ....... 172
Outside rear view mirrors ............................. 174
3-5. Opening and closing the windows
Power windows.................. 177
Moon roof .......................... 181
1For safety and security
2Instrument cluster
3Operation of each
component

14Pictorial index
Pictorial index
■
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 177
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 507
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 163
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 365
1
2
3

19Pictorial index
Driving position memory switches*1. . . . . . . . . . . . . . . . . . P. 163
Driving position memory
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 163
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 174
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 144
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
1
2
3
4
5
*1: If equipped
*2: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.

22Pictorial index
Interior lights/personal lights*1 . . . . . . . . . . . . . . . . . . . . . . P. 374
Moon roof switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
“SOS” button
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 69
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Garage door opener switches
*2. . . . . . . . . . . . . . . . . . . . . . P. 399
1
2
3
4
5
6
7
*1: The illustration shows the front, but they are also equipped in the rear.
*2: If equipped

261-1. For safe use
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 1 5 9 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 159)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 1 6 8 )
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until th e child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 54)
Make sure that you can see backward clearly by adjusting the in side
and outside rear view mirrors properly. (P. 172, 174)
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

922. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

962. Instrument cluster

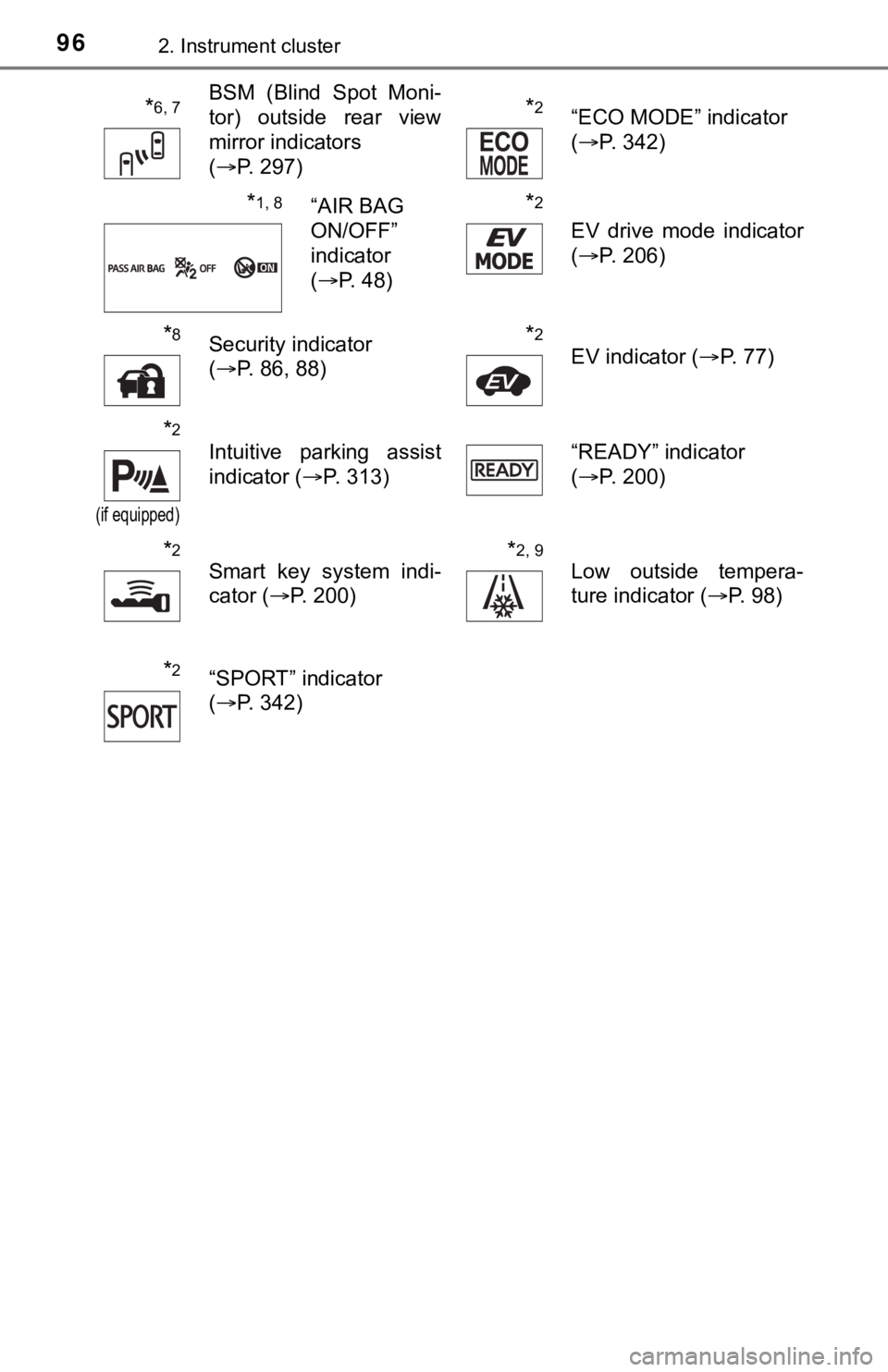

*6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 297)*2“ECO MODE” indicator
(P. 342)
*1, 8“AIR BAG
ON/OFF”
indicator
(P. 48)*2
EV drive mode indicator
(P. 206)
*8Security indicator
(P. 86, 88)*2
EV indicator ( P. 77)
*2
(if equipped)
Intuitive parking assist
indicator ( P. 313) “READY” indicator
(
P. 200)
*2
Smart key system indi-
cator (P. 200)*2, 9
Low outside tempera-
ture indicator ( P. 98)
*2“SPORT” indicator
(P. 342)

972. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light turns on when the system is off.
*4: Depending on the operating condition, the color and illuminating/flashing state of the light change.
*5: This light flashes to indicate that the system is operating.
*6: These indicators will illuminate in the following situations to indicate thatthe system initial check is being performed:
• When the BSM function or RCTA function is enabled and the powe r
switch is turned to ON mode.
• When the power switch is ON mode and the BSM function is enabl ed.
• When the power switch is ON mode and the RCTA function is enabled. (At this time, a buzzer will also sound).
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
*9: When the outside temperature is approximately 37°F (3°C) or lo wer, this
indicator will flash for approximately 10 seconds, then stay on .
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
