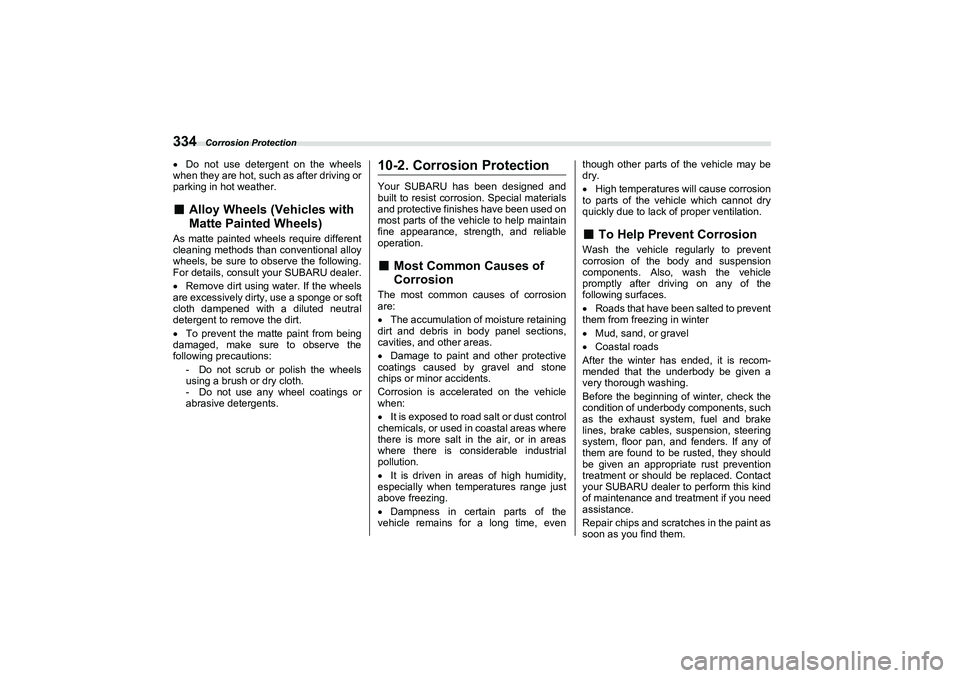

2022 SUBARU BRZ steering wheel

Corrosion Protection
334Do not use detergent on the wheels
when they are hot, such as after driving or
parking in hot weather.■
Alloy Wheels (Vehicles with
Matte P ainted Wheels)
As matte painted wheels require different
cleaning methods than conventional alloy
wheels, be sure to observe the following.
For details, consult your SUBARU dealer.
Remove dirt using water. If the wheels
are excessively dirty, use a sponge or soft
cloth dampened with a diluted neutral
detergent to remove the dirt.
 To prevent the matte paint from being
damaged, make sure to observe the
following precautions:
- Do not scrub or polish the wheels
using a brush or dry cloth.
- Do not use any wheel coatings or
abrasive detergents.
10-2. Corrosion ProtectionYour SUBARU has been designed and
built to resist corrosi on. Special materials
and protective finishes have been used on
most parts of the vehicle to help maintain
fine appearance, strength, and reliable
operation.■
Most Common Causes of
Corrosion
The most common causes of corrosion
are:
 The accumulation of moisture retaining
dirt and debris in body panel sections,
cavities, and other areas.
 Damage to paint and other protective
coatings caused by gravel and stone
chips or minor accidents.
Corrosion is accelera ted on the vehicle
when:
 It is exposed to road salt or dust control
chemicals, or used in coastal areas where
there is more salt in the air, or in areas
where there is considerable industrial
pollution.
 It is driven in areas of high humidity,
especially when temperatures range just
above freezing.
 Dampness in certain parts of the
vehicle remains for a long time, even though other parts of the vehicle may be
dry.

High temperatures will cause corrosion
to parts of the vehicle which cannot dry
quickly due to lack of proper ventilation.
■
To Help Prevent Corrosion
Wash the vehicle regularly to prevent
corrosion of the body and suspension
components. Also, wash the vehicle
promptly after driving on any of the
following surfaces.
 Roads that have been salted to prevent
them from freezing in winter
 Mud, sand, or gravel
 Coastal roads
After the winter has ended, it is recom-
mended that the underbody be given a
very thorough washing.
Before the beginning of winter, check the
condition of underbody components, such
as the exhaust system, fuel and brake
lines, brake cables, suspension, steering
system, floor pan, and fenders. If any of
them are found to be rusted, they should
be given an appropriate rust prevention
treatment or should be replaced. Contact
your SUBARU dealer to perform this kind
of maintenance and treatment if you need
assistance.
Repair chips and scratches in the paint as
soon as you find them.
B5=B8.ERRN 334 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
362Roadholding is good, and steering
is responsive. Rolling resistance is
low, so fuel consumption is also
lower.
Under inflated tires (tread worn at
shoulders) Rolling resistance is high, so fuel
consumption is also higher.

Over inflated tires (tread worn in
center) Ride comfort is poor. Also, the tire
magnifies the effects of road
surface bumps and dips, possibly
resulting in vehicle damage.
B00050
B00051
WARNING
Driving at high speeds with
excessively low tire pressures
can cause the tires to deform
severely and to rapidly
become hot. A sharp increase
in temperature could cause
tread separation, and destruc-
tion of the tires. The resulting
loss of vehicle control could
lead to an accident.
B00052
B5=B8.ERRN 362 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
363
Maintenance and Service11
– CONTINUED –
■
Wheel Balance
Each wheel was correctly balanced
when your vehicle was new, but the
wheels will become unbalanced as
the tires become worn during use.
Wheel imbalance causes the
steering wheel to vibrate slightly at
certain vehicle speeds and detracts
from the vehicle’s straight-line
stability. It can also cause steering
and suspension system problems
and abnormal tire wear. If you
suspect that the wheels are not
correctly balanced, have them
checked and adjusted by your
SUBARU dealer. Also have them
adjusted after tire repairs and after
tire rotation.
NOTEThe suspension system is
designed to hold each wheel at a
certain alignment (relative to the
other wheels and to the road) for
optimum straight-line stability
and cornering performance.■
Wear Indicators1) New tread
2) Worn tread3)
Tread wear indicator
Each tire incorporates a tread wear
indicator, which becomes visible
when the depth of the tread grooves
decreases to 0.063 in (1.6 mm). A tire must be replaced when the
tread wear indicator appears as a
solid band across the tread.
NOTEFor safety, inspect the tire tread
regularly and replace the tires
before their tread wear indicators
become visible.
CAUTION
Loss of correct wheel align-
ment causes the tires to wear
on one side and reduces the
vehicle’s running stability.
Contact your SUBARU dealer
if you notice abnormal tire
wear.
12
3
B00327
WARNING
When a tire’s tread wear indi-
cator becomes visible, the tire
is worn beyond the accept-
able limit and must be
replaced immediately. With a
tire in this condition, driving at
high speeds in wet weather
can cause the vehicle to
hydroplane. The resulting loss
of vehicle control can lead to
an accident.
B5=B8.ERRN 363 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Index
418Specifications .......................................................................P380
Speedometer........................................................................P127
SRS airbag (Supplemental Restraint System airbag) ..... P5, P60Monitors .............................................................................P87
Servicing ............................................................................P88
Warning light................................................... P69, P87, P135
Starting & stopping engine ...................................................P229
State emission testing (U.S. only) ........................................P227
Steering lock ........................................................................P232
Steering Responsive Headlight ..... .......................................P180
OFF indicator ...................................................................P150
OFF indicator light ...........................................................P150
ON/OFF setting .................................................... P150, P180
Warning light....................................................................P150
Steering wheel
Lock .................................................................................P232
Power ..............................................................................P243
Tilt/telescopic ...................................................................P195
Stopwatch ............................................................................P155
Storage compartment...........................................................P213
Summer tires ........................................................................P358
Sun visors ............................................................................P213
Supplemental Restraint System (S RS) ..................................P60
Supplemental Restraint System ai rbag (SRS) .......................P60
Curtain airbag ....................................................................P80
Side airbag ............................... .........................................P80
Synthetic leather upholstery .......... .......................................P336
TTachometer ......................................................................... P127
Temperature gauge ............................................................. P129
Temperature warning light
AT OIL TEMP ................................................................. P138
Tether (child restrain t system) ....................................... P55, P58
Tie-down hooks ................................................................... P320
Tilt/telescopic steering wheel ...... ........................................ P195
Tire ............................................................................ P358, P385 All season tires ............................................................... P358
Chains............................................................................. P297
Information ...................................................................... P394
Inspection ....................................................................... P360
Pressures and wear ........................................................ P361
Replacement................................................................... P365
Rotation .......................................................................... P364
Size and pressure ........ .......................................... ......... P385
Types .............................................................................. P358
Tire pressure monitoring system (TPMS)........P252, P315, P358
Screen ............................................................................ P254
Warning light ................................................................... P138
Tires and wheels ................................................................. P358
Tools.................................................................................... P302
Top tether anchorages .................................................. P55, P58
Towing ................................................................................. P320
All wheels on the ground ................................................ P324
Flat-bed truck .................................................................. P324
Hooks.............................................................................. P320
Tie-down hooks .............................................................. P320
B5=B8.ERRN 41 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Index
420
Power steering.................................................................P141
Seatbelt ...........................................................................P131
SRS airbag system ..........................................................P135
Steering Responsive Headlight .......................................P150
Vehicle Stability Control (VSC) ........................................P142
Warning message display ....................................................P159
Warranties ................................................................................P2
Washing ...............................................................................P332
Waxing and polishing ...........................................................P333
Wear indicators ....................................................................P363
Welcome lighting function ....................................................P175
Wheel Alloy .................................................................................P366
Balance............................................................................P363
Nut tightening torque ............................................ P303, P385
Replacement ...................................................................P365
Windows...............................................................................P116
Windshield Washer fluid.....................................................................P366
Wiper and washer switches .............................................P183
Wiper blades....................................................................P368
Winter Driving .............................................................................P293
Tires...................................................................... P296, P358
Wiper and washer ................................................................P183
B5=B8.ERRN 420 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
