2022 SUBARU BRZ tow

Trailer Towing
299
Driving Tips8
weight of the driver and all passengers,
their belongings, and any optional equip-
ment.■
GVWR and GAWR (Gross
Vehicle Weight Rating and
Gross Axle Weight Rating)Certification labelThe certification label attached to the
driver’s side center pillar shows GVWR
(Gross Vehicle Weight Rating) and
GAWR (Gross Axle Weight Rating).
The GVW (Gross Vehicle Weight) must
never exceed the GVWR. GVW is the
combined total of weight of the vehicle,
fuel, driver, all passengers, luggage, and
any optional equipment. Therefore, the
GVW changes depending on the situation.In addition, the tota
l weight applied to
each axle (GAW) must never exceed the
GAWR. The front and rear GAWs can be
adjusted by relocating luggage inside the
vehicle.
Even if the total weight of your luggage is
lower than the vehicl e capacity weight,
either front or rear GAW may exceed the
GAWR, depending on the distribution of
the luggage.
When possible, the load should be evenly
distributed throughout the vehicle.
If you carry heavy loads in the vehicle, you
should confirm that GVW and front and
rear GAWs are within the GVWR and
GAWR by putting your vehicle on a
vehicle scale, found at a commercial
weighing station.
Do not use replacement tires with a lower
load range than the originals because
they may lower the GVWR and GAWR
limitations. Replacement tires with a
higher load range than the originals do not
increase the GVWR and GAWR limita-
tions.
8-10. Trailer TowingSUBARU assumes no responsibility for
injuries or vehicle damage that may result
from trailer towing, from any trailer towing
equipment or from any errors or omissions
in the instructions accompanying such
equipment. SUBARU warranties do not
apply to vehicle damage or malfunction
caused by trailer towing.
801321
CAUTION
Your vehicle is neither designed nor
intended to be used for trailer tow-
ing. Therefore, never tow a trailer
with your vehicle.
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

In Case of Emergency9
In Case of Emergency
9-1. If You Park Your Vehicle in an Emergency.......302
9-2. Maintenance Tools..............................................302
Models with Flat Tire Repair Kit ..................................303
Models with Spare Tire ................................................303
9-3. Flat Tires ..............................................................303
Changing a Flat Tire .....................................................303
Sealing a Flat Tire (Models with the Flat Tire Repair Kit) ...........................................................306
Tire Pressure Monitoring System (TPMS) (If Equipped) ...............................................................315
TPMS Screen (If Equipped)..........................................316
9-4. Jump Starting ......................................................316
Battery Precautions......................................................316
How to Jump Start ........................................................317
9-5. Engine Overheating ............................................319
If Steam Is Coming from the Engine Compartment ..............................................................319 If No Steam Is Coming from the Engine
Compartment ............................................................. 319
9-6. Towing .................................................................320
Towing Hook and Tie-Down Hooks/Holes ................. 320
Using a Flat-Bed Truck................................................ 324
Towing with All Wheels on the Ground ..................... 324
9-7. Access Key Fob – If Access Key Fob Does
Not Operate Properly ...... ..................................325
Locking and Unlocking ............................................... 326
Switching Power Status .............................................. 326
Starting Engine ............................................................ 326
9-8. Malfunctions of the Center Information
Display ...............................................................327
9-9. If Your Vehicle Is Invo lved in an Accident ........328
To Restart the Engine When Involved in an
Accident ..................................................................... 328
B5=B8.ERRN 301 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

If You Park Your Vehicle in an Emergency
3029-1. If You Park Your Vehiclein an EmergencyThe hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.
The hazard warning flasher can be acti-
vated regardless of the ignition switch
position.
Turn on the hazard warning by pressing
the hazard warning flasher switch. Turn it
off by pressing the switch again.
When the hazard warning flasher are
flashing, the corresponding turn signal
indicator will also flash.
NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
9-2. Maintenance ToolsYour vehicle is equipped with the following
maintenance tools.
Jack
 Jack handle
 Screwdriver
 Towing hook (eye bolt)
 Wheel nut wrench
901197
B5=B8.ERRN 302 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
303
In Case of Emergency9
– CONTINUED –
■
Models with Flat Tire Repair
Kit1) Under-floor storage compartment
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)6) Screwdriver
7) Flat tire repair kit
■
Models with Spare Tire1) Spare tire
2) Jack handle
3) Wheel nut wrench
4) Jack
5) Towing hook (eye bolt)
6) Screwdriver
9-3. Flat TiresIf you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.■
Changing a Flat Tire
1
6
4
7
5
2
3901198
1
6
45
2
3901216
WARNING

Use only the jack and the jack
handle provided with your
vehicle. The jack supplied with
the vehicle is designed only for
changing a tire. Never get under
the vehicle while supporting the
vehicle with this jack.Do not jack up the vehicle on an
incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in
serious injury or death.Before jacking up the vehicle, be
sure that there are no occupants
or cargo on board.Do not jack up the vehicle with an
object on or underneath the jack.
The jack can be unstable and this
can result in a severe accident.
B5=B8.ERRN 303 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
308Do not use tire chains on a sealed
tire.Do not tow a trailer.If used for a purpose other than
sealing a flat tire, the flat tire
repair kit may cause a severe
accident or injury due to the fact
that compressed air can act as an
explosive or propellant.Safely park your vehicle on the
roadside so that you do not
obstruct the flow of traffic and so
that you are able to seal the flat
tire without being in danger.Apply the parking brake, even if
the vehicle is parked on a level
road, to make sure that the
vehicle will not move.Stop the engine before sealing
the flat tire.Turn on the hazard warning
flasher while sealing the flat tire.Do not attempt to remove foreign
objects like nails or screws that
have penetrated the tire. Leave
them as they are. Never leave the flat tire repair kit
unattended while in use.Only one tire can be repaired with
one bottle of sealant.
The tires can be repaired when
the ambient temperature is −22 °F
( − 30 °C) or higher.
CAUTION
 Remember that the flat tire repair
kit only provides temporary
mobility. Regulations concerning
tire repair after usage of flat tire
repair kit may di ffer from country
to country. We recommend that
you consult your SUBARU dealer
or tire dealer for advice. Store the flat tire repair kit safely
and secure it under the floor of
the trunk. Storing it anywhere in
the passenger compartment is
not advisable because it could
strike an occupant in the event of
a sudden stop or collision and
cause injury. Use the flat tire repair kit with
original vehicle tires only.Do not keep the air compressor
operating for more than 10
minutes, otherwise there is a risk
of overheating.The temperature of the air
compressor may become high.
Be careful not to burn yourself.
When raining, take measures to
prevent the air compressor from
being exposed directly to the
rain. Exposing to rain may cause
a malfunction.Do not use air compressors other
than the one in the repair kit.
Using an air compressor other
than the one in the repair kit may
damage the tires.Do not disassemble or modify the
air compressor to enable the use
of a power supply or a battery
other than DC 12 V.If a temporary puncture repair is
performed with the repair kit, the
Tire Pressure Monitoring System
(TPMS) (if equipped) may not
operate normally.
B5=B8.ERRN 30 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Flat Tires
313
In Case of Emergency9
– CONTINUED –

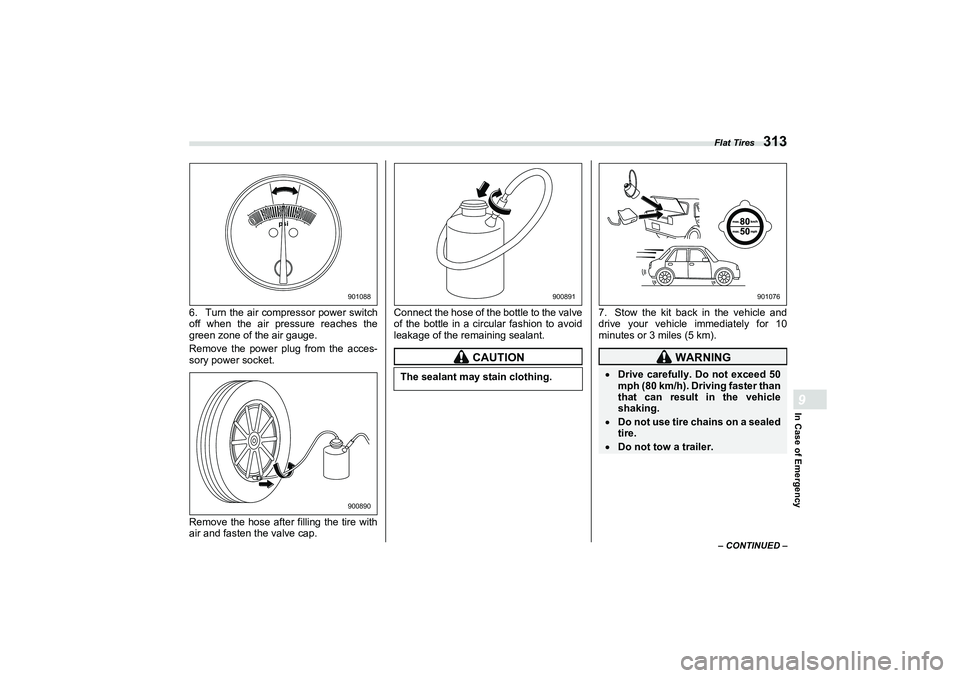

6. Turn the air compressor power switch
off when the air pressure reaches the
green zone of the air gauge.
Remove the power plug from the acces-
sory power socket.
Remove the hose after filling the tire with
air and fasten the valve cap. Connect the hose of the bottle to the valve
of the bottle in a circular fashion to avoid
leakage of the remaining sealant.
7. Stow the kit back in the vehicle and
drive your vehicle immediately for 10
minutes or 3 miles (5 km).
psi
4040
20203030
0000
901088900890
CAUTION
The sealant may stain clothing.
900891
WARNING

Drive carefully. Do not exceed 50
mph (80 km/h). Driving faster than
that can result in the vehicle
shaking.Do not use tire chains on a sealed
tire.Do not tow a trailer.
901076
B5=B8.ERRN 313 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Towing
3209-6. TowingIf towing is necessary, SUBARU recom-
mends it be done by your SUBARU dealer
or a commercial towing service.
■
Towing Hook and Tie-Down
Hooks/Holes
The towing hooks should be used only in
an emergency.
SUBARU recommends towing be done
by your SUBARU dealer or a commer-
cial towing service.
Front towing hook:
1. Take out the screwdriver, towing hook
and wheel nut wrench from the under-floor
storage compartment.
1) Upper cover
2) Lower cover2 Insert a screwdriver, with its tip covered with tape or a cloth to prevent damage
to the bumper, into the cutout of the
cover and pry up to separate the upper
WARNING
Never tow vehicles with the front
wheels raised off the ground while
the rear wheels are on the ground,
or with the rear wheels raised off
the ground while the front wheels
are on the ground.
This will cause the vehicle to dam-
age or cause an accident.
901277
CAUTION
Use only the specified towing
hook and tie-down hooks/holes.
Never use suspension parts or
other parts of the body for towing
or tie-down purposes.Never use the tie-down hole
closest to the muffler under the
vehicle for towing purposes.
1
2
901202
B5=B8.ERRN 320 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Towing
321
In Case of Emergency9
– CONTINUED –
cover. Then, pull the lower cover to
separate it.1) Slit3 Remove the covers from the bumper.
When removing the upper side cover,
align the hook portion of the cover with the
slit and push it through the slit to remove
the cover. 4 Screw the towing hook into the
threaded hole until the threads can no
longer be seen.
5 Tighten the towing hook securely using the wheel nut wrench. After towing, remove the towing hook from
the vehicle and stow it in the under-floor
storage compartment.
Fit the towing hook cover on the bumper.
Rear towing hook:
1 Take out the screwdriver, towing hook,
wheel nut wrench from the under-floor
storage compartment.
CAUTION
Do not apply excessive force when
removing the covers. Otherwise,
they may be deformed or damaged.
1
901297
901203901204
WARNING
Do not use the towing hook
except when towing your vehicle.Be sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the
vehicle could interfere with
proper operation of the SRS
airbag system in a frontal colli-
sion.
CAUTION
To prevent deformation to the
bumper and the towing hook, do not
apply excessive load to the towing
hook.
B5=B8.ERRN 321 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
