2022 SUBARU BRZ audio

Clock
173
Instruments and Controls3
■
Setting the Clock Automati-
cally
1. Turn the ignition switch to the “ON”
position.
2. Press (HOME).
3. Touch (Settings).
4.
:“General”
5.
:“Clock”
6.
:“Time Setting” 7. Models with SUBARU STARLINK
Safety and Security:

:
“AUTO”
Models without SUBARU STARLINK
Safety and Security:

: “Sync With Phone”
Models withou t SUBARU STARLINK
Safety and Security:
The clock will be set and adjusted auto-
matically when a smartphone is
connected via Bluetooth
® for transferring
phonebook data.
1. Register the smartphone to the audio
system. For details, refer to “Bluetooth
SETTINGS” in the supplemental Owner’s
Manual for the audio system.
2. Transfer phonebook data to the
system. For details, refer to “Bluetooth
SETTINGS” in the supplemental Owner’s Manual for the audi
o system. The clock
will be adjusted automatically.
NOTEFor models with out SUBARU STAR-
LINK Safety and Security: Depending
on the model of smartphone, the set-
tings of the connected smartphone
may need to be changed. (ex: For iOS
or other models, notification settings
may need to be activated.) For details,
check the instructions on connecting
smartphones.
▼
Models with SUBAR U STARLINK
Safety and Security
The clock will be set automatically where
a DCM (Data Communication Module in
vehicle cellular connection) signal is avail-
able.
306807
306875
B5=B8.ERRN 13 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

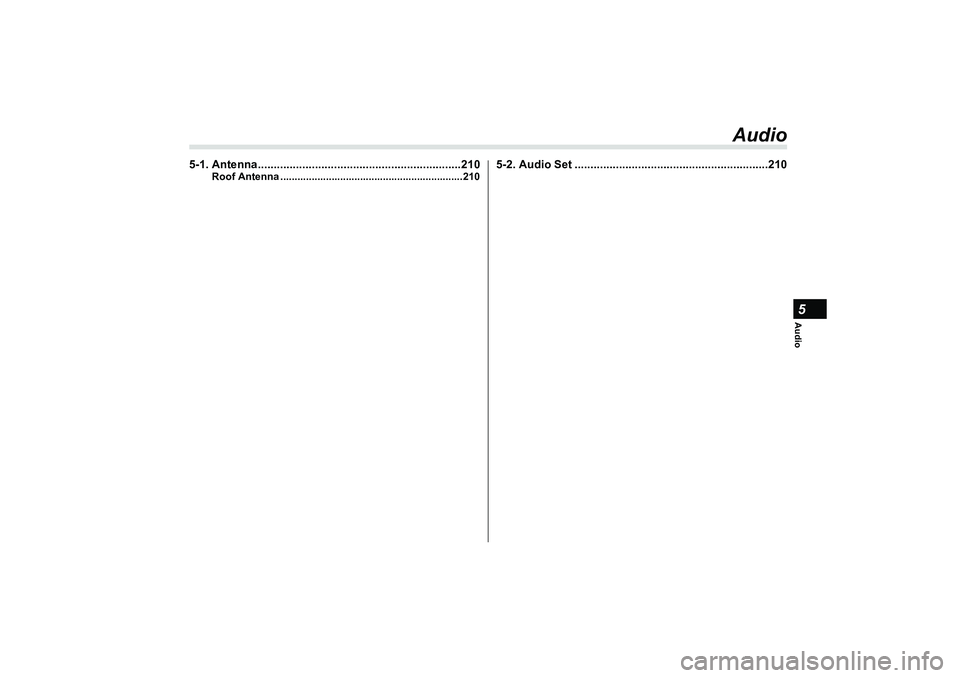

Audio5
Audio
5-1. Antenna................................................................210
Roof Antenna ................................................................210
5-2. Audio Set .............................................................210
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

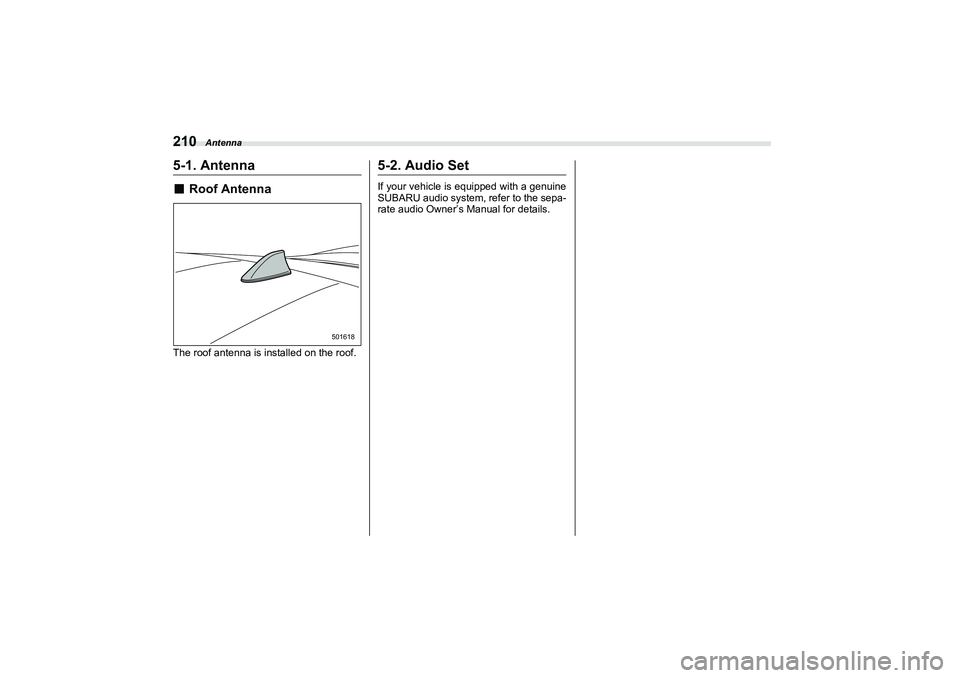

Antenna
2105-1. Antenna■
Roof Antenna
The roof antenna is installed on the roof.
5-2. Audio SetIf your vehicle is equipped with a genuine
SUBARU audio system, refer to the sepa-
rate audio Owner’s Manual for details.
501618
B5=B8.ERRN 210 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Storage Compartment
214■
Glove Box
To open the glove box, pull the handle. To
close it, push the lid firmly upward.■
Center Console
To open the center console, push on the
button lightly and it will automatically
open.
▼
Cup Holder and Console Tray
MT models
AT modelsThe cup holder and console tray is built
into the center console.
602247602248
CAUTION
Take care to avoid spills. Bever-
ages, if hot, might burn you and/
or your passengers. Spilled
beverages may also damage
upholstery, carpets or audio
equipment.Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.Take care not to spill a beverage
on the select lever/shift lever or
any switch(es) in the adjacent
area. If the beverage is spilled, it
may cause a malfunction of the
select lever/shift lever and/or
switch(es).
602367602249
B5=B8.ERRN 214 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Ashtray (Dealer Option)
217
Interior Equipment6
– CONTINUED –
cable is used. In this case, be sure to
connect the device using the special
cable.
When a device that communicates
with a PC is connected, power supply
or charging may not be possible.
 When connect a device for charging,
disconnect the device promptly after
charging is completed.■
How to Use the USB Power
SupplyConsole USB power supply (an audio
device can be connected and used)Use the USB terminal to use or charge an
electronic device.
When using the USB, open the USB
power supply cover. After use, close it. When the ignition switch is in the “ACC” or
“ON” position, the power can be supplied
to the electronic device. Up to 5 V/2.1 A
can be supplied from each terminal (total
of 4.2 A).
6-7. Ashtray (Dealer Option)NOTEParticles of ash and tobacco will accu-
mulate around the hinges of the ash-
tray’s inner lid. Clean them off using a
toothbrush or a similar narrow-ended
implement.
602252
CAUTION

Do not use ashtrays as waste
receptacles or leave a lighted
cigarette in an ashtray. This could
cause a fire.Always extinguish matches and
cigarettes before putting them
into the ashtray, and then close
the ashtray securely. If you keep
the ashtray open, the fire of the
cigarette may spread to another
cigarette butt and start a fire. Do not put flamma ble material in
the ashtray. Do not leave a lot of cigarette
butts in the ashtray.
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
278NOTEThe Reverse Automatic Braking (RAB)
system records and stores the follow-
ing data when automatic braking oper-
ates. It does not record conversations,
personal information or other audio
data.
Distance from the object
 Vehicle speed
 Accelerator pedal operation status
 Brake pedal operation status
 Select lever position
 Outside temperature
 The sensitivity setting of the sonar
sensors
SUBARU and third parties contracted
by SUBARU may acquire and use the
recorded data for the purpose of vehi-
cle research and development.
SUBARU and third parties contracted
by SUBARU will not disclose or pro-
vide the acquired data to any other
third party except under the following
conditions.
 The vehicle owner has given his/her
consent.
 The disclosure/provision is based
on a court order or other legally
enforceable request.
 Data that has been modified so that
the user and vehicle cannot be identi-
fied is provided to a research institu- tion for statistical processing or similar
purposes.
■
Reverse Automatic Braking
(RAB) System
Overview
The Reverse Automatic Braking (RAB)
system will operate t he following 2 func-
tions using 4 sonar sensors.
 Sonar Audible Alarm
The Reverse Automatic Braking (RAB)
system detects objects rearward and
warns the driver by warning message on
the center information display and
warning beeps.
 Automatic Braking
The automatic braking detects objects
rearward and if there is a high risk of a
collision, the system decelerates the
vehicle and controls the braking to reduce
damage.
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Cleaning the Interior
335
Appearance Care10
– CONTINUED –
Check the interior of the vehicle for water
and dirt accumulation under the floor mats
because that could cause corrosion.
Occasionally check under the mats to
make sure the area is dry.
Keep your garage dry. Do not park your
vehicle in a damp, poorly ventilated
garage. In such a garage, corrosion can
be caused by dampness. If you wash the
vehicle in the garage or put the vehicle
into the garage when wet or covered with
snow, that can cause dampness.
If your vehicle is operated in cold weather
and/or in areas where road salts and other
corrosive materials are used, the door
hinges and locks, trunk lid lock, and hood
latch should be inspected and lubricated
periodically.
10-3. Cleaning the InteriorUse a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches. (Do not use
organic solvents.)■
Seat Fabric Material
Remove loose dirt, dust or debris with a
vacuum cleaner. If the dirt is caked on the
fabric or hard to remove with a vacuum
cleaner, use a soft brush then vacuum it.
Wipe the fabric surface with a tightly
wrung cloth and dry the seat fabric thor-
oughly. If the fabric is still dirty, wipe using
a solution of mild soap and lukewarm
water then dry thoroughly.
If the stain does not come out, try a
commercially available fabric cleaner. Use
the cleaner on a hidden place and make
sure it does not affect the fabric adversely.
Use the cleaner according to its instruc-
tions.
NOTEAs the color of the meter visor may
transfer, do not place anything on top
of it.■
Leather Seat Materials
The leather used by SUBARU is a high
quality natural product which will retain its
distinctive appearance and feel for many
years with proper care.
Allowing dust or road dirt to build up on the
surface can cause leather to become
brittle and wear prematurely. To maintain
its resiliency, leather should be cleaned
monthly or whenever it becomes soiled.
Before cleaning leather upholstery,
vacuum it to remove dust. Use a soft and
lint-free cloth dampened with lukewarm
water and mild soap, taking care not to
soak the leather or allow water to pene-
trate the stitched seams. Use a gentle
circular motion while cleaning the leather -
do not rub or apply extreme pressure.
Wipe the leather again with another clean,
slightly damp cloth to remove soap
residue and dry with a soft cloth.
Minor surface blemishes or difficult dirt
spots may be treated with a commercial
leather spray. Never use alcohol, cleaning
solvents, leather oils, varnishes or
polishes on your leather as it will dry out
the leather finish.
CAUTION
When cleaning the seat, do not use
benzine, paint thinner, or any simi-
lar materials. Doing so could dam-
age the surface and cause the color
to deteriorate.
B5=B8.ERRN 335 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Cleaning the Interior
336If your SUBARU is to be parked for a long
time in bright sunlight, it is recommended
that the seats and headrests be covered,
or the windows shaded, to prevent fading
or shrinkage.
You will discover that each leather seat
section will develop soft folds or wrinkles,
which is characteristic of genuine leather.■
Synthetic Leather Upholstery
The synthetic leather material used on the
SUBARU may be cleaned using mild soap
or detergent and water, after first vacu-
uming or brushing away loose dirt. Allow
the soap to soak in for a few minutes and
wipe off with a clean, damp cloth.
Commercial foam-type cleaners suitable
for synthetic leather materials may be
used when necessary.
■
Instrument Panel, Console
Panel, Switches, Combina -
tion Meter, and Other Plastic
Surface
Use a soft, damp cloth to clean the instru-
ment panel, center console, combination
meter panel, and switches.■
Center Information Display
To clean the center information display,
wipe it with a silicone cloth or with a soft
cloth. If the monitor is extremely dirty,
clean it with a soft cloth moistened with
neutral detergent then carefully wipe off
any remaining detergent.
CAUTION
Strong cleaning agents such as sol-
vents, paint thinners, window
cleaner or gasoline must never be
used on leather or synthetic interior
materials. Doing so could damage
the surface and cause the color to
deteriorate.
CAUTION
 Do not use organic solvents such
as paint thinners or gasoline, or
strong cleaning agents that
contain those solvents. Doing so
could damage the surface and
cause the color to deteriorate.Do not use chemical solvents that
contain silicone on the vehicle
audio system, electrical compo-
nents of the air-conditioner or
any switches. If silicone adheres
to these parts, it may cause
damage to electrical compo-
nents.
CAUTION
Do not spray neutral detergent
directly onto the monitor. Doing
so could damage the monitor’s
components.Do not wipe the monitor with a
hard cloth. Doing so could
scratch the monitor.Do not use cleaning fluid that
contains thinner, fuel, or any
other volatile substance. Such
cleaning fluid could erase the
lettering on the switches at the
bottom of the monitor.
B5=B8.ERRN 336 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
