2022 SUBARU BRZ audio

Instruments and Controls
RAB Warning Indicator (If Equipped) ......................... 151
RAB OFF Indicator (If Equipped) ................................ 151
Master Warning Light .................................................. 151
3-7. Combination Meter Display (Color TFT) ...........151
Basic Operation............................................................ 152
Meter Information Screen ........ .................................... 152
Drive Information ......................................................... 153
Exclusive Content for SUBARU BRZ ......................... 154
Navigation System-Linked Disp lay ............................ 156
Audio System-Linked Display..................................... 156
Driving Support System Settings Display ................. 157
Settings Display ........................................................... 157
Warning Message Display ....... .................................... 159
Telltale Screen .............................................................. 159
3-8. Center Information Display (CID).......................160
Features ........................................................................ 160
Touch Screen Operations ........................................... 160
Main Screen .................................................................. 161
3-9. Clock ....................................................................172
Setting the Clock Manually ......................................... 172
Setting the Clock Automatically ................................. 173
3-10. Light Control Switch ........................................ 174
Headlights ..................................................................... 174
High/Low Beam Change (Dimmer) ............................. 176
Headlight Flasher ......................................................... 176
High Beam Assist Function (If Equipped).................. 177
Daytime Running Light System .................................. 180
3-11. Steering Responsive Headlight (SRH)
(If Equipped) ..................................................... 180
3-12. Headlight Beam Leveler .................................. 182
3-13. Turn Signal Le ver ............................................. 182
One-Touch Lane Changer ........................................... 182
3-14. Wiper and Washer ............................................ 183
Windshield Wiper and Washer Switches ................... 184
3-15. Defogger ........................................................... 185
3-16. Mirrors ............................................................... 186
Inside Mirror.................................................................. 186
Auto-Dimming Mirror/Compass with HomeLink
®
(Dealer Option) ........................................................... 186
Outside Mirrors............................................................. 194
3-17. Tilt/Telescopic Steering Wheel ....................... 195
3-18. Horn ................................................................... 195
A4600BEscusenvhch03.fm 124 ページ ２０２１年７月５日　月曜日　午後４時２２分

Push-Button Ignition Switch
126
NOTEWhen operating the push-button
ignition switch, firmly press it all the
way.
 If the push-button ignition switch is
pressed quickly, the power may not
turn on or off.
 When the steering lock cannot be
released, the message appears on the
combination meter. When this occurs,
press the push-butto n ignition switch
while turning the steering wheel left
and right. ▼
Battery drainage prevention func
-
tion
When the push-button ignition switch is
left in the “ACC” for more than 20 minutes or “ON” position for approximately 1 hour,
the push-button ignition switch will be
automatically switched to “OFF” to
prevent the battery from going dead. (In
AT models, this function is activated when
the select lever is in the “P” position.)
■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.
Power
status Combination
meter display Operation
OFF ―Power is turned
off.
ACC “ACCESSORY” The following
systems can be
used:
audio and
accessory power
outlet.
ON “IGNITION ON” All electrical
systems can be used.
CAUTION
To prevent the vehicle battery
from discharging, do not leave
the push-button ig nition switch in
the “ON” or “ACC” position for a
long time. If the vehicle was left in the hot
sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself.To avoid a malfunction, observe
the following precautions.
- Do not spill drinks or other
liquids on the push-button
ignition switch.
- Do not touch the push-button ignition switch with a hand
that is soiled with oil or other
contaminants.
If the push-button ignition switch
does not operate smoothly, stop
the operation. Contact a SUBARU
dealer immediately.If the vehicle was left in the hot
sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself.
B5=B8.ERRN 126 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Combination Meter Display (Color TFT)
152Combination meter display (color TFT)
1) Meter information screen (Refer to"Meter Information Screen" P152.)
2) Telltale screen (Refer to "Telltale Screen"  P159.)■Basic Operation
Control switches
1) / : Select menu icons
/ : Change displayed content,
scroll up/down the screen and move the
cursor up/down
2) Press: Enter Press and hold: Reset
3) Return to the previous screenFor information pertaining to the content
of each menu icon, refer to the explana-
tion of each item under the heading of the
relevant menu icon.■ Meter Information ScreenThe meter information screen can be
changed.
▼ Menu icons
Select a menu icon to display its content.
*1: Displayed when the Apple CarPlay or Android Auto is operating. For details, refer
to the separate audio Owner’s Manual.
1
22
307004
1
2
3306809
Icons Page
Drive information 153
Exclusive content for
SUBARU BRZ 154
Navigation system-linked
display
*1
156and
refer to the separate audio
Owner’s Manual.
Audio system-linked dis-
play 156
EyeSight screen (if
equipped) Refer to
the
Owner’s Manual
supple-
ment for
the Eye-
Sight sys-
tem.
Driving support system set-
tings display 157
Settings display 157
Warning message display 159
Icons
Page
A4600BEscusenvhch03.fm 152 ページ ２０２１年７月５日　月曜日　午後４時２４分

Combination Meter Display (Color TFT)
156
: Reset measured lap times
/ : Scroll through the lap times
 Resetting measured lap times
After stopping the measurement, press
.
 To display other content while the stop-
watch is operating
If the measurement screen is displayed,
press to display the top screen. Then
operate the meter control switches to
display other content. While other items
are displayed, the measurement will
continue but the stopwatch cannot be
operated.
■
Navigation System-Linked
Display
When the route guidance is set in the navi-
gation system, this item shows the naviga-
tion route information. For details about
the audio system, refer to the separate
audio Owner’s Manual.
■
Audio System-Linked
Displa y
This screen displays the status of audio
information. For details about the audio
system, refer to the separate audio
Owner’s Manual.
306798
306879
B5=B8.ERRN 156 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Center Information Display (CID)
1603-8. Center InformationDisplay (CID)■
Features
All information is displayed on the center
information display, including vehicle
settings, vehicle status, and audio opera-
tion. The center information display can also be
used to set and initialize the center infor-
mation display itself.
NOTE
When the vehicle is in motion,
certain functions and selections may
not be available.
 The language and units for both the
center information display and the
combination meter display (color TFT)
can be changed. For details, refer to
"Car settings" 
P165.
 The images displayed in this
Owner’s Manual are sample images.
The actual image may vary depending
on the region and vehicle specifica-
tions.
■
Touch Screen Operations
The center information display has a
touch screen. Operations are performed
by touching the touch screen directly.
▼
Touch
Quickly touch and release once.
WARNING
Always pay attention to safe driving
when operating the center informa-
tion display while the vehicle is in
motion. When operation of the cen-
ter information display is disturbing
your awareness and ability to con-
centrate on driving, stop the vehicle
in a safe place before performing
operations on the display. Also, do
not concentrate on the display
while driving. Doing so could result
in an accident.
Items Page
Maintenance information 171
Vehicle settings 161
Rear view camera 263
Audio/telephoneRefer to
the sepa-
rate audio Owner’s
Manual.
EyeSight (if equipped) Refer to
the
Owner’s Manual
supple-
ment for
the Eye-
Sight sys- tem.
Items
Page
306863
B5=B8.ERRN 160 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

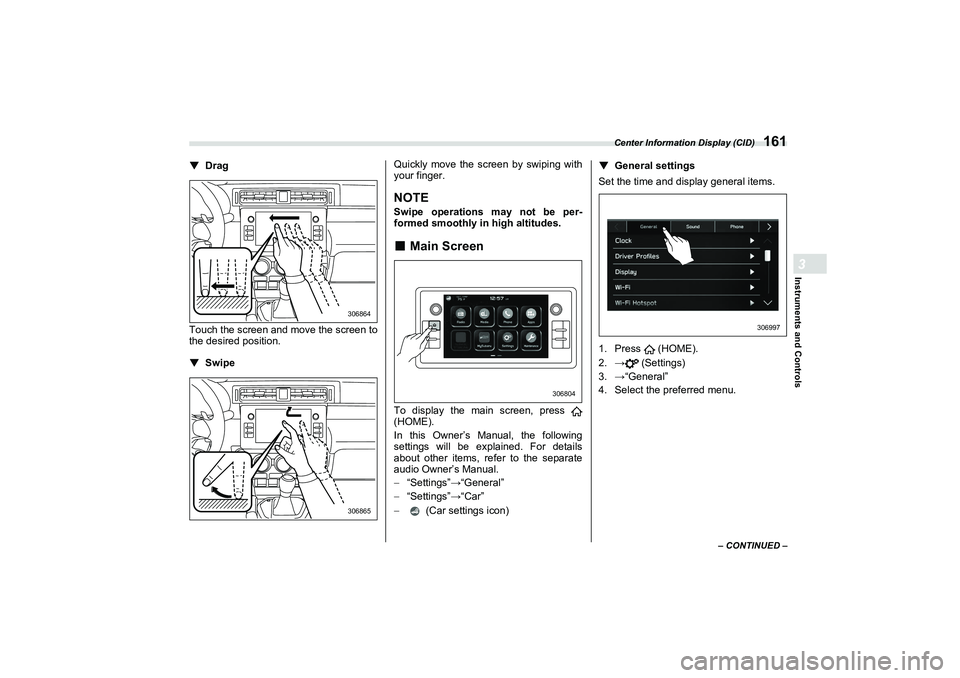

Center Information Display (CID)
161
Instruments and Controls3
– CONTINUED –
▼
Drag
Touch the screen and move the screen to
the desired position.
▼Swipe Quickly move the screen by swiping with
your finger.
NOTESwipe operations may not be per-
formed smoothly in high altitudes.■
Main Screen
To display the main screen, press
(HOME).
In this Owner’s Manual, the following
settings will be explained. For details
about other items, re
fer to the separate
audio Owner’s Manual.
 “Settings”
:“General”
 “Settings”
:“Car”
 (Car settings icon) ▼
General settings
Set the time and display general items.
1. Press (HOME).
2.
: (Settings)
3.
:“General”
4. Select the preferred menu.
306864306865
306804
306997
B5=B8.ERRN 161 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Center Information Display (CID)
164*1: Models with SUBARU STARLINK Safety and Security
*2: Models without SUBARU STARLINK Safety and Security
*3: For details about the audio system, refer to the Owner’s Manual supplement for the audio system.
*4: For details, refer to the Owner’s Manual supplement for SUBARU STARLINK Safety and Security.NOTETouch to display the explanation of the items.General Software Update
Update
Check if a new software update
*4
―
Automatically Check for
Updates
ON/OFF
Automatically Download
Updates ON/OFF
SUBARU STARLINK
Apps Recovery ―
OK/Cancel
SUBARU STARLINK
Auto Connect ―
ON/OFF
Factory Data Reset ―Reset/Cancel
System Information ――
Free/Open Source
Software Information ――
Item
Available settingsPage reference
for the vehicle
system opera- tion Page reference
for the setting procedure
1st menu 2nd menu
3rd menu
B5=B8.ERRN 164 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Clock
172Maintenance Schedule setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Mainte-
nance Schedule” item in step 2.NOTETouch “Reset” to reset each setting.
 Touch “Update” to revert to the
default value.
3-9. ClockFor models with a genuine SUBARU
audio system, the clock can be adjusted
using either auto mode or manual mode.■
Setting the Clock Manually
1. Turn the ignition switch to the “ON”
position.
2. Press (HOME).
3. Touch (Settings).
4.
:“General”
5.
:“Clock”
6.
:“Time Setting” 7.

:“Manual”
8.
: or
9.
:“OK”
NOTEThe clock setting screen can also be
displayed by touching the clock on the
status bar.
306807
306875
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
