2022 SUBARU BRZ light

Defrosting
203
Climate Control4
– CONTINUED –
To turn off the air conditioner, press the
button again. The indicator light will turn
off.NOTEFor efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. However, if the ambient
temperature decreases to approxi-
mately 32°F (0°C), the air conditioner
and dehumidification system may not
work properly.■
Air Inlet Selection
Select the air inlet by pressing the air inlet
selection button.
 Recirculation:
When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
in the following cases.
- When driving on a dusty road
- When you want cooling perfor-
mance to increase (for example, in
particularly hot weather)
 Outside air circulation:
When the indicator light on the air inlet
selection button does not illuminate,
outside air is drawn into the passenger
compartment. Press the air inlet selection button to the OFF position in the following
cases.
- When the road is no longer dusty
- When the interior has cooled to a
comfortable temperature
NOTEWhen outside air circulation is
selected, the system may automati-
cally adjust the air inlet setting
depending on such factors as the tem-
perature setting, the temperature
inside the vehicle, or conditions out-
side the vehicle.■
To Turn Off the Climate
Control System
To turn off the climate control system,
press the ON/OFF button.
4-5. DefrostingSelect the “ ” or “ ” mode to defrost
or dehumidify the windshield and the side
door windows.NOTEWhen the “ ” or “ ” mode is
selected, the air conditioner
compressor operates automatically
regardless of the position of the air
conditioner button to defrost the wind-
shield more quickly. However, the indi-
cator on the air conditioner button may
not illuminate. At th e same time, the air
inlet selection is automatically set to
the outside air circulation mode.
 After defrosting the windshield by
pressing the defroster button “ ”,
pressing the button again returns the
WARNING
Continued operation in the recircu-
lation mode may fog up the win-
dows. Switch to the outside air
circulation mode as soon as the
outside dusty condition clears.
403491
B5=B8.ERRN 203 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Operating Tips for Heater and Air Conditioner
204system to the setting that had been
selected before the defroster was acti-
vated.
4-6. Operating Tips for Heaterand Air Conditioner■
Cleaning Ventilator Grille1) Front ventilator inlet grille
2) CondenserAlways keep the front ventilator inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept
clean because cooling performance is
impaired by any accumulation of insects and leaves on the condenser.
■
Efficient Cooling after
Parking in Direct Sunlight
After parking in direct sunlight, drive with
the windows open for a few minutes to
allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of
the air conditioner for maximum cooling
efficiency.■
Lubrication Oil Circulation in
the Refrigerant Circuit
Operate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.■
Checking Air Conditioning
System before Summer
Seaso n
Check the air conditioner unit for refrig-
erant leaks, hose conditions, and proper
operation each spring. Have the air condi-
tioning system checked by your SUBARU
dealer.
2
1
403492
B5=B8.ERRN 204 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Interior Equipment6
Interior Equipment
6-1. Interior Light ........................................................212
Map Lights.....................................................................212
OFF Delay Timer ...........................................................212
6-2. Sun Visors ...........................................................213
Vanity Mirror with Light (If Equipped) ........................213
6-3. Storage Compartment ........................................213
Glove Box ......................................................................214
Center Console .............................................................214
6-4. Bottle Holders .....................................................215
6-5. Accessory Power Outlets ...................................215
6-6. USB Power Supply ..............................................216
How to Use the USB Power Supply ........................... 217
6-7. Ashtray (Dealer Option) ......................................217
6-8. Floor Mat ..............................................................218
6-9. Under-Floor Storage Compartment
(models with the flat tire repair kit) .................219
B5=B8.ERRN 211 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Interior Light
2126-1. Interior Light■
Map Lights
▼
Map light switches
To turn on the map light, press the lens.
To turn it off, press the lens again. ▼
Door interlock switch1) Door interlock switchThe door interlock switch has the following
positions.
OFF:
The map lights do not illuminate
automatically in conjunction with a door
opening. However, the lights can be
turned on manually by pressing the map
light lens.
DOOR: The map lights illuminate auto-
matically when any of the doors (other
than the trunk lid) is opened even while
the map light is off. Several seconds after
all of the doors (other than the trunk lid)
are closed, the map lights gradually turn
off. For details, refer to "OFF Delay Timer"
 P212.
■
OFF Delay Timer
The following lights have an automatic illu-
mination function.
 Map lights
 Trunk
When the interior light switch is set to the
“DOOR” position, the light will automati-
cally turn on and off depending on the
locking and unlocking of the doors, the
opening and closing of the doors, as well
as the position of the ignition switch.NOTEThe setting for the period of time in
which the lights remain on (OFF delay
timer) can be changed by a SUBARU
dealer. Contact your SUBARU dealer
for details. Also, the setting can be
changed by operating the center infor-
mation display. For details, refer to
"Car settings" 
P165.
CAUTION
When leaving your vehicle, make
sure the lights are turned off to
avoid battery discharge.
602244
1
602245
B5=B8.ERRN 212 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Sun Visors
213
Interior Equipment6
– CONTINUED –
6-2. Sun VisorsTo block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.■
Vanity Mirror with Light (If
Equipped)
To use the vanity mirror, swing down the
sun visor and open the vanity mirror
cover.
The lights beside the vanity mirror illumi-
nate when the mirror cover is opened.NOTEUse of the vanity mirror light for a long
period of time while the engine is not
running can cause battery discharge.
6-3. Storage Compartment
CAUTION
Keep the vanity mirror cover closed
while the car is being driven to
avoid being blinded by glare.
601182
602246
CAUTION
Keep the storage compartment
closed when it is not being used.
If left open, in the event of sudden
braking, etc., stowed items may
fly out, possibly leading to an
accident.Do not store the following items
in the storage compartment.
Otherwise, it may cause a fire or
accident.
- Spray cans, containers with
flammable or corrosive liquids
or any other dangerous items.- Plastic or other heat-vulner-able or flammable articles
such as a lighter.
B5=B8.ERRN 213 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Storage Compartment
214■
Glove Box
To open the glove box, pull the handle. To
close it, push the lid firmly upward.■
Center Console
To open the center console, push on the
button lightly and it will automatically
open.
▼
Cup Holder and Console Tray
MT models
AT modelsThe cup holder and console tray is built
into the center console.
602247602248
CAUTION
Take care to avoid spills. Bever-
ages, if hot, might burn you and/
or your passengers. Spilled
beverages may also damage
upholstery, carpets or audio
equipment.Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.Take care not to spill a beverage
on the select lever/shift lever or
any switch(es) in the adjacent
area. If the beverage is spilled, it
may cause a malfunction of the
select lever/shift lever and/or
switch(es).
602367602249
B5=B8.ERRN 214 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Bottle Holders
215
Interior Equipment6
– CONTINUED –
6-4. Bottle HoldersThe bottle holder equipped on each door
trim can be used to hold beverage bottles
and other items.
6-5. Accessory Power OutletsPower outlet in the glove boxAccessory power outlets are provided in
the glove box. Electrical power (12 V DC)
from the battery is available at any of the
outlets when the ignition switch is in either
the “ACC” or “ON” position.
You can use an in-vehicle electrical appli-
ance by connecting it to an outlet.
The maximum power rating of an appli-
ance that can be connected is 120 W. Do
not use an appliance which exceeds the
indicated wattage for each outlet.
When using appliances connected to two
or more outlets simultaneously, the total
power consumed by them must not
exceed 120 W.
CAUTION
 Do not pick up a bottle from the
bottle holder or pu t a bottle in the
holder while you are driving, as
this may distract you and lead to
an accident. When placing a beverage in a
bottle holder, make sure it is
capped. Otherwise, the beverage
could spill when opening/closing
the door or while driving and, if
the beverage is hot, it could burn
you and/or your passengers.
602250
602251
CAUTION
Do not attempt to use a cigarette
lighter in the accessory power
outlet.Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit.
Always put the cap on the acces-
sory power outlet when it is not in
use.Use only electrical appliances
which are designed for 12 V DC.
The maximum power rating of an
appliance that can be connected
is 120 W. Do not use an appliance
which exceeds the indicated
wattage for each outlet.When using appliances con-
nected to two or more outlets
simultaneously, the total power
consumed by them must not
exceed 120 W. Overloading the
accessory power outlet can
cause a short circuit. Do not use
double adapters or more than
one electrical appliance.
B5=B8.ERRN 215 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

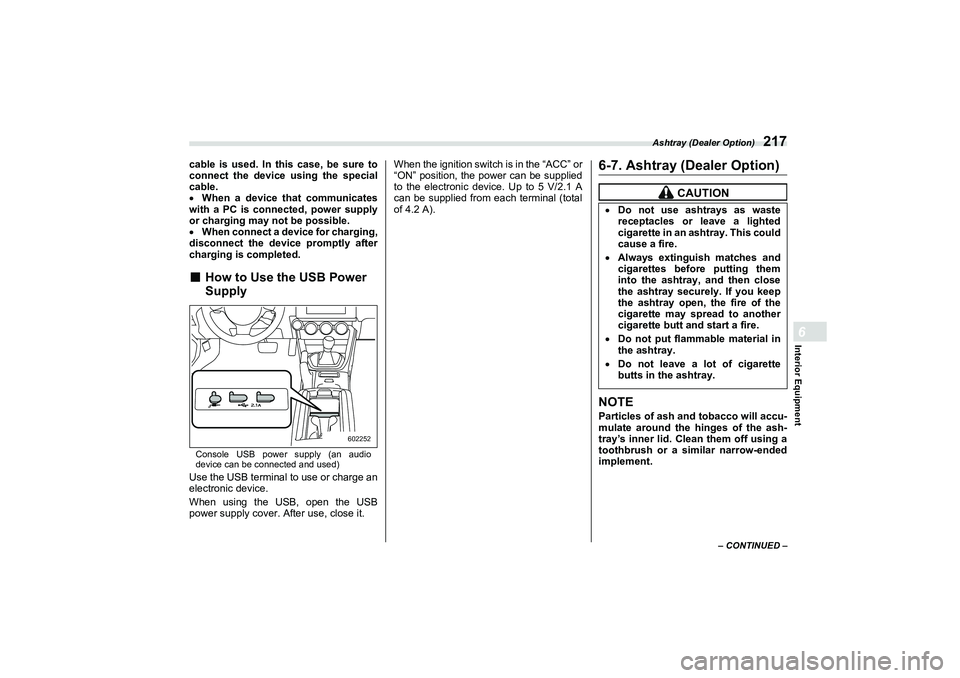

Ashtray (Dealer Option)
217
Interior Equipment6
– CONTINUED –
cable is used. In this case, be sure to
connect the device using the special
cable.
When a device that communicates
with a PC is connected, power supply
or charging may not be possible.
 When connect a device for charging,
disconnect the device promptly after
charging is completed.■
How to Use the USB Power
SupplyConsole USB power supply (an audio
device can be connected and used)Use the USB terminal to use or charge an
electronic device.
When using the USB, open the USB
power supply cover. After use, close it. When the ignition switch is in the “ACC” or
“ON” position, the power can be supplied
to the electronic device. Up to 5 V/2.1 A
can be supplied from each terminal (total
of 4.2 A).
6-7. Ashtray (Dealer Option)NOTEParticles of ash and tobacco will accu-
mulate around the hinges of the ash-
tray’s inner lid. Clean them off using a
toothbrush or a similar narrow-ended
implement.
602252
CAUTION

Do not use ashtrays as waste
receptacles or leave a lighted
cigarette in an ashtray. This could
cause a fire.Always extinguish matches and
cigarettes before putting them
into the ashtray, and then close
the ashtray securely. If you keep
the ashtray open, the fire of the
cigarette may spread to another
cigarette butt and start a fire. Do not put flamma ble material in
the ashtray. Do not leave a lot of cigarette
butts in the ashtray.
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
