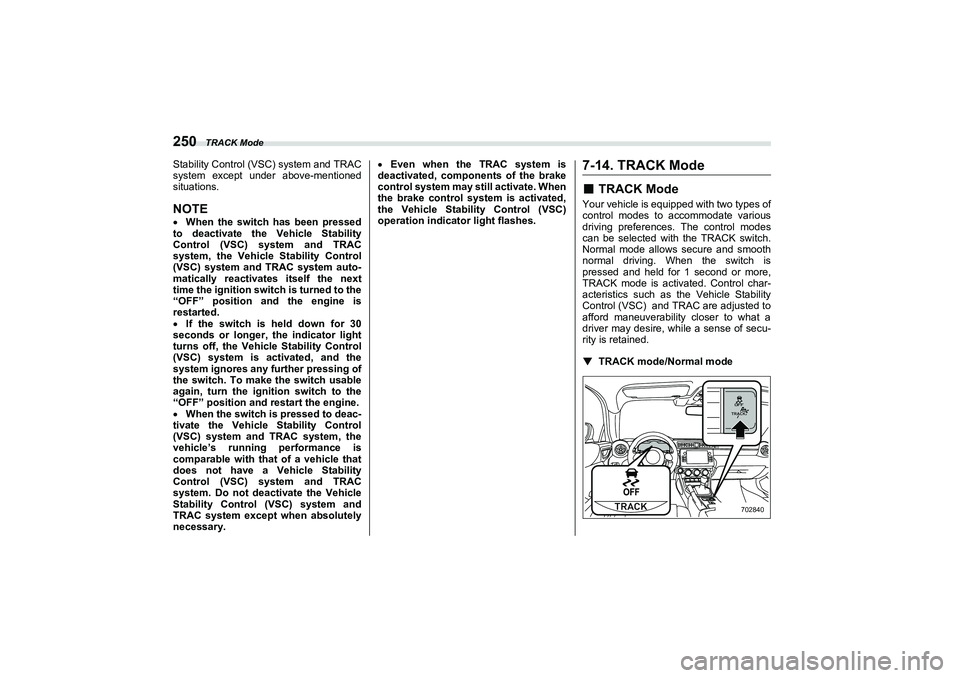

2022 SUBARU BRZ engine

TRACK Mode
250Stability Control (VSC) system and TRAC
system except under above-mentioned
situations.NOTEWhen the switch has been pressed
to deactivate the Vehicle Stability
Control (VSC) system and TRAC
system, the Vehicle Stability Control
(VSC) system and TRAC system auto-
matically reactiva tes itself the next
time the ignition swit ch is turned to the
“OFF” position and the engine is
restarted.
 If the switch is held down for 30
seconds or longer, the indicator light
turns off, the Vehicle Stability Control
(VSC) system is activated, and the
system ignores any further pressing of
the switch. To make the switch usable
again, turn the igni tion switch to the
“OFF” position and restart the engine.
 When the switch is pressed to deac-
tivate the Vehicle Stability Control
(VSC) system and TRAC system, the
vehicle’s running performance is
comparable with that of a vehicle that
does not have a Vehicle Stability
Control (VSC) system and TRAC
system. Do not deactivate the Vehicle
Stability Control (VSC) system and
TRAC system except when absolutely
necessary. 
Even when the TRAC system is
deactivated, compon ents of the brake
control system may still activate. When
the brake control system is activated,
the Vehicle Stability Control (VSC)
operation indicator light flashes.
7-14. TRACK Mode■
TRACK Mode
Your vehicle is equipped with two types of
control modes to accommodate various
driving preferences. The control modes
can be selected with the TRACK switch.
Normal mode allows secure and smooth
normal driving. When the switch is
pressed and held for 1 second or more,
TRACK mode is activated. Control char-
acteristics such as the Vehicle Stability
Control (VSC) and TRAC are adjusted to
afford maneuverability closer to what a
driver may desire, while a sense of secu-
rity is retained.
▼
TRACK mode/Normal mode
702840
B5=B8.ERRN 250 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tire Pressure Monitoring System (TPMS) (If Equipped)
255
Starting and Operating7
4. Press and hold the TPMS set switch
until the low tire pressure warning light
blinks slowly 3 times.■
If You Press the Tire Pres-
sure Monitoring Reset
Switch Accidentally
If initialization is performed, adjust the tire
inflation pressure to the specified level
and initialize the tire pressure monitoring
system again.■
Initialization Procedure
 Make sure to carry out initialization
after adjusting the tire inflation pressure.
Also, make sure the tires are cold before
carrying out initialization or tire inflation
pressure adjustment.
 If you have accidentally turned the igni-
tion switch to the “OFF” position during
initialization, it is not necessary to press
the TPMS set switch again as initialization
will restart automatically when the engine
is restarted.
 If you accidentally press the TPMS set
switch when initializa tion is not necessary,
adjust the tire inflation pressure to the
specified level when the tires are cold, and
conduct initialization again.
■
When Initialization of the Tire
Pressure Monitoring System
has Failed
Initialization can be completed in a few
minutes. However, in the following case,
the settings have not been recorded and
the system will not operate properly. If
repeated attempts to record tire inflation
pressure settings are unsuccessful, have
the vehicle checked at your SUBARU
dealer.
 When operating the TPMS set switch,
low tire pressure warning light does not
blink 3 times.
 After carrying out the initialization
procedure, the low tire pressure warning
light blinks for 1 minute then stays on after
driving for 20 minutes.
■
Registering ID Codes
Every tire pressure warning valve and
transmitter has a unique ID code. In addi-
tion to the set of tire pressure warning
system sensor ID code s initially registered
to the vehicle, a second set of ID codes
can be registered.
A second set of tire pressure warning
system sensor ID codes can be registered
at your SUBARU dealer. When 2 sets of
ID codes have been registered, either ID
code set can be selected.■
Changing the ID code set
1. Park the vehicle in a safe place and
turn the ignition switch to the “ON” posi-
tion.
2. Press the TPMS set switch 3 times
within 3 seconds.
3. The low tire pressure warning light will
illuminate for 3 seconds and then blink 3
times.
4. The low tire pressure warning light will
blink for 1 minute and then illuminate.
5. When the ID code change has
completed, the tire pressure monitoring
light will turn off.
Check that tire pressures are displayed on
the TPMS screen.
WARNING
Do not operate the TPMS set switch
without first adjusting the tire infla-
tion pressure to the specified level.
Otherwise, the low tire pressure
warning light may not come on even
if the tire inflation pressure is low,
or it may come on when the tire
inflation pressure is actually nor-
mal.
B5=B8.ERRN 255 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Parking Your Vehicle
2567-16. Parking Your Vehicle■
Parking Brake
To set the parking brake, depress the
brake pedal firmly and hold it down until
the parking brake lever is fully pulled up.To release the parking brake, pull the
lever up slightly, press the release button,
then lower the lever while keeping the
button pressed.
When the parking brake is set while the
engine is running, the parking brake
warning light illuminates. After starting the
vehicle, be sure that the warning light has
turned off before the vehicle is driven.
Refer to "Brake System Warning Light"

P140.
■
Parking Tips
When parking your vehicle, always
perform the following items.
 Apply the parking brake firmly.
 For MT models, put the shift lever in the
“1” (1st) for upgrade or “R” (Reverse) for a
downgrade.
 For AT models, put the select lever in
the “P” (Park) position.
Never rely on the mechanical friction of
the transmission alone to hold the vehicle.
WARNING
 Never leave unattended children
or pets in the vehicle. They could
accidentally injure themselves or
others through inadvertent oper-
ation of the vehicle. Also, on hot
or sunny days, the temperature in
a closed vehicle could quickly
become high enough to cause
severe or possibly fatal injuries to
people.Do not park the vehicle over flam-
mable materials such as dry
grass, waste paper or rags, as
they may burn easily if they come
near hot engine or exhaust
system parts.Be sure to stop the engine if you
take a nap in the vehicle. If engine
exhaust gas enters the passenger
compartment, occupants in the
vehicle could die from carbon
monoxide (CO) contained in the
exhaust gas.
CAUTION
Never drive while the parking
brake is set because this will
cause unnecessary wear on the
brake linings. Before starting to
drive, always make sure that the
parking brake has been fully
released.
702782
The braking power of the parking
brake may not be sufficient when
stronger braking power is needed
(e.g., when parking on a steep
slope while towing a trailer).
700897
B5=B8.ERRN 256 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Hill Start Assist System
259
Starting and Operating7
– CONTINUED –
■
To Activate/Deactivate the
Hill Start Assist System
Hill start assist indicator light
To activate or deactivate the Hill start
assist system, perform the following
steps.
NOTEIf you make an error when performing
any steps in the following procedure,
place the ignition switch in the “OFF”
position once and then start over
again.
▼
To deactivate
1. Park your vehicle in a flat and safe
location and apply the parking brake.
2. Turn the ignition switch to the “OFF”
position.
3. Restart the engine. 4. Confirm the following items.
(1) The ABS warning light turns off.
(2) The brake system warning light
illuminates.
(3) The Vehicle Stability Control
(VSC) OFF indicator light turns off.
(4) TRAC OFF indicator light turns off.
5. Press and hold the Vehicle Stability
Control (VSC) OFF sw itch for 30 seconds
until the Vehicle Stability Control (VSC)
OFF indicator light on the combi-
nation meter turns on and off.
6. Within 5 seconds, release the Vehicle
Stability Control (VSC) OFF switch.
7. Within 2 seconds, press back the
Vehicle Stability Control (VSC) OFF
switch.
The Hill start assist indicator light turns on
and off.
CAUTION
When starting on an up hill grade,
make sure the Hill start assist indi-
cator light is on.If the Hill start assist indicator light
is off, make sure the parking brake
is applied.
702783
1 423
702784
702785
B5=B8.ERRN 25 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Cruise Control (Models without the EyeSight system)
261
Starting and Operating7
– CONTINUED –
Cruise control main button
1. After the engine has started, press the
“ON-OFF” switch of the cruise control
switch.
Cruise control indicator light
The cruise control indicator light (white) on
the combination meter will illuminate.
2. Depress the accelerator pedal until the
vehicle reaches the desired speed. 3. Press the Cruise control switch to the
“-SET” side and release it.
NOTEWhen setting a cruise speed for the
first time during a drive, both “-SET”
and “+RES” may be used to set the ini-
tial cruise speed.
Cruise control indicator light
1) When setting the displayed unit as
“MPH”
2) When setting the displayed unit as “km/h”At this time, the cruise control indicator
light (green) is illuminated in the combina-
tion meter. The set speed will be shown on
the combination meter. You can change
the displayed units by operating the
combination meter display. For details,
refer to "Combination Meter Settings"
 P130.
The vehicle will maintain the desired
speed.
Vehicle speed can be temporarily
increased while driving with the cruise
control activated. Simply depress the
accelerator pedal to accelerate the
702792
702793
12
702876
B5=B8.ERRN 261 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Rear View Camera
264
NOTEDo not wipe the camera with
alcohol, benzine or paint thinner.
Otherwise, discoloration may occur.
To remove contamination, wipe the
camera with a cloth moistened with a
diluted neutral detergent. Then wipe it
with a soft, dry cloth. 
When waxing the vehicle, be careful
not to apply the wax to the camera. If it
comes in contact with the camera,
moisten a clean cloth with a diluted
neutral detergent to remove the wax.
 The camera lens has a hard coating
to help prevent scratches. However,
when washing the vehicle or cleaning
the camera lens, be careful not to
scratch the camera lens. Do not use a
washing brush directly on the camera
lens. The image quality of the rear view
camera may deteriorate.
 Strong light shined on the camera
lens may develop vertical lines around
the light source. This is not a malfunc-
tion.
 Under the fluoresc ent light, the
display may flicker. However, this is
not a malfunction.
 The image of the rear view camera
may be slightly different from the
actual color of the objects.
 If there is a malfunction on the
center information display, refer to
"Malfunctions of th e Center Informa-
tion Display" 
P327.
■
How to Use the Rear View
Camera
When the shift lever/select lever is set to
“R”, the rear view camera automatically
displays the rear view image from the
Since the range of the image on
the monitor is limited, always
check the rear view and the
surrounding area with your eyes
and mirrors, and move backward
at a slow speed. Moving back-
ward only by checking the rear
view image from the camera
could cause an accident. Do not disassemble or modify the
camera, switch or wiring. If
smoke comes out or you smell a
strange odor, stop using the rear
view camera immediately.
Contact your SUBARU dealer for
an inspection. Continued use
may result in accident, fire or
electric shock.
CAUTION
When washing your vehicle with
a high-pressure washer, do not
allow water to touch the camera
directly. Entry of water in the
camera lens may result in
condensation, malfunction, fire
or electric shock.Since the camera is a precision
device, do not subject it to strong
impacts. Otherwise, malfunction,
fire or electric shock may occur.
If mud or snow sticks to or is
frozen on the camera, you must
be very careful when removing it.
Otherwise, damage to the camera
may cause a fire or electric shock.
Pour water or lukewarm water
over the camera to remove mud
and ice, and wipe it with a soft,
dry cloth.Do not put a flame close to the
camera or wiring. Otherwise,
damage or fire may occur.When replacing the fuse, be sure
to use a fuse with the specified
rating. Use of a fuse with a
different rating may result in a
malfunction.If you use the rear view camera
for a long time wh ile the engine is
not operated, the battery may
become completely discharged.
B5=B8.ERRN 264 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

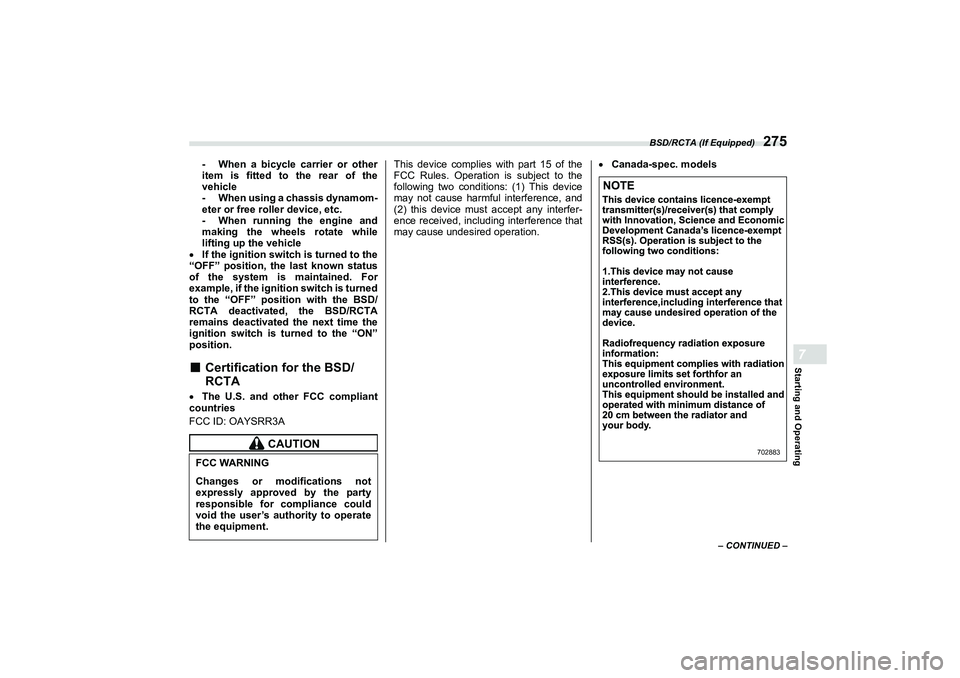

BSD/RCTA (If Equipped)
275
Starting and Operating7
– CONTINUED –
- When a bicycle carrier or other
item is fitted to the rear of the
vehicle
- When using a chassis dynamom-
eter or free roller device, etc.
- When running the engine and
making the wheels rotate while
lifting up the vehicle
 If the ignition switch is turned to the
“OFF” position, the last known status
of the system is maintained. For
example, if the ignition switch is turned
to the “OFF” positi on with the BSD/
RCTA deactivated, the BSD/RCTA
remains deactivated the next time the
ignition switch is turned to the “ON”
position.
■
Certification for the BSD/
RCTA
 The U.S. and other FCC compliant
countries
FCC ID: OAYSRR3A This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

Canada-spec. models
CAUTION
FCC WARNINGChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
702883
B5=B8.ERRN 25 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
281
Starting and Operating7
– CONTINUED –
- Pedestrians.
- Moving objects including
moving vehicles.
- Objects which absorbs sound
waves such as cloth or snow.
- Objects whose surface has a
diagonal angle.
- Objects that are low to the
ground such as parking blocks.
- Objects that are high above the
ground such as objects hanging
from above.
- Objects that are out of range of
the center of the vehicle in the hori-
zontal direction.
- Objects that are not in a vertical
direction.
 When reversing the vehicle, the
functions may not be able to work
properly or may cause a system
malfunction if the following conditions
exist.
High frequency sound from other
sources are nearby:
- Horn sound from another
vehicle.
- Engine sound from other vehi-
cles.
- Sound of an air brake.
- Vehicle detection equipment or a
sonar from another vehicle. - A sound wave with a frequency
similar to the vehicle’s system is
transmitted near by.
- A vehicle equipped with the
same system is reversing toward
your reversing direction.
Weather conditions:
- Extremely high or extremely low
temperatures in which the area near
the sonar sensor becomes too hot
or too cold to operate.
- The sonar sensors or the rear
bumper near the sonar sensors are
exposed to heavy rain or a signifi-
cant amount of water.
- Fog, snow or sandstorm, etc.
- Air is moving rapidly such as
when a strong wind is blowing.
Parts attached to the rear bumper
near the sonar sensor:
- Commercial electr
onic parts (fog
light, fender pole, radio antenna) or
commercial attachment parts (trailer
hitch, bicycle carrier, bumper guard)
are attached.
- Parts that emit high frequency
sound, such as a horn or speaker,
are attached.
Vehicle conditions:
- Ice, snow or mud is adhered to
the sonar sensors or the rear
bumper near the sonar sensor. - The vehicle is significantly
inclined.
- The ground clearance is signifi-
cantly reduced due to the vehicle’s
loading condition, etc.
- When the sonar sensor is
misaligned due to a collision or an
accident.
Surrounding environment:
- A cloth banner, flag, hanging
branch or railroad crossing bars are
present in the reversing direction.
- When reversing on a gravel or
grassy area.
- When reversing in an area where
objects or walls are adjacent to the
vehicle such as narrow tunnels,
narrow bridges, narrow roads or
narrow garages.
- Wheel track or hole is present in
the ground of the reversing direc-
tion.
- When reversing over a drainage
cover (grating cover).
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
