Page 49 of 508
LATCH in the center rear seating
position
There are no LATCH anchors dedicated to
the center rear seating position. However,
the inboard LATCH anchors belonging to
the two outboard seating positions (indi-
cated by the arrows) can be used together
to secure a CRS in the center rear seating
position. These anchors are separated by a
distance
OAof 17.2 in (438.5 mm). Before
attempting to secure a CRS in this seating
position, ensure that the CRS manufactur-
er’s instructions permit the use of LATCH
anchors with the spacing indicated above. (These are sometimes referred to as
“shared anchors” or “borrowed anchors.”)
CRS with rigid lower attachments cannot
be installed in the center seat. This type of
CRS should only be installed in the out-
board seating positions.
LRS3318LRS0661
LATCH webbing-mounted attachment
Safety-Seats, seat belts and supplemental restraint system1-31
Page 50 of 508
When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.
Top tether anchor
LRS0662
LATCH rigid-mounted attachment
1-32Safety-Seats, seat belts and supplemental restraint system
Page 51 of 508

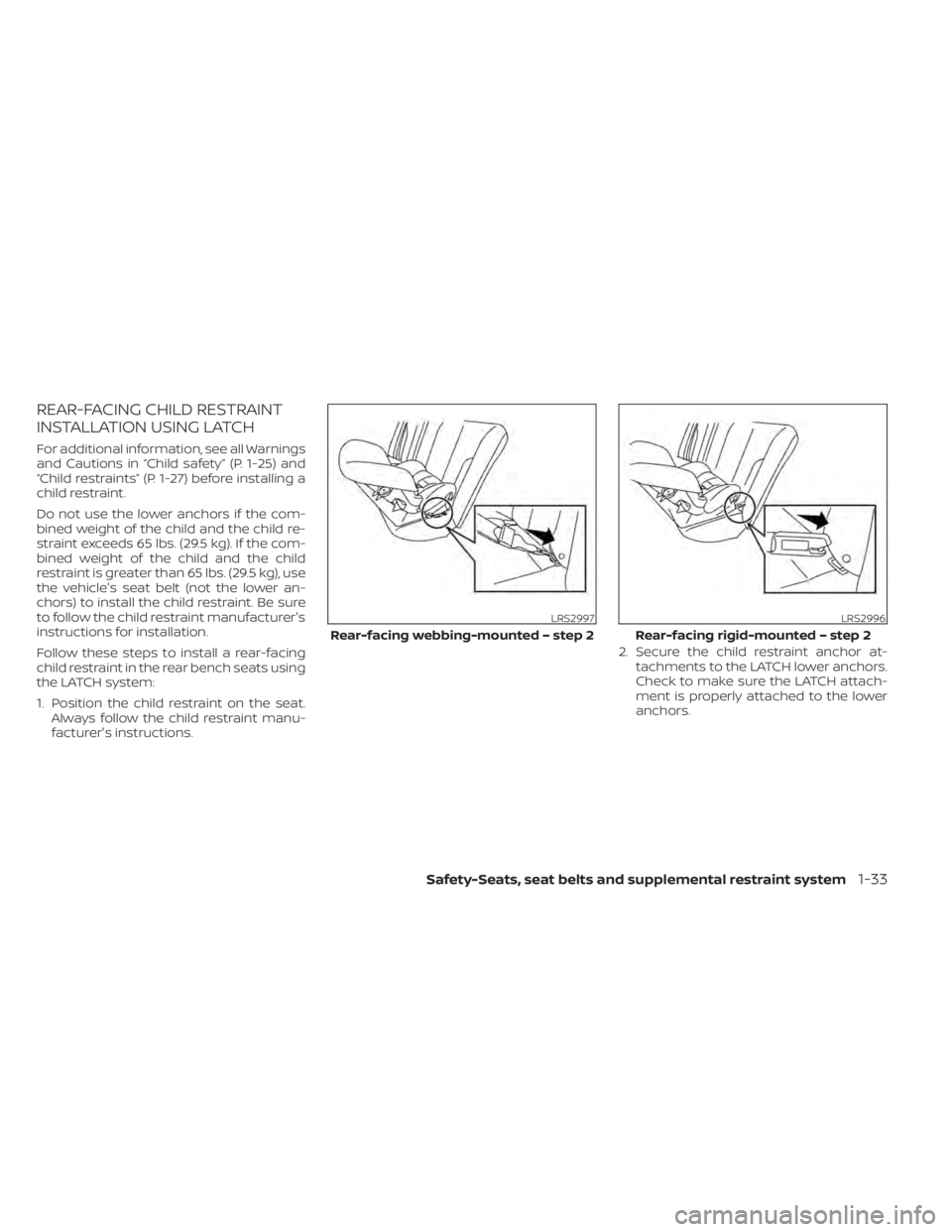

LRS2997
Rear-facing webbing-mounted – step 2
Safety-Seats, seat belts and supplemental restraint system1-33
Page 52 of 508

3. For child restraints that are equippedwith webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of
the anchor attachments. 4. Af ter attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint or try installing by using the vehicle seat belt (if applicable). Not all
child restraints fit in all types of vehicles.
5. Check to make sure the child restraint is properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS
LRS0673
Rear-facing – step 3
Page 53 of 508
WRS0256
Rear-facing – step 1
Safety-Seats, seat belts and supplemental restraint system1-35
Page 54 of 508
LRS2395
Rear-facing – step 3
Page 55 of 508

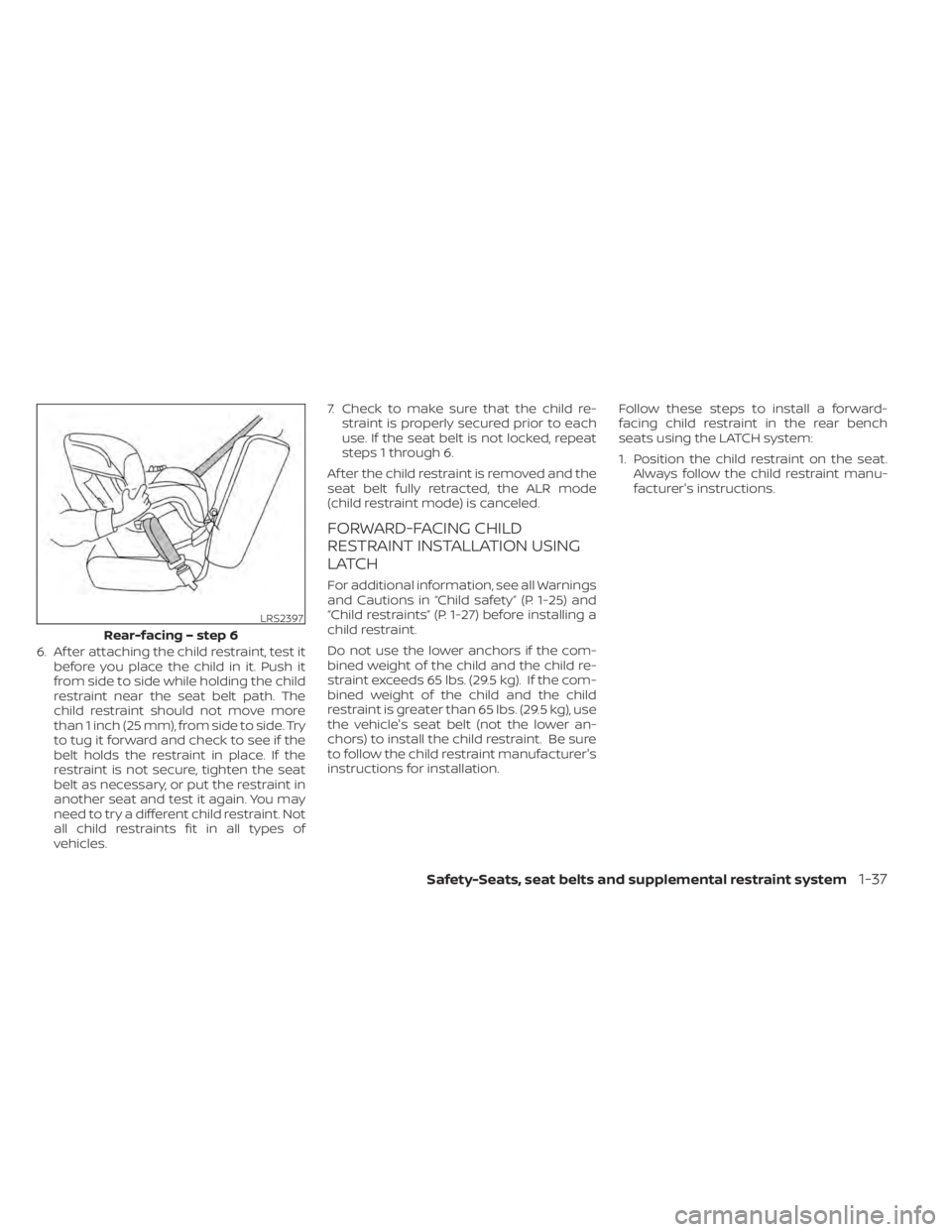

LRS2397
Rear-facing – step 6
Safety-Seats, seat belts and supplemental restraint system1-37
Page 56 of 508

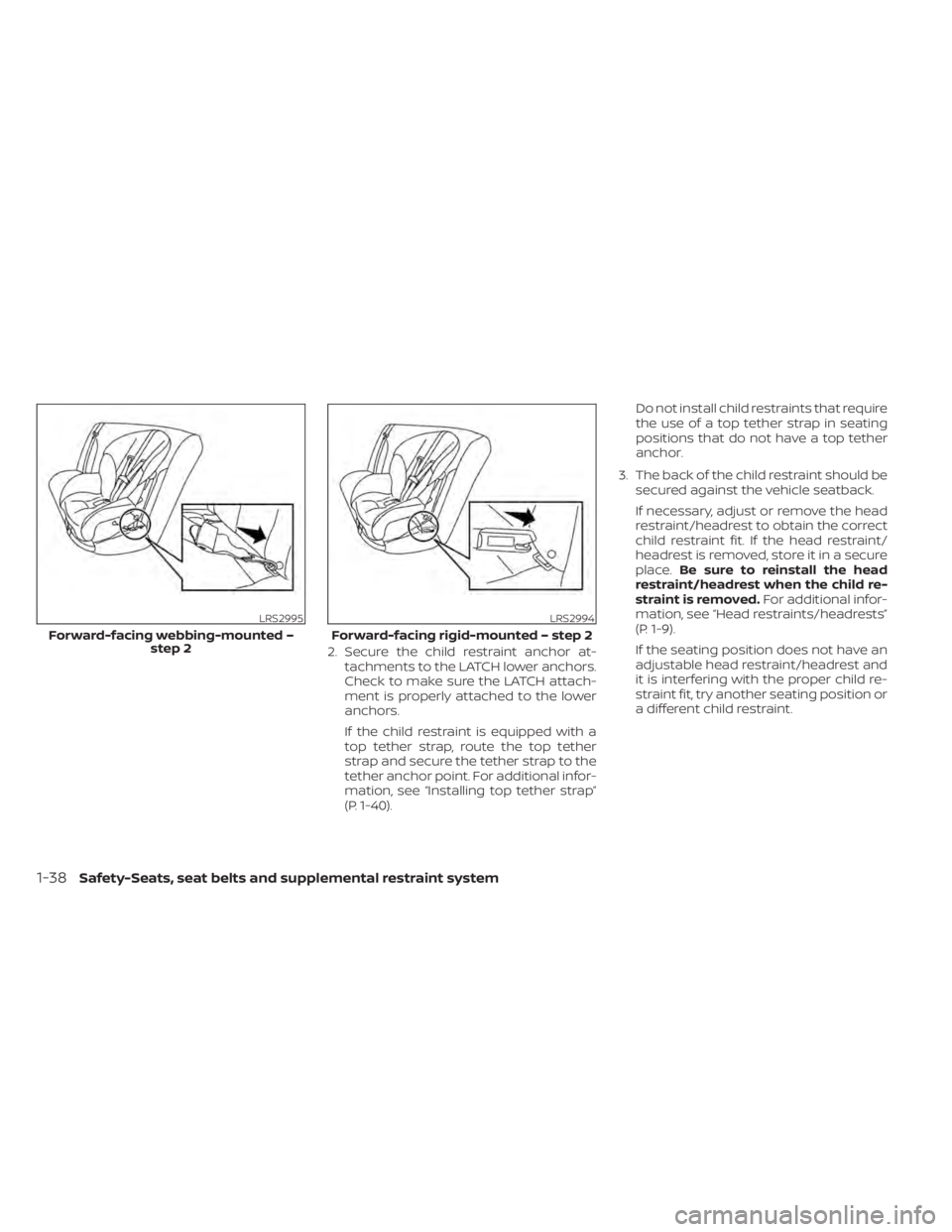

LRS2995
Forward-facing webbing-mounted –step 2
