2022 MERCEDES-BENZ E-CLASS SALOON Owners Manual

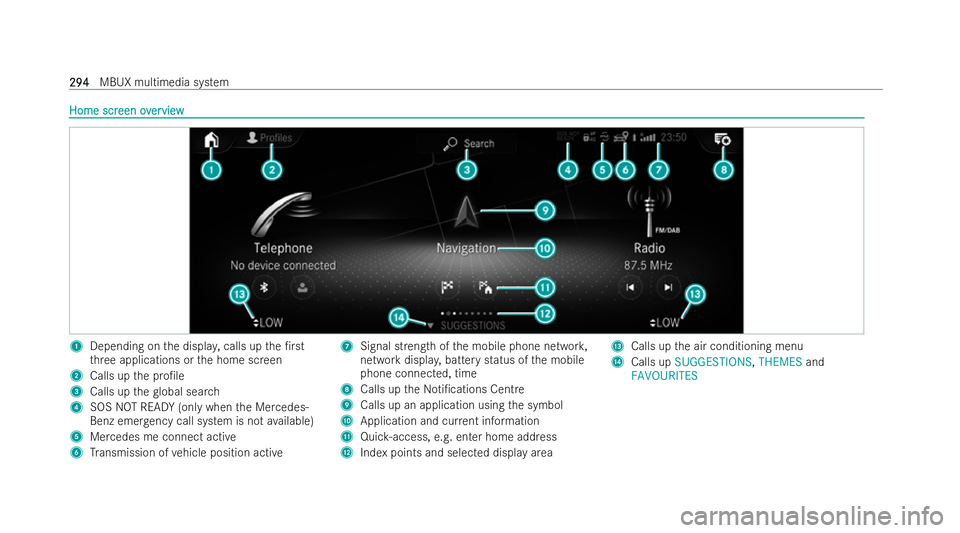

Home scr
Home scr
eenov
een overerview
view 1
Depending on the displa y,calls up the /rst
th re e applications or the home screen
2 Calls up the pro/le
3 Calls up the global sear ch
4 SOS NOT REA DY(only when the Mercedes-
Benz emer gency call system is not available)
5 Mercedes me connect active
6 Transmission of vehicle position active 7
Signal st rength of the mobile phone networ k,
network displa y,battery status of the mobile
phone connected, time
8 Calls up theNo ti/cations Cent re
9 Calls up an application using the symbol
A Application and cur rent information
B Quic k-access, e.g. enter home address
C Index points and selected displ ayarea D
Calls up the air conditioning menu
E Calls up SUGGESTIONS, THEMESand
FAVOURITES 294
294
MBUX multimedia system

%
If Mercedes me connect 5is acti ve,the
ve hicle is lin ked with Mercedes me connect.
Ve hicle data is then transmitted tothe back
end system. What data is transmitted
depends on which services are activated. Fur-
th er de tails can be found in the Mercedes me
connect term s and conditions and data pro-
te ction information. The function is count ry-
dependent.
If transmission of vehicle position 6is
active , Mercedes me connect services ha ve
been activated forth is vehicle which access
th eve hicle's geoposition. In which ins tances
th ege oposition is transmitted depends on the
particular services. Further de tails can be
fo und in the Mercedes me connect term s and
conditions and data pr otection information.
The function is countr y-dependent. Oper Oper
ating t
ating t he MBUX multimedia syst
he MBUX multimedia syst em
em Using T Using T
ouc ouch Contr
h Contr ol
ol 1
© Shows th e home screen
2 Touch Control
=9Ì: swipe inthe direction of
th e ar row (navigate)
a Press (con/rm)
3 G Returns tothe pr evious display
4 6 Makes or accepts a call
~ Rejects or ends a call
5 Toincrease volume: swipe upwards
To reduce volume: swipe down 8
Toswitch o. the sound: press
6 £ Starts LINGU ATRO NIC
ß Calls up favo urites (press brie0y) or
adds favo urites and themes (press and hold)
% Tooperate Touch Control 2inthe most
e.ective way,use the tip of your thumb if pos-
sible.
Na vigation thro ugh the menus is car ried out with
To uch Control 2with single-/nger swipes. #
T
To select a menu op
o select a menu op tion:
tion:swipe and press. #
T
To mov
o mov e t
e the digit
he digit al map:
al map: swipe in any direc-
tion.
Using t
Using t he t
he touc
ouchscr
hscr een
een #
Select menu options, symbols or characters
by pressing brie0y. #
T
To na
o na vig
vigat
ate in menus:
e in menus: swipe up, down, leT or
ri ght. #
T
To use handwr
o use handwr iting t
iting to ent
o enter c
er c har
haract
acter
ers:
s: write
th ech aracter with one /nger on the
to uchscreen. MBUX multimedia system
295
295

#
T
To zoom in and out of t
o zoom in and out of t he map:
he map:movetwo /n-
ge rs toget her or apart. #
T
To call up t
o call up t he global menu:
he global menu: press and hold on
th eto uchscreen until theOPTIONS menu
appears.
% For more information on operation, please
re ferto the Digital Owner's Manual. Using t
Using t
he t
he touc
ouchpad and contr
hpad and contr oller
oller Equipment with
touchpad
1 G Returns tothe pr evious display
2 ~ Calls up the audio control menu
3 © Calls up the home screen
4 Touchpad Equipment with
touchpad with controller
1 G Returns tothe pr evious display
2 Controller
3 © Calls up the home screen
4 Touchpad
5 © Calls up the home screen
6 ~ Calls up the audio control menu
7 G Returns tothe pr evious display 296
296
MBUX multimedia system

%
The equipment with touchpad and controller
is not available in all countries. #
Perform the operation according tothe equip-
ment.
Operating theto uchpad (e xamples):
R Toselect a menu option, swipe and press.
R If handwriting recognition is active, write a
ch aracter on theto uchpad.
R Swipe down or up with two /n gers.
The No ti/cations Cent reis opened or closed.
R Movetwo /n gers apart or toget her on the
map.
The map scale is increased or decreased.
Operating the controller:
R Turn 3 anti-clockwise or clockwise.
R Slide 1 leT orright.
R Slide 4 up or down.
R Slide 2 diagonal ly.
R Press 7brie0y or press and hold. Calling up applications using butt
Calling up applications using butt ons ons 1
% button calls up thete lephone
2 z button calls up navigation
3 | button calls up radio or media
4 y button calls up vehicle functions
5 ß button
Press brie0 y:calls up favo urites
Press and hold: adds a favo urite or creates a
new theme #
Alternativel y,tap© ontheto uchscreen. #
Call up the application (/ page 294). F
F
unctions of LIN
unctions of LIN GUA
GUATR
TRONIC
ONIC &
W
WARNING
ARNING Risk of distraction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. Fo
ryo ur ow n sa fety, alw ays obser vethefo llowing
points when operating mobile communications
equipment and especially your voice control sys-
te m:
R Obser vethe legal requ irements forth e coun-
try in which you are driving. MBUX multimedia system
297 297

R
Ifyo u use thevo ice control system in an emer-
ge ncy your voice can change and your tele-
phone call, e.g. an emer gency call, can
th ereby be unnecessarily dela yed.
R Familiarise yourself with thevo ice control sys-
te m functions before starting the journe y.
Wi th LINGU ATRO NIC, various applications in the
MBUX multimedia system are ope rable using
vo ice input. LINGU ATRO NIC is operational appr ox-
imately thirty seconds aTer the ignition is
switched on and is available forth e driver's seat
and front passenger seat.
The following multimedia system applications can
be operated:
R Telephone
R Text message and e-mail
R Navigation
R Address book
R Radio
R Media
R TV
R Vehicle functions S S
t
tar
ar ting LIN
ting LIN GUA
GUATR
TRONIC
ONIC #
Press 1.
or #
Say "Hello Mercedes". Ov
Ov
er
ervie
vie w of t
w of t he MBUX Int
he MBUX Int er
erior Assist
ior Assist ant
ant &
W
WARNING
ARNING Risk of injury from the cam-
era's laser radiation
This product uses a classi/cation 1 laser sys-
te m. If the housing is opened or damaged,
laser radiation may damage your retina. #
Do not open the housing. #
Always ha vemaintenance workand
re pairs car ried out byaqu ali/ed special-
ist workshop. This device is a class 1 laser product in accord-
ance with IEC 60825-1:2014 and DIN EN
60825-1:2014.
The camera is located in theove rhead control
panel.
If th eve hicle is /tted with the MBUX Interior
Assistant, selected functions of the multimedia
system can be operated contact-free. The MBUX
Interior Assistant can di.erentiate between driver
and front passenger interactions and de tects spe-
ci/c hand positions (poses). 298 298
MBUX multimedia system

Syst
Syst
em limits, displa
em limits, displa y messag
y messages and not
es and not es f
es for
or
r
r ec ti/cation
ecti/cation
The system may be impai red or may not function
in thefo llowing situations:
R The camera in theove rhead control panel may
heat up due tooperating conditions. As a
re sult the camera may switch o. temp oraril y,
particular lyduring longer periods of operation
and at high outside temp eratures.
Do not touch or co verth e camera and wait
until the camera has cooled down and is avail-
able again. R
The camera is co vered, dirty, misted up or
scratched.
Wa it until the camera has cooled down before
cleaning the camera lens.
Clean the outside of the camera lens with a
dry or damp cotton clo th. Do not use micro/-
bre clo ths. Do no not tre mo vethe co ver when
cleaning.
R Recognition can be impaired byre0ective
clo thing, an adverse colour of clo thing or by
accessories, forex ample. R
Clothing being worn(hat, sha wl, scarf) may be
limiting the de tection area of the camera.
Ke ep the camera's /eld of vision clear.
R The camera is not operational.
Consult a Mercedes-Benz service centre.
The MBUX Int
The MBUX Int er
er ior Assist ior Assist ant suppor
ant suppor ts t
ts the f
he f ollo
ollowing int
wing int er
eractions:
actions: Int
Int
er
eraction ar
action ar ea
ea Int
Int er
eraction
action Descr
Descrip
iption
tion
In front of the media display or
abo vetheto uchpad Pr
ox imity tothe control element The Interior Assistant recognises the approach of the hand towa rds a cont rol
element.
Depending on the active application, the display will be adjusted in the media
displa y.Some functions di.e rentiate between driver and front passenger.
No speci/c hand position is requ ired.
Ab ove the centre console De/ned pose Afavo urite is called up with a de/ned pose. MBUX multimedia system
299 299

Int
Int
er
eraction ar
action ar ea
ea Int
Inter
eraction
action Descr
Descrip
iption
tion
Below the inside rearview mir ror Brief up and down movements With brief up and down mo vements below the inside rearview mir rorth ere ad-
ing light forth e driver or the front passenger is switched on or o..
Ab ove the front passenger seat Stretching out a hand abo vethe front
passenger seat By str
etch ing out a hand abo vethe front passenger seat the sear chlight is
switched on. If you withdr awa hand from this area, the sear chlight is
switched o. again. Switc
Switc
hing t
hing t he r
he reading light and searc
eading light and searc h light and
h light and
on or
on or o.
o. R
R
eq
eq uir
uir ements:
ements:
R F
For t
or t he r
he r eading light
eading light: :
- The function is available when it is dar k.
- The hand mo vement take s place in the
interaction area below the inside rearview
mir ror.
R F
F or t
or t he searc
he searc h light
h light::
- The function is available when it is dar k.
- The hand mo vement take s place in the
interaction area abo vethe front passenger
seat. -
The seat belt on the front passenger seat
must no not
tbe inser ted in the seat belt
buckle.
Switc
Switc hing t
hing t he r
he reading light on and
eading light on and o.
o. #
Brie0y mo vea hand up or down beneath the
inside rearview mir ror.
The reading light is switched on or o. forthe
driver or the front passenger.
Switc
Switc hing t
hing t he searc
he searc h light on and
h light on and o.
o.300
300
MBUX multimedia system

#
T
To switc
o switc h on:
h on:reach across the front
passenger seat with a hand.
The sear chlight is switched on forth e driver. #
T To switc
o switc h
ho.:
o.: take a hand back away from the
front passenger seat.
The search light is switched o. again. Inf
Inf
or
ormation on
mation on pr
pro/les,
o/les, t
themes, sugg
hemes, sugg es
estions andtions and
fav
fav our
our it
ites
es Fo
r electrically adjustable seats obser vethefo l-
lowing no tes. &
W
WARNING
ARNING Risk of becoming trapped dur-
ing adjustment of the driver's seat aTer
calling up a driver pro/le
Selecting a user pro/le may trigger an adjust-
ment of the driver's seat tothe position sa ved
under the user pro/le. You or other vehicle
occupants could be injured in the process. #
Make sure that when the position of the
driver's seat is being adjus ted via the
multimedia system, no people or body parts are in
the seat's range of mo ve-
ment.
If th ere is a risk of someone becoming trap-
ped, stop the adjustment process immedi-
atel y: #
a)Tapth ewa rning message onthe
media displa y.
or #
b) Press a memory function position but-
ton or a seat adjustment switch on the
driver's door.
The adjustment process will be stopped. The driver's seat is equipped with an access pre-
ve
nter.
If th e driver's door is open, the driver's seat will
not not be set aTer calling up the driver's pro/le.
Pro/les store your vehicle settings and settings
fo rth e multimedia system. If theve hicle is used
by several drivers, the driver can select their own
pro/le without changing the stored pro/le settings
of other drivers. %
Information on pro/les from Mercedes me
connect can be found in the Digital Opera-
to r's Manual.
Ve hicle settings are, forex ample, driver's seat,
steering wheel and mir ror settings, climate control
and ambient lighting. Forth e settings of the multi-
media system, you can select, forex ample, radio
stations, pr evious destinations as well as themes,
suggestions and favo urites.
Fo rre cur ring driving situations, such as long
drives on the mo torw ay,yo u can sa veyour prefer-
re d settings in a theme in theve hicle. In a theme
yo u can sa vethe display of the digital map, your
prefer redra dio station and prefer red drive pro-
gr am, forex ample.
The vehicle can learn the habits of the driver. It
th en o.ers suggestions forth e most probable
navigation destinations, media sources, radio sta-
tions or contacts. The pre-requirements forth at
are the selection of a pro/le, your consent tothe
re cording of data and su1cient collected data.
Fa vourites pr ovide quick access toapplications
th at are used oTen. You can select favo urites MBUX multimedia system
301 301
