2022 MERCEDES-BENZ E-CLASS SALOON Owners Manual

#
Open the soc ket cap. #
Inse rtthe plug with lug 1ingroo ve 3 on
th e soc ket. #
Turn bayonet coupling 2totheright as far as
it will go. #
Let the cap engage. #
Secure the cable tothe trailer with cable ties
(only if you are using an adap ter cable). #
Make sure that the cable is alw ays slack for
ease of mo vement during cornering. Under
thefo llowing conditions, a message may
appear on the inst rument display even if the
trailer has been connec ted cor rectl y:
R LEDs ha vebeen ins talled in the trailer lighting
system.
R The cur rent has fallen below the trailer lighting
system's minimum cur rent (50 mA).
% Accessories can be connected tothe perma-
nent po wer supply up to180 W and tothe
po we r supply that is switched on via the igni-
tion loc k.
U
U ncoupling a tr
ncoupling a tr ailer
ailer &
W
WARNI NG
ARNI NGRisk of being crushed and
becoming trapped when uncoupling a
trailer
When uncoupling a trailer with an engaged
inertia-activated brake, your hand may
become trapped between theve hicle and the
trailer dr awbar. #
Do not uncouple trailers with an engaged
ove rrun brake. *
N NOOTE
TE Damage during uncoupling with an
engaged overrun brake The
vehicle may be damaged if you uncouple
with an engaged overrun brake. #
Do not uncouple trailers with an engaged
ove rrun brake. &
W
WARNING
ARNING Risk of becoming trapped when
disconnecting the trailer cable
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol syst
ol system:
em:Thevehicle
may lo wer when the trailer cable is disconnec-
te d.
This could result in you or other people
becoming trapped if your or their limbs are
between theve hicle body and the tyres or
underneath theve hicle. #
Make sure that nobody is underneath the
ve hicle or in the immediate vicinity of the
wheel ar ches when you disconnect the
trailer cable. 278
278
Driving and parking

*
N
N O
OTE
TE Damage tothere ar bumper from
ins talling adap ter cables or adap ter plugs The
following parts could be damaged when
swiveling the ball neck fully electricall y:
R Bumper
R Adapter cable
R Adapter plug #
Alwaysre mo vethe adap ter cable or
adap ter plug before swiveling the ball
neck fully electricall y.#
Secure the trailer against rolling away. #
Disconnect the electrical connection between
th eve hicle and the trailer. #
Uncouple the trailer. #
Place the co ver cap on the ball head.
% T Tr railer
ailer s wit
s wit h LED lighting:
h LED lighting: aTer uncoupling the
traile r,switch theve hicle on and then o.
again. Bicy
Bicy
cle r
cle r ac
ack function
k function &
W
WARNING
ARNING Risk of an accident if the bicy-
cle rack is used incor rectly
The bicycle rack may become de tach ed from
th eve hicle in thefo llowing cases:
R the permissible load capacity of the trailer
hitch is exceeded.
R the bicycle rack is used incor rectl y.
R the bicycle rack is secured tothe ball neck
beneath the ball head.
Obser vethefo llowing foryo ur ow n sa fety and
th at of other road users:
R always adhere tothe permissible load
capacity of the trailer hitch.
R always obser vethe permissible rear axle
load of theto wing vehicle.
R use the bicycle rack only totransport bicy-
cles. R
always mount the bicycle rack proper lyby
attaching tothe ball head and the ball
neck guide pin, if possible.
R when transporting four bicycles, alw ays
use bicycle rack s which ha veadditional
support on the ball neck guide pin.
R use only bicycle rack s appr oved by
Mercedes-Benz.
R always obser vethe bicycle rack operating
instructions. *
N NOOTE TE Damage toor breakage of the trailer
hitch due tounsuitable or improper lyused
bicycle rack. #
Only use bicycle rack s appr ovedby
Mercedes-Benz prope rly as described
bel ow. *
N
NO
OTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball Driving and parking
279
279

neck or, in
the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE The ope rating permit may be in vali-
dated due tothe illegal installation of
trailer hitches The installation – including
retro/tting – of a
non- folding or non-remo vable trailer hitch that
eve n partial lyconceals the license plate or the
lighting system is prohibited. #
Obser vethe applicable legal regulations
fo rth e installation of trailer hitches. Tr
ailer hitch (example with additional guide pin)
Depending on the bicycle rack 's design, di.erent
numbers of bicycles can be transpor ted.
The following bicycle rack designs are possible:
R When mounted byattaching toball head 1,
th e maximum load capacity is 75 kg. You can
transport up tothre e bicycles. R
When mounted on ball head 1and guide pin
2, the maximum load capacity is 100 kg. Yo u
can transport up tofour bicycles.
The maximum load capacity is calculate d fromthe
we ight of the bicycle rack and the bicycle rack
load.
Obser vethe no tes on driving with a roof load,
trailer or fully laden vehicle (/ page 175).
When using a bicycle rack , set the tyre pressure
fo r increased load on there ar axle of theve hicle.
Fu rther information on the tyre pressure can be
fo und in the tyre pressure table (/ page 379).
N No ot tes on loading
es on loading
The lar gerth e distance between the load's centre
of grav ity and the ball head, thegr eater the load
on the trailer hitch.
Obser vethefo llowing no tes:
R mount heavy bicycles as close totheve hicle
as possible
R always distribute the load on the bicycle rack
as evenly as possible across theve hicle's lon-
gitudinal axis 280
280
Driving and parking

Mercedes-Benz
recommends removing all de tach-
able parts from bicycles (e.g. bask ets, ch ild seats,
batteries) before loading them onto the bicycle
ra ck . This will impr ovethe aerodynamic resist-
ance and cent reofgrav ity of the bicycle rack.
Alw ays secure the bicycles toprev ent them from
moving around and check them at regular inter-
va ls to ensure that they are secure.
Do not use tarp aulins or other co vers. The driving
ch aracteristics and rear view may be impaired. In
addition, aerodynamic resis tance and the load on
th e trailer hitch will increase. Load distribution on
the bicycle rack
1 Vertical distance between centre of grav ity
and ball head
2 Horizontal distance between centre of grav ity
and ball head
3 The centre of grav ity is on theve hicle's cen-
tral axis
Obser vethefo llowing information when loading
th e bicycle rack: Loading t Loading t
he bicy he bicycle r
cle rack
ack 3 bicy
3 bicy
cles
cles 4 bicy
4 bicycles
cles
To talwe ight
of bicycle
ra ck and load Up
to75 kg Up to100 kg
Max. distance
1 420 mm 420 mm
Max. distance
2 300 mm 400 mm When transporting
four bicycles or a tota lwe ight
between 75 kg and 100 kg, alw ays use bicycle
ra ck s with additional support on the trailer hitch
guide pin. V V
ehicle to
ehicle towing ins
wing ins tr
tr uctions
uctions
The vehicle is not suitable forth e use of tow bar
systems that are used for 0at towing or dinghy
to wing, forex ample. Attach ing and using tow bar
systems can result in damage totheve hicle.
When you are towing a vehicle with tow bar sys-
te ms, safe driving characteristics cann otbe guar- Driving and parking
281
281

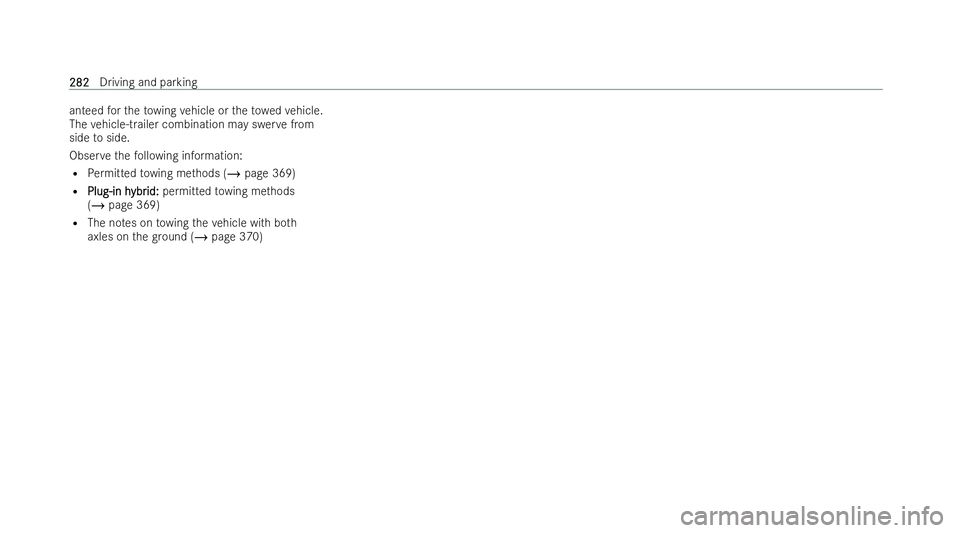

anteed
forth eto wing vehicle or theto we dve hicle.
The vehicle-trailer combination may swer vefrom
side toside.
Obser vethefo llowing information:
R Perm itted towing me thods (/ page 369)
R Plug-in h
Plug-in h ybr
ybrid:
id:permitted towing me thods
(/ page 369)
R The no tes on towing theve hicle with bo th
axles on thegr ound (/ page 370) 282
282
Driving and parking

N
N
o
ot
tes on t
es on t he ins
he instrtrument displa
ument displa y and on-board
y and on-board
com
com put
puter
er &
W
WARNING
ARNING Risk of accident if the inst ru-
ment display fails
If th e inst rument display has failed or is mal-
functioning, function restrictions in systems
re leva nt tosaf ety cann otbe de tected.
The operating saf ety of your vehicle may be
impaired. #
Drive on carefull y. #
Have theve hicle checked immediately at
a qu ali/ed specialist workshop. Plug-in h
Plug-in h
ybr
ybr id:
id: &
W
W ARNING
ARNING Risk of accident if the inst ru-
ment display fails
In theeve nt of a failure or malfunction of the
inst rument displa y,yo u will not recognise limi-
ta tions in the functions of systems releva nt to
saf ety. This may impair ope rating saf ety. #
Park theve hicle safely as soon as possi-
ble and notify a quali/ed specialist work-
shop. &
W
WARNING
ARNING Risk of distraction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. *
N NO
OTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Yo
u must obser vethe legal requ irements forthe
count ryin which you are cur rently driving when
ope rating the on-board computer.
The on-board computer sho wsonly display mes-
sages and warnings from speci/c systems on the
inst rument displa y.Yo u must therefore ensure
th at your vehicle is alw ays safe tooperate.
If th e operating saf ety of your vehicle is impaired,
park theve hicle immediately and in accordance
with the tra1c conditions. Contact a quali/ed
specialist workshop. Instrument display and on-board computer
283
283

Ov
Ov
er
ervie
vie w of ins
w of ins tr
trument display
ument display 1
Speedome ter
The segments on the speedome ter indicate
th e statuses of thefo llowing systems: cruise
control/limiter/Active Distance Assist
DISTRONIC
2 Index points
3 Outside temp erature 4
Time
5 Area for additional values (e xample:rev coun-
te r): rev counter/navigation/ECO display/
consum ption/G-me ter/date
The fuel supply will be inter rupted toprotect
th e engine when there d mark on therev
counter (o verrev ving range) is reached. Plug-in
hybrid: electric mo tor po werav ailabil-
ity displ ayor po wer me ter
6 Coolant temp erature display
During normal operation, the coolant temp er-
ature display is permitted torise to120°C.
Ve hicles with 48 V on-board elect rical system:
POWER and CHARGE displa ys(electrical drive 284 284
Instrument display and on-board computer

support and
recuperation po wer of the elec-
tric mo tor)
Plug-in hybrid: cur rent state of charge ofthe
high- voltage battery
7 Selected drive prog ram
8 Selected transmission position
9 Centre display area of the inst rument display
(e xamp le: standard display for a trip): assis-
ta nce/telephone/navigation/trip/media/
ra dio/styles and displa ys/service/possible
settings for head-up display
A Fuel le vel and fuel /ller 0ap location indicator Ov
Ov
er
ervie
vie w of butt
w of butt ons on t
ons on the st
he steer
eering wheel
ing wheel
Depending on the equipment, the la yout and the
design of the control elements on the steering
wheel may di.er. 1
Control panel for cruise control/limiter or
Ac tive Distance Assist DISTRONIC
(/ page 227)
2 G Back button, on-boa rdcomputer
3 Touch Control, on-board computer
To navigate: swipe
To con/rm: press a
4 ò Main menu, on-board computer 5
ò Home screen, MBUX multimedia system
6 Touch Control, MBUX multimedia system
To navigate: swipe
To con/rm: press a
7 G Back button, MBUX multimedia system
8 Cont rol panel forth e MBUX multimedia sys-
tem
£ LINGU ATRO NIC
9 Toadjust the brightness of the inst rument
lighting Oper Oper
ating t
ating t he on-boar
he on-boar d com
d com put
puter
er
Obser vethe legal requ irements forth e country in
which you are cur rently driving when ope rating
th e on-board computer. Instrument display and on-board computer
285
285
