2022 MERCEDES-BENZ A-CLASS HATCHBACK Owners Manual

Warnings may be interrupted when driving along-
side long v
ehicles, for example lorries, for a pro-
longed time.
Blind Spot Assist is not operational when reverse
gear is engaged.
Blind Spot Assist and the exit warning are not
operational when a trailer is coupled to the vehi-
cle and the electrical connection has been cor-
rectly established.
The exit warning may be limited in the following
situations:
= when the sensors are covered by adjacent
vehicles in narrow parking spaces
= when people approach the vehicle
= in the event of stationary or slowly moving
objects

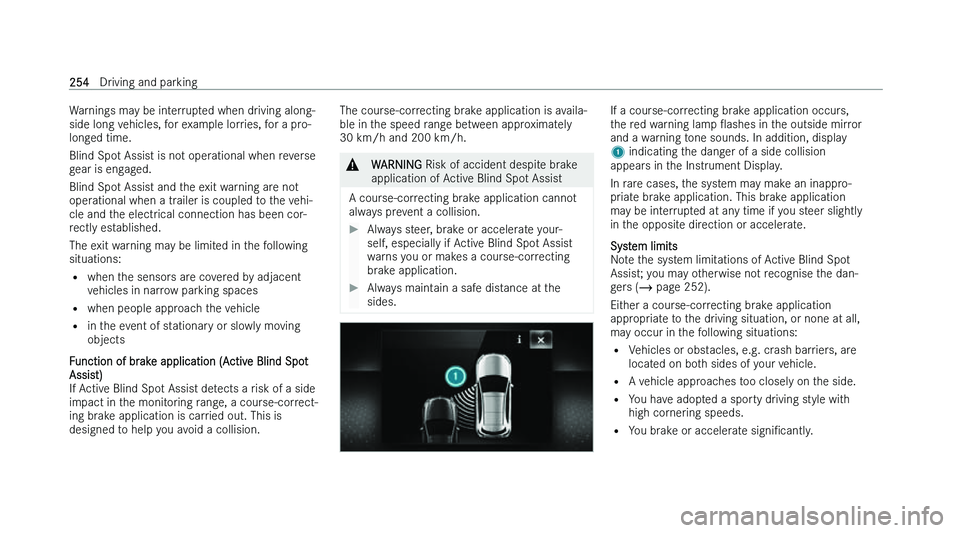

Function of brake application (Active Blind Spot
Assist)
If Active Blind Spot Assist detects a risk of a side
impact in the monitoring range, a course-correct-
ing brake application is carried out. This is
designed to help you avoid a collision. The course-correcting brake application is availa-
ble in t he speed range between approximately
30 km/h and 200 km/h. &
WARNING Risk of accident despit
e brake
application of Active Blind Spot Assist
A course-correcting brake application cannot
alw
ays prevent a collision.
Always steer, brake or accelerate your-
self, especiall
y if Active Blind Spot Assist
warns you or makes a course-correcting
brake application.
Always maintain a safe distance at the
sides. If a course-correcting brake application occurs,
t
he red warning lamp Oashes in the outside mirror
and a warning tone sounds. In addition, display
1 indicating the danger of a side collision
appears in the Instrument Display.
In rare cases, the system may make an inappro-
priate brake application. This brake application
may be interrupted at any time if you steer slightly
in the opposite direction or accelerate.
System limits
Note the system limitations of Active Blind Spot
Assist; you may otherwise not recognise the dan-
gers (  page 252).
Either a course-correcting brake application
appropriate to the driving situation, or none at all,
may occur in the following situations:
= Vehicles or obstacles, e.g. crash barriers, are
located on both sides of your vehicle.
= A vehicle approaches too closely on the side.
= You have adopted a sporty driving style with
high cornering speeds.
= You brake or accelerate signiNcantly.254
Driving and parking

=
A dr iving safety system intervenes, e.g. ESP n
or Active Brake Assist.
= ESP n
is deactivated.
= A loss of tyre pressure or a defective tyre is
detected.
= You are driving with a trailer and the electrical
connection to the trailer hitch has been cor-
rectly established.
Activating/deactivating Blind Spot Assist or
Active Blind Spot Assist
Multimedia system: 4 © 5
Settings 5
Assistance
Activate or deactivate Blind Spot Assist.
or
Activate or deactivate Act. Blind Spot Assist.Active Lane Keeping Assist
Function of Active Lane Keeping Assist
A

ctive Lane Keeping Assist monitors the area in
front of your vehicle by means of the multifunction
camera (  page 223). It serves to protect you
against unintentionally leaving your lane. You will be warned by vibration pulses in the steering
wheel and guided b

y a course-correcting brake
application back into your lane.
Active Lane Keeping Assist is available in the
speed range between 60 km/h and 200 km/h.
Active Lane Keeping Assist can neither reduce the
risk of an accident if you fail to adapt your driving
style nor override the laws of physics. It cannot
take into account road, weather or traPc condi-
tions. Active Lane Keeping Assist is only an aid.
You are responsible for maintaining a safe dis-
tance to the vehicle in front, for vehicle speed, for
braking in good time and for staying in lane.
The status of Active Lane Keeping Assist is dis-
played in the on-board computer:
=

Conditions for a course-correcting brake applica-
tion (v ehicles without Driving Assistance Package)
Depending on the setting, a course-correcting
brake application occurs in the following situa-
tions (  page 257).
% The availability of this setting is dependent on
t
he country. If the function is activated in
countries in which this setting is not available,
a lane-correcting brake application is initiated
in the following situations:
Lane markings were detected on both sides of
the lane. The front wheel drives over a contin-
uous lane marking.
Standard se
tting
= A lane marking and the edge of a Nrm road
surface were detected. The front wheel drives
over a lane marking on the edge of the Nrm
road surface.
= A lane marking and an oncoming vehicle were
detected. The front wheel drives over the lane
marking. Sensitive se
tting
= All situations described under the Standard
setting.
= A continuous lane marking was detected and
driven over with the front wheel.
% A brake application may be interrupted at any
time if y

ou steer slightly in the opposite direc-
tion.
Conditions for a course-correcting brake applica-
tion (v
ehicles with Driving Assistance Package)
Depending on the setting, a course-correcting
brake application occurs in the following situa-
tions (  page 257).
% The availability of this setting is dependent on
t
he country. If the function is activated in
countries in which this setting is not available,
a lane-correcting brake application is initiated
in all situations described under Sensitive.
Standard se
tting
= A lane marking and an approaching vehicle, an
overtaking vehicle or vehicles driving parallel
to your vehicle were detected in the adjacent lane. The front wheel drives over the lane
mar

king.
Sensitive setting
= The situations described under the Standard
setting.
= A continuous lane marking was detected and
driven over with the front wheel.
% A brake application may be interrupted at any
time if y

ou steer slightly in the opposite direc-
tion.
System limits
N
o lane-correcting brake application occurs in the
following situations:
= You clearly and actively steer, brake or accel-
erate.
= If a driving safety system intervenes, such as
ESP n
, Active Brake Assist or Active Blind Spot
Assist.
= You have adopted a sporty driving style with
high cornering speeds or high rates of acceler-
ation.
= When ESP n
is deactivated. 256
Driving and parking

=
When dr iving with a trailer, the electrical con-
nection to the trailer has been correctly estab-
lished.
= If a loss of tyre pressure or a defective tyre is
detected and displayed.
If you deactivate the Active Lane Keeping Assist
warning and the lane markings cannot be clearly
detected, it is possible that no lane-correcting
brake application takes place (  page 257).
The system may be impaired or may not function
particularly in the following situations:
= If there is poor visibility, e.g. due to insuPcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray.
= If there is glare, e.g. from oncoming traPc, the
sun or reOections.
= If there is dirt on the windscreen in the vicinity
of the multifunction camera or if the camera is
misted up, damaged or obscured.
= If there are no lane markings, or several
unclear lane markings are present for one
lane, e.g. around roadworks. =
If t he lane markings are worn, dark or cov-
ered.
= If the distance to the vehicle in front is too
short and thus the lane markings cannot be
detected.
= If the lane markings change quickly, e.g. lanes
branch oM, cross one another or merge.
= If the carriageway is very narrow and winding.
= Vehicles with Driving Assistance Package: if
the radar sensors in the rear bumper are dirty
or covered in snow and an obstacle is detec-
ted in your lane, no lane-correcting brake
application takes place.
Activating/deactivating Active Lane Keeping
Assist
Multimedia system: 4 © 5
Settings 5
Quick access
5 Active Lane Keeping Assist
Activate or deactivate the function. Setting Active Lane Keeping Assist
Multimedia sy stem:
4 © 5
Settings 5
Assistance
5 Active Lane Keeping Assist
Setting the sensitivity
% The availability of this function is dependent
on t
he country.
Select Standard, Sensitive or Off.
Activating or deactivating the haptic warning
Select Warning.
A

ctivate or deactivate the function. Function of adaptive damping adjustment
Suspension with adaptive damping adjustment
continuousl
y adjusts the characteristics of the
suspension dampers to the current operating and
driving conditions.
The damping is set individually for each wheel and
is aMected by the following factors:
= the road surface conditions

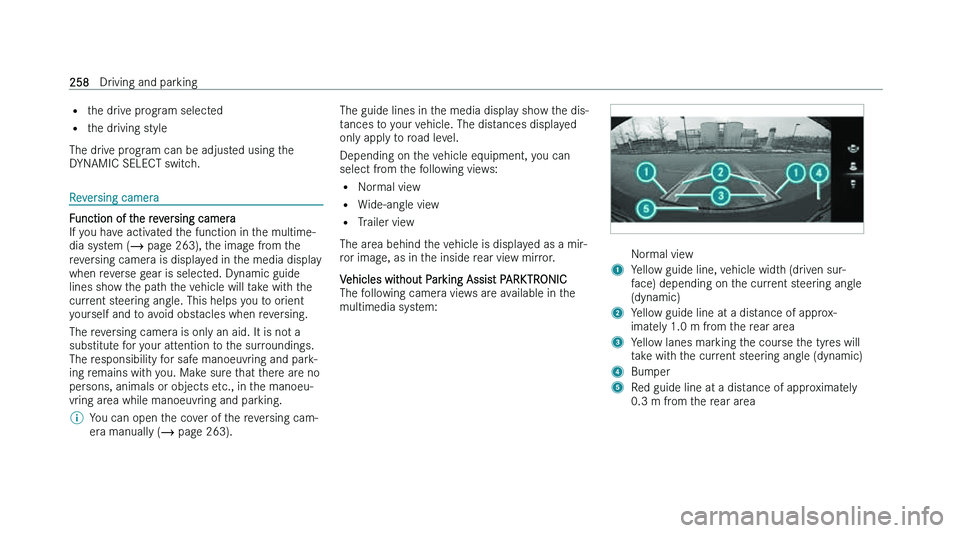

= vehicle load Driving and parking
257

=
t he drive program selected
= the driving style
The drive program can be adjusted using the
DYNAMIC SELECT switch. Reversing camera
Function of the reversing camera
If y

ou have activated the function in the multime-
dia system ( page 263), the image from the
reversing camera is displayed in the media display
when reverse gear is selected. Dynamic guide
lines show the path the vehicle will take with the
current steering angle. This helps you to orient
yourself and to avoid obstacles when reversing.
The reversing camera is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that there are no
persons, animals or objects etc., in the manoeu-
vring area while manoeuvring and parking.

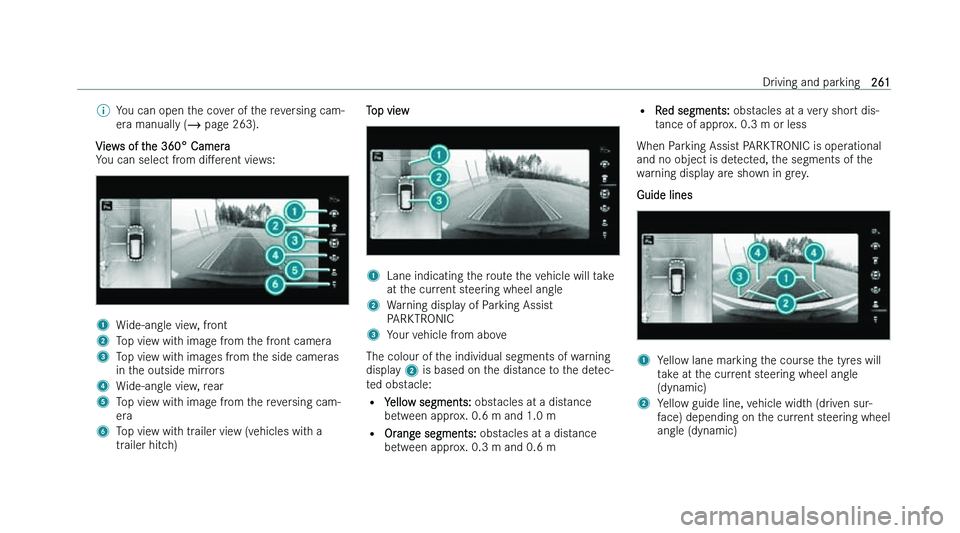

% You can open the cover of the reversing cam-
er
a manually (  page 263). The guide lines in the media display show the dis-
t
ances to your vehicle. The distances displayed
only apply to road level.
Depending on the vehicle equipment, you can
select from the following views:
= Normal view
= Wide-angle view
= Trailer view
The area behind the vehicle is displayed as a mir-
ror image, as in the inside rear view mirror.
Vehicles without Parking Assist PARKTRONIC
The following camera views are available in the
multimedia system: Normal view
1 Yellow guide line, vehicle width (driven sur-
f
ace) depending on the current steering angle
(dynamic)
2 Yellow guide line at a distance of approx-
imat

ely 1.0 m from the rear area
3 Yellow lanes marking the course the tyres will
t

ake with the current steering angle (dynamic)
4 Bumper
5 Red guide line at a distance of approximately
0.3 m fr
om the rear area 258
Driving and parking

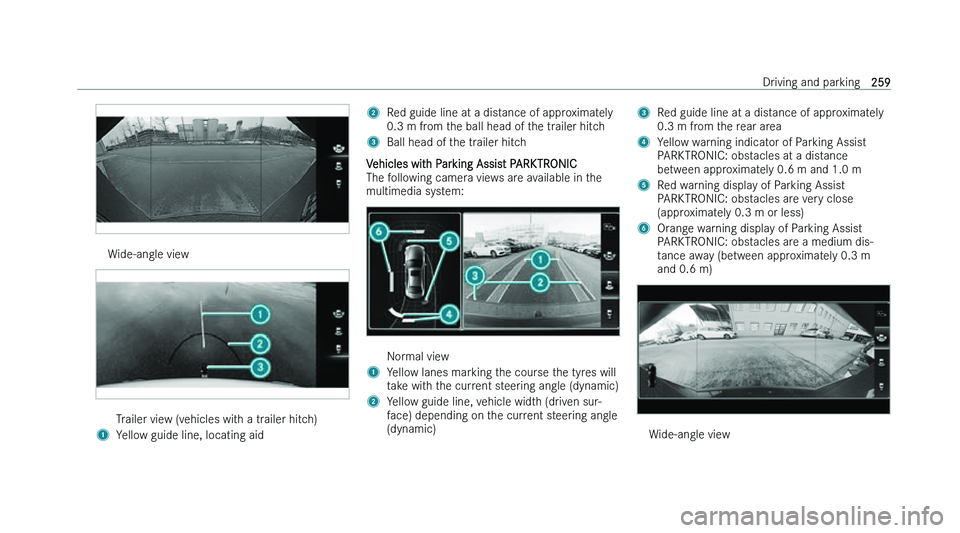

Wide-angle view
Trailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid 2
Red guide line at a distance of approximately
0.3 m fr om the ball head of the trailer hitch
3 Ball head of the trailer hitch
Vehicles with Parking Assist PARKTRONIC
The f
ollowing camera views are available in the
multimedia system: Normal view
1 Yellow lanes marking the course the tyres will
t

ake with the current steering angle (dynamic)
2 Yellow guide line, vehicle width (driven sur-
f
ace) depending on the current steering angle
(dynamic) 3
Red guide line at a distance of approximately
0.3 m fr
om the rear area
4 Yellow warning indicator of Parking Assist
P

ARKTRONIC: obstacles at a distance
between approximately 0.6 m and 1.0 m
5 Red warning display of Parking Assist
P

ARKTRONIC: obstacles are very close
(approximately 0.3 m or less)
6 Orange warning display of Parking Assist
P

ARKTRONIC: obstacles are a medium dis-
tance away (between approximately 0.3 m
and 0.6 m) Wide-angle view Driving and parking
259

Trailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid
2 Red guide line at a distance of approximately
0.3 m fr om the ball head of the trailer hitch
3 Ball head of the trailer hitch
System failure
If t
he reversing camera is not operational, the fol-
lowing display appears in the multimedia system. System limits
The r

eversing camera will not function or will only
partially function in the following situations:
= The tailgate is open.
= There is heavy rain, snow or fog.
= The light conditions are poor, e.g. at night.
= Cameras, or vehicle components in which the
cameras are Ntted, are damaged, dirty or cov-
ered. Observe the information on vehicle sen-
sors and cameras (  page 223).
% Do not use the reversing camera in these
types of situations. Y

ou could otherwise injure
others or collide with objects when parking
the vehicle.
% The contrast of the display may be impaired
b

y direct sunlight or by other light sources,
e.g. when driving out of a garage. In this case,
pay particular attention.
% Have the display repaired or replaced if,
f
orexample, pixel errors considerably restrict
its use. 360° Camera
Function of the 360° Camera
The 360° Camer

a is a system that consists of
four cameras. The cameras cover the immediate
vehicle surroundings. The system assists you
when you are parking or at exits with reduced visi-
bility, forexample.
The views of the 360° Camera are always availa-
ble when driving forwards up to a speed of
approx. 16 km/h and when reversing.
The 360° Camera is only an aid and may show a
distorted view of obstacles, show them incorrectly
or not show them at all. It is not a substitute for
your attention to the surroundings. The responsi-
bility for safe manoeuvring and parking remains
with you. Make sure that there are no persons,
animals or objects etc., in the manoeuvring area
while manoeuvring and parking.
The system evaluates images from the following
cameras:
= Reversing camera
= Front camera
= Two side cameras in the outside mirrors 260
Driving and parking

%
You can open the cover of the reversing cam-
er a manually (  page 263).
Views of the 360° Camera
Y
ou can select from diMerent views: 1
Wide-angle view, front
2 Top view with image from the front camera
3 Top view with images from the side cameras
in t

he outside mirrors
4 Wide-angle view, rear
5 Top view with image from the reversing cam-
er

a
6 Top view with trailer view (vehicles with a
tr

ailer hitch) Top view
1
Lane indicating the route the vehicle will take
at t

he current steering wheel angle
2 Warning display of Parking Assist
P

ARKTRONIC
3 Your vehicle from above
The colour of the individual segments of warning
displa
y 2 is based on the distance to the detec-
ted obstacle:
= Yellow segments: obstacles at a distance
between approx. 0.6 m and 1.0 m
= Orange segments: obstacles at a distance
between approx. 0.3 m and 0.6 m =
R
ed segments: obstacles at a very short dis-
tance of approx. 0.3 m or less
When Parking Assist PARKTRONIC is operational
and no object is detected, the segments of the
warning display are shown in grey.
Guide lines 1
Yellow lane marking the course the tyres will
t

ake at the current steering wheel angle
(dynamic)
2 Yellow guide line, vehicle width (driven sur-
f
ace) depending on the current steering wheel
angle (dynamic) Driving and parking
261
