Interior Equipment (View C)
▼Interior Equipment (View C)
ƒ
Head restraint................................................................................... page 2-18
„ Front seat........................................................................................... page 2-4
… Seat belt........................................................................................... page 2-26
† Bottle holder.....................................................................................page 5-43
‡ Vanity mirror..................................................................................... page 5-36
ˆ Sunvisor........................................................................................... page 5-36
‰ Overhead light (front)/Map lights...................................................... page 5-37
Š Overhead console............................................................................. page 5-45
‹ Moonroof switch...............................................................................page 3-52
ΠRearview mirror................................................................................ page 3-46
Vent................................................................................................... page 5-8
Ž AC power outlet............................................................................... page 5-40
Accessory sockets.............................................................................. page 5-39
External input terminal.......................................................................page 5-14
‘ Selector lever.................................................................................... page 4-28
’ Commander switch........................................................................... page 5-18
“ Electric Parking Brake (EPB) switch...................................................... page 4-52
” AUTOHOLD switch........................................................................... page 4-59
• Cup holder....................................................................................... page 5-42
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

ƒWindshield wiper blades................................................................... page 6-14
„ Moonroof......................................................................................... page 3-51
… Door................................................................................................ page 3-33
† Window........................................................................................... page 3-49
‡ Touch sensor.....................................................................................page 3-35
ˆ Outside mirror.................................................................................. page 3-44
‰ Charge lid.........................................................................................page 3-14
Š Liftgate............................................................................................. page 3-41
‹ Electric liftgate opener....................................................................... page 3-41
ΠRear window wiper blade.................................................................. page 6-17
Pictorial Index
Exterior Overview
1-8The equipment and installation position varies by vehicle
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

2. Press the select switch for theoutside mirror to be tilted
downward to turn on the indicator
light of the select switch.
3. Shift the selector lever to the R position to tilt the outer mirror on
the side where the select button
was pressed downward.
NOTE
When any of the following condition is
met, the outer mirrors return to their
normal positions.
The power switch is switched to a
position other than ON.
The selector lever is shifted to a
position other than R.
The select switch is pressed again.
Folding outside mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors folded
in is dangerous. Your rear view will be
restricted, and you could have an
accident.
Manual folding outside mirror
Fold the outside mirror rearward until
it is flush with the vehicle.

Power folding outside mirror
WARNING
Do not touch a power folding outside
mirror while it is moving:
Touching the power folding outside
mirror when it is moving is dangerous.
Your hand could be pinched and
injured or the mirror could be
damaged.
Use the switch to set the mirror to the
on-road position:
Setting the power folding outside
mirror to the on-road position by hand
is dangerous. The mirror will not lock
in position and will prevent e ffective
rearview visibility.
Only operate the power folding
outside mirror with the vehicle safely
parked:
Operating the power folding outside
mirror while the vehicle is moving is
dangerous. Wind blast on the mirror
will cause them to collapse and you
will be unable to return it to the
on-road position, preventing rearview
visibility.
The power switch must be switched to
ACC or ON position.
To fold the mirrors, press the outside
mirror folding switch.
To return the mirrors to their on-road
positions, press the switch again.
Before Driving
Mirrors
3-45
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Automatic folding function
When the power switch is switched to
OFF, the outside mirrors automatically
fold in and out when the doors are
locked and unlocked.
Also, when the power switch is
switched ON or the EV system is
started, the outside mirrors fold out
automatically.
NOTE
The outside mirrors may not fold in
and out automatically under cold
weather conditions.
If the outside mirrors do not fold in
and out automatically, remove any
ice or snow, and then press the
outside mirror folding switch to fold
the outside mirrors in or out.
The automatic folding function can
be turned on or off.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
In the following cases, the outside
mirrors do not fold out
automatically. Press the outside
mirror folding switch to fold out the
outside mirrors.
Pressing the outside mirror folding
switch to fold in the outside
mirrors.
*1
Disconnecting the battery
terminals after the outside mirrors
fold in automatically.
*1 When the automatic folding function is
changed from off to on after folding in the
outside mirrors, the outside mirrors fold out
automatically.
EV system-o ff outside mirror
operation
The outside mirrors can be operated
for about 40 seconds after the power
switch is switched from ON to o
ff.
Driver's side auto-dimming outside
mirror*
The movement of the auto-dimming
outside mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare
from rear on-coming vehicles.
Refer to Rearview Mirror on page
3-46.
NOTE
The front passenger-side outside
mirror does not have the
auto-dimming feature.
▼ Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving , adjust the rearview
mirror to center on the scene through
the rear window.

Before Driving
Mirrors
3-46*Some models.
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

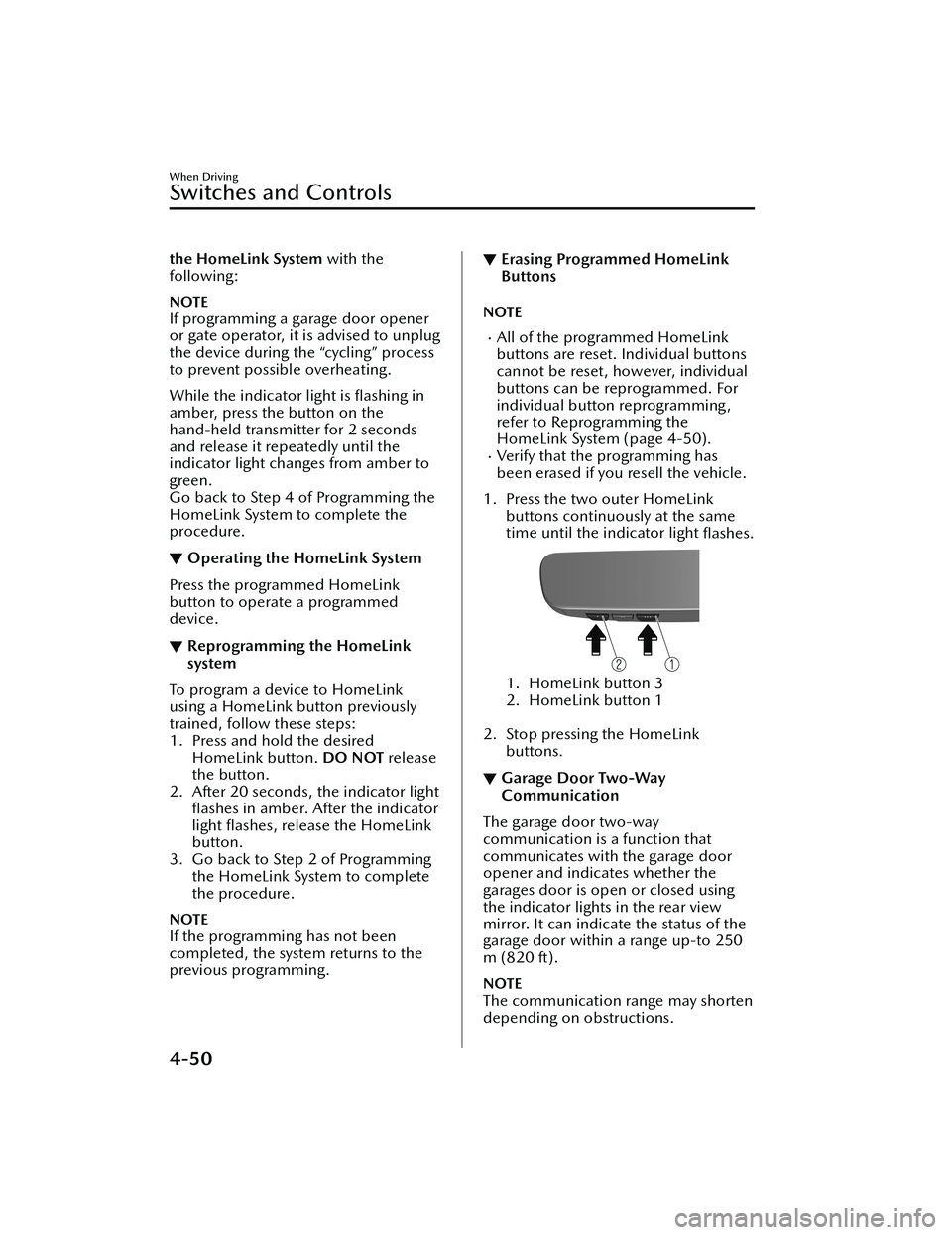

the HomeLink System with the
following:
NOTE
If programming a garage door opener
or gate operator, it is advised to unplug
the device during the “cycling” process
to prevent possible overheating.
While the indicator light is flashing in
amber, press the button on the
hand-held transmitter for 2 seconds
and release it repeatedly until the
indicator light changes from amber to
green.
Go back to Step 4 of Programming the
HomeLink System to complete the
procedure.
▼ Operating the HomeLink System
Press the programmed HomeLink
button to operate a programmed
device.
▼Reprogramming the HomeLink
system
To program a device to HomeLink
using a HomeLink button previously
trained, follow these steps:
1. Press and hold the desired
HomeLink button. DO NOT release
the button.
2. After 20 seconds, the indicator light
flashes in amber. After the indicator
light flashes, release the HomeLink
button.
3. Go back to Step 2 of Programming the HomeLink System to complete
the procedure.
NOTE
If the programming has not been
completed, the system returns to the
previous programming.
▼Erasing Programmed HomeLink
Buttons
NOTE
All of the programmed HomeLink
buttons are reset. Individual buttons
cannot be reset, however, individual
buttons can be reprogrammed. For
individual button reprogramming,
refer to Reprogramming the
HomeLink System (page 4-50).
Verify that the programming has
been erased if you resell the vehicle.
1. Press the two outer HomeLink buttons continuously at the same
time until the indicator light flashes.
1. HomeLink button 3
2. HomeLink button 1

2. Stop pressing the HomeLink buttons.
▼Garage Door Two-Way
Communication
The garage door two-way
communication is a function that
communicates with the garage door
opener and indicates whether the
garages door is open or closed using
the indicator lights in the rear view
mirror. It can indicate the status of the
garage door within a range up-to 250
m (820 ft).
NOTE
The communication range may shorten
depending on obstructions.
When Driving
Switches and Controls
4-50
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

When performing repairs around the
rearview mirror, consult an
Authorized Mazda Dealer.
 Always use tires for all wheels that
are of the speci fied size, and the
same manufacturer, brand, and tread
pattern. In addition, do not use tires
with signi ficantly di fferent wear
patterns on the same vehicle as the
system may not operate normally.
NOTE
If the Forward Sensing Camera (FSC)
cannot operate normally due to rain,
backlight, or fog, the system
functions related to the Forward
Sensing Camera (FSC) are
temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
malfunction.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
cannot operate normally due to high
temperatures, the system functions
related to the Forward Sensing
Camera (FSC) are temporarily
stopped and the following warning
lights turn on. However, this does
not indicate a malfunction. Cool
down the area around the Forward
Sensing Camera (FSC) such as by
turning on the air conditioner.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
detects that the windshield is dirty or
foggy, the system functions related to
the Forward Sensing Camera (FSC)
are temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
problem. Remove the dirt from the
windshield or press the defroster
switch and defog the windshield.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
Detection of pedestrians
The Forward Sensing Camera (FSC)
detects pedestrians when all of the
following conditions are met.
The height of a pedestrian is about 1
to 2 m (3 to 6.5 ft).
The outline of a pedestrian is
recognized such as the head, both
shoulders, or the feet.
The Forward Sensing Camera (FSC)
may not be able to detect pedestrians
when any of the following conditions is
met.
There are multiple pedestrians.A pedestrian is close to a separate
object.
A pedestrian is crouching, lying , or
slouching.
A pedestrian suddenly jumps into
the road.
A pedestrian is holding something
(such as an open umbrella or large
baggage).
A pedestrian blends into the
background (such as in a dark
location at night or by wearing
clothes matching the background
color).
When Driving
i-ACTIVSENSE
4-73
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Objects such as guardrails and
concrete walls running alongside
the vehicle.

Places where the width between
guardrails or walls on each side of
the vehicle narrows.

The walls at the entrance and exits
of tunnels, turnouts.
A BSM warning indicator light mayfl ash or the warning beep may be
activated several times when making
a turn at a city intersection.
Tu r n o ff the BSM while pulling a
trailer or while an accessory such as a
bicycle carrier is installed to the rear
of the vehicle. Otherwise, the radar’s
radio waves will be blocked causing
the system to not operate normally.
In the following cases, it may be diffi cult to view the illumination/
fl ashing of the BSM warning
indicator lights equipped on the
door mirrors.
Snow or ice is adhering to the door
mirrors.
The front door glass is fogged or
covered in snow, frost or dirt.
The rear side radar sensor of the BSM
may be regulated under the radio
wave related laws of the country
where the vehicle is driven. If this
system is used abroad, it may be
necessary to turn off the system.
Refer to Rear Side Radar Sensor on
page 4-79.
The system switches to the Rear
Cross Tra ffic Alert (RCTA) function
when the selector lever is shifted to
the reverse (R) position.
Refer to Rear Cross Traffi c Alert
(RCTA) on page 4-107.
▼ Blind Spot Monitoring (BSM)
Warning Indicator Lights/Display
Indicator/Blind Spot Monitoring
(BSM) Warning Beep
The BSM system notifies the driver of
the presence of vehicles in adjacent
lanes or at the rear of the vehicle using
the BSM warning indicator light, the
warning sound and the display
indicator while the systems are
operational.
When Driving
i-ACTIVSENSE
4-90
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

WARNING
Always check the surrounding area
visually before actually putting the
vehicle in reverse:
The system is only designed to assist
you in checking for vehicles at the rear
when putting the vehicle in reverse.
Due to certain limitations with the
operation of this system, the Blind Spot
Monitoring (BSM) warning indicator
lights may not flash or it might be
delayed even though a vehicle is
behind your vehicle. Always make it
your responsibility as a driver to check
the rear.
RCTA operation
1. The RCTA system operates when the selector lever is shifted to the
reverse (R) position.
2. If there is the possibility of a collision with an approaching
vehicle, the Blind Spot Monitoring
(BSM) warning indicator lights
flashes and the warning beep is
activated simultaneously.
Rear view monitor (vehicles with
Rear view monitor)
The RCTA warning indication in the
rearview monitor also synchronizes
with the Blind Spot Monitoring
(BSM) warning indicator light on
the door mirrors.
360°view monitor (vehicles with
360°view monitor)
The RCTA warning indication in the
360°view monitor also
synchronizes with the Blind Spot
Monitoring (BSM) warning
indicator light on the door mirrors.
Function for canceling illumination
dimmer
If the BSM warning indicator lights turn
on when the parking lights are turned
on, the brightness of the BSM warning
indicator lights is dimmed.
If the BSM warning indicator lights are
di fficult to see due to glare from
surrounding brightness when traveling
on snow-covered roads or under foggy
conditions, press the dimmer
cancellation button to cancel the
dimmer and increase the brightness of
BSM warning indicator lights when
they turn on.
Refer to Dashboard Illumination on
page 4-14.
NOTE
The system may operate under the
following conditions even if a vehicle
is not approaching.
An object that re flects the radio
waves of the radar such as a
parked vehicle, guardrail, or wall is
directly next to your vehicle.
A vehicle approaching from the
rear left and right side of your
vehicle slows down.
A vehicle approaching from the
rear left and right side of your
vehicle makes a right or left turn
directly in front of your vehicle.
When Driving
i-ACTIVSENSE
4-108
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
