2022 MAZDA MODEL MX-30 EV Remote

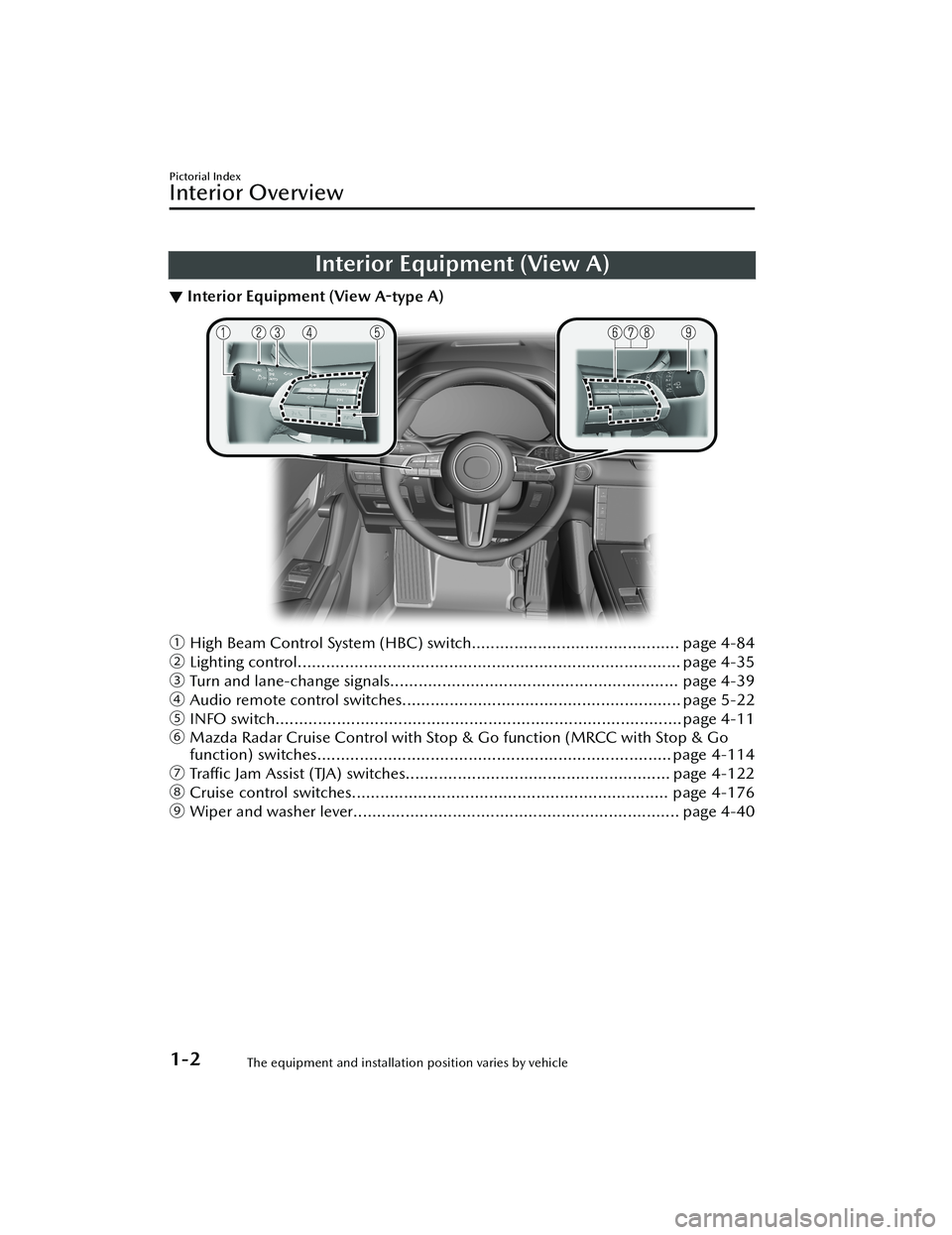

Interior Equipment (View A)
▼Interior Equipment (View
A-type A)
ƒ
High Beam Control System (HBC) switch............................................ page 4-84
„ Lighting control................................................................................. page 4-35
… Turn and lane-change signals............................................................. page 4-39
† Audio remote control switches........................................................... page 5-22
‡ INFO switch...................................................................................... page 4-11
ˆ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) switches........................................................................... page 4-114
‰ Traffic Jam Assist (TJA) switches........................................................ page 4-122
Š Cruise control switches................................................................... page 4-176
‹ Wiper and washer lever..................................................................... page 4-40
Pictorial Index
Interior Overview
1-2The equipment and installation position varies by vehicle
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Use of the charge connector lock is
prohibited at a public charging
station.

Functions using a Smartphone
You can check the remaining high
voltage battery power, operate the
charging , and operate the air
conditioner remotely by using a
Smartphone.
Please refer to local Mazda website for
more Connected Service information.
▼ Charging Settings
How to set up the charging
1. Select Settings from the home
screen on Mazda Connect.
2. Select EV Settings from the setting
screen.
3. Select the setting item you want to change from the displayed content.

Charge When Connected
Cancels charging schedule to allow im-
mediate charging.
Available setting changes
Enable, Disable
NOTE
The charging timer can also be
canceled on the screen displayed on
the center display when the power
switch is switched OFF.
When the charging is completed
using the Charge When Connected
setting , the charging timer schedule
is restored.

Charging Schedule
Selects desired vehicle charging days
and times.
Function Available setting changes
1 ----
Enable, Disa-ble
*1Edit, Delete*2
2 ----
3 ----
4 ----
5 ----
6 ----
7 ----
*1 If a list selected using the cursor has beenset, the item can be Enable or Disable.
*2 Settings can be Edit/Delete by sliding a listselected using the cursor to the right.
NOTE
The charging timer does not work
immediately after the lead-acid
battery is removed or installed, or
when no GPS signal has been
received. When charging without
receiving GPS, quick charging begins.
When GPS signals are received, the
charging timer becomes operational.
Before Driving
Electric Vehicles
3-21
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Keyless Entry System
▼Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors,
liftgate, and charge lid.
The system can start the EV system
without having to take the key out of
your purse or pocket.
It can also help you signal for attention
or help.

System malfunctions or warnings are
indicated by the following warning
lights or beeps.
Check the displayed message for more
information and, if necessary, have the
vehicle inspected at an Authorized
Mazda Dealer, according to the
indication.
KEY Warning Indication/Warning
Light (Red)
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-28.
Power switch Not Switched O
ff
(STOP) Warning Beep
Refer to Power switch Not Switched
O ff (STOP) Warning Beep on page
7-37.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-37.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modi fications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
NOTE
The keyless entry system operation
may vary due to local conditions.
The keyless entry system is fully
operational when the power switch
is switched o ff. The system does not
operate if the power switch is
switched to any position other than
o ff.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new
battery, refer to Key Battery
Replacement (page 6-21).
Battery life is about 1 year. Replace
the battery with a new one if the
messages are displayed in the
instrument cluster. Replacing the
battery about once a year is
recommended because the KEY
warning indication may not display
depending on the rate of battery
depletion.
Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer
when additional keys are required.
Before Driving
Keys
3-27
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

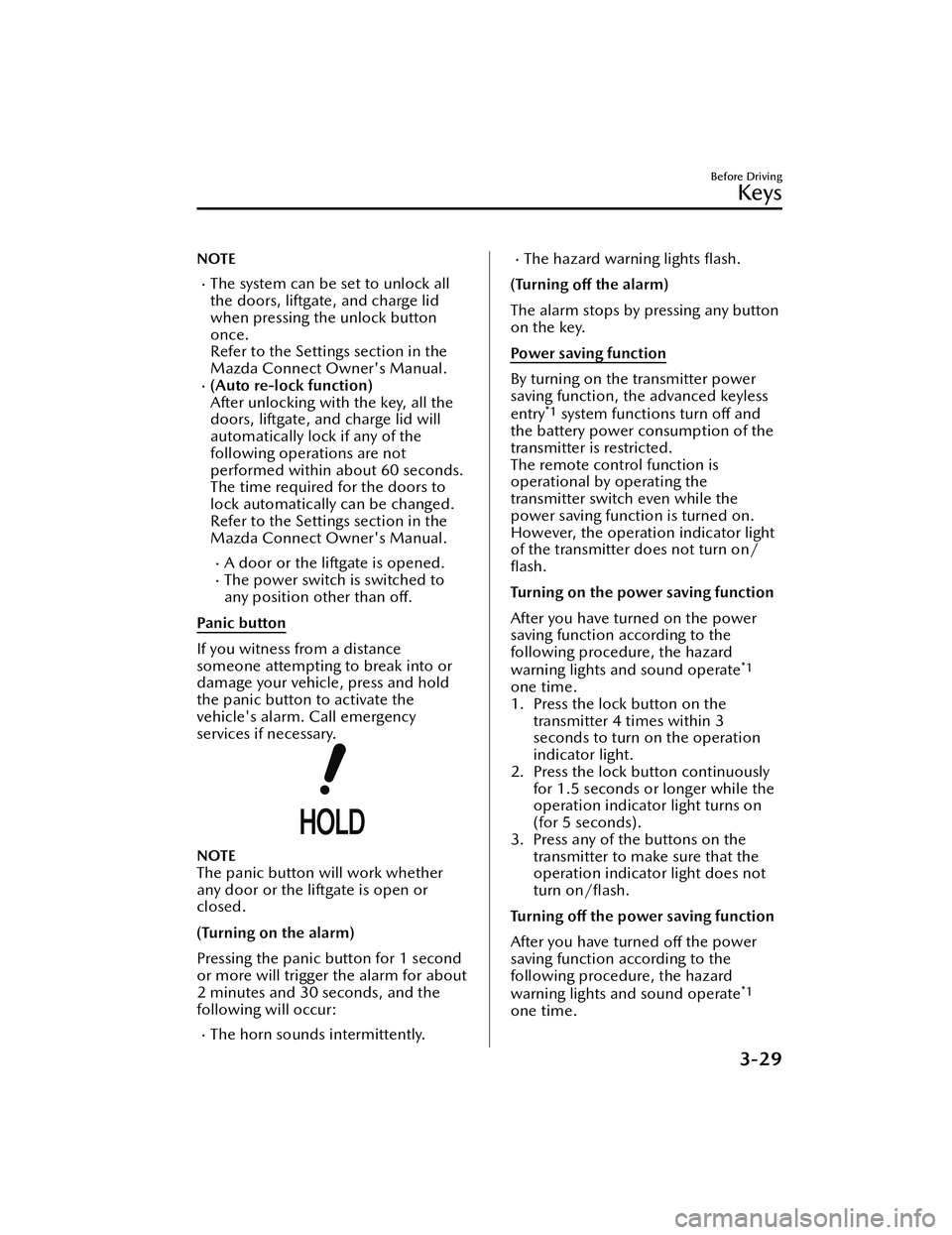

NOTE
The system can be set to unlock all
the doors, liftgate, and charge lid
when pressing the unlock button
once.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(Auto re-lock function)
After unlocking with the key, all the
doors, liftgate, and charge lid will
automatically lock if any of the
following operations are not
performed within about 60 seconds.
The time required for the doors to
lock automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
A door or the liftgate is opened.The power switch is switched to
any position other than off.
Panic button
If you witness from a distance
someone attempting to break into or
damage your vehicle, press and hold
the panic button to activate the
vehicle's alarm. Call emergency
services if necessary.
NOTE
The panic button will work whether
any door or the liftgate is open or
closed.
(Turning on the alarm)
Pressing the panic button for 1 second
or more will trigger the alarm for about
2 minutes and 30 seconds, and the
following will occur:
The horn sounds intermittently.
The hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button
on the key.
Po we r s av i n g f u nc t io n
By turning on the transmitter power
saving function, the advanced keyless
entry
*1 system functions turn off and
the battery power consumption of the
transmitter is restricted.
The remote control function is
operational by operating the
transmitter switch even while the
power saving function is turned on.
However, the operation indicator light
of the transmitter does not turn on/
fl ash.
Turning on the power saving function
After you have turned on the power
saving function according to the
following procedure, the hazard
warning lights and sound operate
*1
one time.
1. Press the lock button on the transmitter 4 times within 3
seconds to turn on the operation
indicator light.
2. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on
(for 5 seconds).
3. Press any of the buttons on the transmitter to make sure that the
operation indicator light does not
turn on/fl ash.
Tu r n i n g o ff the power saving function
After you have turned off the power
saving function according to the
following procedure, the hazard
warning lights and sound operate
*1
one time.
Before Driving
Keys
3-29
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Using these garage door openers can
increase the risk of serious injury or
death. For further information, contact
HomeLink at www.homelink.com or
www.youtube.com/HomeLinkGentex
or an Authorized Mazda Dealer.
Always check the areas surrounding
garage doors and gates for people or
obstructions before programming or
during operation of the HomeLink
system:
Programming or operating the
HomeLink system without verifying the
safety of areas surrounding garage
doors and gates is dangerous and
could result in an unexpected accident
and serious injury if someone were to
be hit.
NOTE
The programming will not be erased
even if the battery is disconnected.
▼Pre-programming the HomeLink
System
NOTE
It is recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the
radio-frequency signal.
Verify that there is a remote control
transmitter available for the device
you would like to program.
▼Programming the HomeLink
System
The HomeLink system provides 3
buttons which can be individually
selected and programmed using the
transmitters for current, on-market
devices as follows:
1. Press and release the HomeLink
button you would like to program.
The indicator light flashes slowly in
amber when the button is pressed.
1. Indicator light
2. HomeLink button
2. Hold the hand-held transmitter 2.5 to 7.5 cm (1 to 3 in) away from the
HomeLink button you would like to
program while keeping the
indicator light in view.
NOTE
Depending on the hand-held
transmitter, it may be easier to do
the programming by holding it 15
to 20 cm (6 to 7.8 in) away from
the HomeLink button.
3. Press the hand-held transmitter button continuously until the
indicator light changes from amber
(fl ashing) to green (on/ flashing).
NOTE
Some gate operators and garage
door openers may require you to
replace this Programming Step 3
with procedures noted in the “Gate
Operator/Canadian Programming”
section.
4. Press the HomeLink button again to check if the programming has been
completed.
If the indicator light remains on in
green, the programming is
complete and the device
becomes operational.
When Driving
Switches and Controls
4-48
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Operate the temperature setting
switch/
(red) to increase the
air flow temperature
Only use the defroster when the
window glass needs to be defogged.
The power consumption of the air
conditioner is suppressed, making
driving more economical.
For defrost mode, warm air flow is
supplied for defrost even if the set
temperature is decreased, however,
this does not indicate a problem.
Convenient Ways to Use
the Climate Control System
▼Cautions Concerning Cabin
Preconditioning
Cabin preconditioning is a collective
term regarding use of the Climate
Control Timer and the remote climate
control.
You can cool or warm the cabin, or
defog the window glass before getting
in the vehicle by setting your departure
time in advance (Climate Control
Timer) or by a remote operation
(remote climate control) using your
Smartphone.
WARNING
Do not operate the cabin
preconditioning with people or pets
in the vehicle:
The cabin preconditioning may stop
automatically due to the vehicle
conditions and the surrounding
environment. If the climate control
system stops and the temperature
inside the vehicle increases or
decreases, it coul
d cause a serious
medical condition such as heat
exhaustion and dehydration or even
death.
CAUTION
 If any of the following conditions are
met, the cabin preconditioning will
not operate. In addition, if the cabin
preconditioning is operating, it will
stop. However, if the liftgate is
opened while the cabin
preconditioning is operating, the
cabin preconditioning will not stop.
Interior Features
Climate Control System
5-10
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

The high voltage battery or the
lead-acid battery charge is low
 The doors/liftgate are open
 The power switch is switched to a
position other than OFF
 There is a problem with the vehicle
 If the operation conditions are not
met 30 minutes before the departure
time set by the climate control timer,
the climate control timer will not
operate.
 If any of the follo wing conditions is
met, the climate control system will
not operate e ffectively and the cabin
temperature may not reach the set
temperature:
 Your power consumption is high
 Extremely high or low
temperatures
 The climate control system stops at
the departure time. The cabin
temperature may not reach the set
temperature if you get in the vehicle
earlier or later than the set departure
time.
 If you operate the cabin
preconditioning while charging the
vehicle, it could take more time to
charge the high voltage battery.
 During the cabin preconditioning
operation, the cooling fan, the
compressor, and the cabin fans
operate, but this does not indicate a
problem.
 The climate control system functions
you can use di ffer depending on the
power switch position.
Function Power switch position
OFF ACC ON
(EV
sys-
tem
o ff ) ON
(EV
sys-
tem
on)
Air circulation — — X X
Function Power switch position
OFF ACC ON
(EV
sys-
tem o ff ) ON
(EV
sys-
tem on)
Cooling/heating — — X
*1X
Climate Control
Timer X ———
Remote climate
control X ———
X
: Available
—: Not available
*1 The cooling/heating function can be used only while charging.
NOTE
The recommended set temperature
is 22 °C (72 °F). If you set an
extremely high or low temperature,
power consumption will increase
and the charging time will take
longer.
If you operate the cabin
preconditioning while the charging
connector is connected, you can
reduce the electric power
consumption of the high voltage
battery. Cabin preconditioning can
be operated even without
connecting the charging connector,
however, the electrical power of the
high voltage battery will decrease.
If quick charge is started during cabin
preconditioning , the cabin
preconditioning is stopped.
While the cabin preconditioning is
operating , the indicator light for the
climate control power switch turns
on.
Interior Features
Climate Control System
5-11
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

The cabin preconditioning operates
for 30 minutes. If you set the
departure time using the Climate
Control Timer, set it 30 minutes or
later from the current time and if you
want to make several settings, space
them out at intervals of 30 minutes
or longer.
Enabling the defroster setting will aid
you in defrosting and removing ice or
snow from the window glass. The
defroster performance changes
according to the set temperature.
The Climate Control Timer does not
work immediately after the lead-acid
battery is removed or installed, or
when no GPS signal has been
received. When GPS signals are
received, the Climate Control Timer
becomes operational.
▼Turning On the Climate Control
System Using the Timer (Climate
Control Timer)
By setting the departure time using
Mazda Connect, the climate control
system operates and adjusts the cabin
temperature by the departure time.
The departure time, day, set
temperature, and defroster operation/
non-operation can be personalized,
and 7 types of patterns can be
programmed in advance. You can
check the cabin temperature and the
setting status using your Smartphone
while the Climate Control Timer is
operating.
To operate the Climate Control Timer,
switch the power switch OFF.
NOTE
The Climate Control Timer does not
operate while the remote climate
control is operating.
The Climate Control Timer can be
stopped by a Smartphone remote
operation.
When programming days for the
Climate Control Timer, you do not
have to set it every time because the
programming continues into the
following weeks.
How to set the Climate Control Timer
NOTE
Place a check in the check box for the
function you want to enable (
) or
uncheck it to disable (
) the
function.
1. Select “Settings” from the Mazda Connect home screen.
2. Select “EV Settings”.
3. Select “Climate Control Timer”.
4. Select the item setting you would like to change from the displayed
content.
Climate Control Timer
Allows climate control to adjust cabin
temperature before driving.
Function Available setting changes
1 ---
Enable,
Disable
*1Edit,
Delete*2
2 ---
3 ---
4 ---
5 ---
6 ---
7 ---
*1 If an item selected using the cursor has been set, the item can be
enabled or disabled.
*2 Settings can be “Edit”/“Delete” bysliding an item selected using the
cursor to the right.
Interior Features
Climate Control System
5-12
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
