Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

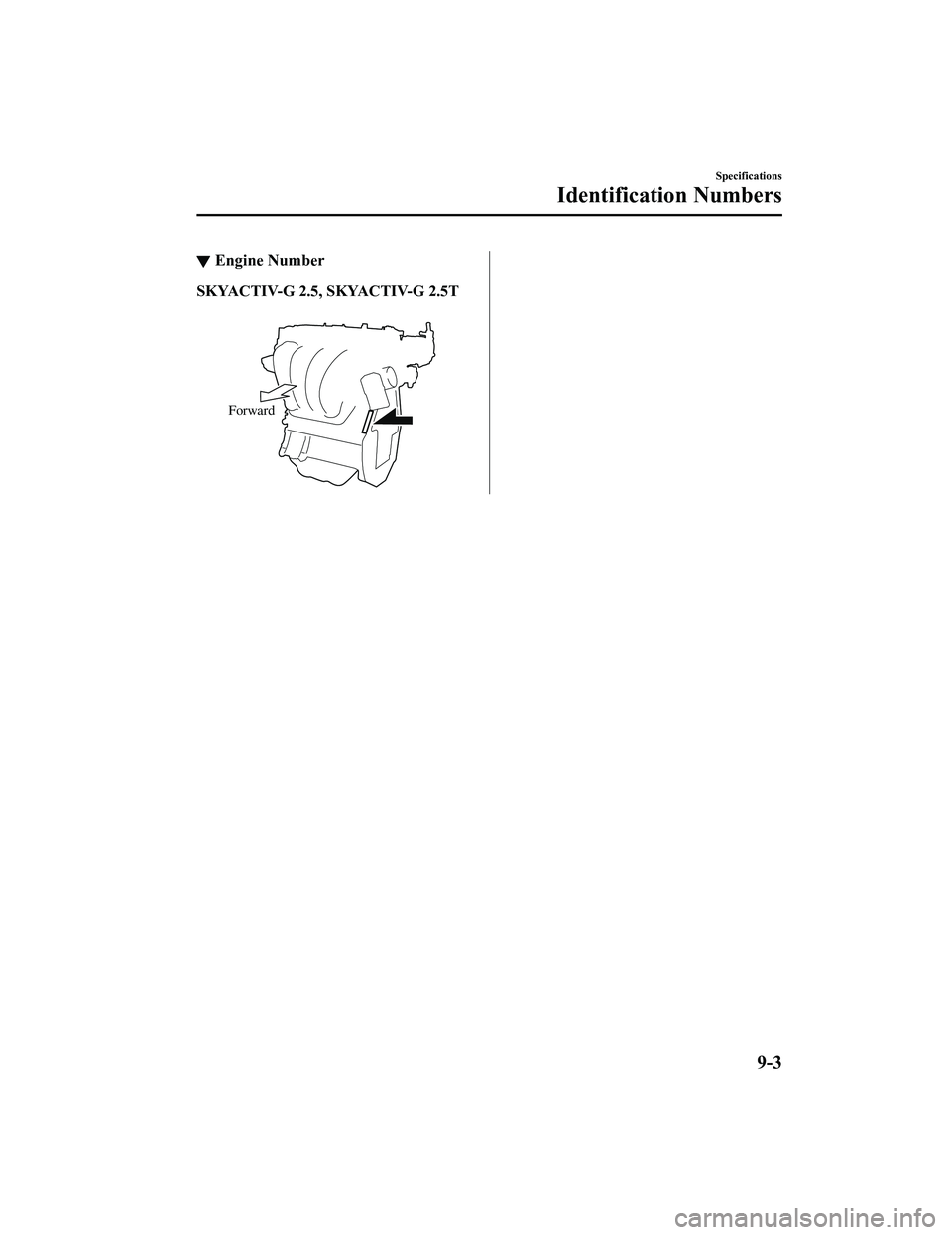

▼Engine Number
SKYACTIV-G 2.5, SKYACTIV-G 2.5T

Forward
Specifications
Identification Numbers
9-3
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
▼Electrical System
Battery*1
Classification
Specification
SKYACTIV-G 2.5,
SKYACTIV-G 2.5T 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug
Classification
Specification
SKYACTIV-G 2.5 Mazda Genuine spark plug
*2PE5R-18-110-A or PE5S-18-110
SKYACTIV-G 2.5T PY8V-18-110
*1 Check the battery installed on the vehicle and use a battery with an equal or higher performance. However, the
performance of the battery may vary even among the sa me battery types, consult an Authorized Mazda Dealer
for replacement.
*2 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-20.
Coolant FL-22 type
Automatic transaxle fluid
*1Mazda Genuine ATF-FZ
Transfer case oil
*2Mazda Long Life Hypoid Gear Oil SG1
Specifications
Specifications
9-4
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

LubricantClassification
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼ Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYACTIV-G
2.5With oil filter replacement 4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replace
‐
ment 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G
2.5T With oil filter replacement 4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replace
‐
ment 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant U.S.A. and Can‐
ada SKYACTIV-G 2.5
7.5 L (7.9 US qt, 6.6 Imp qt)
SKYACTIV-G 2.5T 8.5 L (9.0 US qt, 7.5 Imp qt)
Mexico SKYACTIV-G 2.5 7.7 L (8.1 US qt, 6.8 Imp qt)
SKYACTIV-G 2.5T 8.5 L (9.0 US qt, 7.5 Imp qt)
Automatic transaxle
fluid SKYACTIV-G 2.5 7.8 L (8.2 US qt, 6.9 Imp qt)/
8.0 L (8.5 US qt, 7.0 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,575 mm (180.1 in)
Overall width 1,845 mm (72.6 in)
Overall height 1,675 mm (65.9 in)
Front tread 1,596 mm (62.8 in)
Rear tread 1,596 mm (62.8 in)
Wheelbase 2,698 mm (106.2 in)
Specifications
Specifications
9-5
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item Weight
AW D
GVWR (Gross Vehicle Weight Rating) 2,143 kg (4,724 lbs)
GAWR (Gross Axle Weight Rating) Front
1,100 kg (2,425 lbs)
Rear 1,043 kg (2,299 lbs)
SKYACTIV-G 2.5T
Item Weight
AW D
GVWR (Gross Vehicle Weight Rating) 2,190 kg (4,828 lbs)
GAWR (Gross Axle Weight Rating) Front
1,145 kg (2,524 lbs)
Rear 1045 kg (2,304 lbs)
Mexico
SKYACTIV-G 2.5
Item Weight
Without moonroof With moonroof
GVW (Gross Vehicle Weight) Total
2,060 kg (4,542 lbs) 2,110 kg (4,652 lbs)
Front 1,035 kg (2,282 lbs) 1,045 kg (2,304 lbs)
Rear 1,025 kg (2,260 lbs) 1,065 kg (2,348 lbs)
GAW (Permissible axle load) Front
1,055 kg (2,326 lbs) 1,065 kg (2,348 lbs)
Rear 1,105 kg (2,436 lbs) 1,145 kg (2,524 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,115 kg (4,663 lbs)
Front 1,100 kg (2,425 lbs)
Rear 1,015 kg (2,238 lbs)
GAW (Permissible axle load) Front
1,125 kg (2,480 lbs)
Rear 1,090 kg (2,403 lbs)
▼Light Bulbs
Exterior light
All the light bulbs are the LED type.
Specifications
Specifications
9-6
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

The LED bulb cannot be replaced. Consult an Authorized Mazda Dealer when the
replacement is necessary.
Interior light
Light bulb Category
Wa t t ag e UN-R*1
Overhead light (Front)/Map lights LED type LED
―
Bulb type 8―
Rear map lights LED type
LED ―
Bulb type 8―
Vanity mirror lights
*LED type LED ―
Bulb type 2―
Ambient lights
*LED ―
Luggage compartment light LED type LED
―
Bulb type 8 ―
*1 UN-R stands for United Nations Regulation.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-35.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi)230 kPa (34 psi)
P225/55R19 99V 240 kPa (35 psi)240 kPa (35 psi)
(Mexico)
Tire size Inflation pressure
Up to 3 persons ―Full load
225/65R17 102V Front
230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
Specifications
Specifications
*Some models.9-7
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Tire sizeInflation pressure
Up to 3 persons ―Full load
225/55R19 99V Front
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T145/90D16 106M
* １420 kPa (60 psi)
T155/90D17 101M
*2420 kPa (60 psi)
*1 SKYACTIV-G 2.5*2 SKYACTIV-G 2.5T
(Mexico)
Tire size Inflation pressure
T155/80R17 100M 420 kPa (4.2 bar, 60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N ꞏm (12 ―14 kgf ꞏm, 80 ―108 ft ꞏlbf)
▼ Fuses
Refer to Fuses on page 6-43.
