Use the protective cover and carton for the replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
▼Replacing Exterior Light Bulbs
All the exterior light bulbs are LED type.
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to
be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.
▼ Replacing Interior Light Bulbs
The interior lights ha
ve either LEDs or
normal bulbs.
LED type
Overhead lights/Front map lights
Rear map lights
Vanity mirror lights*
Luggage compartment light
Ambient lights*
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.
Bulb type
Overhead light/Front map lights, Rear
map lights, Vanity mirror lights
*
1. Wrap a flathead sc rewdriver with a
soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with a flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Front map lights
Maintenance and Care
Owner Maintenance
6-40*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Rear map lightsVanity mirror lights*
Driver’s seat
Passenger’s seat
3. Install the new bulb in the reverseorder of the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the
lens and remove the lens unit by
carefully prying on the edge of the lens
unit with the flathead screwdriver.
2. Disconnect the electrical connectorfrom the bulb by pressing the tab on
Maintenance and Care
Owner Maintenance
*Some models.6-41
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

the connector with your finger and
pulling the connector.
CAUTION
When replacing the bulb always
disconnect the connector first.
Otherwise, electric and electronic
devices could be shorted.
3. Insert the flathead screwdriver into the
gap between the lens and the lens unit,
and then slide the screwdriver to
detach the lens.
4. Disconnect the bulb by pulling it out.
5. Install the new bulb in the reverse order of the removal procedure.
Maintenance and Care
Owner Maintenance
6-42
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

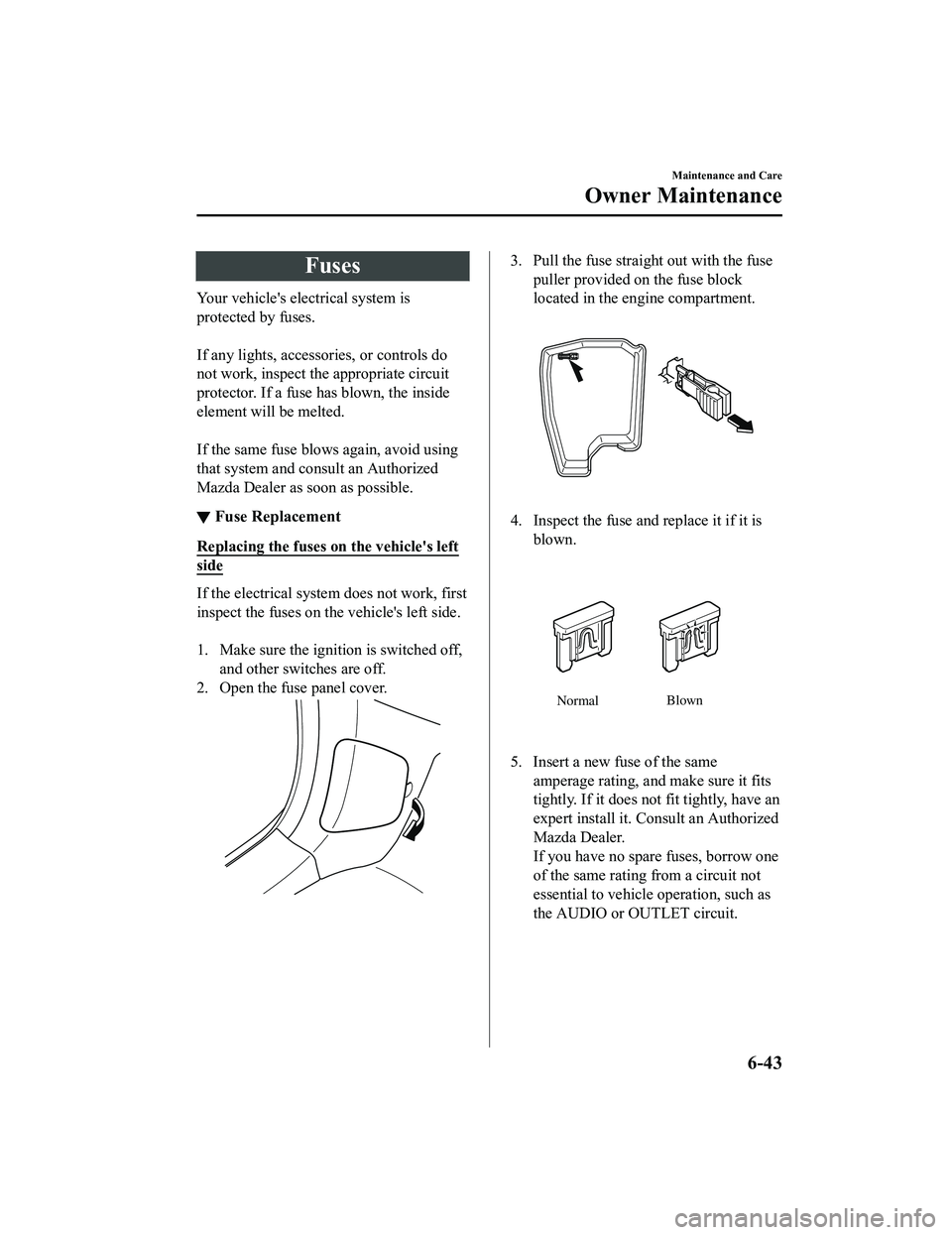

Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
▼ Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it isblown.
Normal Blown
5. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. Consult an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
Maintenance and Care
Owner Maintenance
6-43
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched off, and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
NormalBlown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
Maintenance and Care
Owner Maintenance
6-44
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 CABIN.+B 50 A For protection of various circuits
2 IG2 30 A For protection of various circuits
3 INJECTOR
ENG.SUB 30 A
Engine control system
*
4 SCR1
EVVT 20 A
Engine control system*
5 P.WINDOW1 30 A Power windows*
6 R.HEATER 20 A ―
7 ADD FAN DE 40 A Cooling fan
*
8 WIPER.DEI 20 AWindshield wiper de-icer*
9DEFOG 30 A Rear window defogger
10 DCDC DE 40 A For protection of various circuits
11 EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
Maintenance and Care
Owner Maintenance
*Some models.6-45
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

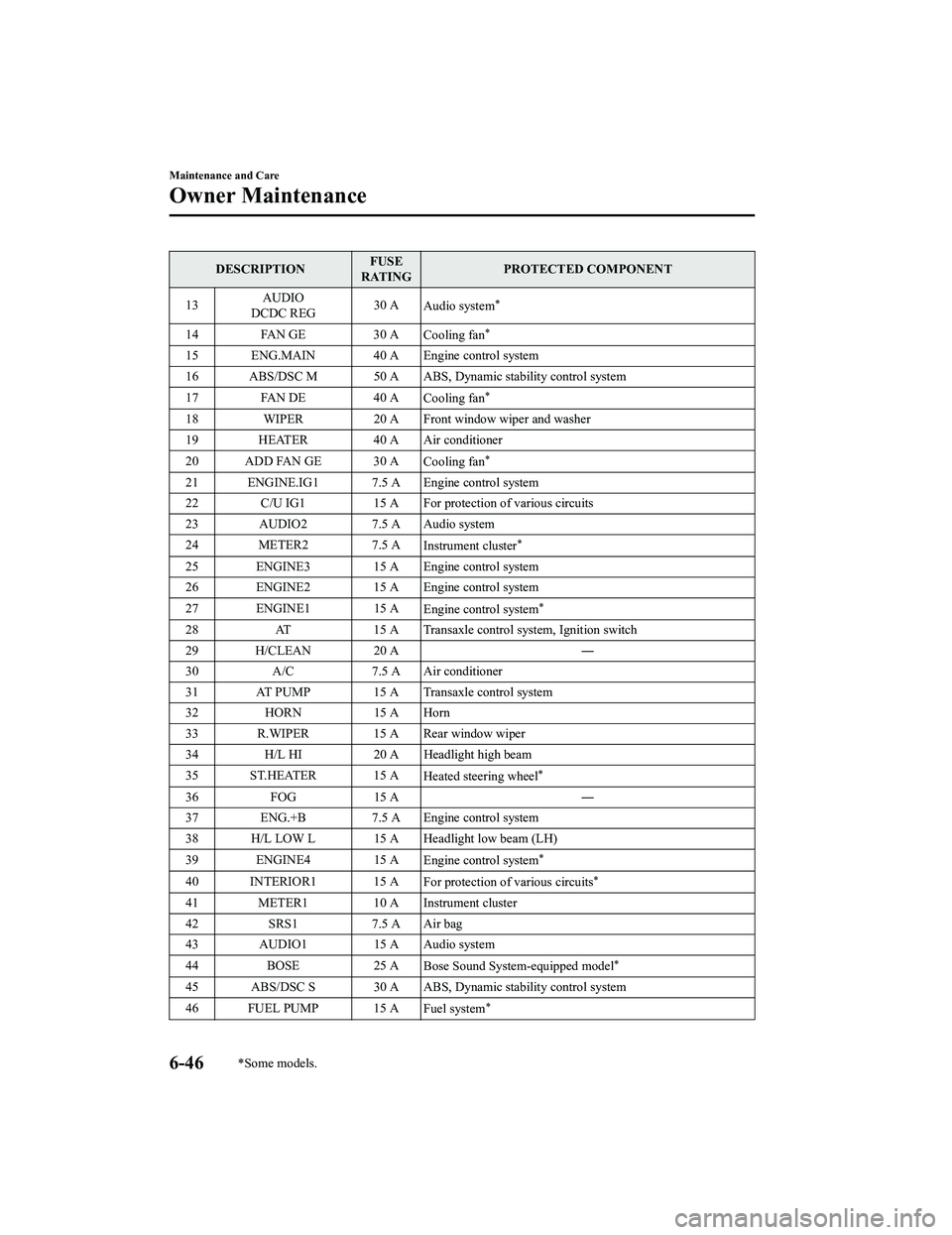

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 AUDIO
DCDC REG 30 A
Audio system
*
14 FAN GE 30 A
Cooling fan*
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17 FAN DE 40 A
Cooling fan
*
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 ADD FAN GE 30 A Cooling fan
*
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG115 A For protection of various circuits
23 AUDIO2 7.5 A Audio system
24 METER2 7.5 A Instrument cluster
*
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A
Engine control system
*
28AT 15 A Transaxle control system, Ignition switch
29 H/CLEAN 20 A ―
30 A/C 7.5 A Air conditioner
31 AT PUMP 15 A Transaxle control system
32 HORN 15 A Horn
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
35 ST.HEATER 15 A Heated steering wheel
*
36FOG 15 A ―
37 ENG.+B 7.5 A Engine control system
38 H/L LOW L 15 A Headlight low beam (LH)
39 ENGINE4 15 A Engine control system
*
40 INTERIOR1 15 AFor protection of various circuits*
41 METER110 A Instrument cluster
42 SRS1 7.5 A Air bag
43 AUDIO1 15 A Audio system
44 BOSE 25 A
Bose Sound System-equipped model
*
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
*
Maintenance and Care
Owner Maintenance
6-46*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
47 FUEL WARM 25 A Fuel warmer
*
48TAIL 15 A Taillights, License plate lights, Parking lights
49 SCR2
FUEL PUMP2 25 A
―
50 HAZARD 25 A Hazard warning flashers, Turn signal lights, Parking lights
51 H/L LOW R 15 A Headlight low beam (RH)
52 OUTLET 25 A Accessory sockets
53 STOP 10 A Brake lights
54 ROOM 25 A For protection of various circuit
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
*
2 P.WINDOW3 30 A Power windows
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5ESC L 1 5 A
Trailer hitch
*
Maintenance and Care
Owner Maintenance
*Some models.6-47
