4448-1. Specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pressureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic trans-
mission, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning
and additional weight optional engine
Maximum loaded vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that fol-
lows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular produc-
tion options weighing over 5 lb. (2.3 kg) in excess of
the standard items which they replace, not previ-
ously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers,
roof rack, heavy duty battery, and special trim

4558-2. Customization
8
Vehicle specifications
■Steering wheel (P.135)
■Outside rear view mirrors ( P.137)
*:If equipped
■Power windows, and moon roof* or panoramic moon roof* ( P.140, 142, 145)
*:If equipped
■Moon roof* ( P.142)
*:If equipped
FunctionDefault settingCustomized setting
Auto tilt away functionOnOff——O
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operation
*
Linked to the lock-
ing/unlocking of the doorsOff
——OLinked to operation
of the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked
operationOffOn (open only)——O
Wireless remote control linked
operation signal (buzzer)OnOff——O
FunctionDefault settingCustomized setting
Linked operation of compo-
nents when mechanical key is
used (open only)
Slide onlyTilt only——O
Linked operation of compo-
nents when wireless remote
control is used
Slide onlyTilt only——O
ABC
ABC
ABC
ABC

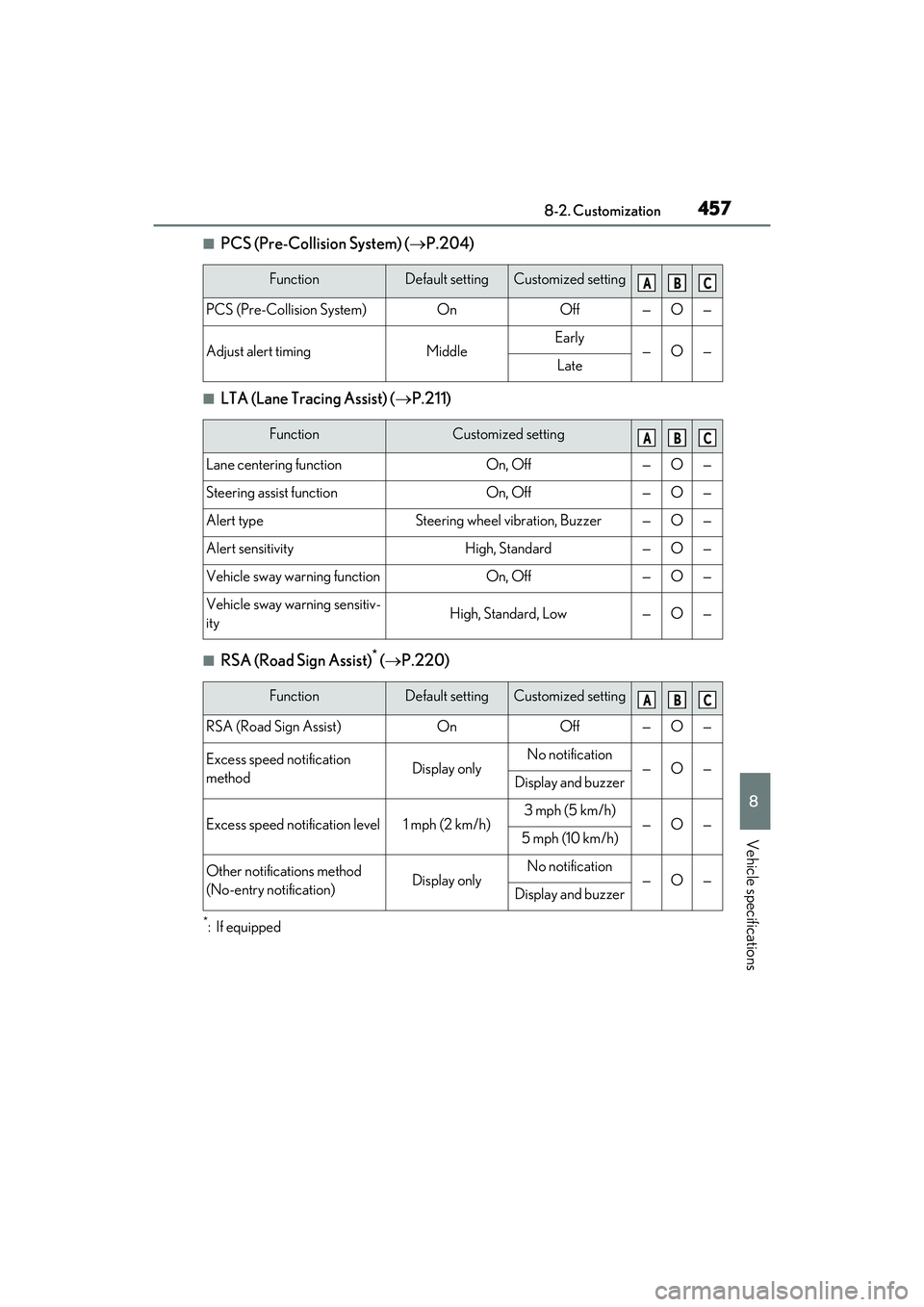

4578-2. Customization
8
Vehicle specifications
■PCS (Pre-Collision System) (P.204)
■LTA (Lane Tracing Assist) ( P.211)
■RSA (Road Sign Assist)* ( P.220)
*:If equipped
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn, Off—O—
Steering assist functionOn, Off—O—
Alert typeSteering wheel vibration, Buzzer—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning functionOn, Off—O—
Vehicle sway warning sensitiv-
ityHigh, Standard, Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff—O—
Excess speed notification
methodDisplay onlyNo notification—O—Display and buzzer
Excess speed notification level1 mph (2 km/h)3 mph (5 km/h)—O—5 mph (10 km/h)
Other notifications method
(No-entry notification)Display onlyNo notification—O—Display and buzzer
ABC
ABC
ABC

478What to do if... (Troubleshooting)
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your mechanical keys,
new genuine mechanical keys can
be made by your Lexus dealer.
( P.419)
 If you lose your electronic keys, the
risk of vehicle theft increases signifi-
cantly. Contact your Lexus dealer
immediately. ( P.419)
 Is the electronic key battery weak or
depleted? ( P.369)
 Is the engine switch in IGNITION
ON mode?
When locking the doors, turn the engine
switch off. ( P.173)
 Is the electronic key left inside the
vehicle?
When locking the door s, make sure that
you have the electronic key on your per-
son.
 The function may not operate prop-
erly due to the condition of the radio
wave. ( P.114)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door fr om outside and then
unlock the child-protector lock. ( P.100)
Did you press the engine switch
while firmly depressing the brake
pedal? ( P.170)
 Is the shift lever in P? ( P.170)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.113)
 Is the steering wheel unlocked?
( P.171)
 Is the electronic key battery weak or
depleted?
In this case, the engine can be started in a
temporary way. ( P.422)
 Is the battery discharged?
( P.423)
If you have a problem, check the
following before contacting your
Lexus dealer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The electronic key does not
operate properly
The doors cannot be locked or
unlocked
The rear door cannot be opened
If you think something is wrong
The engine does not start
The shift lever cannot be shifted
from P even if you depress the
brake pedal

479What to do if... (Troubleshooting)
Is the engine switch in IGNITION
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode ( P.175)
It is locked automatically to prevent
theft of the vehicle. ( P.171)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.142)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.173)
 The seat belt reminder light is flash-
ing
Are the driver and the passengers wearing
the seat belts? ( P.396)
The parking brake indicator is on
Is the parking brake released? ( P.179)
Depending on the situation, other
types of warning buzzer may also
sound. (P.393, 402)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
(P.67)
Do one of the following to stop the
alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.402)
When a warning light turns on or a
warning message is displayed, refer
to P.393, 402.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed
When a problem has occurred
If you have a flat tire

482Alphabetical Index
BrakeBrake hold.......................................................182
Fluid ......................................................354, 436
Parking brake ................................................ 179
Warning light ............................................... 393
Brake assist .................................................... 265
Break-in tips...................................................... 151
Brightness control Instrument panel light control ................ 78
BSM (Blind Spot Monitor)....................... 232
Buzzer Hands off steering wheel warning (LTA)...........................................................................218
C
Care Exterior ........................................................... 336
Interior ............................................................. 339
Seat belts........................................................ 339
Wheels and wheel ornaments............ 336
Cargo capacity.................................... 155, 158
Cargo hooks ................................................. 309
Cargo net hooks .......................................... 309
Center Display .............................................280
Chains ...............................................................272
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupa nt classification
system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety Airbag precautions...................................... 36
Battery precautions ......................356, 425
Child restraint system................................. 46
Heated steering wheel and seat heater precautions................................................ 297 How your child should
wear the seat belt
............................................................................. 27
Moon roof precautions.............................144
Panoramic moon roof precautions ....147
Power back door precautions ............... 101
Power window lock switch .....................142
Power window precautions .................... 141
Rear door child-protectors ................... 100
Seat belt extender prec autions.............. 27
Seat belt precautions .................................. 45
Child-protectors........................................... 100
Cleaning Exterior............................................................336
Interior .............................................................339
Radar sensor ................................................. 198
Seat belts ........................................................339
Wheels and wheel ornaments ............336
Clock ........................................................ 75, 323
Coat hooks..................................................... 323
Coin box.......................................................... 307
Compass ...........................................................331
Condenser ..................................................... 354
Console box .................................................. 305
Consumption screen .................................... 90
Cooling system............................................. 353 Engine overheating................................... 426
Cornering lights ............................................ 186 Replacing light bulbs................................375
Cruise control Dynamic radar cruise control with full-speed range ...................................... 222
Cup holders ................................................... 306
Current fuel consumption .......................... 80
Curtain shield airbags .................................. 30
Customizable features .............................. 449
D
Daytime running light system .................. 184
Defogger Outside rear view mirrors.................... 286
Rear window ............................................... 286
Windshield ................................................... 286

483Alphabetical Index
DifferentialRear differential oil .................................... 435
Dimension ...................................................... 430
Dinghy towing.................................................169
Display Center Display............................................280
Dynamic radar cruise control with full-speed range .......................................222
Head-up display ........................................... 86
Intuitive parking assist.............................. 238
LTA (Lane Tracing Assist)...................... 216
Multi-information display .......................... 79
RCTA .............................................................. 245
Warning message..................................... 402
Distance until next engine oil change .... 78
Do-it-yourself maintenance .................... 343
Door courtesy lights ...................................300 Wattage.......................................................... 437
Door lock Power back door.......................................... 101
Side doors ........................................................ 97
Smart access system with push-button start ................................................................... 113
Wireless remote control........................... 95
Door pockets ................................................ 307
Doors Automatic door lock ing and unlocking
system ........................................................... 100
Door glasses ................................................. 140
Door lock warning buzzer ...................... 98
Open door warning buzzer ................. 100
Outside rear view mirrors ...................... 137
Rear door child-protectors ................... 100
Side doors ........................................................ 97
Drive distance .................................................. 80
Driver’s seat position memory Driving position memory......................... 129
Memory recall function ............................. 131
Power easy access system ..................... 129
Drive-start control ......................................... 151
Driving Break-in tips .................................................... 151 Correct driving posture ............................ 25
Driving mode select switch .................. 262
Procedures .................................................... 150
Winter drive tips ........................................... 271
Driving assist system information ............ 83
Driving information display ........................ 80
Driving position memory............................129 Memory recall function.............................. 131
Power easy access system .....................129
Driving range ................................................... 80
Dynamic radar cruise control with full-speed range ........................................ 222 Warning message .....................................230
Dynamic Torque Control AWD system .......................................................................... 266
E
Eco Driving Indicator............................. 81, 90
Eco Driving Indicator Light ..........................81
EDR (Event data recorder) ........................... 8
Elapsed time ..................................................... 80
Electric Power Steering (EPS) .............. 266 Warning light .............................................. 395
Electronic key .................................................. 94 Battery-saving function.............................. 114
If the electronic key does not operate properly .........................................................421
Replacing the battery .............................. 369
Electronic sunshade Jam protection function ........................... 146
Operation ....................................................... 145
Emergency flashers .................................... 384
Emergency, in case of If a warning buzzer sounds...................393
If a warning light turns on.......................393
If a warning message is displayed.....402
If the battery is discharged .................... 423
If the electronic key does not operate properly .........................................................421
If the engine will not start......................... 418
If the fuel filler do or cannot be opened
..........................................................................420

484Alphabetical Index
If the vehicle is submerged or water on the road is rising..................................... 385
If you have a flat tire ..................................406
If you lose your keys...................................419
If you think something is wrong ...........391
If your vehicle becomes stuck............. 428
If your vehicle has to be stopped in an
emergency ................................................384
If your vehicle needs to be towed ..... 387
If your vehicle overheats ........................ 426
Engine ACCESSORY mode ............................... 173
Compartment ...............................................351
Engine switch.................................................170
Fuel pump shut off system .................... 392
Hood................................................................ 349
How to start the engine ............................170
Identification number ................................. 431
If the engine will not start ........................ 418
If your vehicle has to be stopped in an
emergency ................................................384
Ignition switch (engine switch) .............170
Overheating................................................. 426
Tachometer ..................................................... 75
Engine coolant Capacity ......................................................... 434
Checking ....................................................... 353
Preparing and checking before winter........................................................................... 271
Engine coolant temperature gauge ........75
Engine immobilizer system ........................ 66
Engine oil Capacity ......................................................... 432
Checking .........................................................351
Preparing and checking before winter........................................................................... 271
Warning light ............................................... 394
Engine oil maintenance data .................. 353
Engine switch ..................................................170 Auto power off function ........................... 173
Changing the engine switch modes.. 173 If your vehicle has to be stopped in an
emergency ................................................ 384
EPS (Electric Power Steering) .............. 266 Warning light .............................................. 395
Event data recorder (EDR) ........................... 8
F
Flat tire Tire pressure warning system ............ 359
Vehicles with a spare tire...................... 406
Floor mats .......................................................... 24
Fluid Automatic transmission ..........................435
Brake ................................................................436
Washer .......................................................... 356
Fog lights Switch................................................................ 190
Footwell light .................................................300
Front automatic air conditioning system .......................................................................... 284
Front fog lights Replacing light bulbs................................375
Front passenger footwell hooks ............ 325
Front passenger occupant classification system .............................................................. 39
Front seats Adjustment ....................................................... 117
Cleaning .........................................................339
Correct driving posture ............................ 25
Driving position memory .........................129
Head restraints..............................................132
Memory recall function.............................. 131
Power easy access system .....................129
Seat heaters .................................................. 297
Seat position memory ...............................129
Seat ventilators ............................................ 297
Front side marker light Light switch .................................................... 184
Replacing light bulbs................................375
Front side marker lights Replacing light bulbs................................375
Wattage .......................................................... 437
