13Pictorial index
Precautions for winter season ....................................................................................... P.271
To prevent freezing (windshield wiper de-icer)
*...................................................P.291
Precautions for car wash ............................................................................................... P.337
Fuel filler door .......................................................................................................... P.195
Refueling method .............................................................................................................. P .195
Fuel type/fuel tank capacity ......................................................................................... P.432
Tires.......................................................................................................................... ..P.357
Tire size/inflation pressure ................................................................................P.357, 436
Winter tires/tire chains .................................................................................................... P.2 71
Checking/rotation/tire pressure warning system.............................................. P.357
Coping with flat tires........................................................................................................ P .406
Hood ..........................................................................................................................P .349
Opening ........................................................................................................................ ....... P.349
Engine oil ..................................................................................................................... ......... P.432
Coping with overheating ............................................................................................... P.426
Warning messages .......................................................................................................... P.402
Headlights/front turn signal lights/front side marker lights ............ P.178, 184
Side turn signal lights ............................................................................................. P.178
Parking lights/daytime running lights................ ...............................................P.184
Fog lights/cornering lights
*....................................................................... P.184, 190
Rear side marker lights .........................................................................................P.184
Stop/tail lights ..........................................................................................................P.184
Back-up lights/rear turn signal lights ............. ......................................... P.178, 184
Shifting the shift lever to R ...............................................................................................P.1 74
License plate lights .................................................................................................P.184
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P. 374, Watts: P.437)
E
F
G
H
I
J
K
L
M
N
O
4328-1. Specifications
■Oil capacity (Drain and refill ref-
erence
*)
*: The engine oil capacity is a reference
Engine
Model3.5 L 6-cylinder (2GR-FKS)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 3.27 in. (94.0 83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Valve clearance (engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)19.2 gal. (72.5 L, 15.9 Imp. gal.)
Lubrication system
With filter
Vehicles with towing pack-
age
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Vehicles without towing
package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without fil-
ter5.6 qt. (5.3 L, 4.7 Imp. qt.)
489Alphabetical Index
Head restraints ............................................. 132
Seat heaters .................................................. 297
Rear side marker lights Light switch .................................................... 184
Replacing light bulbs................................ 375
Rear turn signal lights Replacing light bulbs.................... 375, 379
Turn signal lever ...........................................178
Wattage.......................................................... 437
Rear view mirror Inside rear view mirror..............................136
Outside rear view mirrors ...................... 137
Rear window defogger ............................. 286
Rear window wiper.......................................194
Refueling Capacity ......................................................... 432
Fuel types....................................................... 432
If the fuel filler door cannot be opened......................................................................... 420
Opening the fuel tank cap ..................... 195
Remote Touch .............................................. 278
Replacing Electronic key battery..............................369
Fuses .................................................................. 371
Light bulbs..................................................... 374
Tires ..................................................................406
Resetting the message indicating mainte- nance is required ...................................... 342
Rev indicator .....................................................76
Rev peak.............................................................. 77
Road Sign Assist .......................................... 220
RSA (Road Sign Assist) ............................ 220
S
Seat belt reminder ligh t............................. 396
Seat belts............................................................ 26 Automatic Locking Retractor ................ 28
Child restraint system installation......... 46
Cleaning and maintaining the seat belt......................................................................... 339
Emergency Locking Retractor .............. 28
How to wear your seat belt ......................27 How your child should
wear the seat belt
............................................................................. 27
Pregnant women, proper seat belt use ............................................................................. 26
Reminder light and buzzer .................. 396
Seat belt extender......................................... 27
Seat belt pretensioners .............................. 29
SRS warning light.......................................394
Seat heaters ................................................... 297
Seat position memory..................................129
Seat ventilators ............................................. 297
Seating capacity............................................ 158
Seats Adjustment ...............................................117, 119
Adjustment precautions ................... 117, 118
Child seats/child restraint system installa-tion .................................................................... 45
Cleaning .........................................................339
Driving position memory .........................129
Folding down the rear seatbacks ......... 119
Head restraints..............................................132
Power easy access system .....................129
Properly sitting in the seat ........................ 25
Seat heaters .................................................. 297
Seat position memory ...............................129
Seat ventilators ............................................ 297
Sensor Automatic headlight system .................. 184
Automatic High Beam system ............. 187
Inside rear view mirror ............................. 136
Intuitive parking assist ..............................238
LTA (Lane Tracing Assist) ....................... 211
Parking Support Brake function (rear-crossing vehicles) ..................... 260
Parking Support Brake function (static objects) ....................................................... 258
Radar sensor ..................................... 198, 232
Rain-sensing windshield wipers ............ 191
RCTA............................................................... 246
Service reminder message ..................... 342
Shift lever Automatic transmission ............................174

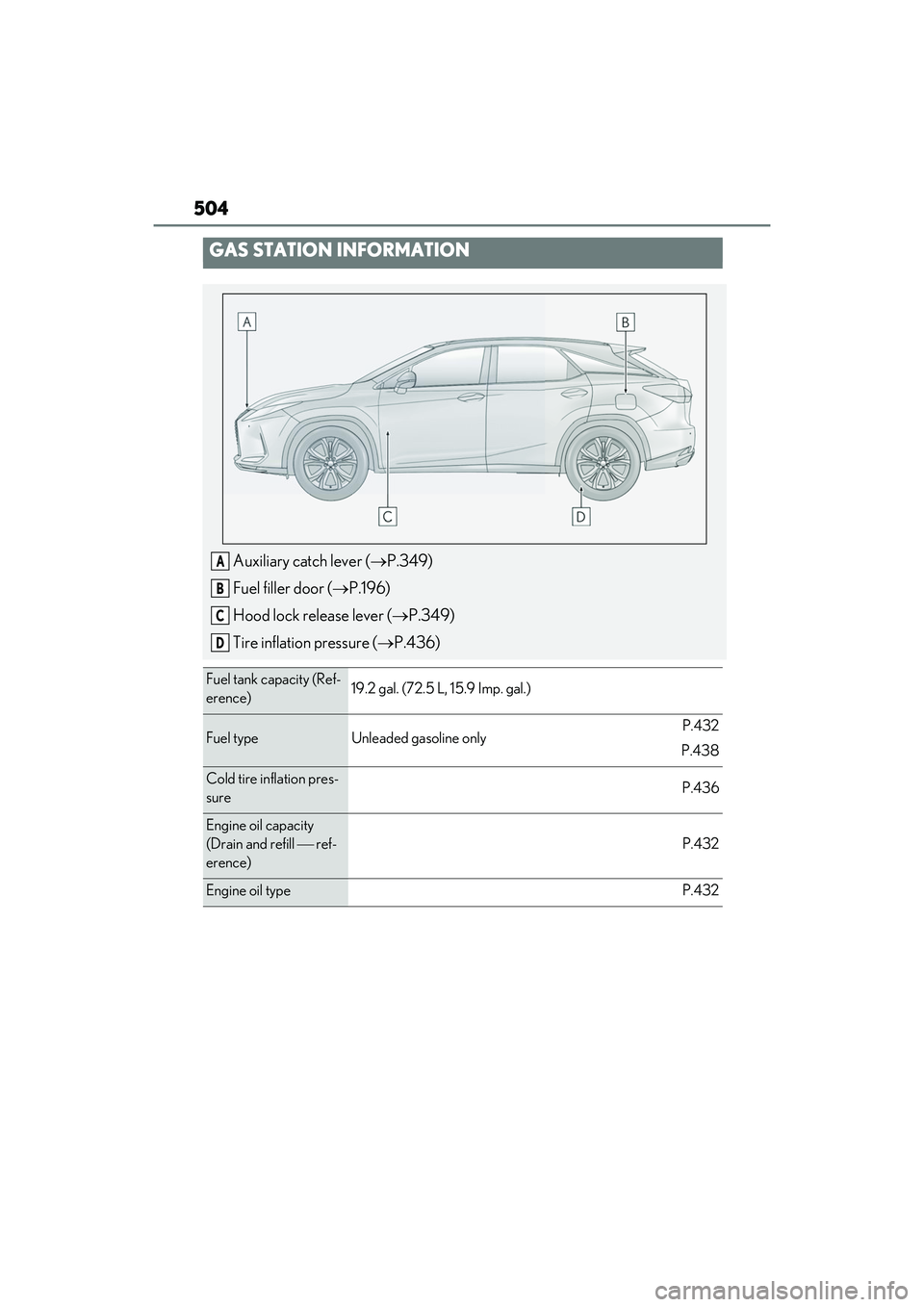

504
GAS STATION INFORMATION
Auxiliary catch lever (P.349)
Fuel filler door ( P.196)
Hood lock release lever ( P.349)
Tire inflation pressure ( P.436)
Fuel tank capacity (Ref-
erence)19.2 gal. (72.5 L, 15.9 Imp. gal.)
Fuel typeUnleaded gasoline onlyP.432
P.438
Cold tire inflation pres-
sureP.436
Engine oil capacity
(Drain and refill ref-
erence)
P.432
Engine oil typeP.432
A
B
C
D
