2022 LEXUS RCF Owners Manual

471-2. Child safety
RC F Owner's Manual
1
For safety and security
5After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
( P.49)
■Forward-facing Convertible
seat
1 When using the front passenger
seat: Adjust the seat
If installing the child restraint system to the
front passenger seat is unavoidable, refer
to P.44for front passen ger seat adjustment.
2Place the child restraint system on
the seat facing the front of the vehi-
cle.
3 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
4 Fully extend the shoulder belt and
allow it to retract to put it in lock mode. In lock mode, the belt cannot
be extended.
5 While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
6If the child restraint has a top tether
strap, follow the child restraint man-
ufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. ( P.51)
7 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
( P.49)

481-2. Child safety
RC F Owner's Manual
■Booster seat
1 If installing the child restraint sys-
tem to the front passenger seat is
unavoidable, refer to P.44for front
passenger seat adjustment.
2 Place the child restraint system on
the seat facing the front of the vehi-
cle.
Booster type
High back type
3 Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s in structions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is correctly
positioned over the child’s shoulder and
that the lap belt is as low as possible. (
P.24)
■Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may sp ring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt auto matically reels itself,
slowly return it to the stowing position.
WARNING
■When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.

491-2. Child safety
RC F Owner's Manual
1
For safety and security
■Child restraint LATCH anchors
LATCH anchors are provided for the
each rear seats. (Mark displaying the
location of the anchors are attached to
the seats.)
■When installing in the each rear
seats
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.
With flexible lowerattachments
1 Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
WARNING
●Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
●Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.
●Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
●After securing a child restraint system,
never adjust the seat.
●When a booster seat is installed,
always ensure that th e shoulder belt is
positioned across the center of the
child’s shoulder. T he belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
When a junior seat (booster seat) is
installed, always ensu re that the shoulder
belt is positioned across the center of the
child’s shoulder. The be lt should be kept
away from the child’s neck, but not so that
it could fall off the child’s shoulder.
●Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
■When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fu lly extend the shoul-
der belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. (
P.26)
■Do not use a seat belt extender
If a seat belt extender is used when
installing a child restra int system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
Child restraint system fixed with
a child restraint LATCH anchor

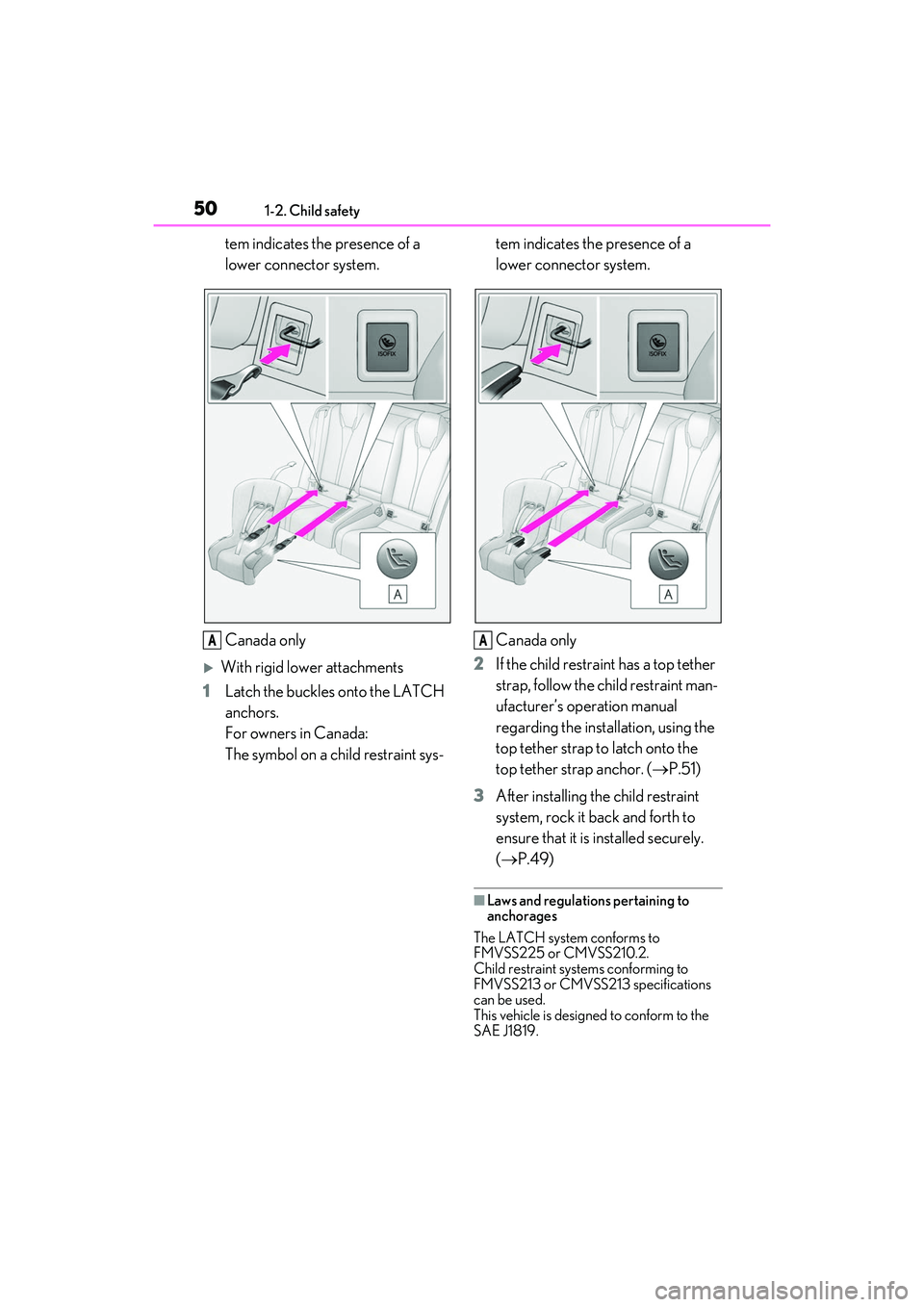

501-2. Child safety
RC F Owner's Manual
tem indicates the presence of a
lower connector system.
Canada only
With rigid lower attachments
1 Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys- tem indicates the presence of a
lower connector system.
Canada only
2 If the child restraint has a top tether
strap, follow the child restraint man-
ufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. ( P.51)
3 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
( P.49)
■Laws and regulations pertaining to
anchorages
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the
SAE J1819.
AA

511-2. Child safety
RC F Owner's Manual
1
For safety and security
■Anchor brackets (for top tether
strap)
Anchor brackets are provided for the
each rear seat.
Use anchor brackets when fixing the
top tether strap.
Anchor brackets
Top tether strap
■Fixing the top tether strap to the
anchor bracket
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint sys-
tem.
Open the anchor bracket cover, latch
the hook onto the anchor bracket and
tighten the top tether strap.
Make sure the top tether strap is securely
latched. (
P.49)
Top tether strap
Hook
■Laws and regulations pertaining to
anchorages
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the
SAE J1819.
WARNING
■When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●When using the LATCH anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
●Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
●If the seat is adju sted, reconfirm the
security of the child restraint system.
Using an anchor bracket (for top
tether strap)
A
B
WARNING
■When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Firmly attach the top tether strap and
make sure that the belt is not twisted.
●Do not attach the top tether strap to
anything other than the anchor
bracket.
A
B

521-2. Child safety
RC F Owner's Manual
WARNING
●After securing a child restraint system,
never adjust the seat.
●Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
NOTICE
■Anchor brackets (for top tether
strap)
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.

531-3. LEXUS Enform
RC F Owner's Manual
1
For safety and security
1-3.LEXUS Enform
*:If equipped
“SOS” button
LED light indicators
Microphone
Subscribers have the following Safety
Connect services available:
 Automatic Collision Notification
*
Helps drivers receive necessary response
from emergency service providers.
(P.55)
*: U.S. Patent No. 7,508,298 B2
 Stolen Vehicle Location
Helps drivers in the event of vehicle theft.
(P.55)
 Emergency Assistance Button
(“SOS”)
Connects drivers to response-center sup-
port. ( P.55)
Enhanced Roadside Assistance
Provides drivers various on-road assis-
tance. ( P.55)
After you have signed the Telematics
Lexus Enform Safety Con-
nect
*
Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.
Safety Connect service is available
by subscription on select,
telematics hardware-equipped
vehicles.
By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.
System components
Services
Subscription
A
B
C

541-3. LEXUS Enform
RC F Owner's Manual
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
The United States
1-800-25-LEXUS
(1-800-255-3987)
 Canada
1-800-26-LEXUS
(1-800-265-3987)
 Puerto Rico
1-877-539-8777
■Safety Connect Services Information
●Phone calls using the vehicle’s
Bluetooth® technology will not be possi-
ble during Safety Connect.
●Safety Connect is available beginning Fall
2009 on select Le xus models (in the
contiguous United St ates only). Contact
with the Safety Connect response center
is dependent upon th e telematics device
being in operative condition, cellular con-
nection availability, and GPS satellite sig-
nal reception, which ca n limit the ability to
reach the response center or receive
emergency service support. Enrollment
and Telematics Subscription Service
Agreement required. A variety of sub-
scription terms is available; charges vary
by subscription term selected and loca-
tion.
●Automatic Collision Notification, Emer-
gency Assistance and Stolen Vehicle
Location will function in the United
States, including Hawaii and Alaska,
Puerto Rico and in Canada, and
Enhanced Roadside Assistance will func-
tion in the United States, Puerto Rico and
in Canada.
●Automatic Collision Notification, Emer- gency Assistance, Stolen Vehicle and
Enhanced Road Assistance will not func-
tion in the United St
ates Virgin Islands.
For vehicles first sold in the USVI, no
Safety Connect services will function in
and outside the United States Virgin
Islands.
●Safety Connect services are not subject
to section 255 of the Telecommunica-
tions Act and the device is not TTY com-
patible.
■Languages
The Safety Connect re sponse center will
offer support in mult iple languages. The
Safety Connect system will offer voice
prompts in English, Spanish, and French.
Please indicate your language of choice
when enrolling.
■When contacting the response center
You may be unable to contact the response
center if the network is busy.
When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:
 Green indicator light on = Active
service
 Green indicator light flashing =
Safety Connect call in process
 Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)
 No indicator light (off) = Safety
Safety Connect LED light Indi-
cators
