2022 KIA NIRO PHEV ESP

561
Driving your vehicle
Forward Collision-Avoidance
Assist malfunction
When Forward Collision-Avoidance Assist is not working
properly, Forward Collision-
Avoidance Assist warning light
( ) will illuminate and the warn-
ing message will appear for a few
seconds. After the message disap-
pears, the master warning light
( ) will illuminate. In this case,
have your vehicle inspected by an
authorized Kia dealer.
The Forward Collision-Avoidance Assist warning message may
appear along with the illumination
of the ESC warning light.
WARNING
Forward Collision-Avoidance
Assist may not activate without
any warning messages accord-
ing to driving condition, traffic
on the road, weather, road con-
dition, etc.
OJF058394L
WARNING
Forward Collision-AvoidanceAssist is only a supplemental
function for the driver’s con-
venience. The driver should
hold the responsibility to con-
trol the vehicle operation. Do
not solely depend on Forward
Collision-Avoidance Assist.
Rather, maintain a safe braking
distance, and, if necessary,
depress the brake pedal to
lower the driving speed.
In certain instances and under certain driving conditions,
Forward Collision-Avoidance
Assist may activate uninten-
tionally. This initial warning
message appears on the LCD
display with a warning chime.
Also, in certain instances the
front radar sensor or front view
camera recognition function
may not detect the vehicle or
pedestrian ahead. Forward
Collision-Avoidance Assist may
not activate and the warning
message will not be displayed.
(Continued)

567
Driving your vehicle
- Changing lanes
When a vehicle changes lanes in
front of you, Forward Collision-
Avoidance Assist may not immedi-
ately detect the vehicle, especially if
the vehicle changes lanes abruptly.
In this case, you must maintain a
safe braking distance, and if neces-
sary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.When driving in stop-and-go traffic,
and a stopped vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the new vehicle
that is now in front of you. In this
case, you must maintain a safe brak-
ing distance, and if necessary,
depress the brake pedal to reduce
your driving speed in order to main-
tain a safe distance.
- Recognizing the vehicle
When the vehicle in front has heavy
loading extended rearward, or when
the vehicle in front has higher ground
clearance, it may induce a haz-
ardous situation. Always pay atten-
tion to road and driving conditions,
while driving and, if necessary,
depress the brake pedal to reduce
your driving speed in order to main-
tain distance.
OYG056048OYG056045ODEP051327N

569
Driving your vehicle
✽ ✽NOTICE
In some instances, Forward
Collision-Avoidance Assist may be
cancelled when subjected to electro-
magnetic interference.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device. Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-
located or operating in conjunction
with any other antenna or transmit-
ter.(Continued)
Never try to test the operation
of Forward Collision-
Avoidance Assist. Doing so
may cause severe injury or
death.
If the front glass or front view camera have been replaced or
repaired, have your vehicle
inspected by an authorized
Kia dealer.
If the function detects an object that has a similar
shape or characteristics of a
vehicle or a pedestrian,
Forward Collision-Avoidance
Assist may operate.

575
Driving your vehicle
Brake operation
In an urgent situation, the brakingsystem enters into the ready status
for prompt reaction to assist the driv-
er in depressing the brake pedal.
Forward Collision-Avoidance Assist provides additional braking
power for optimum braking per-
formance, when the driver
depresses the brake pedal.
The braking control is automatical- ly deactivated, when the driver
sharply depresses the accelerator
pedal, or when the driver abruptly
operates the steering wheel.
The braking control is automatical- ly canceled, when risk factors dis-
appear.
Detecting sensors (Front view
camera/Front radar)
[1] : Front view camera
[2] : Front radar
The sensors are that detecting the
distance to vehicles ahead, pedestri-
an or cyclist.
CAUTION
The driver should always paygreat caution to vehicle opera-tion, even though there is nowarning message or warningalarm.
WARNING
Forward Collision-Avoidance
Assist cannot avoid all colli-
sions. Forward Collision-
Avoidance Assist might not
completely stop the vehicle
before a collision, due to ambi-
ent, weather and road condi-
tions. The driver has the
responsibility to drive safely
and control the vehicle.
WARNING
Forward Collision-Avoidance
Assist operates in accordance
with certain risk factors, such as
the distance from the
vehicle/passer-by in front, the
speed of the vehicle/passer-by in
front, and the driver's vehicle
operation.
ODEP051029
ODEP051417N

Driving your vehicle
78
5
WARNING
Forward Collision-Avoidance
Assist is only a supplemental
function for the driver’s con-
venience. The driver has the
ultimate responsibility to con-
trol and operate the vehicle
safely. Do not solely depend on
Forward Collision-Avoidance
Assist. Rather, maintain a safe
braking distance, and, if neces-
sary, depress the brake pedal
to lower the driving speed.
In certain instances and under certain driving conditions,
Forward Collision-Avoidance
Assist may activate uninten-
tionally. This initial warning
message appears on the LCD
display with a warning chime.
(Continued)
(Continued)Also, in certain instances the
front view camera or front
radar recognition function may
not detect the vehicle, pedestri-
an or cyclist (if equipped)
ahead. Forward Collision-
Avoidance Assist may not acti-
vate and the warning message
will not be displayed.
Forward Collision-Avoidance Assist may unnecessarily pro-
duce the warning message
and the warning alarms. Also,
due to the sensing limitation,
Forward Collision-Avoidance
Assist may not produce the
warning message and the
warning alarm at all.
When there is a malfunction with Forward Collision-
Avoidance Assist, the braking
control does not operate upon
detecting a collision risk even
with other braking systems
normally operating.
(Continued)(Continued)
Forward Collision-AvoidanceAssist operates only for the
vehicle/pedestrian in front, while
driving forward. It does not oper-
ate for any animals or vehicles
in the opposite direction.
Forward Collision-Avoidance Assist does not recognize the
vehicle, which transversally
drives across the crossroad,
or the vehicle, which is parked
in the transversal direction.
If the vehicle in front stops suddenly, you may have less
control of the brake system.
Therefore, always keep safe
distance between your vehicle
and the vehicle in front of you.
Forward Collision-Avoidance Assist may activate during
braking and the vehicle may
stop suddenly. And the load in
the vehicle may endanger pas-
sengers. Therefore, always be
mindful of the load volume in
the vehicle.
(Continued)

579
Driving your vehicle
Limitation of Forward
Collision-Avoidance Assist
Forward Collision-Avoidance Assist
is an assistant function for a driver in
a certain risky driving condition and it
does not take every responsibility for
all risks from driving condition.
Forward Collision-Avoidance Assist
monitors the driving situations
through the front radar and the front
view camera sensor. Thus, for a situ-
ation out of the sensing range,
Forward Collision-Avoidance Assist
may not normally operate. The driver
should pay great caution in the fol-
lowing situations. Forward Collision-
Avoidance Assist operation may be
limited.
(Continued)
Forward Collision-AvoidanceAssist may not activate if the
driver applies the brake pedal
to avoid risk of collision.
Forward Collision-Avoidance Assist does not operate when
the vehicle is in reverse. In
these circumstances, you
must maintain a safe braking
distance, and if necessary,
depress the brake pedal to
reduce the driving speed in
order to maintain a safe dis
tance.
The regular braking function will operate normally even if
There is a problem with
Forward Collision-Avoidance
Assist brake control function
or other functions. In this
case, the braking control will
not operate in an imminent
collision.
(Continued)(Continued)
Forward Collision-AvoidanceAssist may not activate
according to driving condi-
tion, traffic on the road,
weather, road condition, etc.
Forward Collision-Avoidance Assist may not activate in
response to all types of vehi-
cles.

583
Driving your vehicle
- Driving on a sloped road
The performance of Forward
Collision-Avoidance Assist may be
decreased while driving upward or
downward on a sloped road. The
front view camera or front radar sen-
sor recognition may not detect the
vehicle, pedestrian or cyclist in front.
This may result in unnecessary
alarm and braking or no alarm and
braking when necessary.
When the function suddenly recog-
nizes the vehicle, pedestrian or
cyclist in front while passing over a
slope, you may experience sharp
deceleration.
Always keep your eyes forward while
driving upward or downward on a
sloped road, and, if necessary,
depress the brake pedal to reduce
your driving speed in order to main-
tain distance.- Changing lanes
When a vehicle changes lanes in
front of you, Forward Collision-
Avoidance Assist may not immedi-
ately detect the vehicle, especially if
the vehicle changes lanes abruptly.
In this case, you must maintain a
safe braking distance, and if neces-
sary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
OJF055028
OHM059356L
OHM059355L
OHM059357L

Driving your vehicle
86
5
✽ ✽

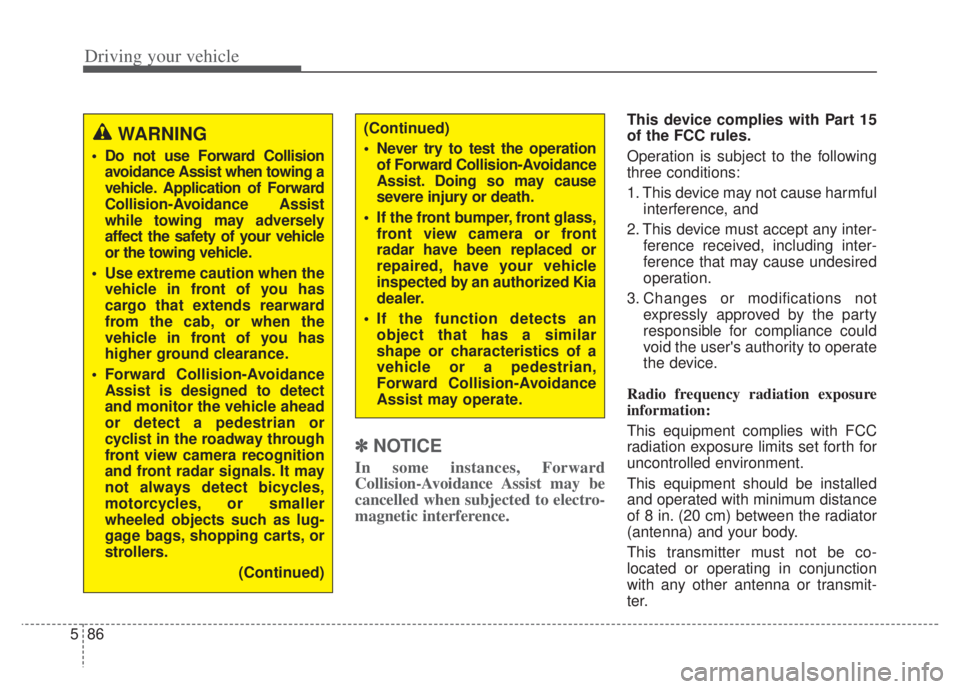

NOTICE
In some instances, Forward
Collision-Avoidance Assist may be
cancelled when subjected to electro-
magnetic interference.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-
located or operating in conjunction
with any other antenna or transmit-
ter.(Continued)
Never try to test the operation of Forward Collision-Avoidance
Assist. Doing so may cause
severe injury or death.
If the front bumper, front glass, front view camera or front
radar have been replaced or
repaired, have your vehicle
inspected by an authorized Kia
dealer.
If the function detects an object that has a similar
shape or characteristics of a
vehicle or a pedestrian,
Forward Collision-Avoidance
Assist may operate.WARNING
Do not use Forward Collisionavoidance Assist when towing a
vehicle. Application of Forward
Collision-Avoidance Assist
while towing may adversely
affect the safety of your vehicle
or the towing vehicle.
Use extreme caution when the vehicle in front of you has
cargo that extends rearward
from the cab, or when the
vehicle in front of you has
higher ground clearance.
Forward Collision-Avoidance Assist is designed to detect
and monitor the vehicle ahead
or detect a pedestrian or
cyclist in the roadway through
front view camera recognition
and front radar signals. It may
not always detect bicycles,
motorcycles, or smaller
wheeled objects such as lug-
gage bags, shopping carts, or
strollers.
(Continued)
