2022 INFINITI QX50 sensor

To set the rain-sensing auto wiper system,
place the lever in the AUTO position
O1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
O2(High) or toward the rearO3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the low or high position.
The rain-sensing feature may be disabled.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
CAUTION
• Do not operate the washer continuously
for more than 30 seconds. •
Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pouring
the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to mix
the windshield-washer fluid concentrate
and water.
NOTE:
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
LIC4244
2-34Instruments and controls

NOTE:
Autolight activation sensitivity and the
time delay for autolight shutoff can be ad-
justed. For additional information, refer
to the separate INFINITI InTouch™ Own-
er’s Manual.
To turn on the autolight system:
1.For USA: Turn the headlight switch to the
AUTO position
O1.
For CAN: Turn the headlight switch to the
AUTO
O1orposition. 2. Place the ignition switch in the ON
position.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off:
For USA: Turn the switch to the OFF (if so
equipped),
,orposition.
For CAN: Turn the switch to the
position.
The headlights will turn on automatically at
twilight or in rainy weather (when the wind-
shield wiper is operated continuously).
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes. Be sure you do not put anything on top of the
autolight sensor located in the top side
O1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle's battery could become discharged.
LIC4756
Type B (if so equipped)
LIC2237
Instruments and controls2-37

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.
Ambient image sensor maintenance
The ambient image sensorO1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar- ent material) or install an accessory near
the ambient image sensor.
• Do not strike or damage the areas around the ambient image sensor. Do not touch the
sensor lens that is located on the ambient
image sensor.
LIC4756
Type B (if so equipped)
LIC3821LIC4259
2-40Instruments and controls

If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the AUTO ACC or
ON position.
The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
• Headlights, when the headlight switch is inthe
orposition
• Interior lights, when left in the ON position
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is ON and the driver operates the
steering wheel in a turn, the AFS system will
be activated.
The AFS will operate:
• when the headlight switch is ON.
• when the shift position is in any position other than P (Park) or R (Reverse).
• when the vehicle is driven at above 16 mph (25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number
of occupants in the vehicle, the load the ve-
hicle is carrying and the road conditions.
If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.
Automatic headlight aiming control
(if so equipped)
Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.
INFINITI recommends that you consult the
local regulations on the use of lights.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position or AUTO position
with bright ambient light. When you turn the
headlight switch to the
position for full
illumination, the LED lights switch from LED
DRL system to the park function.
Instruments and controls2-41

The front sonar system:
• is active when the ignition switch is in theON position and the shift lever is in a for-
ward gear position.
• a beeping tone is emitted when the sensors detect obstacles within 3 ft (1.0 m) of the
front bumper.
The rear sonar system:
• is active when the ignition is in the ON position and the shift lever is in R (Reverse).
• a beeping tone is emitted when the sensors detect obstacles within 4.9 ft (1.5 m) of the
rear bumper.
The front and rear sonar system may be en-
abled by pushing the front and rear sonar
switch. Push the switch again to disable the
system.
The system will automatically reset the next
time the ignition switch is turned on.
For additional information, see “Front and
rear sonar system” (P. 5-146).
WARNING
• Failure to properly adjust the brightness
and position of the displayed image may
interfere with the drivers ability to see
through the windshield which could
cause an accident leading to severe in-
jury or death.
• Do not use the head up display for ex-
tended periods of time as that can cause
you to not see other vehicles, pedestri-
ans or objects, which could cause an ac-
cident leading to severe injury or death. The HUD can display one or more of the
following features (if so equipped):
1Vehicle speed display
2Driving Aids
3Navigation/Warning
4Traffic Sign Recognition
NOTE:
• Do not place any type of liquid on or near
the projector. Doing so may cause mal-
function of the equipment.
• Do not touch any internal parts of the pro- jector. Doing so may cause malfunction of
the equipment.
• To prevent scratches to the projector glass, do not place any sharp objects on or
near the projector opening.
• Do not place any objects on the instrument panel which may obstruct the display of
the HUD.
• When wearing polarized sunglasses it may be difficult to recognize the display.
• Depending on weather conditions (rain, snow, sun light, temperature), it may be
difficult to recognize the display.
• If juices are spilled, wipe with a dry soft cloth* lightly. (*clean cloth, eyeglass
cleaner, etc.)
LIC4268
HEAD UP DISPLAY (HUD) (if so
equipped)
2-48Instruments and controls

The Navigation System linking display will
display the following items:
• Intersection names
• Arrows indicating turning direction
• Distance to the next intersection
Display brightness
The brightness of the display may be con-
trolled by the Navigation System. The bright-
ness will also be adjusted automatically ac-
cording to the exterior ambient lighting
brightness.
NOTE:
• A sensorO1is built into the Head Up Dis-
play to control the brightness of the im-
age. Make sure the sensor is clear of ob-
structions or the display may become dark
and difficult to recognize.
• Do not apply strong light to the sensor of Head Up Display. Doing so may cause a
malfunction.
LIC4264
2-50Instruments and controls

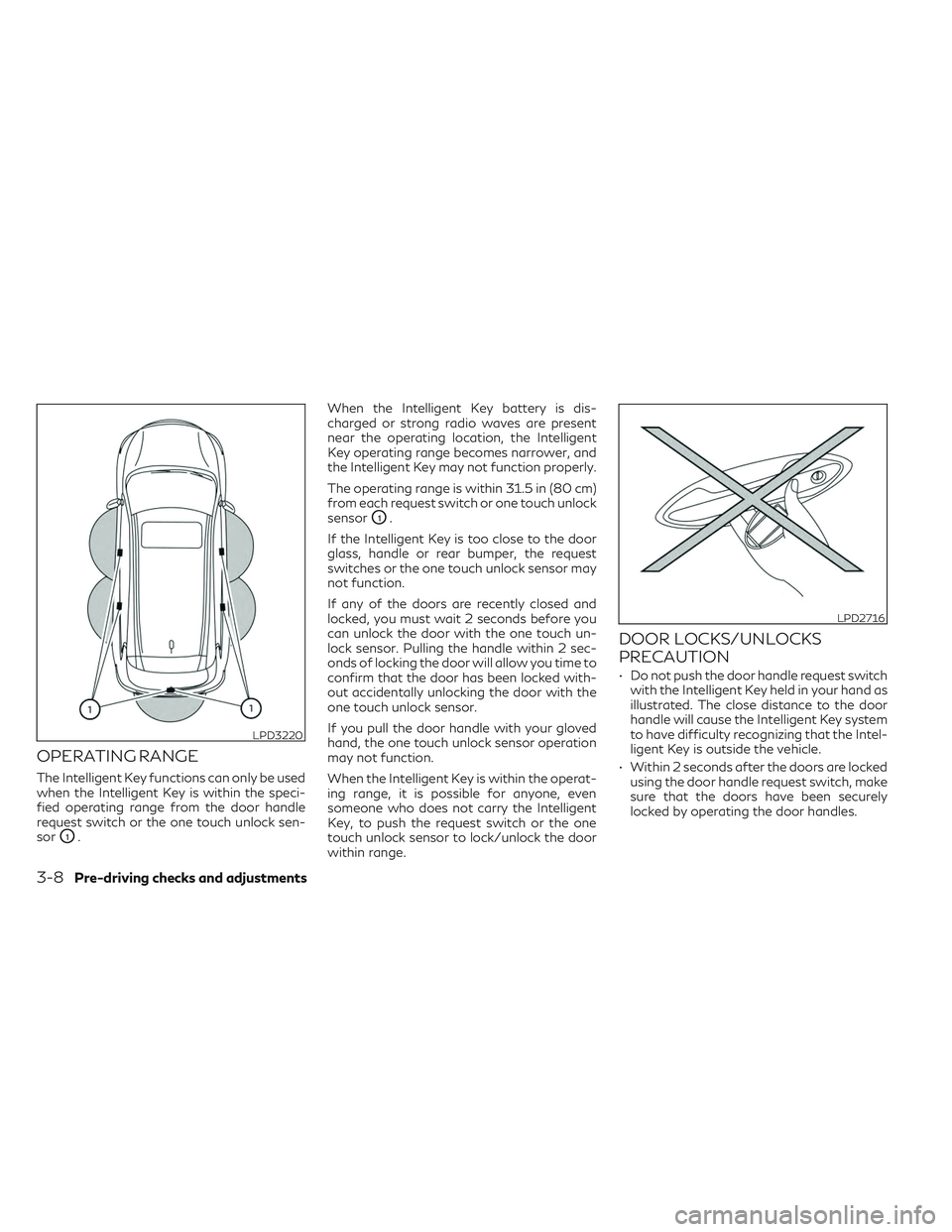

OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range from the door handle
request switch or the one touch unlock sen-
sor
O1.When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.
The operating range is within 31.5 in (80 cm)
from each request switch or one touch unlock
sensor
O1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches or the one touch unlock sensor may
not function.
If any of the doors are recently closed and
locked, you must wait 2 seconds before you
can unlock the door with the one touch un-
lock sensor. Pulling the handle within 2 sec-
onds of locking the door will allow you time to
confirm that the door has been locked with-
out accidentally unlocking the door with the
one touch unlock sensor.
If you pull the door handle with your gloved
hand, the one touch unlock sensor operation
may not function.
When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to push the request switch or the one
touch unlock sensor to lock/unlock the door
within range.
DOOR LOCKS/UNLOCKS
PRECAUTION
• Do not push the door handle request switch with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.
• Within 2 seconds after the doors are locked using the door handle request switch, make
sure that the doors have been securely
locked by operating the door handles.
LPD3220
LPD2716
3-8Pre-driving checks and adjustments

• To prevent the Intelligent Key from beingleft inside the vehicle, make sure you carry
the key with you before locking the doors
and liftgate.
• The Intelligent Key system (opening/ closing doors with the door handle request
switch or the one touch unlock sensor) can
be set to remain inactive. For additional
information, refer to the separate INFINITI
InTouch™ Owner’s Manual.
• The door cannot be unlocked using the one touch unlock operation after locking the
door within 2 seconds. To unlock the door,
release the one touch unlock sensor once
and touch it again.
• If a large amount of water runs down on the door handle (for example, when wash-
ing the vehicle or in heavy rain), the door
may unlock if the Intelligent Key is in range
of operation. To prevent the door from be-
ing unlocked, the Intelligent Key should be
more than 7 ft (2 m) away from the vehicle.
• Do not hold and pull the door handle quickly. The door will be unlocked but will
not open. Release the door handle once
and pull it again to open the door.
• If you pull the door handle with a gloved hand, the one touch unlock operation may
not function.
INFINITI INTELLIGENT KEY
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag. When you carry the Intelligent Key with you
and Selective Door Unlock is turned on using
“Comfort & Convenience” options in the “Set-
tings” menu of the lower touch-screen dis-
play, you can unlock the corresponding door
by touching the front one-touch unlock sen-
sor
OBwithin the range of operation. After
touching the one-touch unlock sensor, the
door handle request switch
OAcan be pushed
to unlock all doors. You can unlock all doors
by touching the rear one-touch unlock sensor
within the range of operation.
LPD2717LPD2734
Pre-driving checks and adjustments3-9
