2022 HYUNDAI TUCSON sensor

Maintenance
9-52

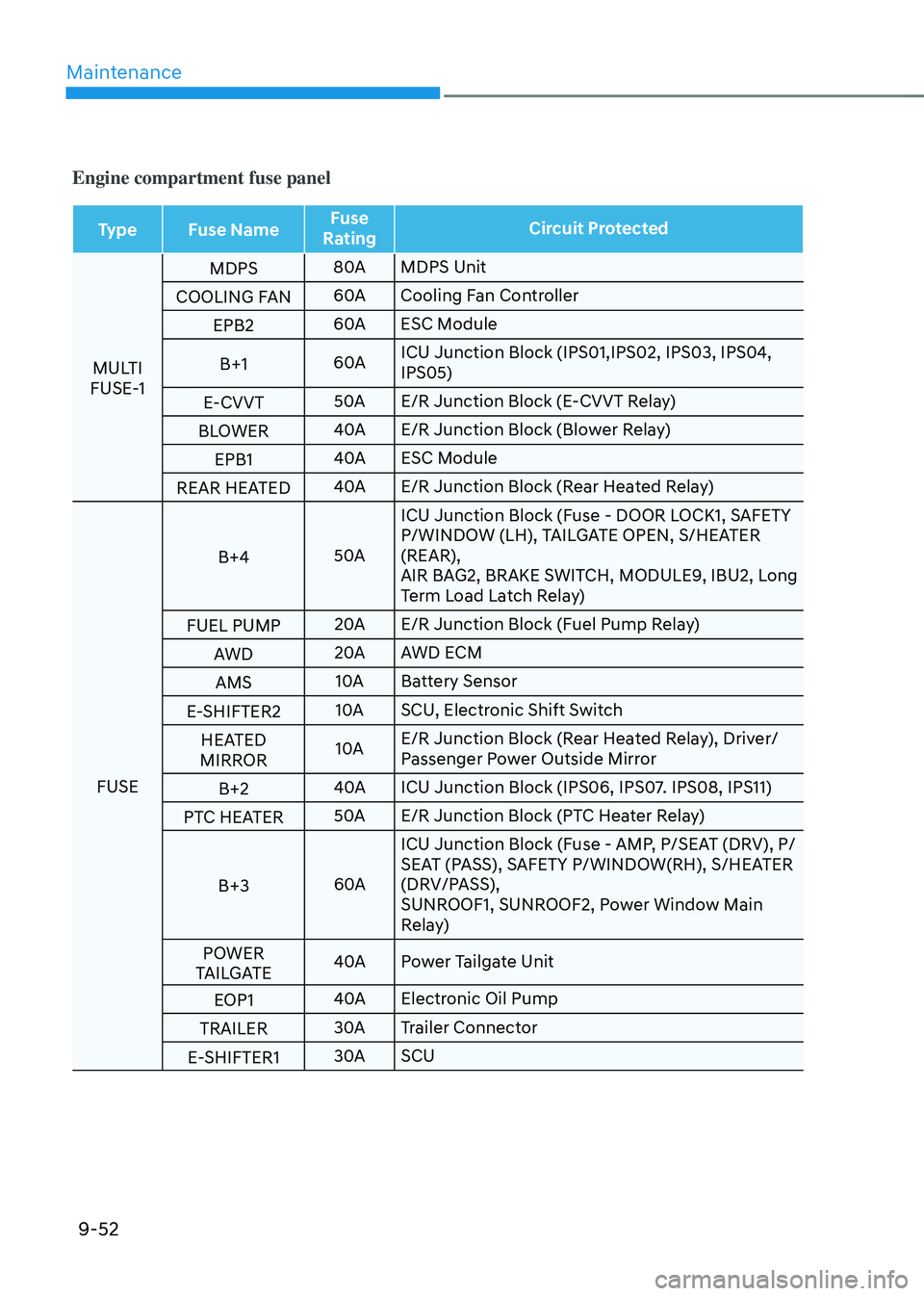

Engine compartment fuse panel
TypeFuse Name Fuse
Rating Circuit Protected
MULTI
FUSE-1 MDPS
80A
MDPS Unit
COOLING FAN 60A
Cooling Fan Controller
EPB2 60A
ESC Module
B+1 60AICU Junction Block (IPS01,IPS02, IPS03, IPS04,
IPS05)
E-CVVT 50A
E/R Junction Block (E-CVVT Relay)
BLOWER 40A
E/R Junction Block (Blower Relay)
EPB1 40A
ESC Module
REAR HEATED 40A
E/R Junction Block (Rear Heated Relay)
FUSE B+4
50AICU Junction Block (Fuse - DOOR LOCK1, SAFETY
P/WINDOW (LH), TAILGATE OPEN, S/HEATER
(REAR),
AIR BAG2, BRAKE SWITCH, MODULE9, IBU2, Long
Term Load Latch Relay)
FUEL PUMP 20A
E/R Junction Block (Fuel Pump Relay)
AWD 20A
AWD ECM
AMS 10A
Battery Sensor
E-SHIFTER2 10A
SCU, Electronic Shift Switch
HEATED
MIRROR 10A
E/R Junction Block (Rear Heated Relay), Driver/
Passenger Power Outside Mirror
B+2 40A
ICU Junction Block (IPS06, IPS07. IPS08, IPS11)
PTC HEATER 50A
E/R Junction Block (PTC Heater Relay)
B+3 60AICU Junction Block (Fuse - AMP, P/SEAT (DRV), P/
SEAT (PASS), SAFETY P/WINDOW(RH), S/HEATER
(DRV/PASS),
SUNROOF1, SUNROOF2, Power Window Main
Relay)
POWER
TAILGATE 40A
Power Tailgate Unit
EOP1 40A
Electronic Oil Pump
TRAILER 30A
Trailer Connector
E-SHIFTER1 30A
SCU

09
9-53

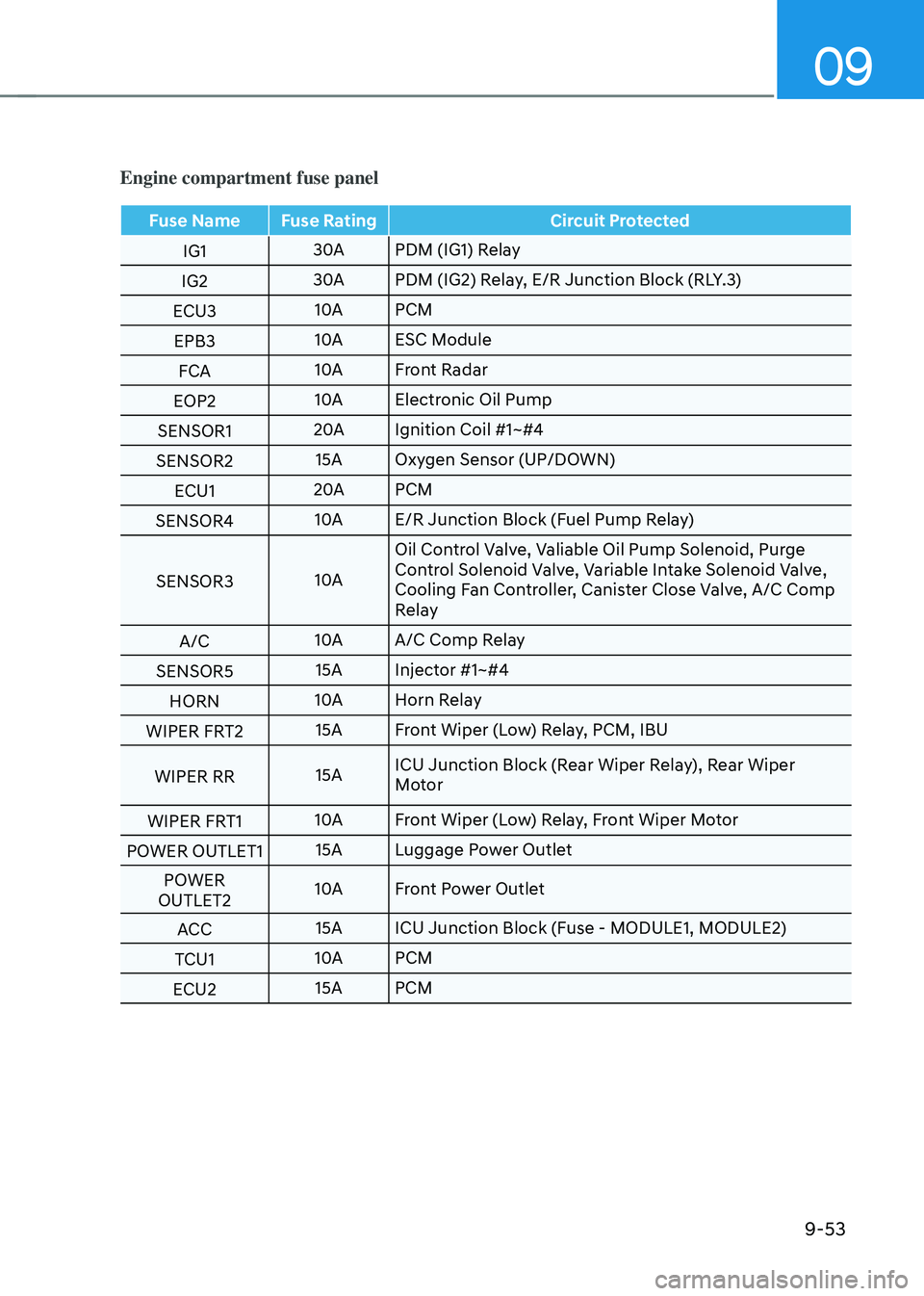

Engine compartment fuse panel
Fuse NameFuse Rating Circuit Protected
IG1 30A
PDM (IG1) Relay
IG2 30A
PDM (IG2) Relay, E/R Junction Block (RLY.3)
ECU3 10A
PCM
EPB3 10A
ESC Module
FCA 10A
Front Radar
EOP2 10A
Electronic Oil Pump
SENSOR1 20A
Ignition Coil #1~#4
SENSOR2 15A
Oxygen Sensor (UP/DOWN)
ECU1 20A
PCM
SENSOR4 10A
E/R Junction Block (Fuel Pump Relay)
SENSOR3 10AOil Control Valve, Valiable Oil Pump Solenoid, Purge
Control Solenoid Valve, Variable Intake Solenoid Valve,
Cooling Fan Controller, Canister Close Valve, A/C Comp
Relay
A/C 10A
A/C Comp Relay
SENSOR5 15A
Injector #1~#4
HORN 10A
Horn Relay
WIPER FRT2 15A
Front Wiper (Low) Relay, PCM, IBU
WIPER RR 15AICU Junction Block (Rear Wiper Relay), Rear Wiper
Motor
WIPER FRT1 10A
Front Wiper (Low) Relay, Front Wiper Motor
POWER OUTLET1 15A
Luggage Power Outlet
POWER
OUTLET2 10A
Front Power Outlet
ACC 15A
ICU Junction Block (Fuse - MODULE1, MODULE2)
TCU1 10A
PCM
ECU2 15A
PCM

09
9-63

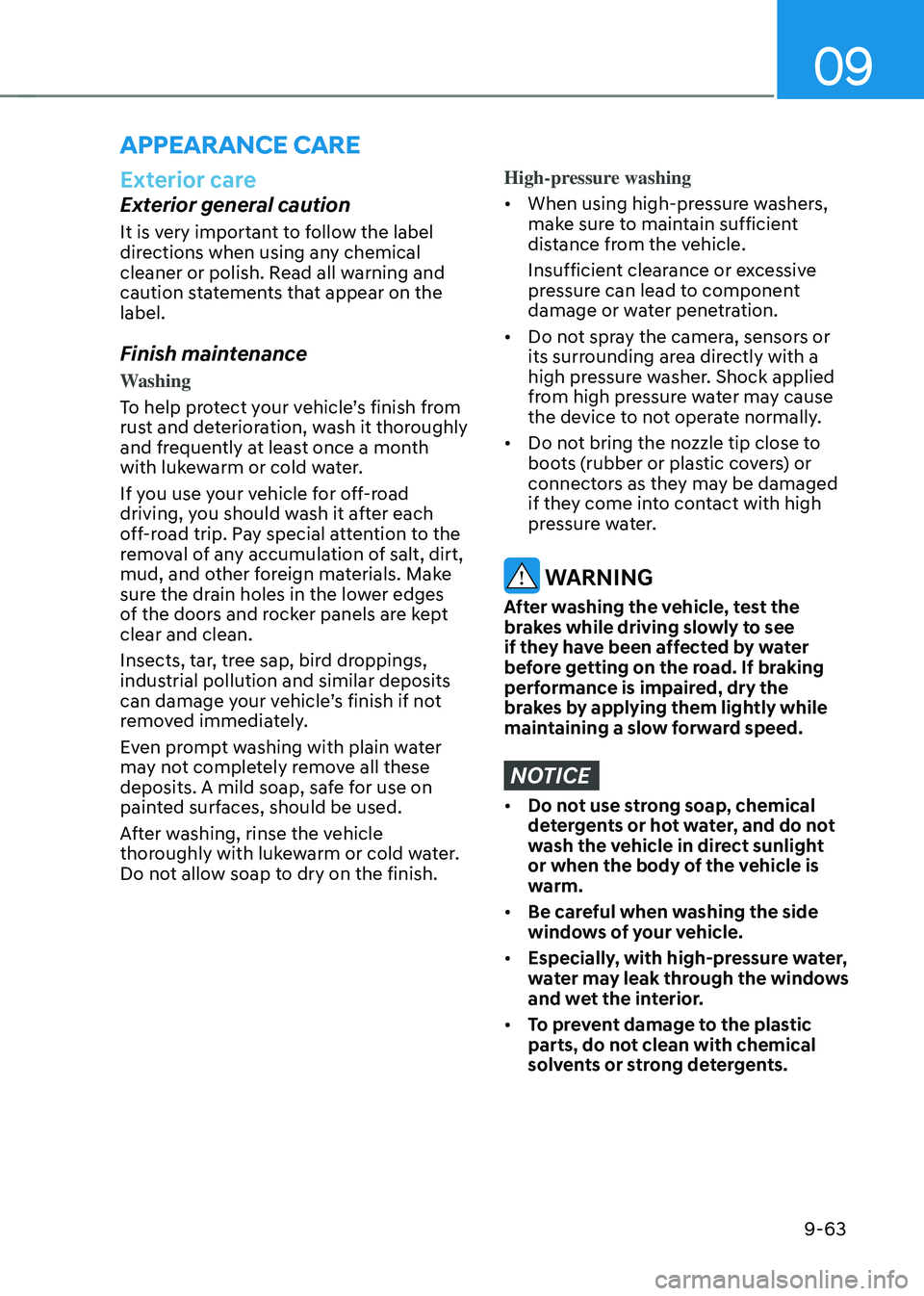

Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
NOTICE
• Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.
• Be careful when washing the side
windows of your vehicle.
• Especially, with high-pressure water,
water may leak through the windows
and wet the interior.
• To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
APPEARANCE CARE

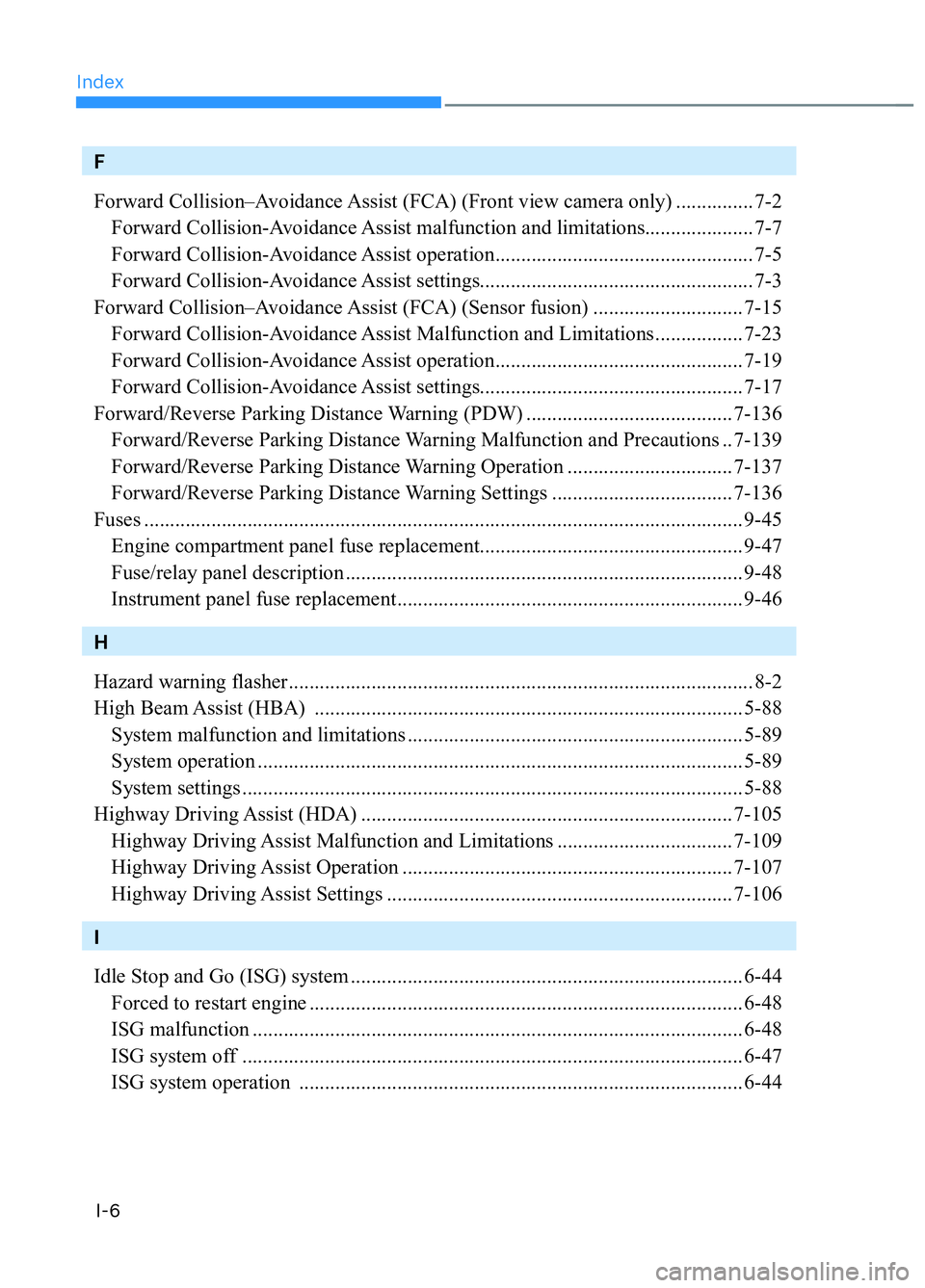

IndexI-6
F
Forward Collision–Avoidance Assist (FCA) (Front view camera only) ............... 7-2
Forward Collision-Avoidance Assist malfunction and limitations..................... 7-7
Forward Collision-Avoidance Assist operation .................................................. 7-5
Forward Collision-Avoidance Assist settings..................................................... 7-3
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ............................. 7-15
Forward Collision-Avoidance Assist Malfunction and Limitations ................. 7-23
Forward Collision-Avoidance Assist operation ................................................ 7-19
Forward Collision-Avoidance Assist settings................................................... 7-17
Forward/Reverse Parking Distance Warning (PDW) ........................................ 7-136
Forward/Reverse Parking Distance Warning Malfunction and Precautions .. 7-139
Forward/Reverse Parking Distance Warning Operation ................................ 7-137
Forward/Reverse Parking Distance Warning Settings ................................... 7-136
Fuses .................................................................................................................... 9-45
Engine compartment panel fuse replacement ................................................... 9-47
Fuse/relay panel description ............................................................................. 9-48
Instrument panel fuse replacement ................................................................... 9-46
H
Hazard warning flasher .......................................................................................... 8-2
High Beam Assist (HBA) ................................................................................... 5-88
System malfunction and limitations ................................................................. 5-89
System operation .............................................................................................. 5-89
System settings ................................................................................................. 5-88
Highway Driving Assist (HDA) ........................................................................ 7-105
Highway Driving Assist Malfunction and Limitations .................................. 7-109
Highway Driving Assist Operation ................................................................ 7-107
Highway Driving Assist Settings ................................................................... 7-106
I
Idle Stop and Go (ISG) system ............................................................................ 6-44
Forced to restart engine .................................................................................... 6-48
ISG malfunction ............................................................................................... 6-48
ISG system off ................................................................................................. 6-47
ISG system operation ...................................................................................... 6-44
