2022 HYUNDAI SANTA CRUZ Room lamp

02
2-9
Light bulb Bulb type Wattage
FrontType AHeadlamp High HB3 60
Low HB3 60
Daytime running lamp (DRL) /
Position lamp LED LED
Turn signal lamp PY28W 28
Side marker LED LED
Type BHeadlamp High LED LED
Low LED LED
Daytime running lamp (DRL) /
Position lamp LED LED
Turn signal lamp LED LED
Side marker LED LED
Side repeater lamp (Outside mirror) LED LED
RearTail lamp (Inside) LED LED
Tail lamp (Outside) / Side Marker LED LED
Turn signal lamp/ Stop Lamp P21W 21
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
Top Mounted Bed Lamp LED LED
Side mounted Bed Lamp LED LED
InteriorMap lamp Bulb type W10W 10
LED type LED LED
Room lamp Bulb type FESTOON 10
LED type LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
BULB WATTAGE

Convenient Features
5-78
INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO OFF
The interior lamps will automatically go
off approximately 10 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
ONX4OB051018ONX4OB051018
1. Front map lamp ():
Touch either lenses to turn the map
lamp on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
2. Door lamp ():
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the ignition
switch or the Engine Start/Stop button is
in the ON position or all doors are locked,
the front and rear lamps will turn off. If a
door is opened with the ignition switch
in the ACC position or the OFF position,
the front and rear lamps will stay on for
about 20 minutes.
3. Room lamp ()
Press the button to turn ON the room
lamp for the front/rear seats.

05
5-79

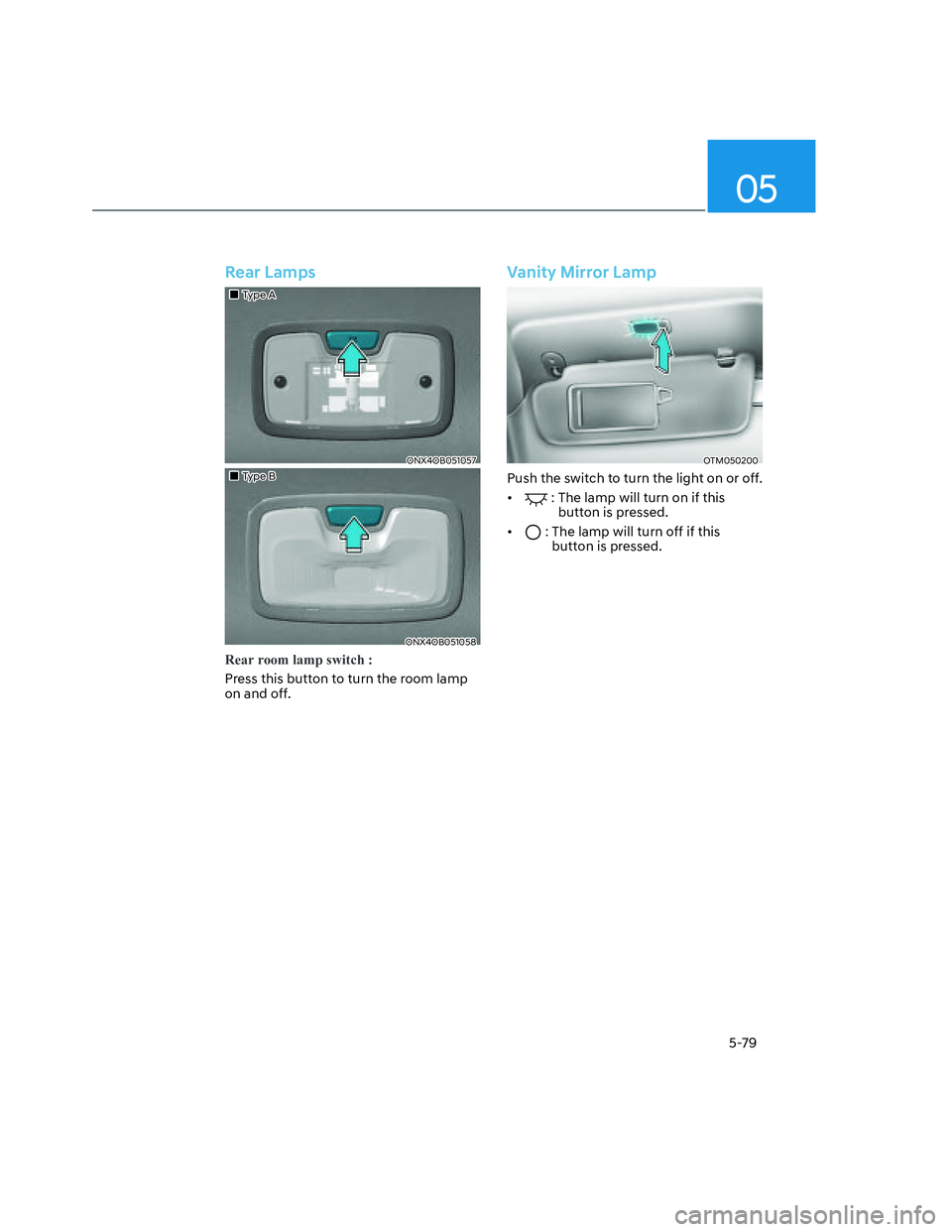

Rear Lamps
„„Type AType A
ONX4OB051057ONX4OB051057
„„Type BType B
ONX4OB051058ONX4OB051058
Rear room lamp switch :
Press this button to turn the room lamp
on and off.
Vanity Mirror Lamp
OTM050200OTM050200
Push the switch to turn the light on or off.
•
: The lamp will turn on if this
button is pressed.
•
: The lamp will turn off if this
button is pressed.

05
5-81
Headlamp and position lamp
When the headlamp (lamp switch in the
headlamp or AUTO position) is on and
all doors (and tailgate) are locked and
closed, the position lamp and headlamp
will come on for 15 seconds when the
door unlock button is pressed on the
remote key or smart key.
At this time, if you press the door lock
or unlock button, the position lamp and
headlamp will turn off immediately.
Interior lamp
When the interior lamp switch is in the position and all doors (and tailgate)
are closed and locked, the room lamp
will come on for 30 seconds if any of the
below is performed.
• When the door unlock button is
pressed on the remote key or smart
key.
• When you put your hand in the
outside door handle while carrying the
smart key.
At this time, if you press the door lock
or unlock button on the smart key the
lamps will turn off immediately.
Top mounted bed lamp and Side
mounted bed lamp (if equipped)
Lamps will be activated when a button
in cabin is pressed once. (Indicator on
button will illuminate when lamps are
on.) Or when underbed storage lid is
opened.
Lamps will turn Off if any of the following
occur:
• After 10 minutes of being activated.
• When remote key or smart key lock
button is pressed twice.
• When underfloor storage lid is closed
securely.
NOTICE
Bed lamps can only be activated when
vehicle is in Park (P) or Neutral (N) with
the vehicle speed is below 3.1 mph (5
km/h).

09
9-63
License Plate Lamp Replacement
ONX4OB091012ONX4OB0910121. Using flat-blade screwdriver, gently
pry on the inside edge of the lamp
housing, compressing the metal clip
on the opposite side. Once clip is
compressed, lamp will rotate out of
location in bumper.
2. Remove Bulb by rotating bulb in the
direction indicated on holder.
3. Remove bulb from holder by pulling it
straight out.
4. Install a new bulb.
5. Reinstall the lamp by compressing the
clip in the bumper and rotating the
lamp to hook the housing back into
place on the bumper.
Interior light replacement
Map/Rear lamp (LED)
„„Map lamp Map lamp
ONX4OB091013ONX4OB091013
„„Room lamp Room lamp
ONX4OB091031ONX4OB091031
If the LED lamp does not operate,
have the system be inspected by an
authorized HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

Maintenance
9-64

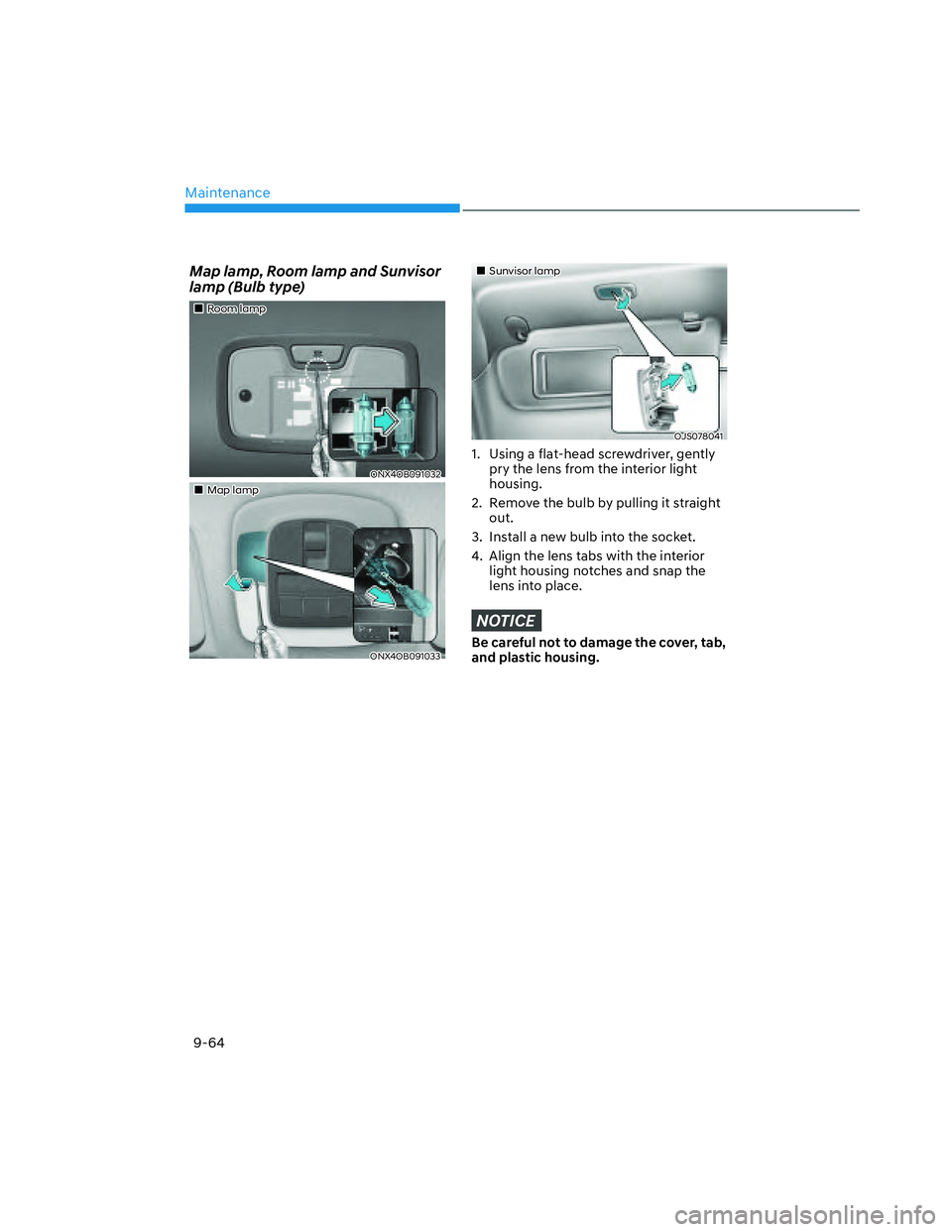

Map lamp, Room lamp and Sunvisor
lamp (Bulb type)
„„Room lamp Room lamp
ONX4OB091032ONX4OB091032
„„Map lampMap lamp
ONX4OB091033ONX4OB091033
„„Sunvisor lampSunvisor lamp
OJS078041OJS078041
1. Using a flat-head screwdriver, gently
pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior
light housing notches and snap the
lens into place.
NOTICE
Be careful not to damage the cover, tab,
and plastic housing.
