2022 HYUNDAI SANTA CRUZ center console

03
3-5
Front Seats
WARNING
Take the following precautions when
adjusting your seat:
• NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.
• Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.
• Do not allow anything to interfere
with the normal position and proper
locking of the seatback.
• Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.
• Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.
• If there are occupants in the rear
seats, be careful while adjusting the
front seat position.
• Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:
• Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.
• Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.

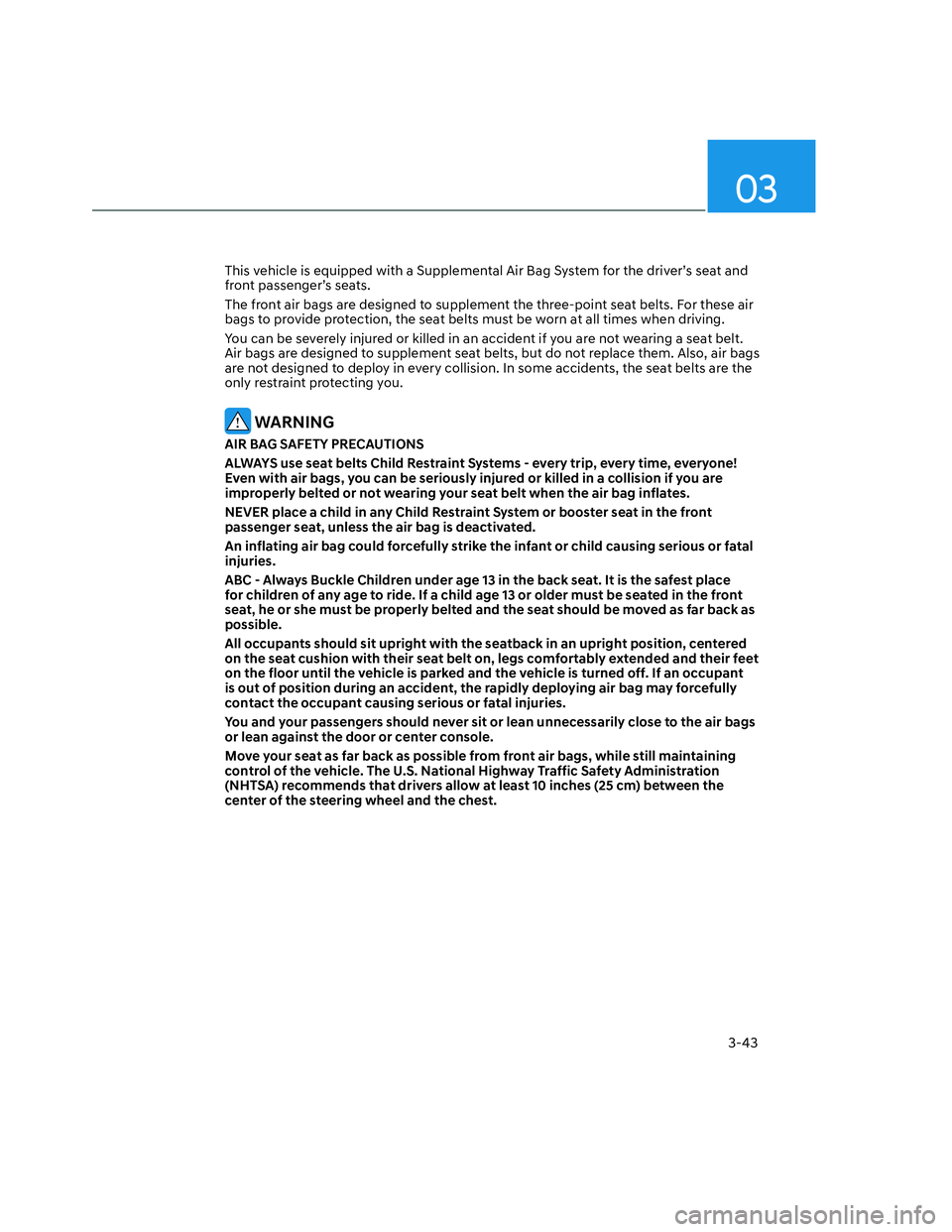

03
3-43
This vehicle is equipped with a Supplemental Air Bag System for the driver’s seat and
front passenger’s seats.
The front air bags are designed to supplement the three-point seat belts. For these air
bags to provide protection, the seat belts must be worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Air bags are designed to supplement seat belts, but do not replace them. Also, air bags
are not designed to deploy in every collision. In some accidents, the seat belts are the
only restraint protecting you.
WARNING
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts Child Restraint Systems - every trip, every time, everyone!
Even with air bags, you can be seriously injured or killed in a collision if you are
improperly belted or not wearing your seat belt when the air bag inflates.
NEVER place a child in any Child Restraint System or booster seat in the front
passenger seat, unless the air bag is deactivated.
An inflating air bag could forcefully strike the infant or child causing serious or fatal
injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the safest place
for children of any age to ride. If a child age 13 or older must be seated in the front
seat, he or she must be properly belted and the seat should be moved as far back as
possible.
All occupants should sit upright with the seatback in an upright position, centered
on the seat cushion with their seat belt on, legs comfortably extended and their feet
on the floor until the vehicle is parked and the vehicle is turned off. If an occupant
is out of position during an accident, the rapidly deploying air bag may forcefully
contact the occupant causing serious or fatal injuries.
You and your passengers should never sit or lean unnecessarily close to the air bags
or lean against the door or center console.
Move your seat as far back as possible from front air bags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the
center of the steering wheel and the chest.

Seats & Safety System
3-44
Where are the Air Bags?
Driver’s and passenger’s front air
bags
„„Driver’s front air bagDriver’s front air bag
OCN7030036 OCN7030036
„„Passenger’s front air bagPassenger’s front air bag
ONX4030037ONX4030037
Your vehicle is equipped with a
Supplemental Restraint System (SRS)
as well as lap/shoulder belts at both the
driver and passenger seating positions.
The SRS consists of air bags which are
located in the center of the steering
wheel and the passenger’s side front
panel pad above the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered
by the seat belt system alone in case of a
frontal impact of sufficient severity.
The SRS uses sensors to gather
information about the driver’s and front
passenger's seat belt usage and impact
severity.The seat belt buckle sensors determine
if the driver and front passenger's seat
belts are fastened. These sensors provide
the ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the air bag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in an
accident.
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:
• Seat belts must be worn at all times
to help keep occupants positioned
properly.
• Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.
• Never lean against the door or center
console.
• Do not allow the front passenger
to place their feet or legs on the
dashboard.
• No objects (such as crash pad cover,
mobile phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.
• Do not attach any objects on the
front windshield and inside mirror.

Seats & Safety System
3-52
Main components of the Occupant
Classification System
• A detection device located within the
front passenger seat cushion.
• Electronic system to help determine
whether the passenger air bag
systems should be activated or
deactivated.
• An indicator light located on the
instrument panel which illuminates
the words “PASSENGER AIR BAG OFF”
indicating the front passenger air bag
system is deactivated.
• The instrument panel air bag indicator
light is interconnected with the OCS.
The OCS is designed to help detect
the presence of a properly-seated
front passenger and determine if the
passenger’s front air bag should be
enabled (may inflate) or not.
The purpose is to help reduce the risk
of injury or death from an inflating air
bag to certain front passenger seat
occupants, such as children, by requiring
the air bag to be automatically turned
OFF.
For example, if a child restraint of the
type specified in the regulations is on the
seat, the occupant classification sensor
can detect it and cause the air bag to
turn OFF.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger air bag to be automatically
turned OFF. For smaller adults it may turn
OFF, however, if the occupant does not
sit in the seat properly (for example, by
not sitting upright, by sitting on the edge
of the seat, or by otherwise being out of
position), this could cause the sensor to
turn the air bag OFF.You will find the “PASSENGER AIR BAG
OFF” indicator on the overhead console
panel. This system detects the conditions
1-4 in the following table and activates or
deactivates the front passenger air bag
based on these conditions.
Always be sure that you and all vehicle
occupants are seated properly and
wearing the seat belt properly for the
most effective protection by the air bag
and the seat belt.
The OCS may not function properly if the
passenger takes actions which can affect
the classification system. These include:
• Failing to sit in an upright position.
• Leaning against the door or center
console.
• Sitting towards the sides of the front
of the seat.
• Putting their legs on the dashboard or
resting them on other locations which
reduce the passenger weight on the
front seat.
• Wearing the seat belt improperly.
• Reclining the seatback.
• Wearing thick clothes like ski wear or
hip protection wear.
• Putting an additional thick cushion on
the seat.
• Putting electrical devices (for
example, notebook, satellite radio) on
the seat with inverter charging.

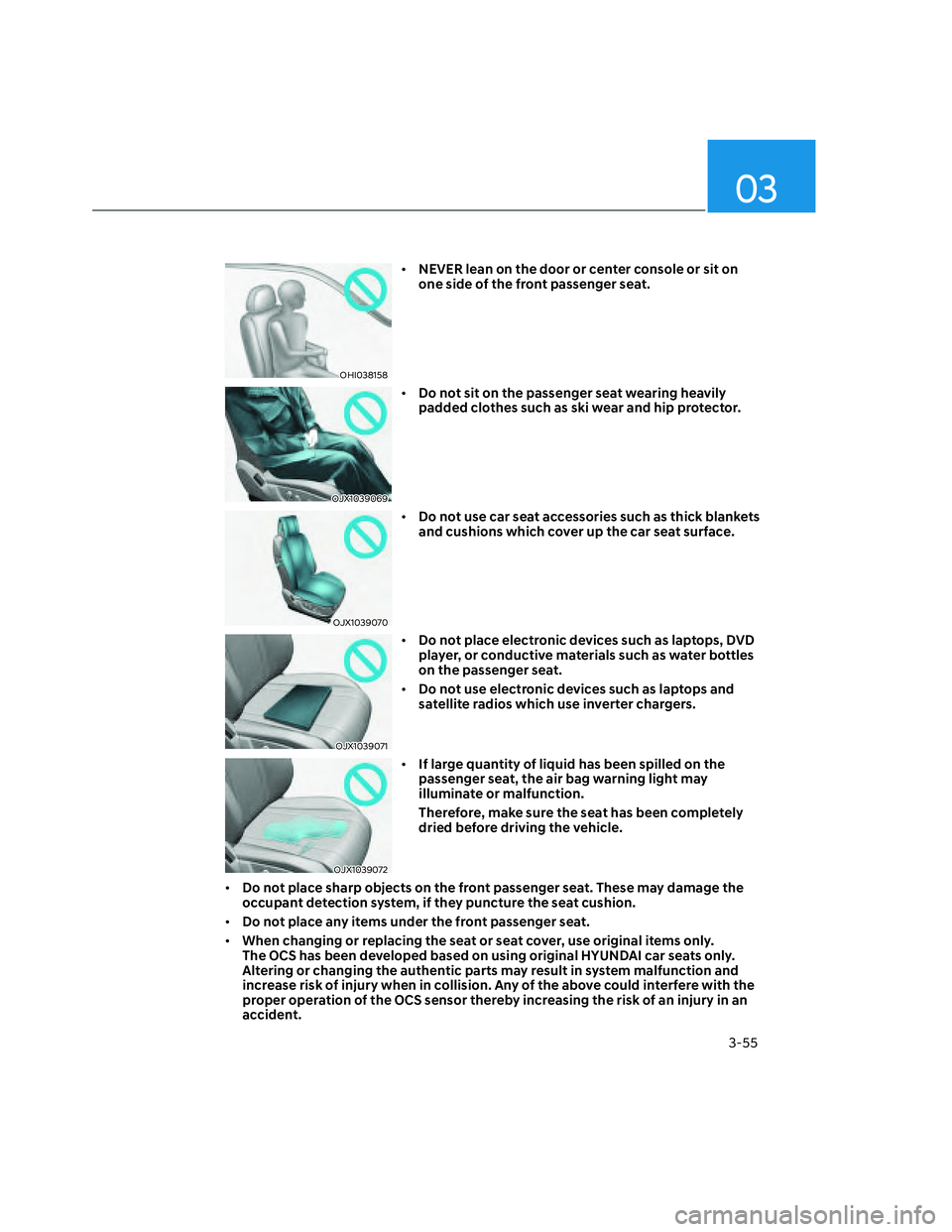

03
3-55
OHI038158OHI038158
• NEVER lean on the door or center console or sit on
one side of the front passenger seat.
OJX1039069OJX1039069
• Do not sit on the passenger seat wearing heavily
padded clothes such as ski wear and hip protector.
OJX1039070OJX1039070
• Do not use car seat accessories such as thick blankets
and cushions which cover up the car seat surface.
OJX1039071OJX1039071
• Do not place electronic devices such as laptops, DVD
player, or conductive materials such as water bottles
on the passenger seat.
• Do not use electronic devices such as laptops and
satellite radios which use inverter chargers.
OJX1039072OJX1039072
• If large quantity of liquid has been spilled on the
passenger seat, the air bag warning light may
illuminate or malfunction.
Therefore, make sure the seat has been completely
dried before driving the vehicle.
• Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they puncture the seat cushion.
• Do not place any items under the front passenger seat.
• When changing or replacing the seat or seat cover, use original items only.
The OCS has been developed based on using original HYUNDAI car seats only.
Altering or changing the authentic parts may result in system malfunction and
increase risk of injury when in collision. Any of the above could interfere with the
proper operation of the OCS sensor thereby increasing the risk of an injury in an
accident.

5
Storage Compartment .................................................................................... 5-112Center Console Storage ............................................................................................ 5-112
Glove Box ................................................................................................................... 5-113
Storage Box Under the Rear Seat ............................................................................. 5-113
Luggage Compartment Features ..................................................................5-114Tonneau Cover ........................................................................................................... 5-114
Sidewall Molded in Features .................................................................................... 5-117
Underbed Storage ..................................................................................................... 5-119
Sidewall Side Storage ............................................................................................... 5-121
Tie Down ....................................................................................................................5-122
Rail and cleat system ................................................................................................5-123
Interior Features ............................................................................................. 5-124Cup Holder ................................................................................................................ 5-124
Sunvisor .....................................................................................................................5-125
Power Outlet ..............................................................................................................5-125
USB Charger ............................................................................................................. 5-126
Wireless Smart Phone Charging System ................................................................. 5-127
Clock .........................................................................................................................5-129
Coat Hook ................................................................................................................. 5-130
Floor Mat Anchor(s) .................................................................................................. 5-130
Exterior Features .............................................................................................5-131Roof Rack .................................................................................................................. 5-131
Infotainment System ..................................................................................... 5-132USB Port .....................................................................................................................5-132
Antenna ......................................................................................................................5-132
Steering Wheel Remote Controls ............................................................................ 5-133
Infotainment System ............................................................................................... 5-134
Voice Recognition .................................................................................................... 5-134
Bluetooth® Wireless Technology ............................................................................. 5-134
How Vehicle Radio Works .........................................................................................5-135
5. Convenient Features

Convenient Features
5-112
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items may fly out of the compartment
and may cause an injury if they strike
the driver or a passenger.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
Center Console Storage
ONX4050047ONX4050047
To open:
Press the button.
STORAGE COMPARTMENT

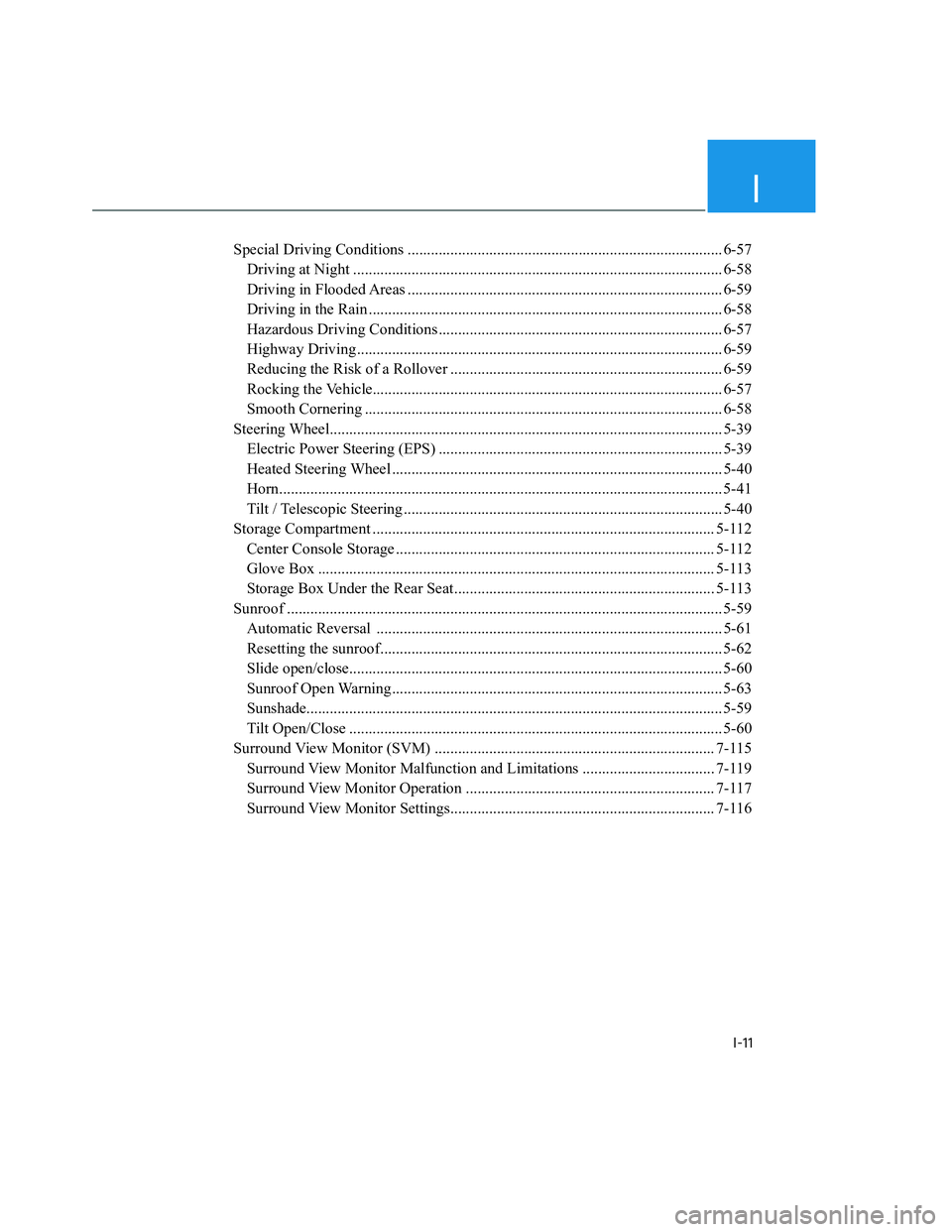

I
I-11
Special Driving Conditions ................................................................................. 6-57
Driving at Night ............................................................................................... 6-58
Driving in Flooded Areas ................................................................................. 6-59
Driving in the Rain ........................................................................................... 6-58
Hazardous Driving Conditions ......................................................................... 6-57
Highway Driving .............................................................................................. 6-59
Reducing the Risk of a Rollover ...................................................................... 6-59
Rocking the Vehicle.......................................................................................... 6-57
Smooth Cornering ............................................................................................ 6-58
Steering Wheel..................................................................................................... 5-39
Electric Power Steering (EPS) ......................................................................... 5-39
Heated Steering Wheel ..................................................................................... 5-40
Horn.................................................................................................................. 5-41
Tilt / Telescopic Steering .................................................................................. 5-40
Storage Compartment ........................................................................................ 5-112
Center Console Storage .................................................................................. 5-112
Glove Box ...................................................................................................... 5-113
Storage Box Under the Rear Seat................................................................... 5-113
Sunroof ................................................................................................................ 5-59
Automatic Reversal ......................................................................................... 5-61
Resetting the sunroof........................................................................................ 5-62
Slide open/close................................................................................................ 5-60
Sunroof Open Warning..................................................................................... 5-63
Sunshade........................................................................................................... 5-59
Tilt Open/Close ................................................................................................ 5-60
Surround View Monitor (SVM) ........................................................................ 7-115
Surround View Monitor Malfunction and Limitations .................................. 7-119
Surround View Monitor Operation ................................................................ 7-117
Surround View Monitor Settings.................................................................... 7-116
