2022 HYUNDAI PALISADE sensor

2-77
Safety system of your vehicle
2
In an angled collision, the force of
impact may direct the occupants in a
direction where the air bags would
not be able to provide any additional
benefit, and thus the sensors may
not deploy any air bags.Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehicle
causing it to "ride" under a vehicle
with a higher ground clearance. Air
bags may not inflate in this "under-
ride" situation because deceleration
forces that are detected by sensors
may be significantly reduced by such
"underride" collisions.Front air bags may not inflate in
rollover accidents because air bag
deployment could not provide protec-
tion to the occupants.
However, side and curtain air bags
may inflate when the vehicle is rolled
over by a side impact collision.
OTM038090OLX2038064OTL035068

3-23
Convenience Features
S SA A F FE E E E X X I IT T A A S SS SI IS S T T ( ( S S E E A A ) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
3
After the vehicle stops, when an
approaching vehicle from the rear
area is detected as soon as a pas-
senger opens a door, Safe Exit
Assist will warn the driver with a
warning message and an audible
warning to help prevent a collision. In addition, when the electronic child
safety lock button is in the LOCK
position and an approaching vehicle
from the rear area is detected, the
electronic child safety lock button will
not unlock even if the driver presses
the button to prevent the rear doors
from opening.
Detecting sensor
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
OTM070238OLX2048009
OLX2051139L
Warning timing may vary
depending on the speed of the
approaching vehicle.
CAUTIONFor more details on the precau-
tions of the rear corner radars,
refer to “Blind-Spot Collision
Assist (BCA)” section in chap-
ter 5.
CAUTION

3-27
Convenience Features
Information
After the engine is turned off, Safe
Exit Assist operates approximately for
3 minutes, but turns off immediately if
the doors are locked.
Safe Exit Assist malfunction
and limitations
Safe Exit Assist malfunction
When Safe Exit Assist is not working
properly, the ‘Check Blind-Spot
Safety system’ warning message will
appear on the cluster for several sec-
onds, and the master ( ) warning
light will illuminate on the cluster. If
the master warning light illuminates,
we recommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.When the outside rearview mirror
warning light is not working properly,
the ‘Check side view mirror warning
light’ warning message will appear
on the cluster for several seconds,
and the master ( ) warning light
will illuminate on the cluster. If the
master warning light illuminates,
have the vehicle inspected by an
authorized HYUNDAI dealer.
i
3
The driver and passengers
are responsible for accidents
that occurs while exiting the
vehicle. Always check the sur-
roundings before you exit the
vehicle.
Never deliberately operate
Safe Exit Assist. Doing so
may lead to serious injury or
death.
Safe Exit Assist does not
operate if there is a problem
with Blind-Spot Safety sys-
tem. The warning message of
Blind-Spot Safety system will
appear when:
- Blind-Spot Safety system
sensor or the sensor sur-
rounding is polluted or cov-
ered
- Blind-Spot Safety system fails to warn passengers or
falsely warn passengers
OTM070099N
OTM070100N

3-28
Safe Exit Assist disabled
When the rear bumper around the
rear corner radar or sensor is cov-
ered with foreign material, such as
snow or rain, or installing a trailer or
carrier, it can reduce the detecting
performance and temporarily limit or
disable Safe Exit Assist.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’
warning message will appear on the
cluster.
Safe Exit Assist will operate normal-
ly when such foreign material or trail-
er, etc. is removed, and then the
engine is restarted.If Safe Exit Assist does not operate
normally after it is removed, have the
vehicle be inspected by an author-
ized HYUNDAI dealer.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate nor-
mally, or it may operate unexpected-
ly under the following circumstances:
Getting out of the vehicle where
trees or grass are overgrown
Getting out of the vehicle where the road is wet
The approaching vehicle is very fast or very slow
Information
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist
(BCA)” section in chapter 5.
i
Convenience Features
OTM070098N
Even though the warning
message does not appear on
the cluster, Safe Exit Assist
may not properly operate.
Safe Exit Assist may not prop-
erly operate in an area (e.g.
open terrain) where any sub-
stance are not detected right
after the engine is turned on,
or when the detecting sensor
is blocked with foreign materi-
al right after the engine is
turned on.
WARNING
Turn off Safe Exit Assist to
install a trailer, carrier, etc., or
remove the trailer, carrier, etc. to
use Safe Exit Assist.
CAUTION

3-29
Convenience Features
Rear Occupant Alert (ROA)
System (if equipped)
The Rear Occupant Alert (ROA) sys-
tem is provided to help prevent exit-
ing the vehicle with the rear passen-
ger left in the vehicle.
1st alert- When you open the front doorafter opening and closing the rear
door and turning off the engine,
the "Check rear seats" warning
message appears on the cluster.
You can activate or deactivate the Rear Occupant Alert (ROA) sys-
tem from the User Settings mode
in the cluster LCD display. The
option can be found under the fol-
lowing menu:
User Settings → Convenience →
Rear Occupant Alert 2nd alert (if equipped)
- After the 1st alert the 2nd alertoperates when any movement is
detected in the vehicle after the
driver's door is closed and all the
doors are locked. The horn will
activate for about 25 seconds. If
the system continues to detect a
movement the alert operates up
to 8 times.
- Unlock the door with the remote key or smart key to stop the alert.
- The system detects movement in the vehicle for 24 hours after the
door is locked.
- The 2nd alert is activated only after the prior activation of the 1st
alert.
3
Safe Exit Assist may not oper-
ate normally if interfered by
strong electromagnetic
waves.
Safe Exit Assist may not oper-
ate for 3 seconds after the
vehicle is started, or the rear
corner radars are initialized.
WARNING
Make sure that all the win-
dows are closed. If the win-
dow is open, the alert may
activate by the sensor detect-
ing an unintended movement
(e.g. wind or bugs).
CAUTION

3-30
Convenience Features
Even if your vehicle is
equipped with the Rear
Occupant Alert (ROA) system,
always make sure you check
the rear seat before you get
off the vehicle.
The alert may not operate if:
- The movement does notcontinue for a certain period
of time or the movement is
small.
- The rear passenger is cov- ered with an obstacle such
as a blanket.
- Also, always be cautious of the passenger’s safety as
the detection function and
2nd alert may not operate
according to the surround-
ing environment and certain
conditions.
- If a child sits on a vehicle seat without a child restraint
system.
WARNING
If you do not want to use the
Rear Occupant Alert (ROA)
system, press OK button on
the steering wheel when the
1st alert is displayed on the
cluster. Doing so will deacti-
vate the 2nd alert once. (if
equipped)
OLX2049120N
■
Cluster
OTMA048421
■Steering wheel
If boxes or objects are stacked
in the vehicle, the system may
not detect the obstacle. Also,
the warning may generate if
the box or object falls off.
The sensor may not operate
normally if the senor is
obscured by foreign sub-
stances.
The alert may activate if move-
ment in the driver or passen-
ger seat is detected.
The alert may activate with the
doors locked due to car wash
or surrounding vibration or
noise.
Inside movement detection is
stopped under remote start (if
equipped) status.
CAUTION

3-40
Convenience Features
Electrochromatic Mirror (ECM)(if equipped)
Some vehicles come equipped with
an electrochromic mirror that helps
control glare while driving at night or
under low light driving conditions.
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror. The sensor detects the light
level around the vehicle, and auto-
matically adjusts to control the head-
lamp glare from vehicles behind you.
Whenever the shift button is placed
in R (Reverse), the mirror will auto-
matically go to the brightest setting in
order to improve the driver’s view
behind the vehicle.
[A] : Indicator
When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as that may cause the
liquid cleaner to enter the mirror
housing.
Electrochromatic Mirror (ECM)with homelink system (if equipped)
To operate the electric rearview
mirror
Press the I button (1) to turn the
automatic- dimming function on. The
mirror indicator light will illuminate.
Press the O button (2) to turn the
automatic- dimming function off. The
mirror indicator light will turn off.
NOTICE
OLX2048099L
OHD046025N

3-41
Convenience Features

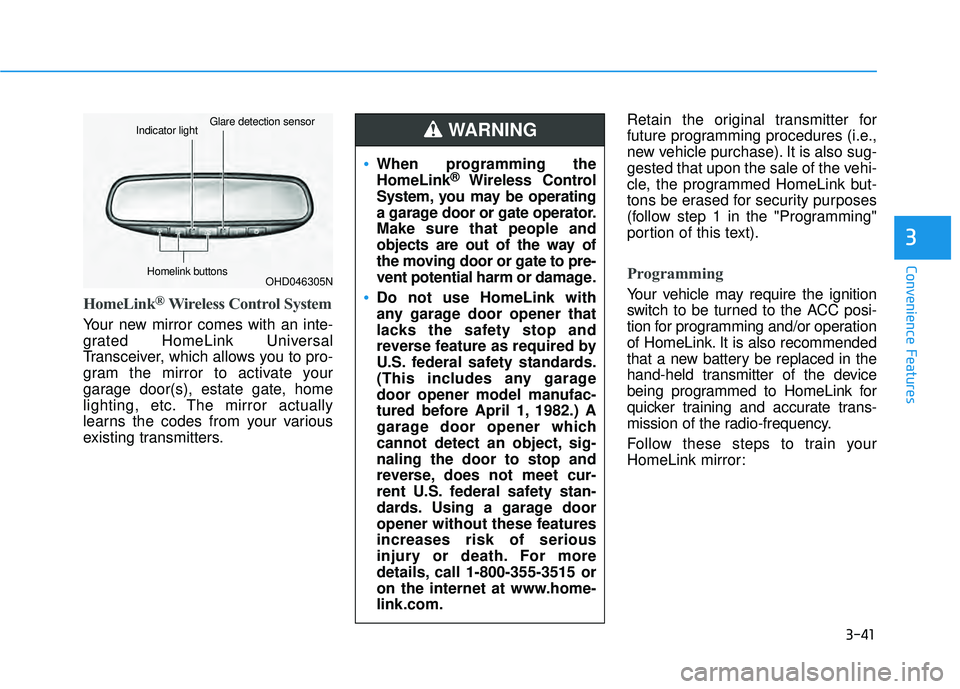

HomeLink®Wireless Control System
Your new mirror comes with an inte-
grated HomeLink Universal
Transceiver, which allows you to pro-
gram the mirror to activate your
garage door(s), estate gate, home
lighting, etc. The mirror actually
learns the codes from your various
existing transmitters.Retain the original transmitter for
future programming procedures (i.e.,
new vehicle purchase). It is also sug-
gested that upon the sale of the vehi-
cle, the programmed HomeLink but-
tons be erased for security purposes
(follow step 1 in the "Programming"
portion of this text).
Programming
Your vehicle may require the ignition
switch to be turned to the ACC posi-
tion for programming and/or operation
of HomeLink. It is also recommended
that a new battery be replaced in the
hand-held transmitter of the device
being programmed to HomeLink for
quicker training and accurate trans-
mission of the radio-frequency.
Follow these steps to train your
HomeLink mirror:
3
OHD046305N
Glare detection sensorIndicator light
Homelink buttons
When programming the
HomeLink®Wireless Control
System, you may be operating
a garage door or gate operator.
Make sure that people and
objects are out of the way of
the moving door or gate to pre-
vent potential harm or damage.
Do not use HomeLink with
any garage door opener that
lacks the safety stop and
reverse feature as required by
U.S. federal safety standards.
(This includes any garage
door opener model manufac-
tured before April 1, 1982.) A
garage door opener which
cannot detect an object, sig-
naling the door to stop and
reverse, does not meet cur-
rent U.S. federal safety stan-
dards. Using a garage door
opener without these features
increases risk of serious
injury or death. For more
details, call 1-800-355-3515 or
on the internet at www.home-
link.com.
WARNING
