Driver assistance system
7-22

[There is a road edge without a lane

[There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver should hold the
responsibility to safely drive and
control the vehicle. Do not solely rely
on Lane Keeping Assist and drive
dangerously.

[The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[If emergency towing is necessary, we
recommend that Lane Keeping Assist
is turned off due to safety reasons.

[If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.
[If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[If you attach objects to the steering
wheel, steering may not be assisted
properly.

[Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[Lane Keeping Assist will not operate
when:
-The turn signal or hazard warning
flasher is turned on
-The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane
-ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
-The vehicle is driven on a sharp
curve
-The vehicle speed is below 35 mph
(55 km/h) or above 130 mph
(210 km/h)
-The vehicle makes sharp lane
changes
-The vehicle brakes suddenly

Driver assistance system
7-28

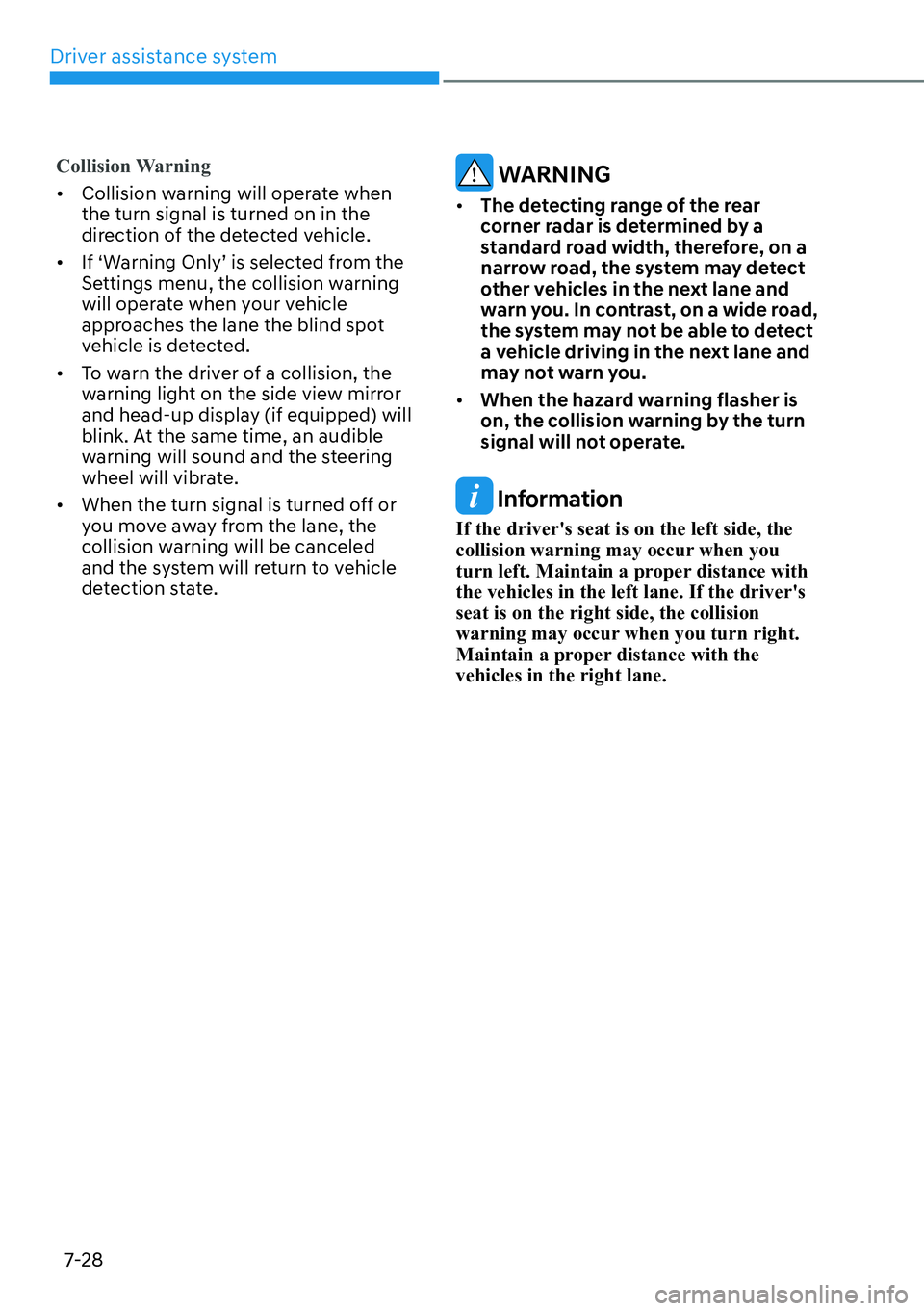

Collision Warning

[Collision warning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[ ,I
S:DUQLQJ2QO\
TLVVHOHFWHGIURPWKH
Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound and the steering
wheel will vibrate.

[When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled
and the system will return to vehicle
detection state. WARNING

[The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on a
narrow road, the system may detect
other vehicles in the next lane and
warn you. In contrast, on a wide road,
the system may not be able to detect
a vehicle driving in the next lane and
may not warn you.

[When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with
the vehicles in the left lane. If the driver's
seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the
vehicles in the right lane.

07
7-29
OIK070087L
Collision-Avoidance Assist (while driving)

[To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[The system will operate when your
vehicle speed is between 40~120
mph (60~200 km/h) and both lane
markings of the driving lane are
detected.

[Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
WARNING

[Collision-Avoidance Assist will
be canceled under the following
circumstances:
-Your vehicle enters the next lane
by a certain distance
-Your vehicle is away from the
collision risk
-The steering wheel is sharply
steered
-The brake pedal is depressed
-Forward Collision-Avoidance Assist
is operating

[After system operation or lane
change, you must drive to the center
of the lane. The system will not
operate if the vehicle is not driven in
the center of the lane.

Driver assistance system
7-30
OIK070088L
Collision-Avoidance Assist (while
departing)

[To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[The system will operate when your
vehicle speed is below 2 mph (3 km/h)
and the speed of the vehicle in the
blind spot area is above 3 mph (5
km/h).

[Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
OIK070009L

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

07
7-31
WARNING
Take the following precautions when
using Blind-Spot Safety system:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Safety system’s warning message
may not be displayed and audible
warning may not be generated.

[You may not hear the warning sound
of Blind-Spot Safety system if the
surrounding is noisy.

[Blind-Spot Safety system may not
operate if the driver applies the
brake pedal to avoid collision.

[When Blind-Spot Safety system
is operating, braking control by
the system will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[During Blind-Spot Safety system
operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always have
the seat belt on and keep loose
objects secured.

[Even if there is a problem with Blind-
Spot Safety system, the vehicle’s
basic braking performance will
operate normally.

[Blind-Spot Safety system does not
operate in all situations or cannot
avoid all collisions.
[Blind-Spot Safety system may warn
the driver late or may not warn the
driver depending on the road and
driving conditions.

[Driver should maintain control
of the vehicle at all times. Do not
depend on Blind-Spot Safety system.
Maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[Never operate Blind-Spot Safety
system on people, animal, objects,
etc. It may cause serious injury or
death.
WARNING
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
-The ESC (Electronic Stability Control)
warning light is on
-ESC (Electronic Stability Control) is
engaged in a different function

Driver assistance system
7-40
WARNING
Take the following precautions when
using Safe Exit Warning:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other system’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning warning message may not
be displayed and audible warning
may not be generated.

[You may not hear the warning
sound of Safe Exit Warning if the
surrounding is noisy.

[Safe Exit Warning does not operate
in all situations or cannot prevent all
collisions.

[Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[The driver and passengers are
responsible for accidents that occurs
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.
[Safe Exit Warning does not operate
if there is a problem with Blind-Spot
Safety system. The warning message
of Blind-Spot Safety system will
appear when:
-Blind-Spot Safety system sensor or
the sensor surrounding is polluted
or covered
-Blind-Spot Safety system fails to
warn passengers or falsely warn
passengers
Information
After the engine is turned off, Safe Exit
Warning operates approximately for 3
minutes, but turns off immediately if the
doors are locked.

07
7-45
Driver Attention Warning
Operation
Basic function
Display and warning
The basic function of Driver Attention
Warning is to inform the driver of their

S$WWHQWLRQ/HYHO
TDQGWRZDUQWKHGULYHUWR

S&RQVLGHUWDNLQJDEUHDN
T
Attention level
„System off„Standby
OTM070102NOTM070106N
„Attentive driving„Inattentive driving
OJK070140L OJX1079066L

[The driver can monitor his/her driving
conditions on the cluster.
- When the ‘Inattentive Driving
:DUQLQJ
TLVGHVHOHFWHGIURPWKH
6HWWLQJVPHQX
S6\VWHP2II
TLV
displayed.
- Driver Attention Warning will
operate when the vehicle speed is
between 0~130 mph (0~210 km/h).
- When the vehicle speed is not
within the operating speed,
WKHPHVVDJH
S6WDQGE\
TZLOOEH
displayed.
[ 7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG
on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.

[The level decreases when the driver
does not take a break for a certain
period of time.

07
7-47
Leading Vehicle Departure Alert
function
OIK070031L
When a detected vehicle in front departs
from a stop, Leading Vehicle Departure
Alert will inform the driver by displaying
WKH
S/HDGLQJYHKLFOHLVGULYLQJDZD\
T
message on the cluster and an audible
warning will sound.
WARNING

[If any other system’s warning
message is displayed or audible
warning is generated, Driver
Attention Warning message may not
be displayed and audible warning
may not be generated.

[The driver should hold the
responsibility to safely drive and
control the vehicle.
CAUTION

[Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.

[Always check the front of the
vehicle and road conditions before
departure.
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
OTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
$WWHQWLRQ:DUQLQJ'$:V\VWHP
T
warning message will appear on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:

[The vehicle is driven violently

[The vehicle intentionally crosses over
lanes frequently

[The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
