2022 HYUNDAI GENESIS G70 display

Driving Your Vehicle
6-16
Shift to P after stopping
OIK060012L
The message appears on the LCD display
when the gear is shifted to P (Park) while
the vehicle is moving.
Stop the vehicle before shifting to P
(Park).
Press P for Park
OIK060013L
The message appears on the LCD display
to inform the driver to press the P button
to shift to P (Park) when the driver moves
the shift lever upward even though the
gear is in R (Reverse).
Check P button
OIK060040L
The message appears on the LCD display
when there is problem with the P button.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Press brake pedal, then press P
RELEASE button
OIK060038L
The message appears on the LCD display
when the driver presses the PARK
RELEASE button without depressing the
brake pedal.
Depress the brake pedal before pressing
the P RELEASE button.

06
6-17
Check P RELEASE button
OIK060039L
The message appears on the LCD
display when there is problem with the P
RELEASE button.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Press UNLOCK to change gear
OIK060014L
The message appears on the LCD
display when the [UNLOCK] button is not
pressed while shifting the gear.
Press the [UNLOCK] button and then
shift the gear.
PARK engaged
OIK060016L
The message appears on the LCD display
when the P (Park) position is engaged.
NEUTRAL engaged
OIK060017L
The message appears on the LCD
display when the N (Neutral) position is
engaged.

Driving Your Vehicle
6-18
Vehicle Power limited due to high
transmission temperature
OIK060065L
This message is displayed when the
transmission oil temperature is high.
Drive at steady speed or stop the vehicle
at a safe place with the engine on. When
the oil temperature returns to normal,
the message will disappear.
Good Driving Practices

[Never shift the gear from P (Park) or
N (Neutral) to any other position with
the accelerator pedal depressed.

[Never shift the gear into P (Park) when
the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[Do not shift the gear to N (Neutral)
when driving. If the gear is shifted to
N (Neutral) while driving, the vehicle
loses the ability to provide engine
braking. Doing so may increase the
risk of an accident.
Also, shifting the gear back to
D (Drive) while the vehicle is
moving may severely damage the
transmission.

[Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If
the vehicle moves in the opposite
direction of the selected gear, the
engine may turn off and a serious
accident may occur due to the
degraded brake performance.

[Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

06
6-29

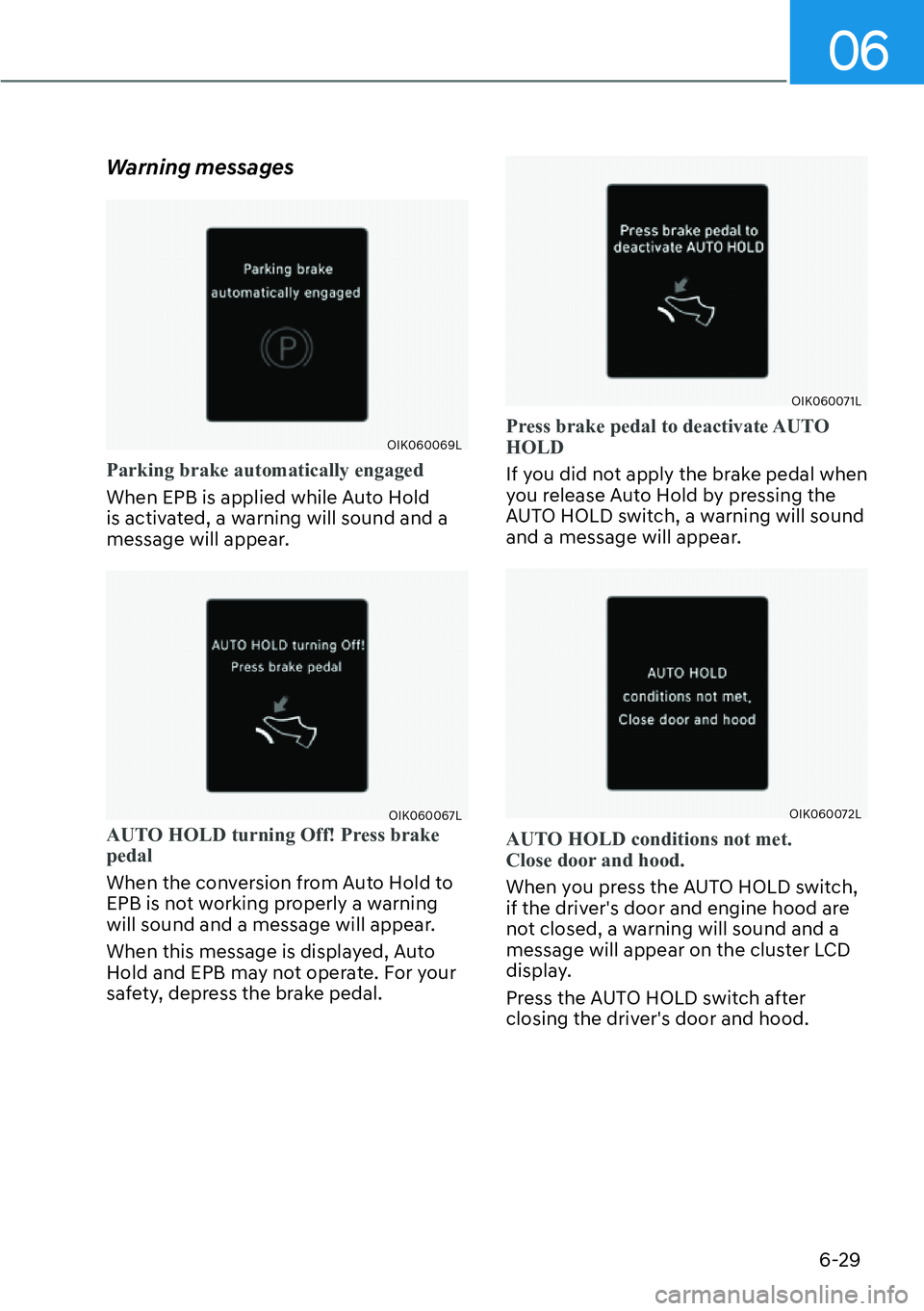

Warning messages
OIK060069L
Parking brake automatically engaged
When EPB is applied while Auto Hold
is activated, a warning will sound and a
message will appear.
OIK060067LAUTO HOLD turning Off! Press brake
pedal
When the conversion from Auto Hold to
EPB is not working properly a warning
will sound and a message will appear.
When this message is displayed, Auto
Hold and EPB may not operate. For your
safety, depress the brake pedal.
OIK060071L
Press brake pedal to deactivate AUTO
HOLD
If you did not apply the brake pedal when
you release Auto Hold by pressing the
AUTO HOLD switch, a warning will sound
and a message will appear.
OIK060072L
AUTO HOLD conditions not met.
Close door and hood.
When you press the AUTO HOLD switch,
if the driver's door and engine hood are
not closed, a warning will sound and a
message will appear on the cluster LCD
display.
Press the AUTO HOLD switch after
closing the driver's door and hood.

06
6-33
Indicator lights

v
ESC indicator light (blinks)

v
ESC OFF indicator light (comes on)
When the Engine Start/Stop button is
pressed to the ON position, the ESC
indicator light illuminates, then goes off
if the ESC system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates, have the vehicle checked by
an authorized retailer of Genesis Branded
products as soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).
Information
Turning ESC off does not affect ABS or
standard brake system operation.

Driving Your Vehicle
6-40
Limited Slip Differential refers to a
feature equipped with a mechanism that
controls the differential functions of the
wheels in the rear differential.
The Limited Slip Differential helps
improve handling performance when
circling at high speed.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Limited Slip Differential.
Information
Be sure to inject oil for exclusive use of
LSD when replacing Rear Differential
(for LSD) Oil. Refer to “Recommended
lubricants and capacities” in chapter 2.
LIMITED SLIP DIFFERENTIAL

í,)(48,33('
î
Electronic Control Suspension controls
the vehicle suspension automatically
using vehicle sensors to maximize
driving comfort by taking into account
the driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
System Malfunction
OIK060073L
Check Electronic Suspension
When Electronic Control Suspension
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
inspected by an authorized retailer of
Genesis Branded products.
ELECTRONIC CONTROL
6863(16,21
í,)(48,33('
î

Driving Your Vehicle
6-42
OIK060029L
6. During vehicle launching, continue to
depress the accelerator pedal to keep
the Launch Control system active until
desired duration.
The message ‘Launch Control Active’
will appear on the cluster LCD display.
To deactivate (end) Launch Control,
release the accelerator pedal.
Information
Launch Control is available again after
cooling down by driving the vehicle for at
least 3 minutes.
CAUTION

[Launch Control system is intended
for use at a closed race track and not
intended for use on public roads. It
will not compensate for driver's who
are inexperienced or lack familiarity
with the race track.

[Do not use Launch Control during
break-in period of the vehicle.
NOTICE
Constant use of Launch Control can
put enormous stress on the vehicle
resulting in premature wear of related
components.
Limited Use of Launch Control
OIK057181N
Transmission temperature too high.
Launch control not available
A warning message will pop up on the
cluster LCD display if the transmission
fluid temperature is above a certain
level while using Launch Control. Also,
Launch Control will be automatically
deactivated.
If this occurs, the driver should cool
down the transmission fluid temperature
by driving the vehicle at a constant
speed over 37 mph (60 km/h).

07
7-9

[Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[During Forward Collision-Avoidance
Assist operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[If any other system’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
WARNING

[Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate normally.

[During emergency braking, braking
control by Forward Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.
CAUTION

[Forward Collision-Avoidance
Assist operating speed range may
reduce due to the conditions of
the vehicle or pedestrian in front
or surroundings. Depending on the
speed, Forward Collision-Avoidance
Assist may only warn the driver, or it
may not operate.

[Forward Collision-Avoidance Assist
will operate under certain conditions
by judging the risk level based on
the condition of the oncoming
vehicle, driving direction, speed and
surroundings.
Information
In a situation where collision is imminent,
braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
