Convenient Features
5-74
NOTICE

[Even with the AUTO headlamp
feature in operation, it is
recommended to manually turn ON
the headlamps when driving at night
or in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.

[Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.

[Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
OHI048530
Parking lamp position ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
OHI048529
Headlamp position ()
The headlamp, parking lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
7KH(QJLQH6WDUW6WRSEXWWRQPXVWEHLQ
the ON position to turn on the headlamp.

05
5-85
WIPERS AND WASHERS
„Type A
OIG046468
„Type B
OHI048575L
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· AUTO – Automatic control wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Auto control wipe time adjust-ment
C : Wash with brief wipes
Front Windshield Wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST : For a single wiping cycle,
push the lever upward and
release. The wipers will operate
continuously if the lever is held
in this position.
OFF : Wiper is not in operation.
INT : Wiper operates intermittently
at the same wiping intervals. To
vary the speed setting, move
the speed control lever. The top
most setting will run the wipers
most frequently (for more rain).
The bottom setting will run the
wipers the least frequently (for
less rain).
AUTO : The rain sensor located on the
upper end of the windshield
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.

Convenient Features
5-86
AUTO (Automatic) control
OIK050046
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled, depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Engine Start/Stop button is in
the ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to the OFF position
when the wiper is not in use.
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.

5-90
Convenient Features

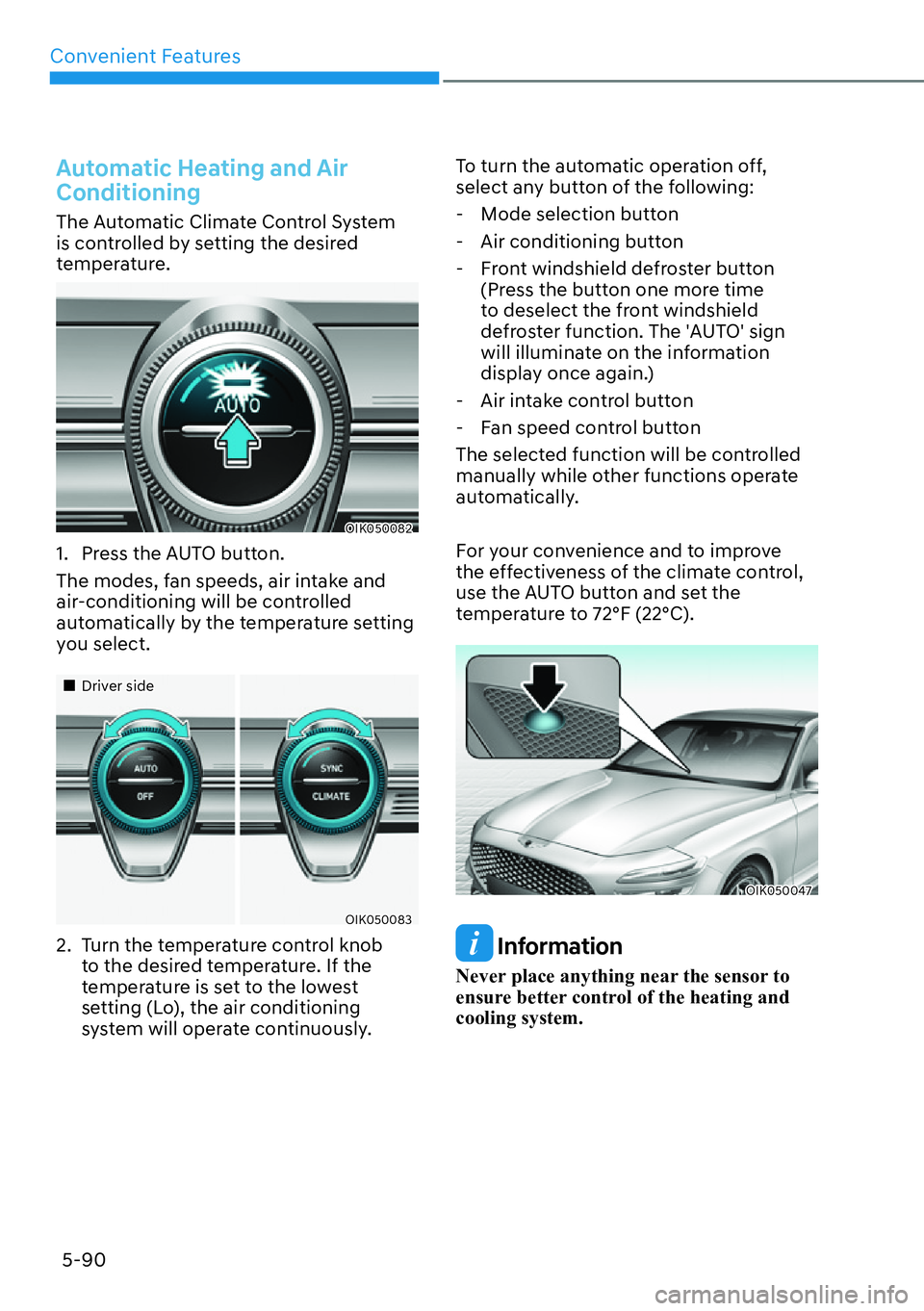

Automatic Heating and Air
Conditioning
The Automatic Climate Control System
is controlled by setting the desired
temperature.
OIK050082
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
„Driver side
OIK050083
2. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)
- Air intake control button
- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve
the effectiveness of the climate control,
use the AUTO button and set the
temperature to 72°F (22°C).
OIK050047
Information
Never place anything near the sensor to
ensure better control of the heating and
cooling system.

Driving Your Vehicle
6-40
Limited Slip Differential refers to a
feature equipped with a mechanism that
controls the differential functions of the
wheels in the rear differential.
The Limited Slip Differential helps
improve handling performance when
circling at high speed.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Limited Slip Differential.
Information
Be sure to inject oil for exclusive use of
LSD when replacing Rear Differential
(for LSD) Oil. Refer to “Recommended
lubricants and capacities” in chapter 2.
LIMITED SLIP DIFFERENTIAL

í,)(48,33('
î
Electronic Control Suspension controls
the vehicle suspension automatically
using vehicle sensors to maximize
driving comfort by taking into account
the driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
System Malfunction
OIK060073L
Check Electronic Suspension
When Electronic Control Suspension
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
inspected by an authorized retailer of
Genesis Branded products.
ELECTRONIC CONTROL
6863(16,21
í,)(48,33('
î

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-2
Lane Keeping Assist (LKA) ....................................................................................... 7-17
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-23
Safe Exit Warning (SEW) ......................................................................................... 7-37
Driver Attention Warning (DAW) ............................................................................. 7-43
Blind-Spot View Monitor (BVM) ............................................................................. 7-50
Driving ConvenienceSmart Cruise Control (SCC) .................................................................................... 7-52
Navigation-based Smart Cruise Control (NSCC) ...................................................7-69
Lane Following Assist (LFA) ..................................................................................... 7-76
Highway Driving Assist (HDA) ................................................................................7-80
Parking SafetyRear View Monitor (RVM) ........................................................................................ 7-87
Surround View Monitor (SVM) ...............................................................................7-90
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ......................................... 7-95
Reverse Parking Distance Warning (PDW) ........................................................... 7-106
Forward/Reverse Parking Distance Warning (PDW) .......................................... 7-109
Declaration of Conformity .............................................................................. 7-114

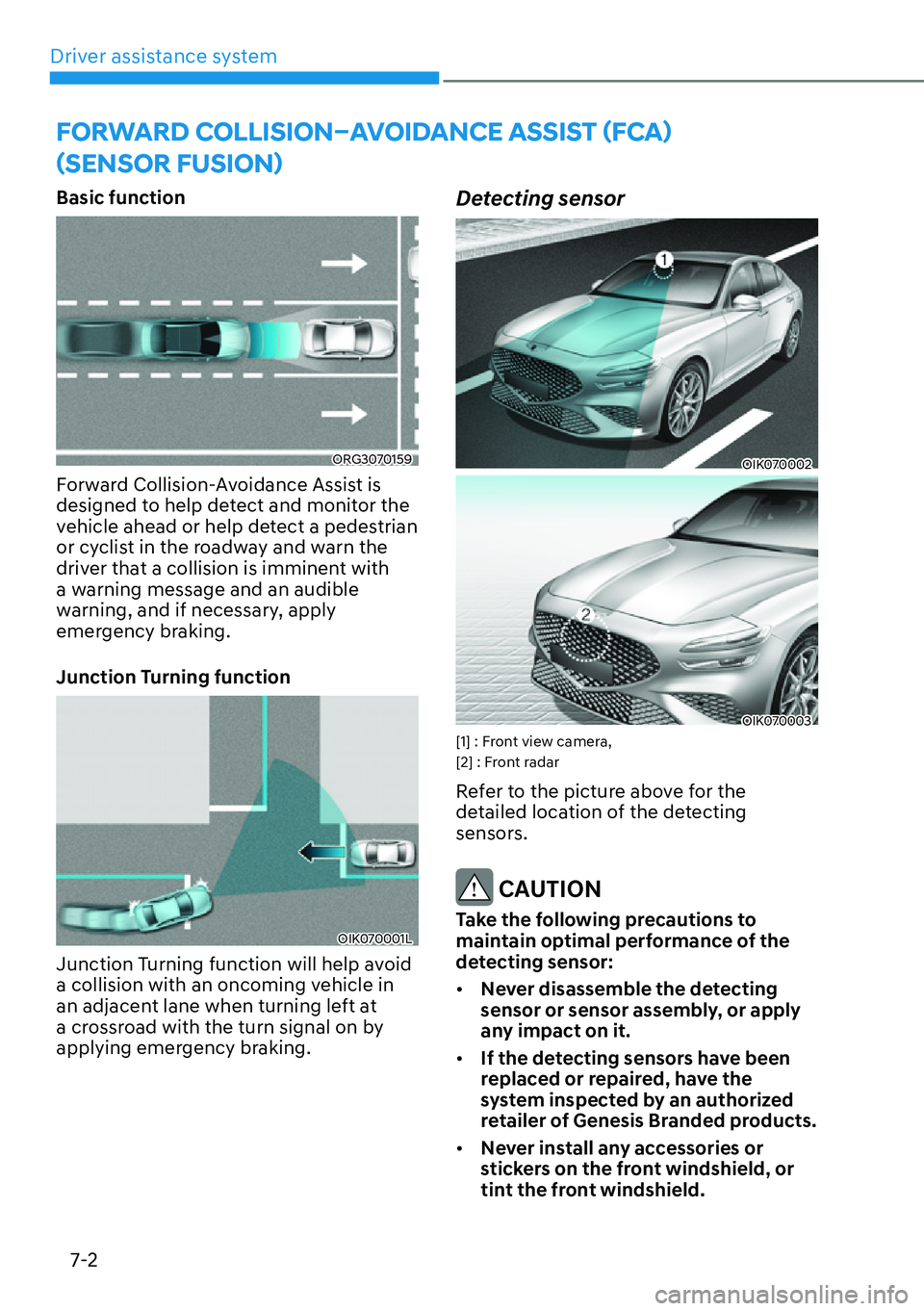

7. Driver assistance system

Driver assistance system
7-2
Basic function
ORG3070159
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message and an audible
warning, and if necessary, apply
emergency braking.
Junction Turning function
OIK070001L
Junction Turning function will help avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Detecting sensor
OIK070002
OIK070003[1] : Front view camera,
[2] : Front radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[If the detecting sensors have been
replaced or repaired, have the
system inspected by an authorized
retailer of Genesis Branded products.

[Never install any accessories or
stickers on the front windshield, or
tint the front windshield.
)25:$5'&2//,6,21

07
7-3

[Pay extreme caution to keep the
front view camera dry.

[Never place any reflective objects
(i.e. white paper, mirror) over the
dashboard.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.

[If unnecessary force has been
applied to the radar or around the
radar, Forward Collision-Avoidance
Assist may not properly operate even
though a warning message does
not appear on the cluster. Have the
system inspected by an authorized
retailer of Genesis Branded products.

[Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.Forward Collision-Avoidance
Assist Settings
Setting features
OIK070123L
Forward Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH
