2022 HONDA ACCORD Owners Manual

623
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2L SIDE DOOR UNLOCK10 A
3R SIDE DOOR UNLOCK10 A
4ACC10 A
5ACC KEY LOCK7.5 A
6SRS10 A
7−−
8IG HOLD2*(10 A)
9SMART10 A
10−−
11L SIDE DOOR LOCK10 A
12DR DOOR LOCK(10 A)
13R SIDE DOOR LOCK10 A
14OPTION10 A
15DRL10 A
16CTR ACC SOCKET(20 A)
17MOON ROOF*(20 A)
18−−
19−−
20SBW ECU*(10 A)
21DR DOOR UNLOCK(10 A)
22−−
23−−
24PREMIUM AMP*(20 A)
25−−
26−−
27−−
28−−
29−−
30−−
31−−
32IG HOLD3*(15 A)
33DR P/SEAT SLI*(20 A)
34AS P/SEAT SLI*(20 A)
35OPTION210 A
36METER10 A
37OPTION110 A
38DR P/SEAT REC*(20 A)
39AS P/SEAT REC*(20 A)
40DR P/LUMBAR*(10 A)
41−−
42AVS*(20 A)
43OPTION10 A
44ADS*(20 A)
45−−
46SRS10 A
47−−
48HUD*(10 A)
49DOOR LOCK20 A
50FR ACC SOCKET20 A
51RR R P/W20 A
52RR L P/W20 A
Circuit ProtectedAmps
53AS P/W20 A
54DR P/W20 A
55−−
Circuit ProtectedAmps
* Not available on all models

624
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Sub Fuse Box
Models with Auto Idle Stop
Fuse Label
Sub Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1VST ACC 17.5 A
2BACKUP2 MAIN15 A
3EOP7.5 A
4BACKUP37.5 A
5EBB7.5 A
6METER VST7.5 A
7VSA/ABS7.5 A

625
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 620
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

626
Handling the Unexpected

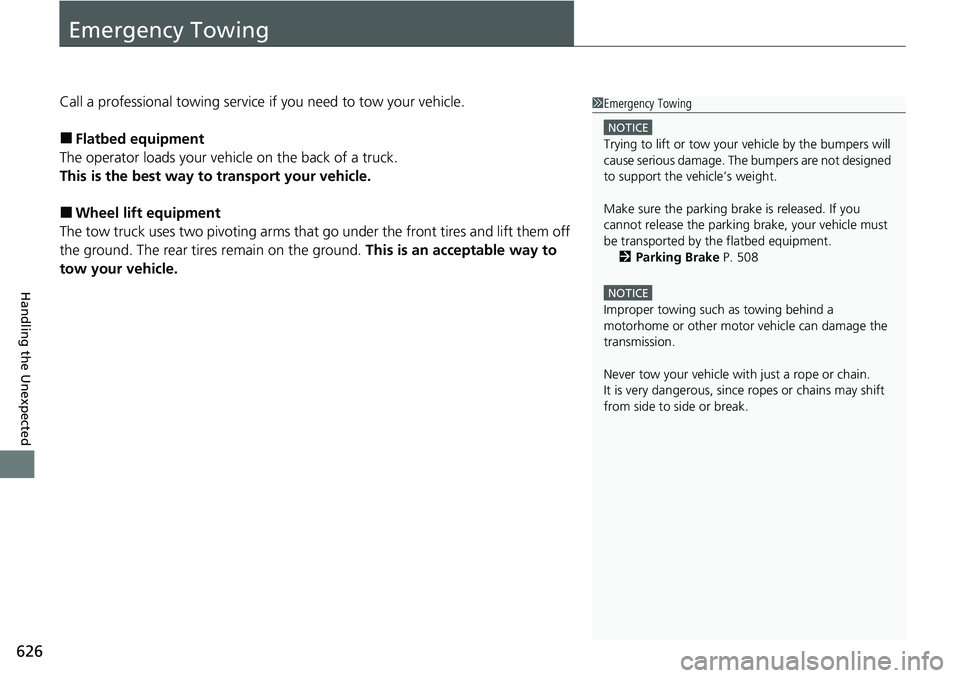

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 508
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

627
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release handle toward you.
u The release handle unlocks the fuel fill
door when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 532
■What to Do If Unable to Unlock the Fuel Fill Door1If You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Handle

628
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the driver side rear outer head
restraint.
2 Removing and Reinstalling the Head
Restraints P. 221
2.Remove the built-in key from the keyless
remote.
3. Wrap a cloth around the tip of the built-in
key. Put it into the cover (as shown in the
image) and remove the cover.
4. Insert the key into the cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Models with adjustable headrest
All models
Key
Models with the cylinder in the cover

629
uuIf You Cannot Open the Trunk u
Handling the Unexpected
4.Pull the trunk release handle up in the
direction of the arrow in the image.
u The trunk unlocks and opens.
Trunk Release Handle
Models without the cylinder in the cover

630
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the engine.
2. Press on the edge of the fuel fill door until
you hear a click when the driver’s door is
unlocked.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 596
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
