2022 FORD MAVERICK low beam

EXTERIOR LIGHTING
CONTROL
Lamps off.
A
Parking lamps on.
B
Autolamps on.
C
Headlamps on.
D
Rotate the control to make a selection.
Note: The lighting control defaults to
autolamps every time you switch your
vehicle on.
HEADLAMPS
USING THE HIGH BEAM
HEADLAMPS Push the lever away from you to
switch the high beams on. Push the lever forward again or pull the
lever toward you to switch the high beams
off.
Slightly pull the lever toward you and
release it to flash the headlamps.
SWITCHING HEADLAMP EXIT
DELAY ON AND OFF
To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.
To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.
Note:
The headlamps turn off after three
minutes with any door open or 30 seconds
after the last door closes.
HEADLAMP INDICATORS
Lamps On Illuminates when you switch the
low beam headlamps or the
parking lamps on.
Headlamp High Beam Illuminates when you switch the
high beam headlamps on.
93
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Exterior LightingE327629 E328253

WARNING: Do not use the system
in poor visibility, for example fog, heavy
rain, spray or snow. WARNING:
You may need to
override the system when approaching
other road users. WARNING:
You may need to
override the system during inclement
weather.
AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS
The system turns the high beams on if all
of the following occur:
• You switch the system on.
• You set the lighting control to the
autolamps position.
• The ambient light level is low enough
that you require high beams.
• There is no traffic in front of your
vehicle.
• The vehicle speed is greater than
approximately
32 mph (52 km/h).
AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS
The system turns the high beams off if any
of the following occur:
• You switch the system off.
• You set the lighting control to any
position except autolamps.
• The ambient light level is high enough
that you do not require high beams.
• The system detects an approaching
vehicle's headlamps or rear lamps.
• The system detects severe rain, snow
or fog. •
The system detects street lighting.
• The camera has reduced visibility.
• The vehicle speed falls below
approximately
27 mph (44 km/h).
SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select
Vehicle.
3. Select
Lighting.
4. Switch
Auto High Beam on or off.
AUTOMATIC HIGH BEAM
CONTROL INDICATORS Illuminates to confirm when the
system is ready to assist.
OVERRIDING AUTOMATIC HIGH
BEAM CONTROL Push the lever away from you to switch
the high beams on.
Push the lever away from you again to
switch the high beams off.
Push the lever away from you for a third
time to switch automatic high beam
control back on.
97
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Exterior Lighting E248603

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING
AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES
Description
Message
The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.
Front Camera Low Visib-
ility Clean Screen
The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.
Front Camera Tempor-
arily Not Available
The camera has malfunctioned. Have your vehicle checked
as soon as possible.
Front Camera Malfunc-
tion Service Required
98
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Exterior Lighting

Hood Ajar
It illuminates when the ignition
is on and the hood is not
completely closed.
Low Beam Warning It illuminates when the low
beam headlamp requires service.
Have the system checked as
soon as possible.
Low Fuel Level It illuminates when the fuel level
is low.
Low Tire Pressure Warning It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon
as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.
Low Washer Fluid It illuminates when the washer
fluid is low.
Malfunction Indicator Lamp It illuminates when the ignition
is on and the engine is off, this is
normal operation. If it illuminates
when the engine is on this indicates that
the emission control system requires
service. If it flashes, have your vehicle
checked immediately. See Starting and
Stopping the Engine – Warning Lamps
(page
162). Oil Pressure It illuminates when the engine
oil pressure is low.
Powertrain Fault Illuminates when the powertrain
requires service. Have the
system checked as soon as
possible.
Tailgate Ajar It illuminates when the ignition
is on and the tailgate is not
completely closed.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features
that are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control See
Adaptive Cruise Control
(page 215).
Airbag See
Airbags (page 50).
Automatic High Beam Control See
Automatic High Beam
Control Indicators (page 97).
114
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Instrument ClusterE296055 E181350 E132353 E311338 E144524 E67017

For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the
battery terminals. If any corrosion is
present on the battery or terminals, remove
the cables from the terminals and clean
with a wire brush. You can neutralize the
acid with a solution of baking soda and
water.
We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.
Note:
If you only disconnect the negative
battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.
If you replace the battery make sure it
matches the electrical requirements of
your vehicle.
If you disconnect or replace the battery
and your vehicle has an automatic
transmission, it must relearn its adaptive
strategy. Because of this, the transmission
may shift firmly when first driven. This is
normal operation while the transmission
fully updates its operation to optimum
shift feel.
Battery Sensor Reset
When you install a new battery, reset the
battery sensor by doing the following:
1. Switch the ignition on, and leave the engine off.
Note: Complete Steps 2 and 3 within 10
seconds.
2. Flash the high beam headlamps five times, ending with the high beams off.
3. Press and release the brake pedal three
times. The battery warning lamp flashes three
times to confirm that the reset is
successful.
Battery Management System (If
Equipped)
The system monitors battery conditions
and takes actions to extend battery life. If
excessive battery drain is detected, the
system temporarily disables some
electrical systems to protect the battery.
Systems included are:
• Heated rear window.
• Heated seats.
• Climate control.
• Heated steering wheel.
• Audio unit.
• Navigation system.
A message may appear in the information
display to alert you that battery protection
actions are active. This message is only for
notification that an action is taking place,
and not intended to indicate an electrical
problem or that the battery requires
replacement.
After battery replacement, or in some
cases after charging the battery with an
external charger, the battery management
system requires eight hours of vehicle sleep
time to relearn the battery state of charge.
During this time, your vehicle must remain
fully locked with the ignition switched off.
Note: Prior to relearning the battery state
of charge, the battery management system
may temporarily disable some electrical
systems.
311
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Maintenance

25 ft (7.6 m)
C
Horizontal reference line
D
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 ft (7.6 m) away.
2. Measure the height of the headlamp bulb center from the ground and mark
an
8 ft (2.4 m) horizontal reference line
on the vertical wall or screen at this
height.
Note: To see a clearer light pattern for
adjusting, block the light from one
headlamp when adjusting the other.
3. Switch on the low beam headlamps to
illuminate the wall or screen and open
the hood. 4. On the wall or screen you will observe
a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line,
adjust the headlamp. 5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to aim the headlamp. The horizontal
edge of the brighter light should touch
the horizontal reference line.
6. Close the hood and switch off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is non-adjustable.

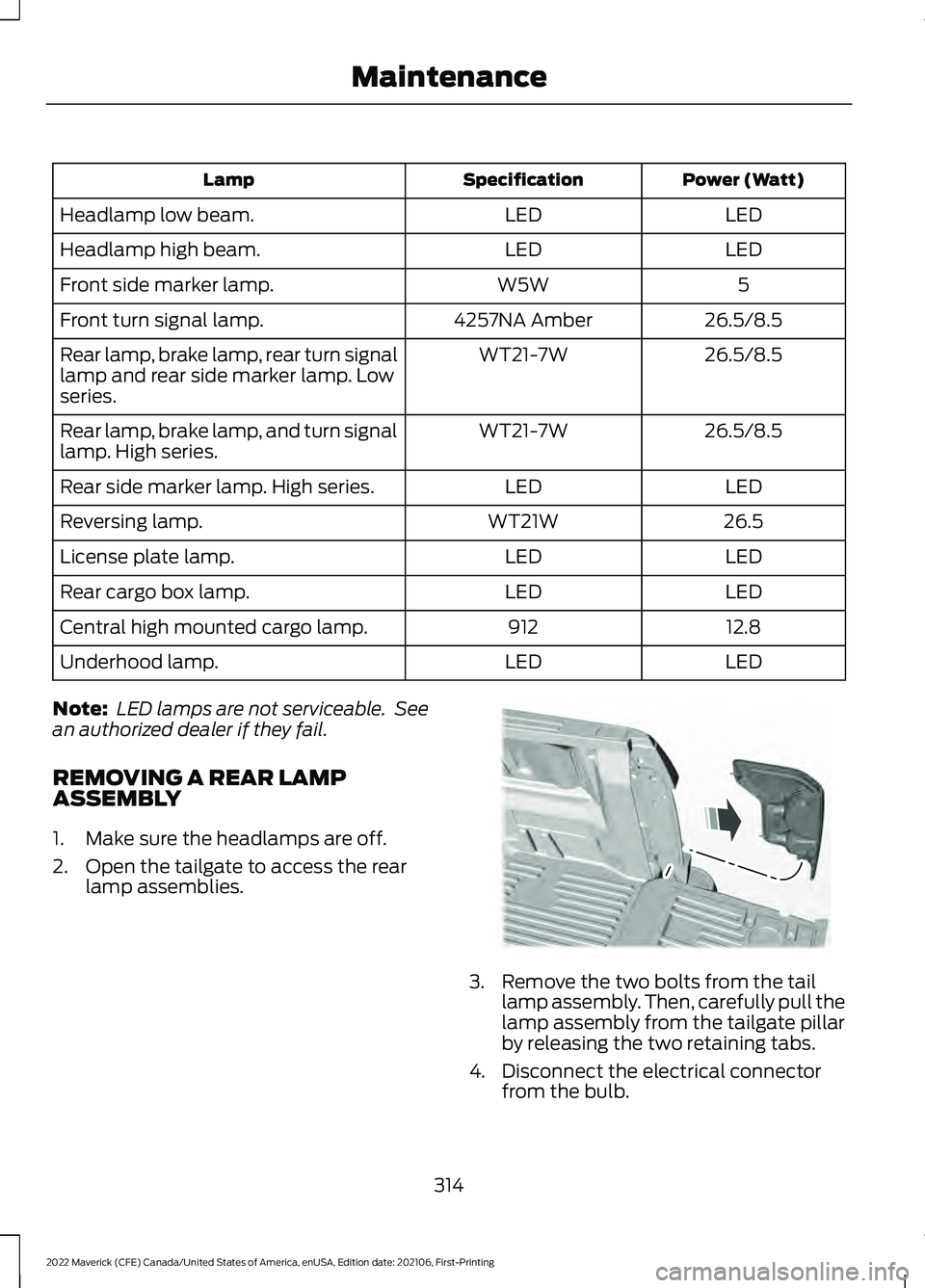

EXTERIOR BULBS
EXTERIOR BULB SPECIFICATION
CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.
313
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE142465 E355886

Power (Watt)
Specification
Lamp
LED
LED
Headlamp low beam.
LED
LED
Headlamp high beam.
5
W5W
Front side marker lamp.
26.5/8.5
4257NA Amber
Front turn signal lamp.
26.5/8.5
WT21-7W
Rear lamp, brake lamp, rear turn signal
lamp and rear side marker lamp. Low
series.
26.5/8.5
WT21-7W
Rear lamp, brake lamp, and turn signal
lamp. High series.
LED
LED
Rear side marker lamp. High series.
26.5
WT21W
Reversing lamp.
LED
LED
License plate lamp.
LED
LED
Rear cargo box lamp.
12.8
912
Central high mounted cargo lamp.
LED
LED
Underhood lamp.
Note: LED lamps are not serviceable. See
an authorized dealer if they fail.
REMOVING A REAR LAMP
ASSEMBLY
1. Make sure the headlamps are off.
2. Open the tailgate to access the rear lamp assemblies. 3. Remove the two bolts from the tail
lamp assembly. Then, carefully pull the
lamp assembly from the tailgate pillar
by releasing the two retaining tabs.
4. Disconnect the electrical connector from the bulb.
314
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE187288

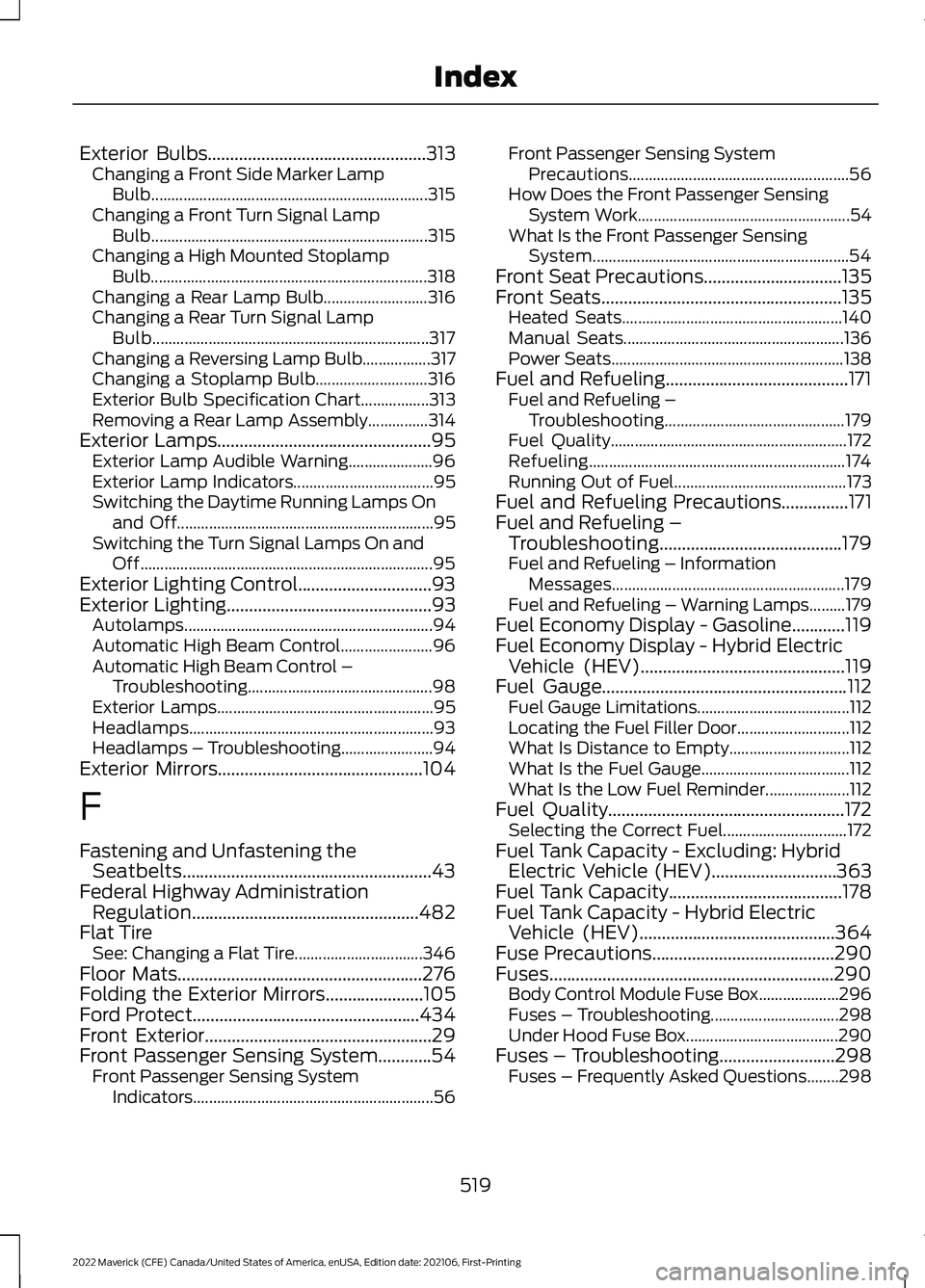

Exterior Bulbs.................................................313
Changing a Front Side Marker Lamp
Bulb..................................................................... 315
Changing a Front Turn Signal Lamp Bulb..................................................................... 315
Changing a High Mounted Stoplamp Bulb..................................................................... 318
Changing a Rear Lamp Bulb.......................... 316
Changing a Rear Turn Signal Lamp Bulb..................................................................... 317
Changing a Reversing Lamp Bulb.................317
Changing a Stoplamp Bulb............................ 316
Exterior Bulb Specification Chart.................313
Removing a Rear Lamp Assembly...............314
Exterior Lamps
................................................95
Exterior Lamp Audible Warning.....................96
Exterior Lamp Indicators................................... 95
Switching the Daytime Running Lamps On and Off................................................................ 95
Switching the Turn Signal Lamps On and Off........................................................................\
. 95
Exterior Lighting Control..............................93
Exterior Lighting
..............................................93
Autolamps.............................................................. 94
Automatic High Beam Control....................... 96
Automatic High Beam Control – Troubleshooting.............................................. 98
Exterior Lamps...................................................... 95
Headlamps............................................................. 93
Headlamps – Troubleshooting....................... 94
Exterior Mirrors..............................................104
F
Fastening and Unfastening the Seatbelts........................................................43
Federal Highway Administration Regulation...................................................482
Flat Tire See: Changing a Flat Tire................................ 346
Floor Mats.......................................................276
Folding the Exterior Mirrors
......................105
Ford Protect...................................................434
Front Exterior...................................................29
Front Passenger Sensing System............54 Front Passenger Sensing System
Indicators............................................................ 56Front Passenger Sensing System
Precautions....................................................... 56
How Does the Front Passenger Sensing System Work..................................................... 54
What Is the Front Passenger Sensing System................................................................ 54
Front Seat Precautions
...............................135
Front Seats......................................................135 Heated Seats....................................................... 140
Manual Seats....................................................... 136
Power Seats.......................................................... 138
Fuel and Refueling.........................................171 Fuel and Refueling –
Troubleshooting............................................. 179
Fuel Quality........................................................... 172
Refueling................................................................ 174
Running Out of Fuel........................................... 173
Fuel and Refueling Precautions...............171
Fuel and Refueling – Troubleshooting.........................................179
Fuel and Refueling – Information Messages.......................................................... 179
Fuel and Refueling – Warning Lamps.........179
Fuel Economy Display - Gasoline............119
Fuel Economy Display - Hybrid Electric Vehicle (HEV)
..............................................119
Fuel Gauge.......................................................112
Fuel Gauge Limitations...................................... 112
Locating the Fuel Filler Door............................ 112
What Is Distance to Empty.............................. 112
What Is the Fuel Gauge..................................... 112
What Is the Low Fuel Reminder..................... 112
Fuel Quality.....................................................172 Selecting the Correct Fuel............................... 172
Fuel Tank Capacity - Excluding: Hybrid Electric Vehicle (HEV)............................363
Fuel Tank Capacity
.......................................178
Fuel Tank Capacity - Hybrid Electric Vehicle (HEV)............................................364
Fuse Precautions.........................................290
Fuses................................................................290 Body Control Module Fuse Box.................... 296
Fuses – Troubleshooting................................ 298
Under Hood Fuse Box...................................... 290
Fuses – Troubleshooting
..........................298
Fuses – Frequently Asked Questions........298
519
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Index
