2022 FORD F-650/750 Owners Manual

Action
Message
The diesel exhaust fluid is nearing empty.Your vehicle's top speed will become
limited in the displayed distance. You must
replenish the diesel exhaust fluid to resume normal operation of your vehicle. See
Selective Catalytic Reductant System (page 118).
DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH in distance imperial:###0 mi
DEF Level Empty Speed Limited to avg speed metric:#0 km/h in distance metric:###0 km
The remaining diesel exhaust fluid has
depleted. Upon restart, your vehicle speed is now limited. You must replenish thediesel exhaust fluid to resume normal
operation of your vehicle. See
Selective
Catalytic Reductant System (page 118).
DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH Upon Restart
DEF Level Empty Speed Limited to avg speed metric:#0 km/h Upon Restart
The diesel exhaust fluid is empty. You must
replenish the diesel exhaust fluid to resumenormal operation of your vehicle. See
Selective Catalytic Reductant System (page
118).
DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH
DEF Level Empty Speed Limited to avg speed metric:#0 km/h
The selective catalytic reduction system
detects low exhaust fluid. The engine will
eventually enter into an idle only mode. You must replenish diesel exhaust fluid to
resume normal operation of your vehicle. See
Selective Catalytic Reductant System (page 118).
DEF Level Empty Engine Idled Soon
The selective catalytic reduction requires
service and is causing your vehicle to enter an idle-only mode. If the exhaust fluid is empty, you must replenish the diesel
exhaust fluid to resume normal operation of your vehicle. See
Selective Catalytic
Reductant System (page 118).
DEF Level Empty Engine Idled See Manual
The selective catalytic reduction system
requires service. The system displays your vehicle's top speed limit and distance
before limitation. Have the system checked as soon as possible.
DEF Fault Speed Limited to avg speed
imperial:#0 MPH in distance imperial:###0 mi
DEF Fault Speed Limited to avg speed
metric:#0 km/h in distance metric:###0 km
78
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

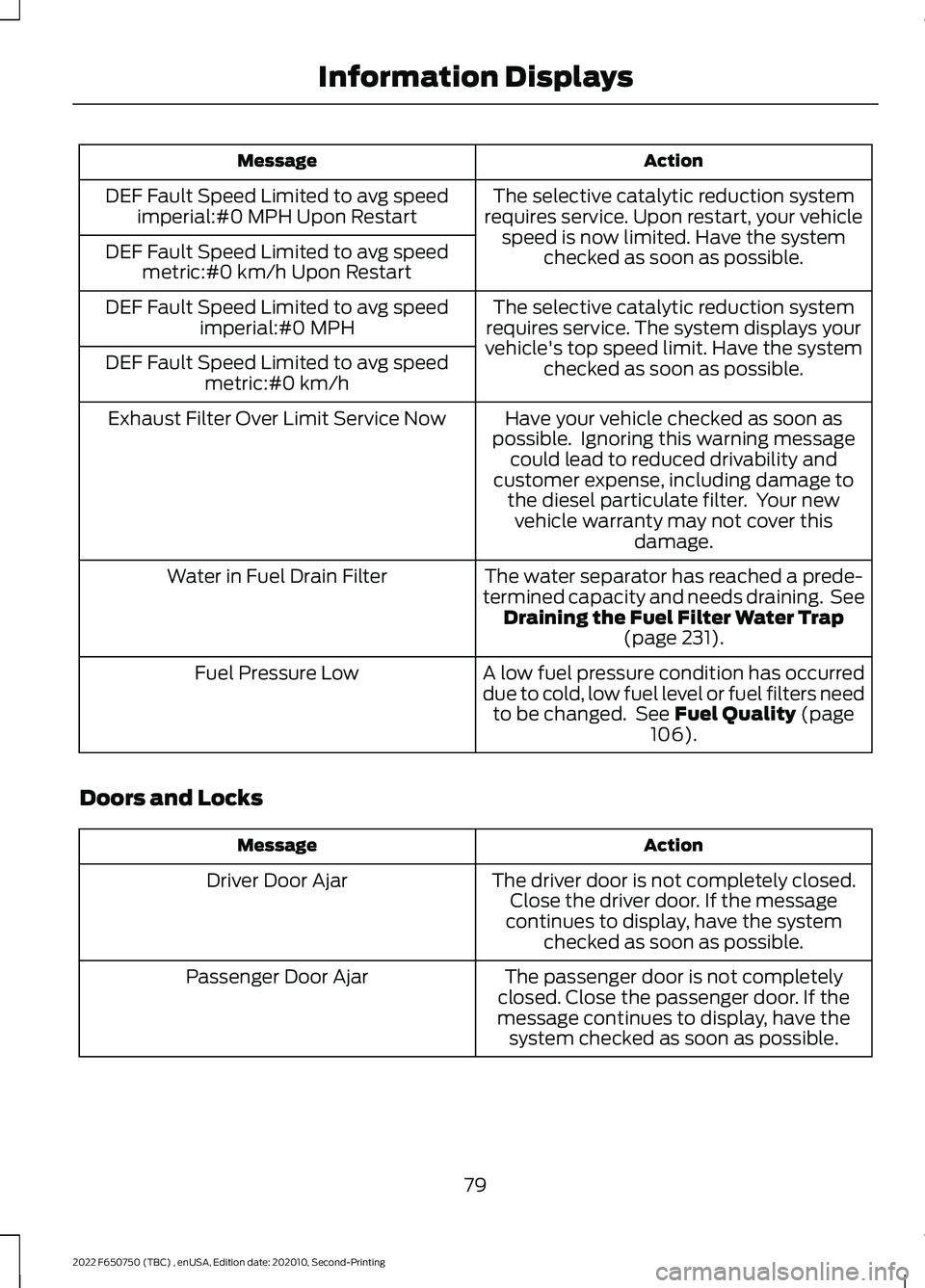

Action
Message
The selective catalytic reduction system
requires service. Upon restart, your vehicle speed is now limited. Have the system checked as soon as possible.
DEF Fault Speed Limited to avg speed
imperial:#0 MPH Upon Restart
DEF Fault Speed Limited to avg speed metric:#0 km/h Upon Restart
The selective catalytic reduction system
requires service. The system displays your
vehicle's top speed limit. Have the system checked as soon as possible.
DEF Fault Speed Limited to avg speed
imperial:#0 MPH
DEF Fault Speed Limited to avg speed metric:#0 km/h
Have your vehicle checked as soon as
possible. Ignoring this warning message could lead to reduced drivability and
customer expense, including damage to the diesel particulate filter. Your newvehicle warranty may not cover this damage.
Exhaust Filter Over Limit Service Now
The water separator has reached a prede-
termined capacity and needs draining. See Draining the Fuel Filter Water Trap (page 231).
Water in Fuel Drain Filter
A low fuel pressure condition has occurred
due to cold, low fuel level or fuel filters needto be changed. See
Fuel Quality (page
106).
Fuel Pressure Low
Doors and Locks Action
Message
The driver door is not completely closed.Close the driver door. If the message
continues to display, have the system checked as soon as possible.
Driver Door Ajar
The passenger door is not completely
closed. Close the passenger door. If the
message continues to display, have the system checked as soon as possible.
Passenger Door Ajar
79
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Driver Alert
Action
Message
Stop and rest as soon as it is safe to do so.
Driver Alert Warning Rest Now
Take a rest soon.
Driver Alert Warning Rest Suggested
Drivetrain Action
Message
The electronic locking differential requiresservice. Have the system checked as soon as possible.
Check Locking Differential
Engine Action
Message
The engine has reduced power to help
reduce high engine temperature. Have the system checked as soon as possible.
Power Reduced to Lower Engine Temp
Fuel Action
Message
An early reminder of a low fuel condition.Refuel your vehicle.
Fuel Level Low
A fuel fill inlet may not be properly closed.
Check Fuel Fill Inlet
80
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Lane Departure Warning System
Action
Message
The system has detected a condition thathas caused the system to be temporarilyunavailable. If the message continues to
display, have the system checked as soon as possible.
Front Camera Temporarily Not Available
The system has detected a condition that
requires you to clean the windshield in order for it to operate properly.
Front Camera Low Visibility Clean Screen
The system requires service, have thesystem checked as soon as possible.
Front Camera Malfunction Service Required
The system requests you to keep yourhands on the steering wheel.
Keep Hands on Steering Wheel
Maintenance Action
Message
Stop your vehicle as soon as safely possible
and turn off the engine. Check the oil level,
if the warning stays on or continues to comeon with your engine running, have yourvehicle checked as soon as possible.
Low Engine Oil Pressure
The engine oil life is low and needs to bechanged soon.
Change Engine Oil Soon
The engine oil life is low and needs to bechanged immediately.
Oil Change Required
The brake fluid level is low, have the systemchecked as soon as possible.
Brake Fluid Level Low
The brake system requires service. Stopyour vehicle in a safe place. Have thesystem checked as soon as possible.
Check Brake System
Your vehicle is still in transport or factory
mode. This may not allow some features to operate properly. Have your vehicle checked as soon as possible.
Factory Mode Contact Dealer
Transport Mode Contact Dealer
The powertrain requires service.
See Manual
81
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Power Steering
Action
Message
The power steering system requires service.Have the system checked as soon as possible.
Steering Fault Service Now
The power steering system is not working.
Stop your vehicle in a safe place. Have the system checked as soon as possible.
Steering Loss Stop Safely
The power steering system, passive entryor passive entry start system requires
service. Have the system checked as soon as possible.
Steering Assist Fault Service Required
The steering lock system requires service.Have the system checked as soon as possible.
Steering Lock Malfunction Service Now
Pre-Collision Assist Action
Message
The system requires service. Have thesystem checked as soon as possible.
Pre-Collision Assist Not Available
You have a blocked sensor due to
inclement weather, ice, mud or water in
front of the radar sensor. You can typically
clean the sensor to resolve. If the message continues to appear, have the system checked as soon as possible.
Pre-Collision Assist Not Available Sensor
Blocked
Traction Control Action
Message
The status of the traction control system
after you switched it on. See Using Trac-
tion Control (page 148).
Traction Control On
The status of the traction control system
after you switched it off. See
Using Trac-
tion Control (page 148).
Traction Control Off
82
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Transmission
Action
Message
You switched the engine off and the shift
selector is in any position other than park (P).
Shift to Park
Displays when the brake pedal needs to bepressed.
Press Brake Pedal
The transmission is overheating and needsto cool. Stop in a safe place as soon as possible.
Transmission Over Temperature Stop
Safely
Have the system checked as soon aspossible.
Transmission Service Required
The transmission is overheating and needsto cool. Stop in a safe place as soon as possible.
Transmission Too Hot Press Brake
The transmission has limited functionality.Have the system checked as soon as possible.
Transmission Limited Function See Manual
A reminder to shift into park (P). In addi-tion, this message is typical after recon-
necting or recharging the battery until you cycle the ignition to the on mode. See
Changing the 12V Battery (page 245).
Transmission Not in Park
Have the system checked as soon aspossible.
Transmission Fault Service Now
Displays when the transmission hasadjusted the shift strategy.
Transmission Adjusted
Displays when the transmission is adjustingthe shift strategy.
Transmission AdaptMode
Transmission is too cold. Wait for it to warmup before you drive.
Transmission Warming Up Please Wait
83
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Action
Message
Displays when the transmission shift leveris locked and unable to select gears.
Transmission IndicatMode Lockup On
Displays when the transmission shift leveris unlocked and free to select gears.
Transmission IndicatMode Lockup Off
The transmission is overheating and needsto cool. Stop in a safe place as soon as possible.
Transmission Overheating Stop Safely
84
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

MANUAL CLIMATE CONTROL
Note:
Depending on your vehicle option
package, the controls may look different
from what you see here.
Directing the Air Press and release the button to
direct air between the
instrument panel air vents,
footwell air vents and windshield air vents
and de-mister.
Setting the Blower Motor Speed Turn the control to adjust the volume of
air circulated in the vehicle. Setting the Temperature
Turn the control to set the temperature.
Switching the Air Conditioning On
and Off
Press and release the button to
switch the air conditioning on or
off.
Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Note: In certain conditions (for example,
maximum defrost), the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.
Switching the Climate Control On
and Off Press and release the button.
Switching Defrost On and Off Press and release the button to
distribute air through the
windshield air vents and
de-mister.
85
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Climate ControlE305247 E265283 E265389 E265862
