2022 FORD F-650/750 Owners Manual

NC4J 19A321 AB
2022 F-650/F-750 Owner’s Manual
ford.caowner.ford.com
2022 F-650/F-750 Owner’s Manual
July 2021
Second Printing Litho in U.S.A.

The information contained in this publication was correct at the time of going to print. In the interest of
continuous development, we reserve the right to change specifications, design or equipment at any time
without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a
retrieval system or translated into any language in any form by any means without our written permission.
Errors and omissions excepted.
© Ford Motor Company 2021
All rights reserved.
Part Number: 202010 20210610152936

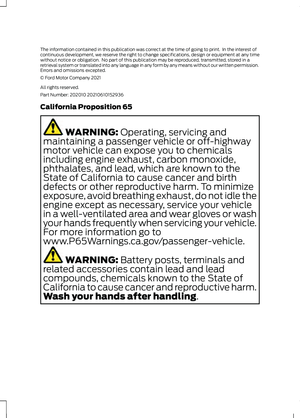

California Proposition 65
WARNING: Operating, servicing and
maintaining a passenger vehicle or off-highway
motor vehicle can expose you to chemicals
including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the
State of California to cause cancer and birth
defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the
engine except as necessary, service your vehicle
in a well-ventilated area and wear gloves or wash
your hands frequently when servicing your vehicle.
For more information go to
www.P65Warnings.ca.gov/passenger-vehicle. WARNING:
Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and reproductive harm.
Wash your hands after handling
.

Introduction

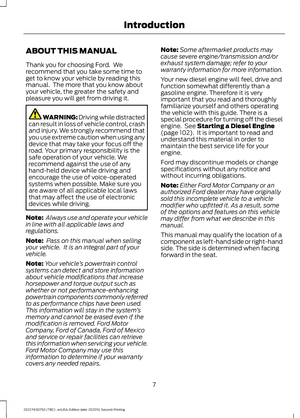

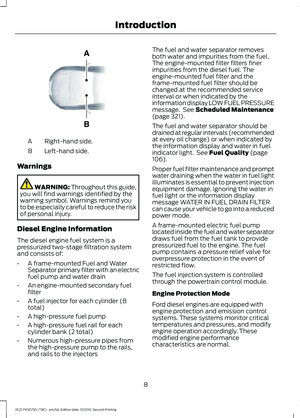

About This Manual
..........................................7

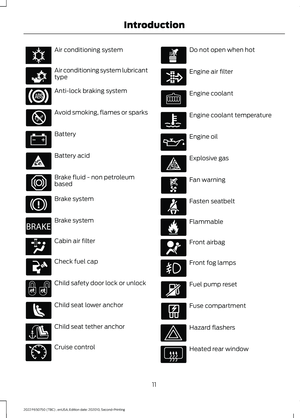

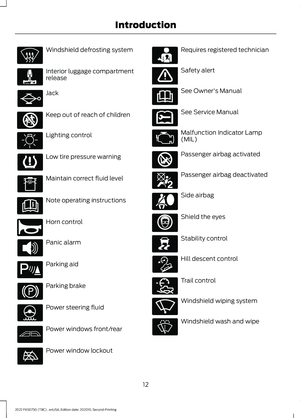

Symbols Glossary ..........................................
10

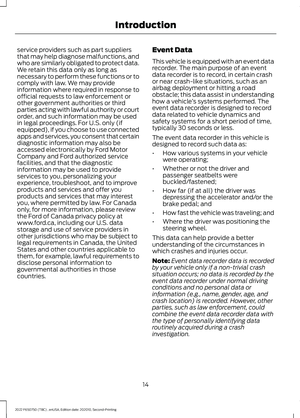

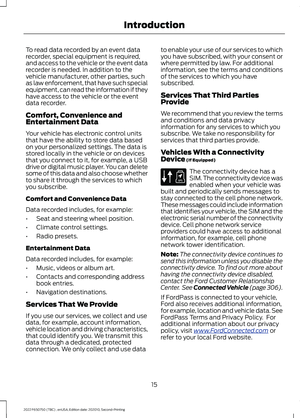

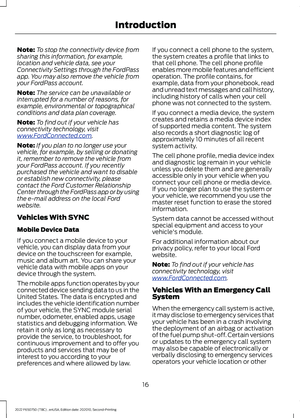

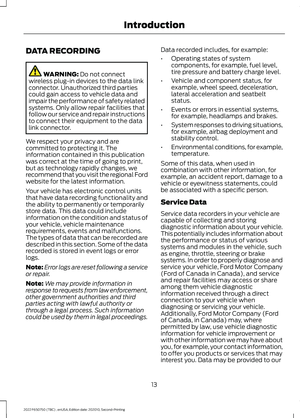

Data Recording ................................................
13

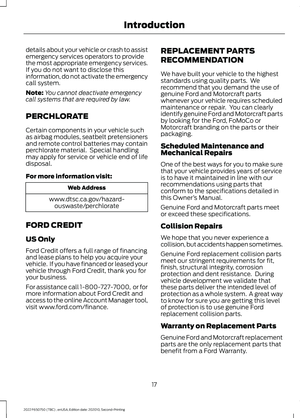

Perchlorate ........................................................
17
Ford Credit .........................................................
17
Replacement Parts Recommendation ........................................................................\
....
17

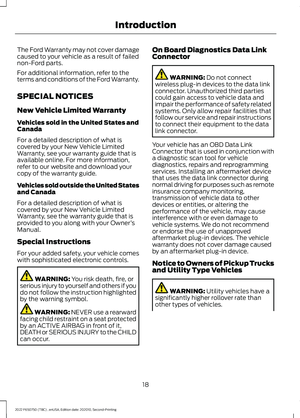

Special Notices ...............................................
18

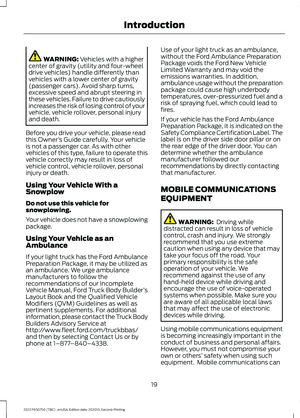

Mobile Communications Equipment ........................................................................\
...
19

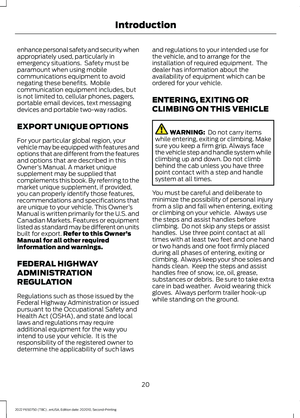

Export Unique Options ...............................
20
Federal Highway Administration Regulation ...................................................
20
Entering, Exiting or Climbing on This Vehicle ...........................................................
20
Environment

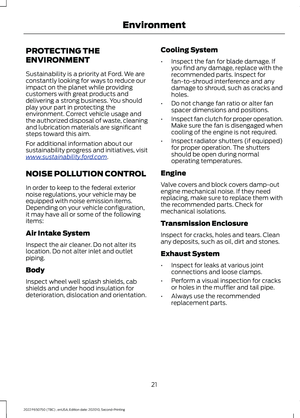

Protecting the Environment .......................
21

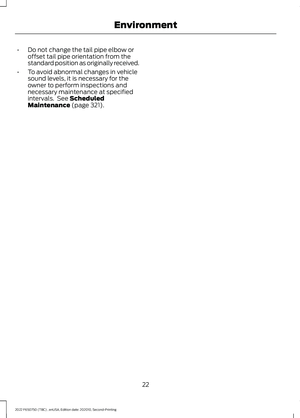

Noise Pollution Control ................................
21
At a Glance

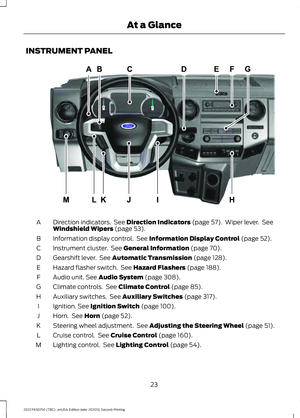

Instrument Panel ...........................................
23
Child Safety

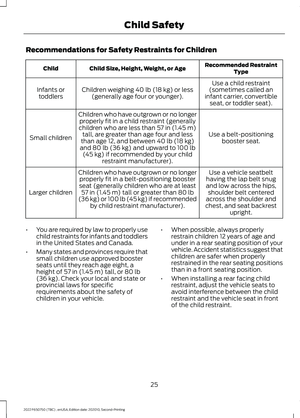

General Information .....................................

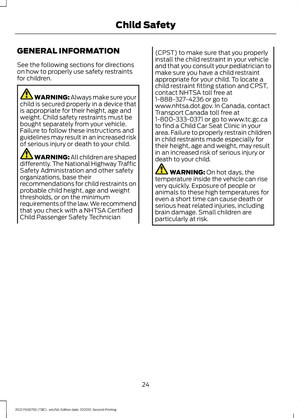

24

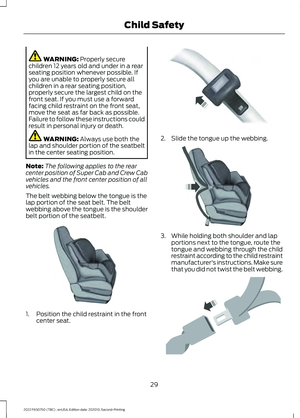

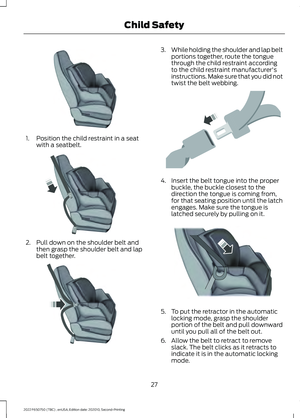

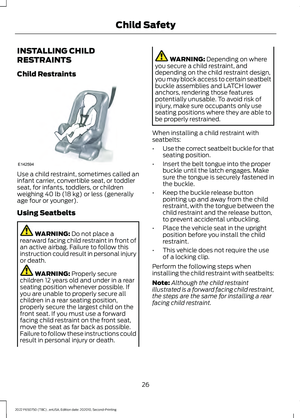

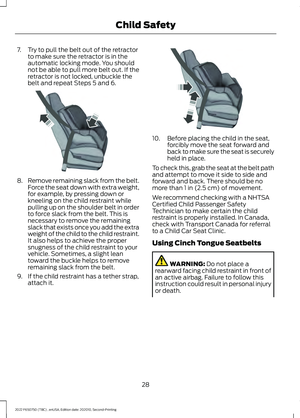

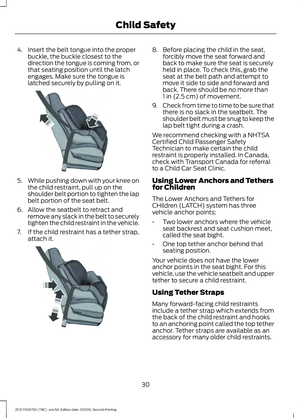

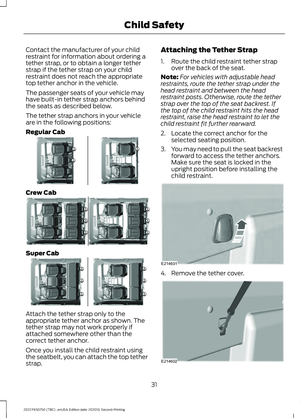

Installing Child Restraints ..........................
26

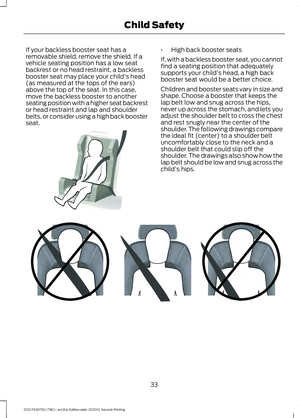

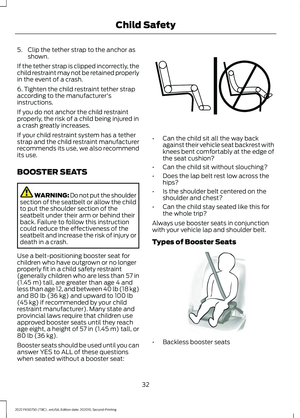

Booster Seats .................................................
32

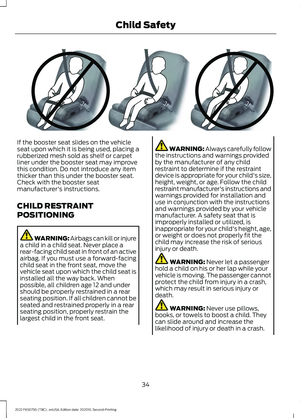

Child Restraint Positioning ........................
34

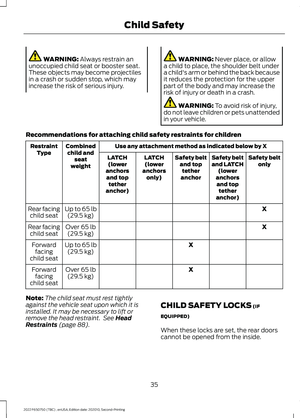

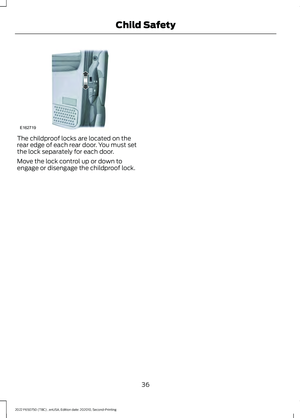

Child Safety Locks ........................................
35
Seatbelts

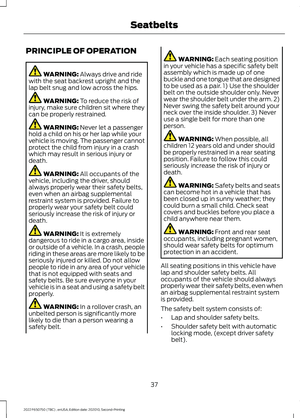

Principle of Operation ..................................
37

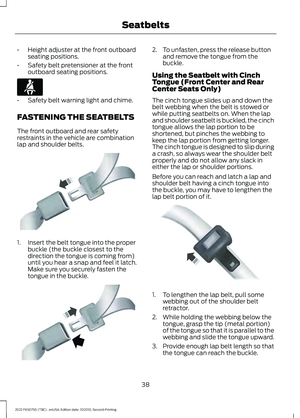

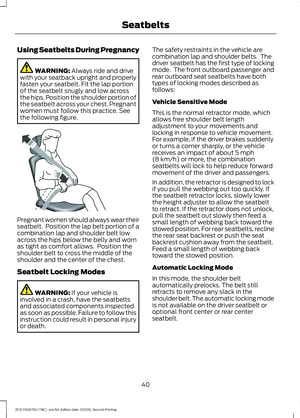

Fastening the Seatbelts .............................
38

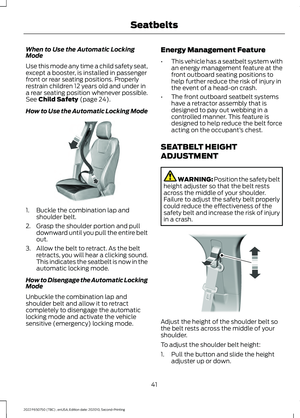

Seatbelt Height Adjustment ......................
41

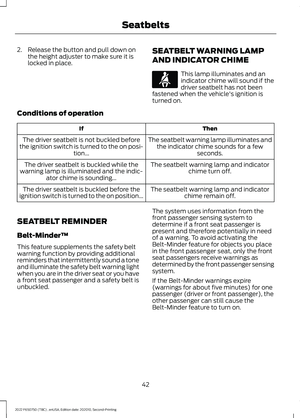

Seatbelt Warning Lamp and Indicator Chime ............................................................
42

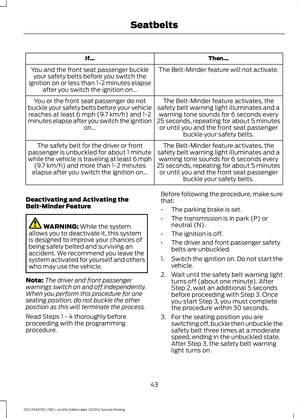

Seatbelt Reminder ........................................
42

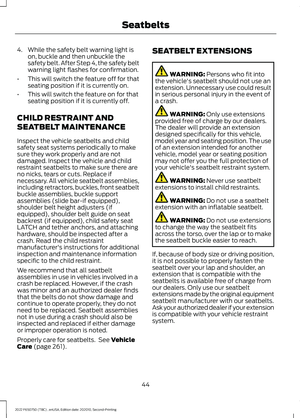

Child Restraint and Seatbelt Maintenance ...............................................
44
Seatbelt Extensions .....................................
44Keys and Remote Controls

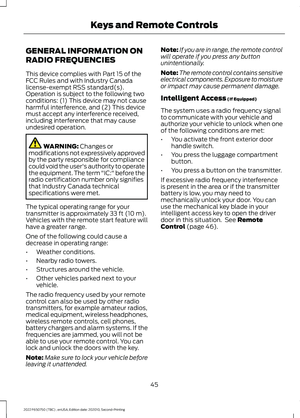

General Information on Radio
Frequencies .................................................
45

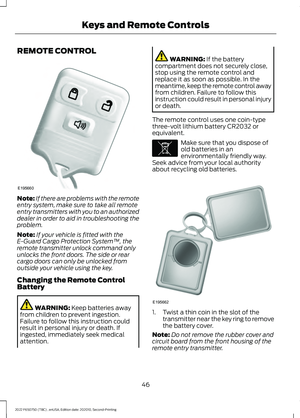

Remote Control .............................................
46

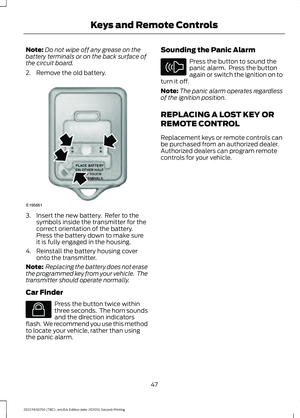

Replacing a Lost Key or Remote Control ........................................................................\
...
47
Doors and Locks

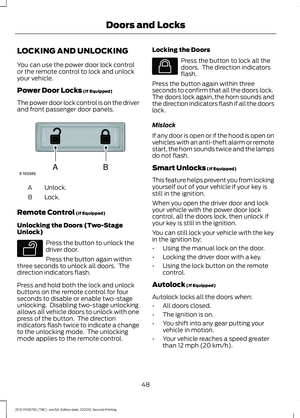

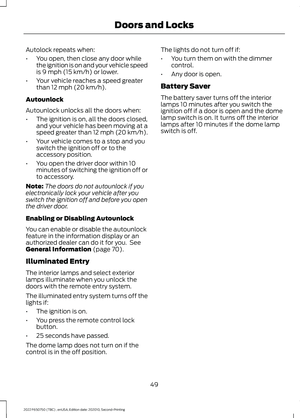

Locking and Unlocking ...............................
48
Security

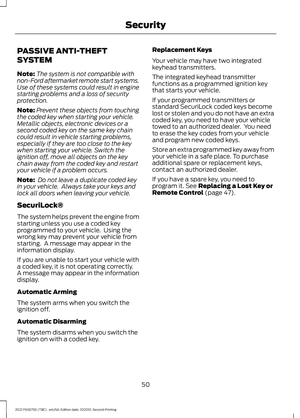

Passive Anti-Theft System .......................
50
Steering Wheel

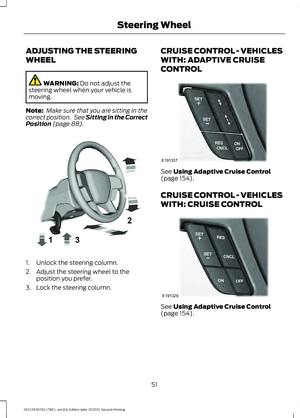

Adjusting the Steering Wheel ....................
51
Cruise Control - Vehicles With: Adaptive Cruise Control ..............................................
51
Cruise Control - Vehicles With: Cruise Control ...........................................................
51

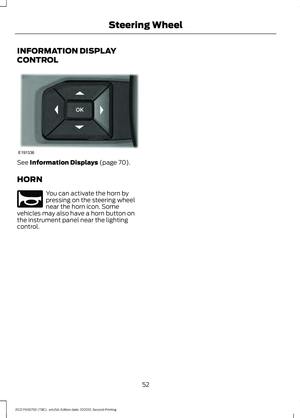

Information Display Control ......................
52
Horn ....................................................................
52
Wipers and Washers

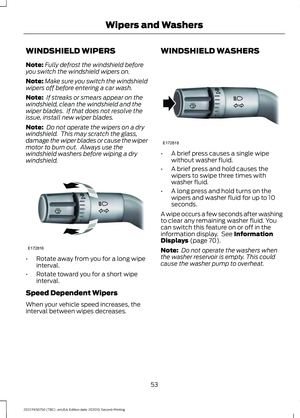

Windshield Wipers ........................................
53
Windshield Washers ....................................
53

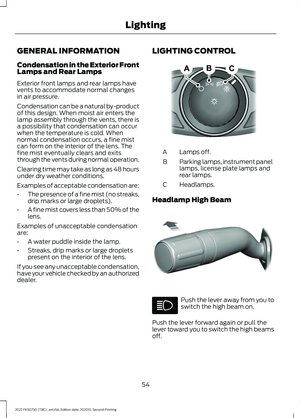

Lighting
General Information .....................................
54
Lighting Control .............................................
54

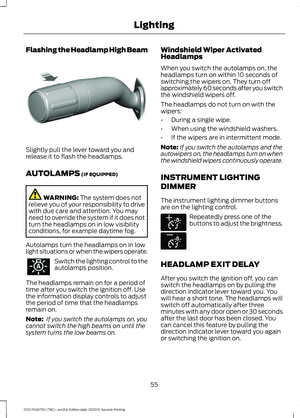

Autolamps .......................................................
55
Instrument Lighting Dimmer ....................
55
Headlamp Exit Delay ...................................
55

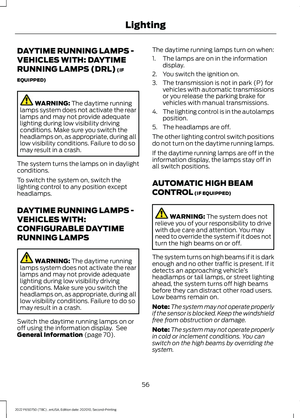

Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL) ..........
56
Daytime Running Lamps - Vehicles With: Configurable Daytime Running Lamps
........................................................................\
..
56

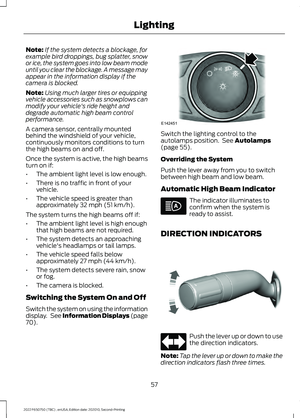

Automatic High Beam Control ................
56
Direction Indicators .......................................
57

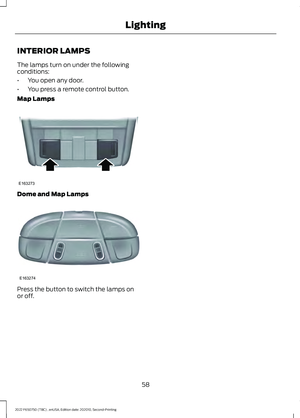

Interior Lamps ................................................
58
1
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Table of Contents

Windows and Mirrors

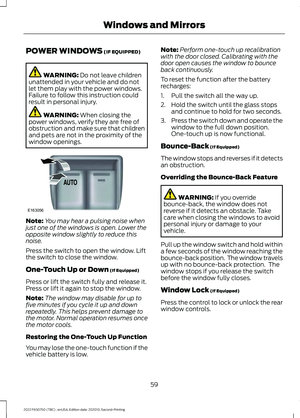

Power Windows
............................................59

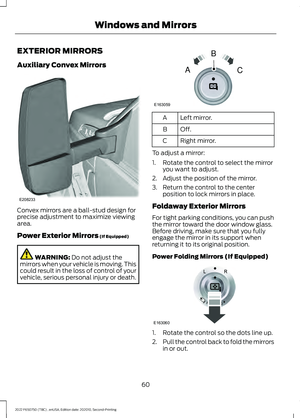

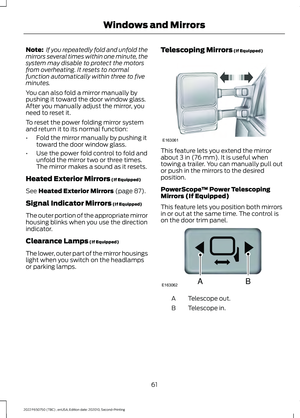

Exterior Mirrors ..............................................
60

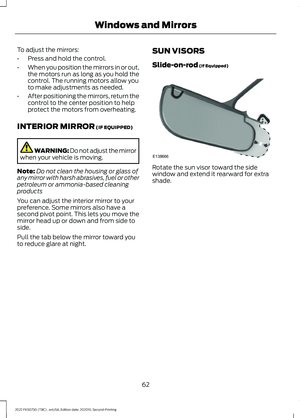

Interior Mirror ..................................................
62
Sun Visors ........................................................
62
Instrument Cluster

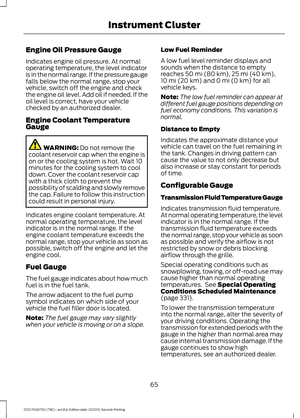

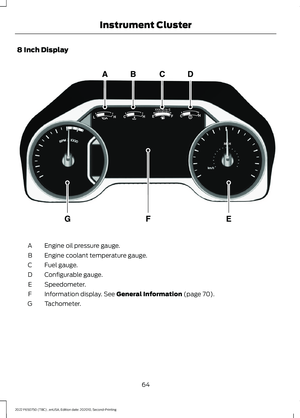

Gauges ..............................................................
63

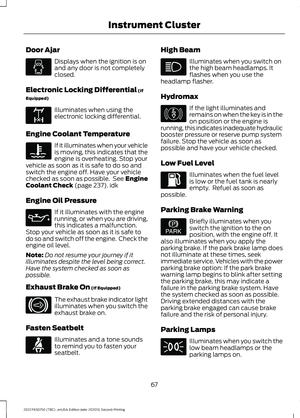

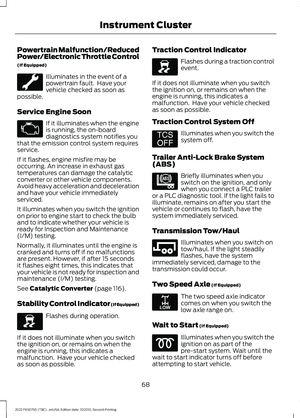

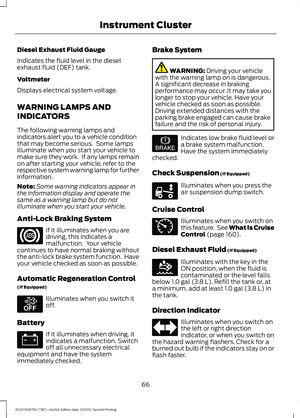

Warning Lamps and Indicators ...............
66

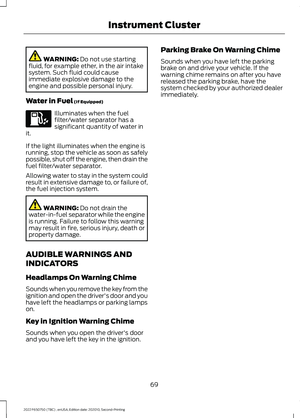

Audible Warnings and Indicators ............
69

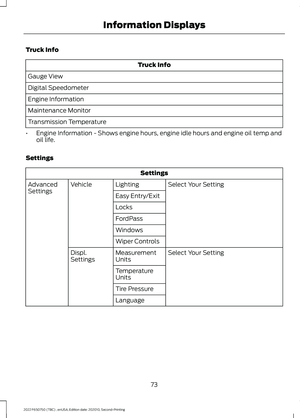

Information Displays

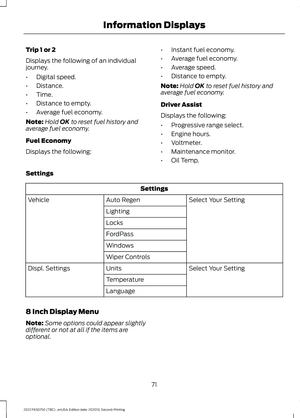

General Information .....................................
70

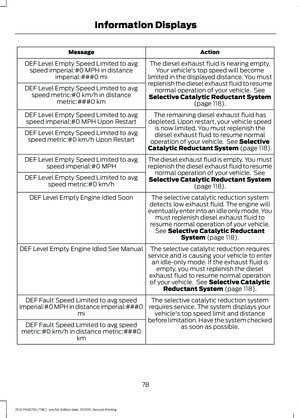

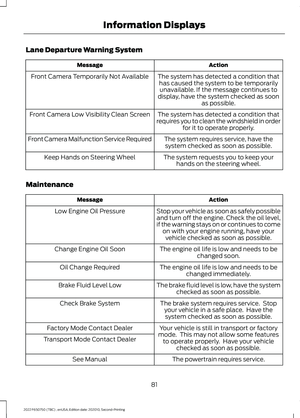

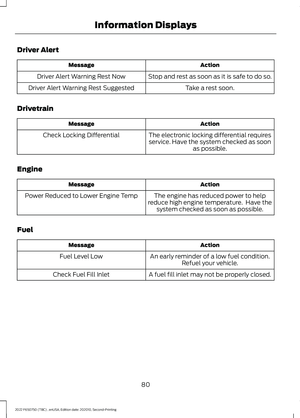

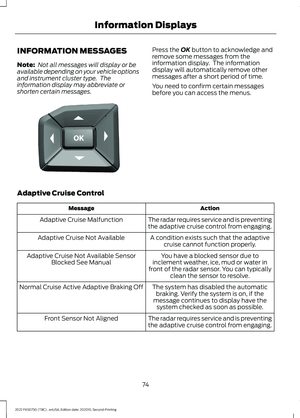

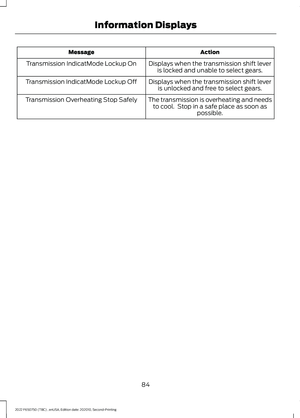

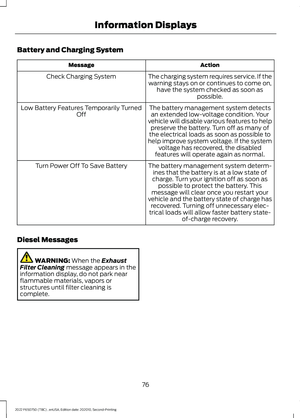

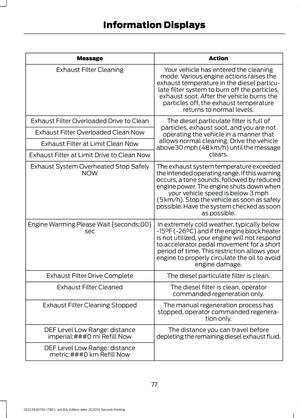

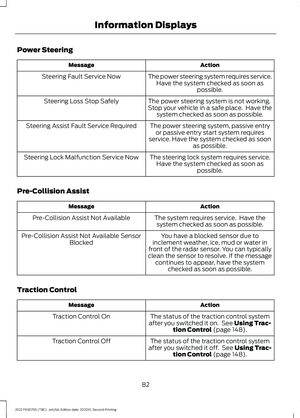

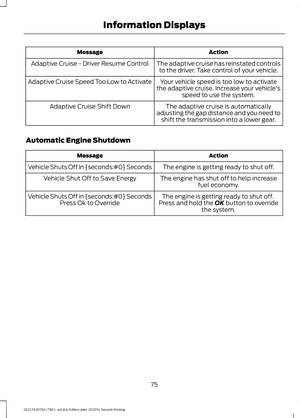

Information Messages .................................

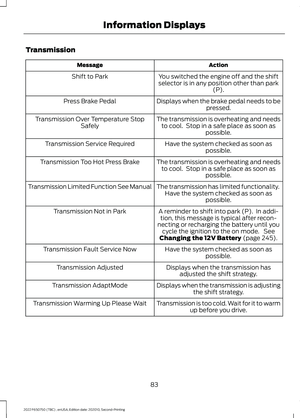

74
Climate Control

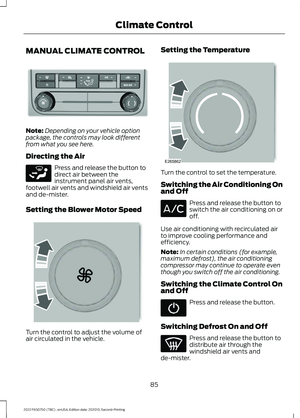

Manual Climate Control .............................
85

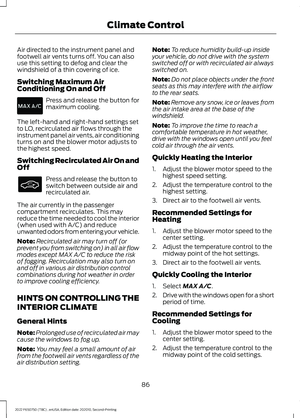

Hints on Controlling the Interior Climate ........................................................................\
..
86

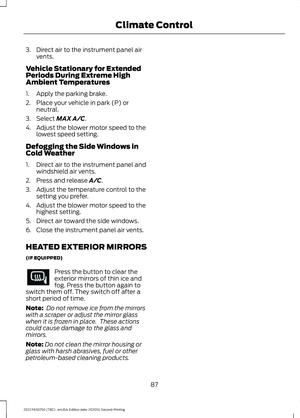

Heated Exterior Mirrors ...............................
87
Seats

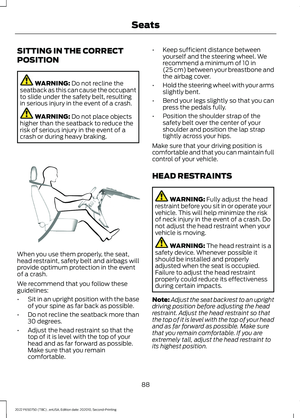

Sitting in the Correct Position ..................
88

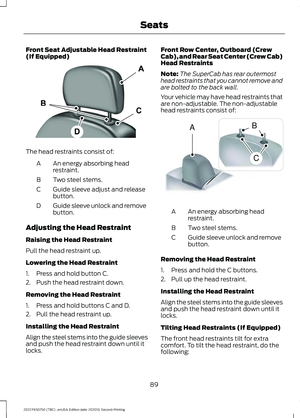

Head Restraints .............................................
88
Manual Seats .................................................
90

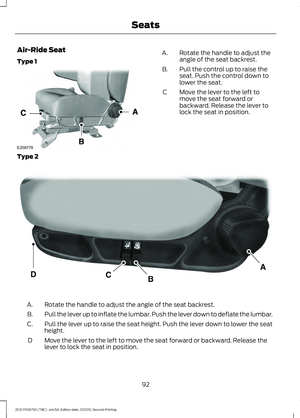

Power Seats .....................................................
91

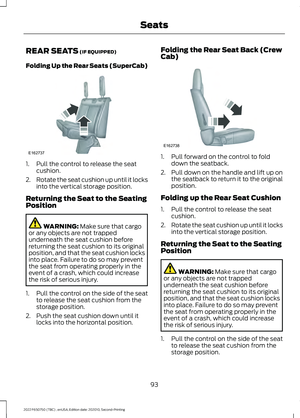

Rear Seats ........................................................
93

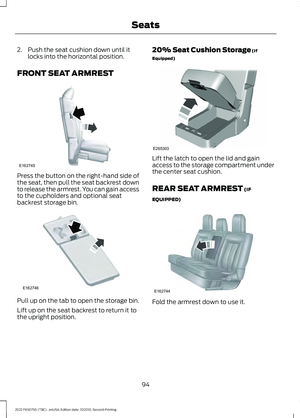

Front Seat Armrest .......................................
94
Rear Seat Armrest ........................................
94
Auxiliary Power Points

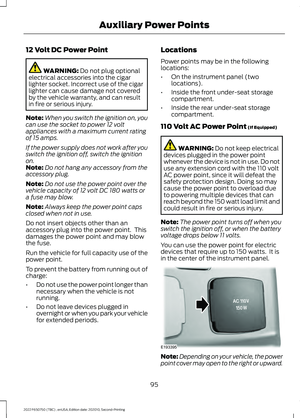

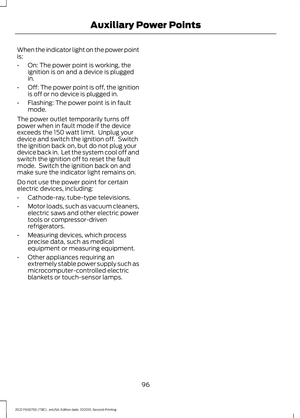

Auxiliary Power Points ................................
95
USB Ports

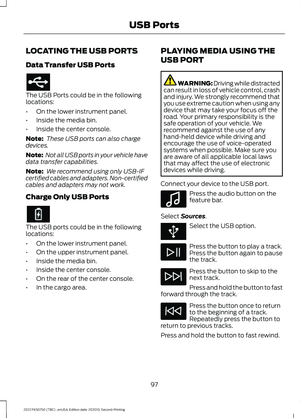

Locating the USB Ports ...............................
97
Playing Media Using the USB Port .........
97
Charging a Device .........................................
98Storage Compartments

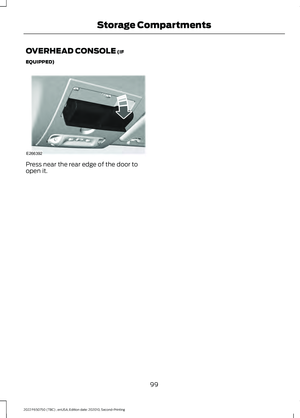

Overhead Console
........................................
99
Starting and Stopping the Engine
General Information ..................................
100

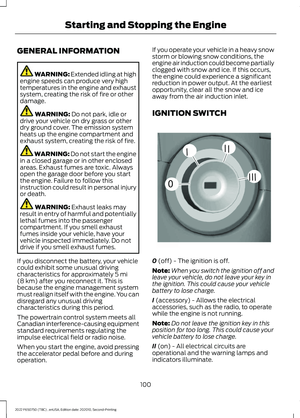

Ignition Switch .............................................
100

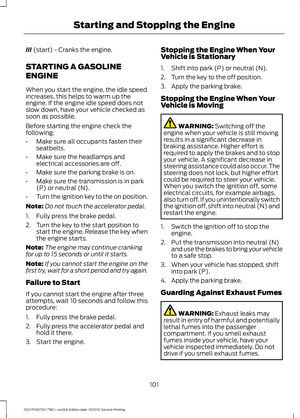

Starting a Gasoline Engine .......................
101

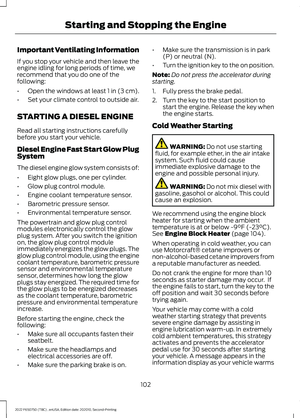

Starting a Diesel Engine ............................
102

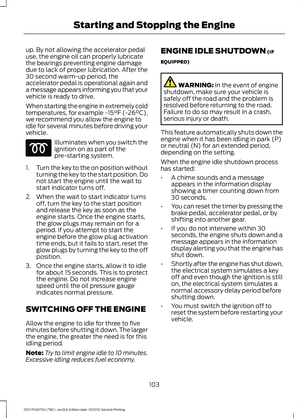

Switching Off the Engine .........................
103
Engine Idle Shutdown ...............................
103

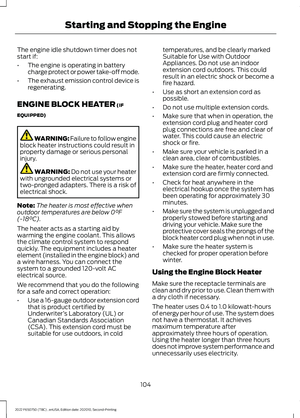

Engine Block Heater ...................................
104
Fuel and Refueling

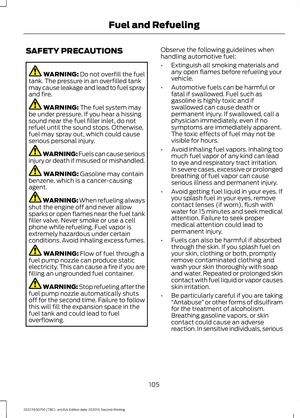

Safety Precautions .....................................
105

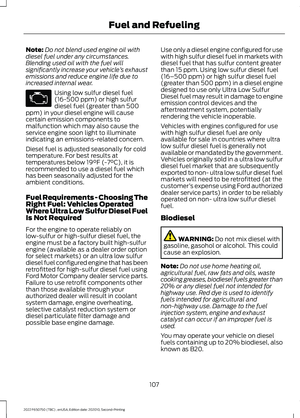

Fuel Quality - Diesel ...................................

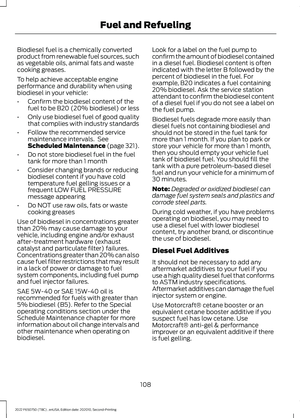

106

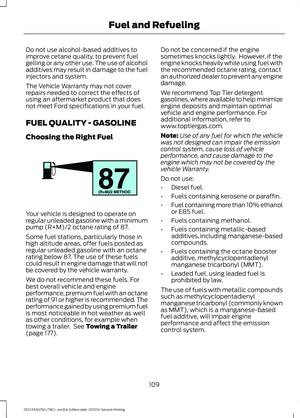

Fuel Quality - Gasoline .............................
109

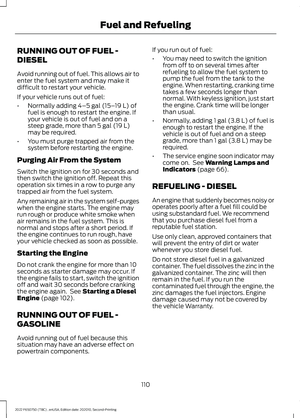

Running Out of Fuel - Diesel ....................
110
Running Out of Fuel - Gasoline ...............
110
Refueling - Diesel .........................................
110

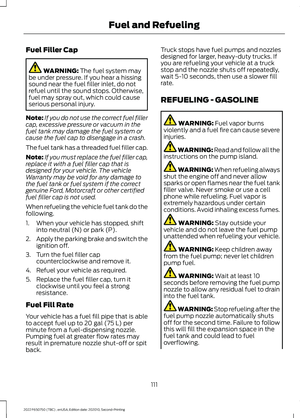

Refueling - Gasoline .....................................
111

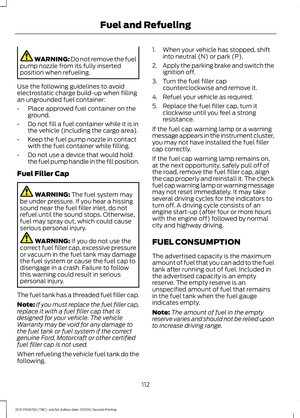

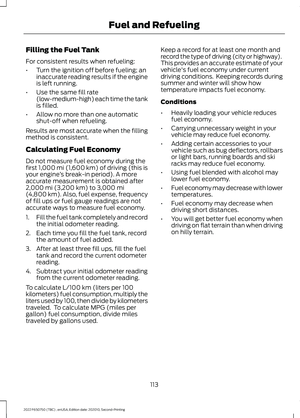

Fuel Consumption ........................................
112

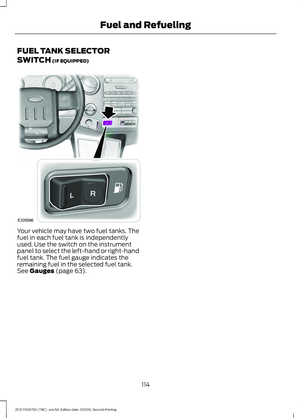

Fuel Tank Selector Switch .........................
114
Engine Emission Control

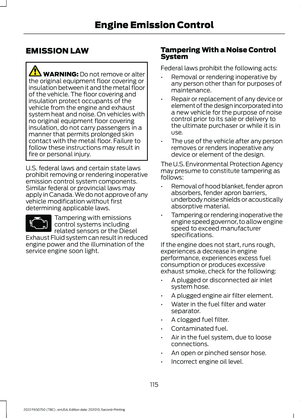

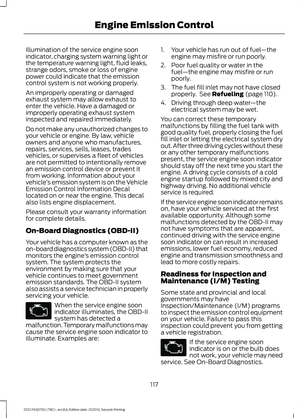

Emission Law .................................................
115

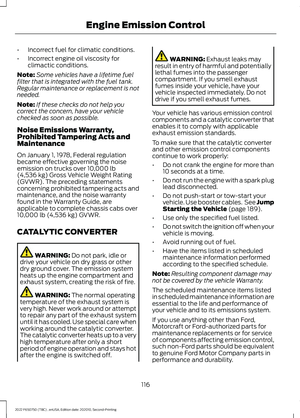

Catalytic Converter ......................................
116

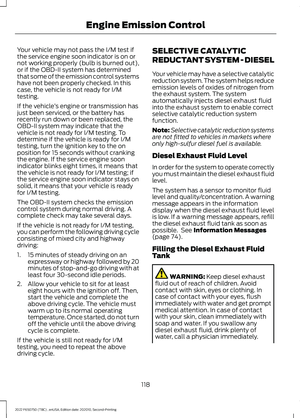

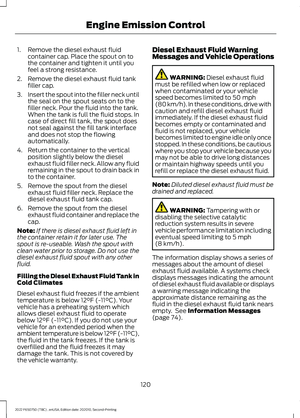

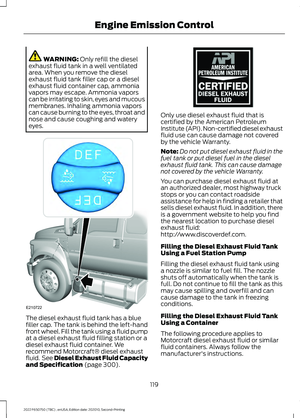

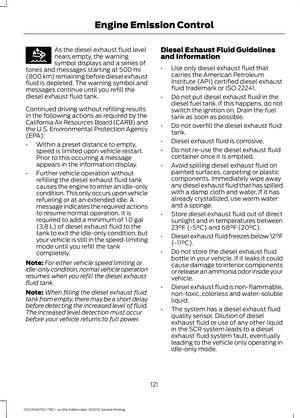

Selective Catalytic Reductant System - Diesel ............................................................
118

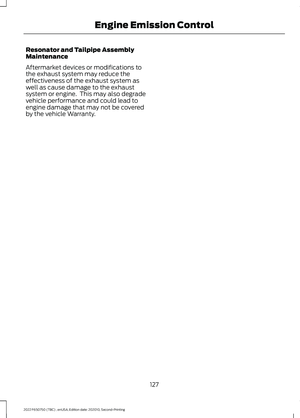

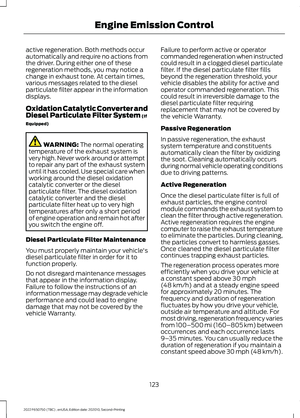

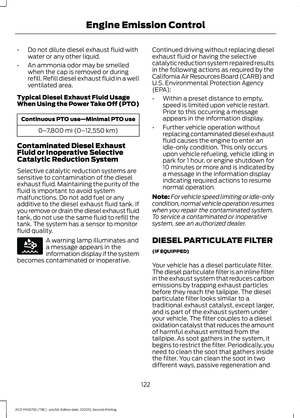

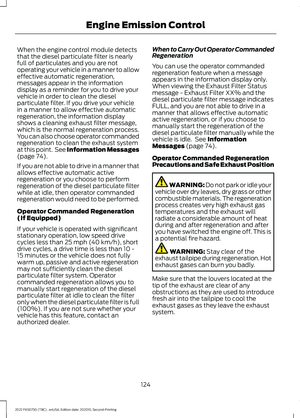

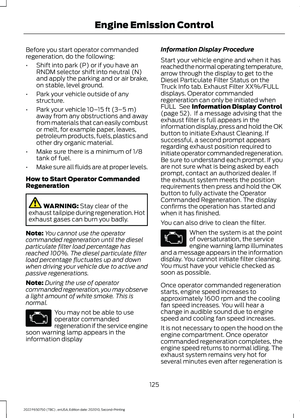

Diesel Particulate Filter ..............................

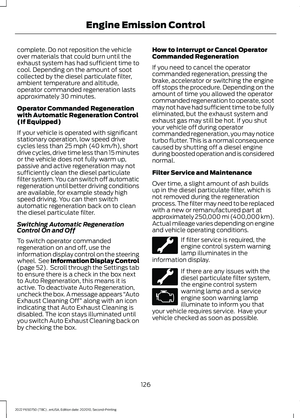

122
Transmission

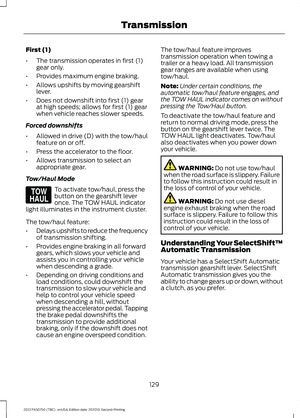

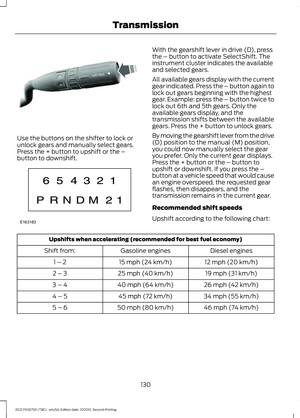

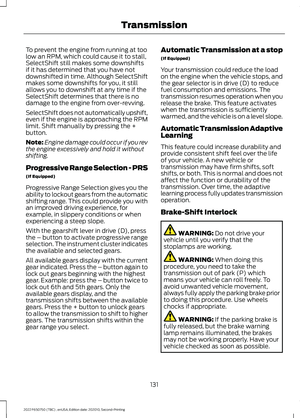

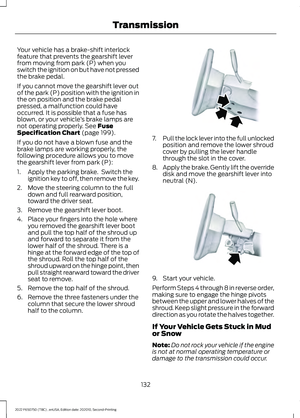

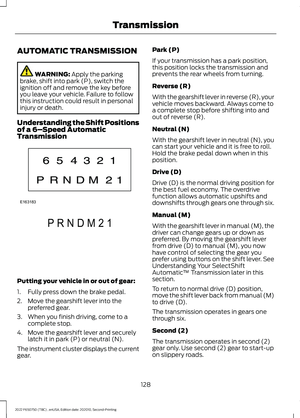

Automatic Transmission ...........................
128

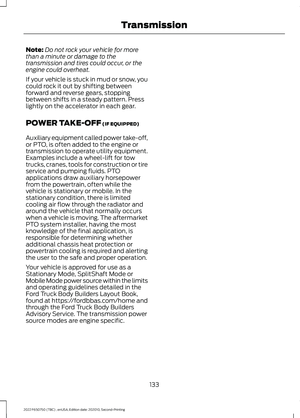

Power Take-Off ............................................
133

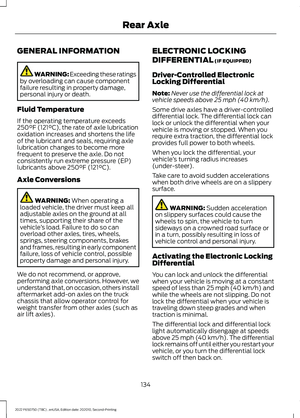

Rear Axle
General Information ...................................
134
Electronic Locking Differential ...............
134

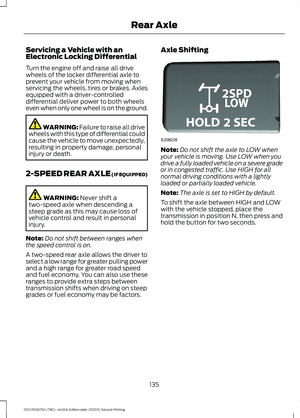

2-Speed Rear Axle ......................................
135
2
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Table of Contents

Brakes

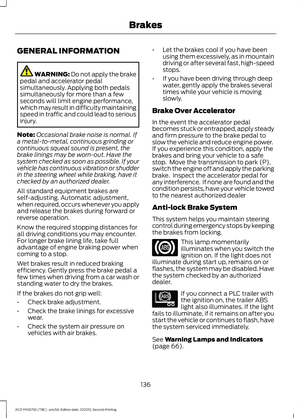

General Information
...................................136

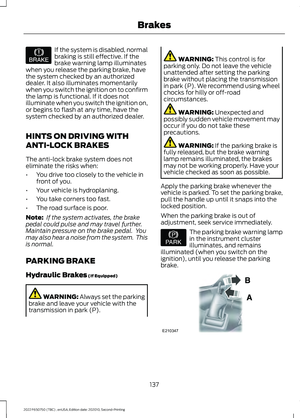

Hints on Driving With Anti-Lock Brakes ........................................................................\
.
137

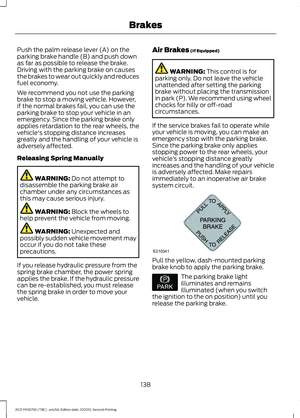

Parking Brake .................................................

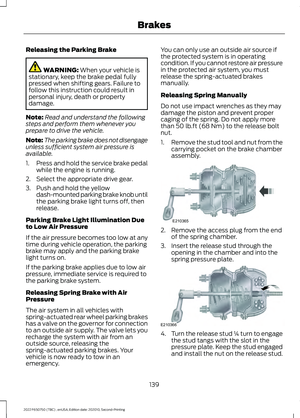

137

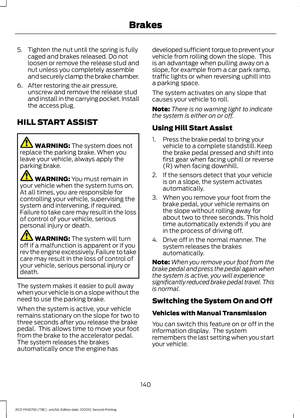

Hill Start Assist ............................................
140

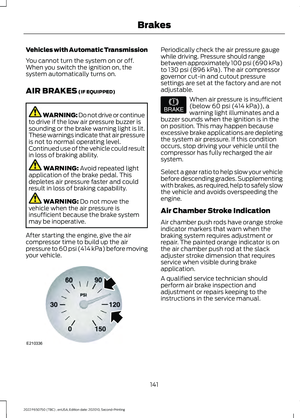

Air Brakes .........................................................
141

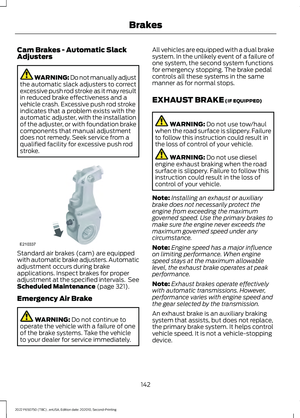

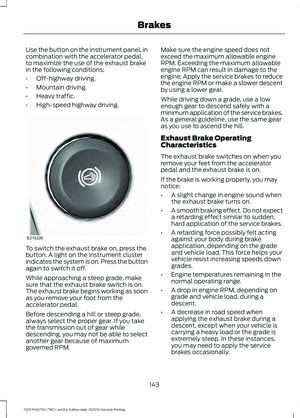

Exhaust Brake ...............................................
142

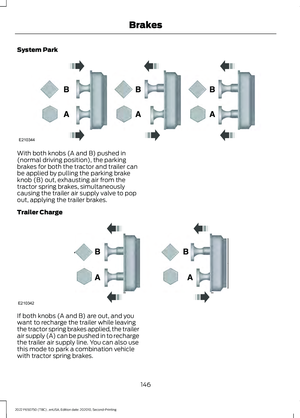

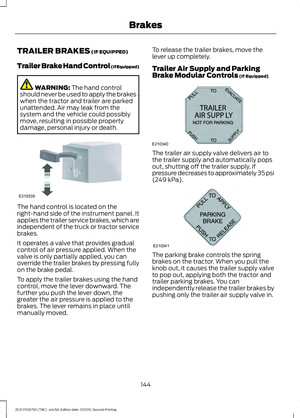

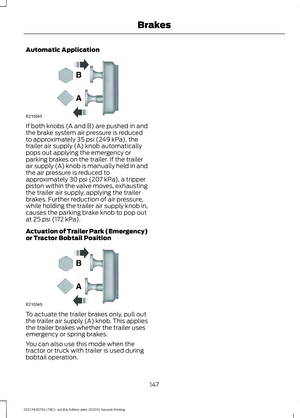

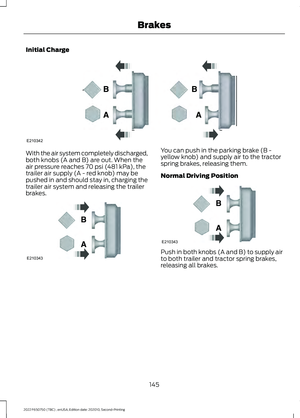

Trailer Brakes .................................................
144
Traction Control

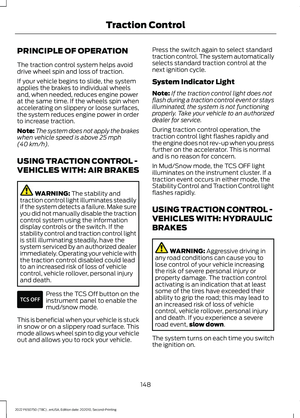

Principle of Operation ...............................
148

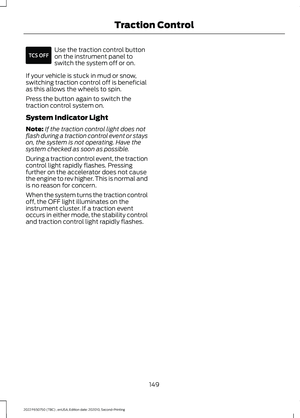

Using Traction Control - Vehicles With: Air Brakes ...................................................
148
Using Traction Control - Vehicles With: Hydraulic Brakes ......................................
148
Stability Control
Principle of Operation - Vehicles With: Hydraulic Brakes ......................................
150

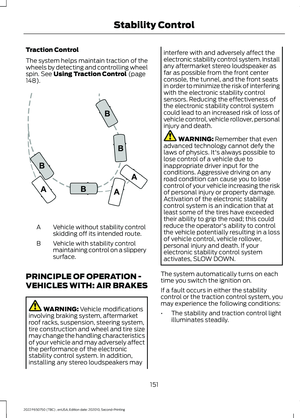

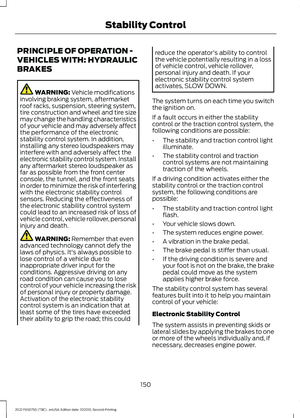

Principle of Operation - Vehicles With: Air Brakes .....................................................
151

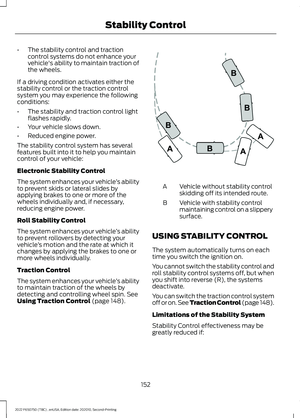

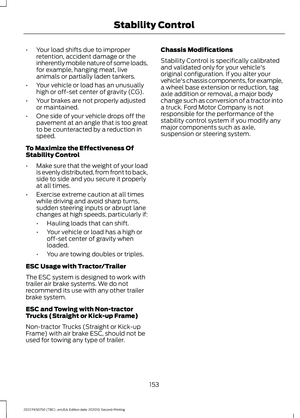

Using Stability Control ...............................
152
Cruise Control - Vehicles With: Adaptive Cruise Control

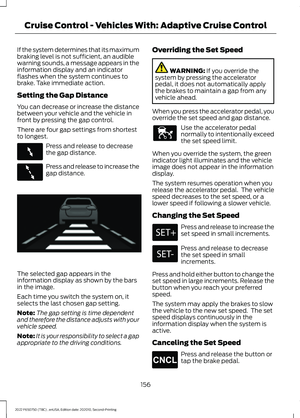

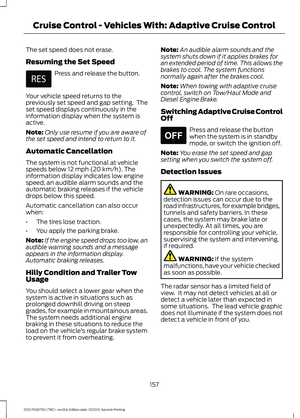

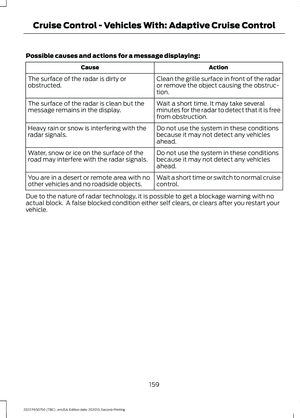

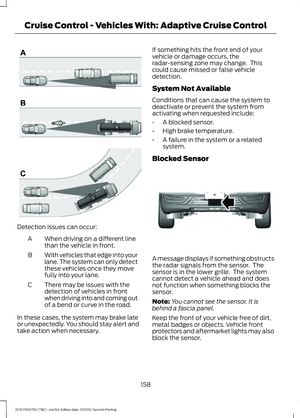

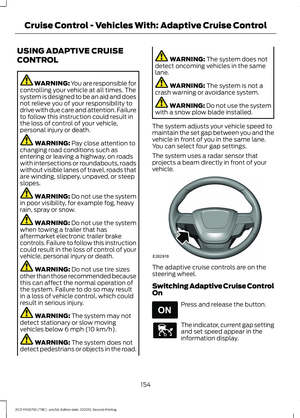

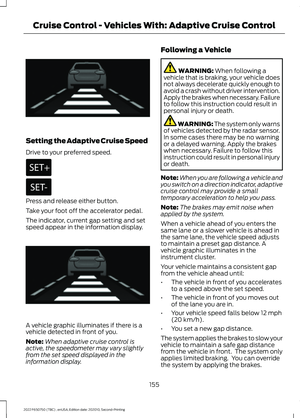

Using Adaptive Cruise Control ...............
154
Cruise Control - Vehicles With: Cruise Control
What Is Cruise Control ..............................

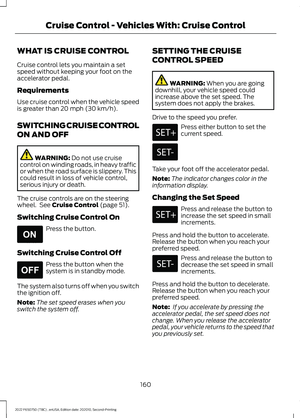

160
Switching Cruise Control On and Off ........................................................................\
160
Setting the Cruise Control Speed .........
160
Canceling the Set Speed ...........................
161
Resuming the Set Speed ...........................
161
Cruise Control Indicators ...........................
161
Driving Aids

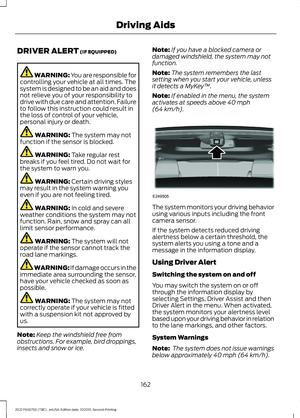

Driver Alert ......................................................
162

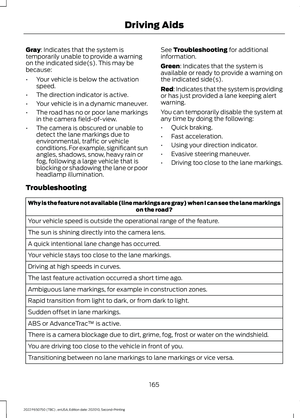

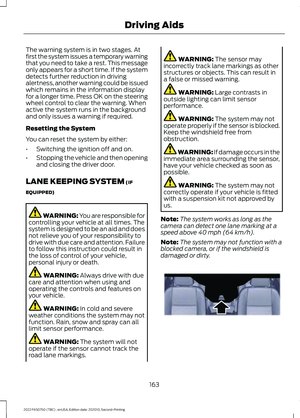

Lane Keeping System ................................
163Steering
...........................................................
166

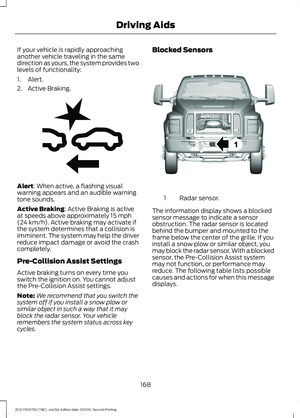

Pre-Collision Assist - Vehicles With: Air Brakes ..........................................................
167

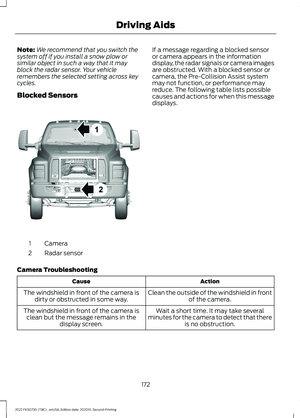

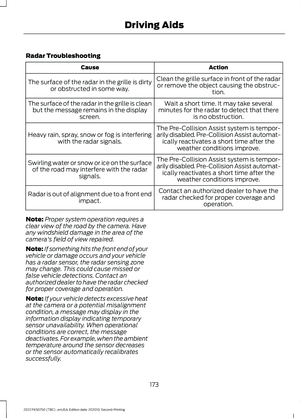

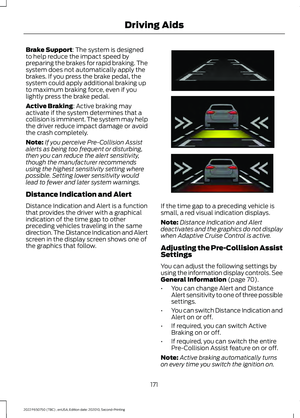

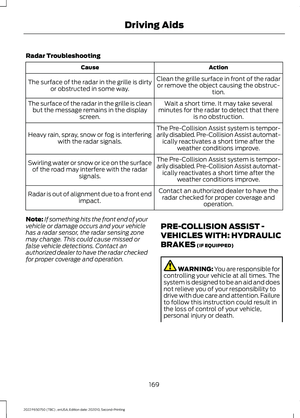

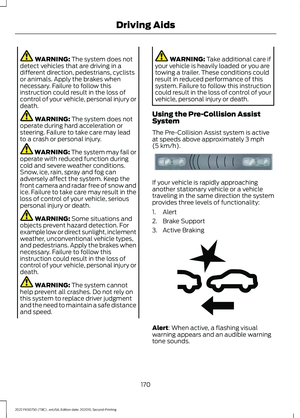

Pre-Collision Assist - Vehicles With: Hydraulic Brakes ......................................
169
Load Carrying

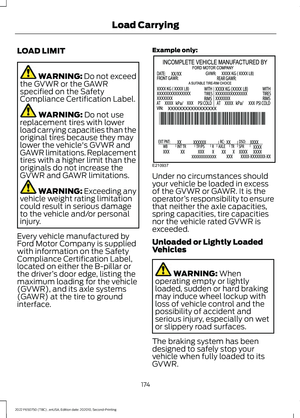

Load Limit .......................................................
174

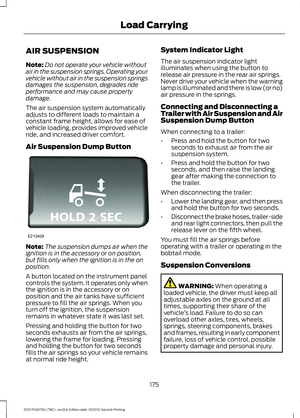

Air Suspension ..............................................
175
Towing

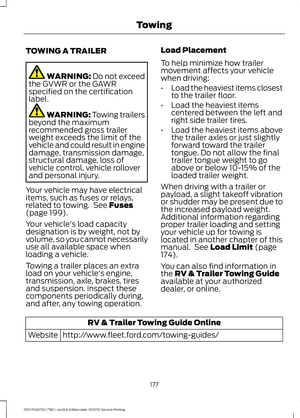

Towing a Trailer .............................................
177
Recommended Towing Weights ............
178

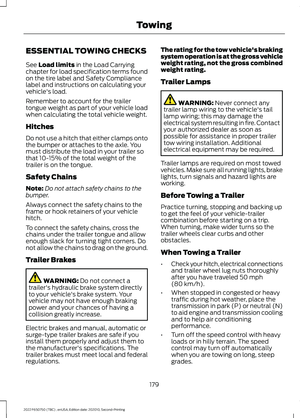

Essential Towing Checks ..........................
179

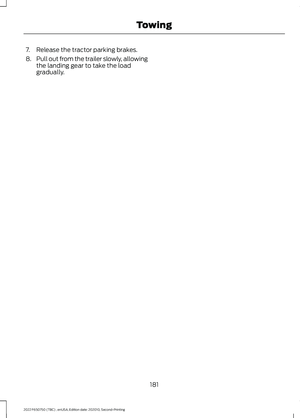

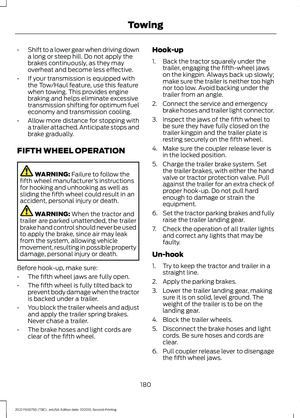

Fifth Wheel Operation ..............................
180
Driving Hints

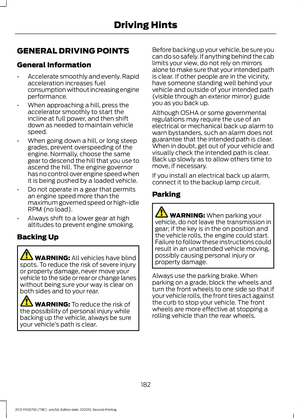

General Driving Points ...............................
182

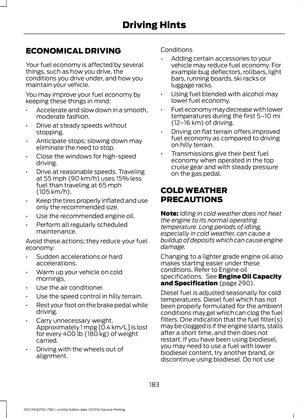

Economical Driving .....................................
183

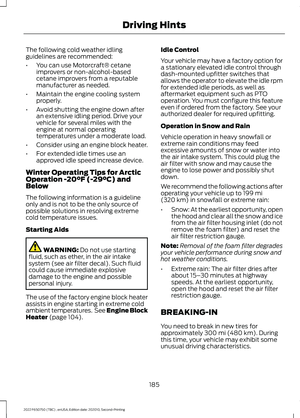

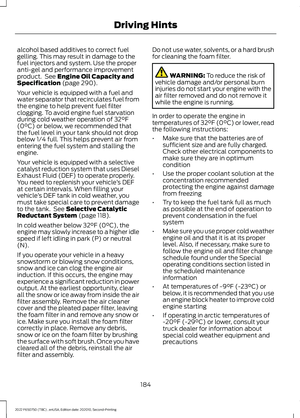

Cold Weather Precautions .......................
183
Breaking-In .....................................................
185

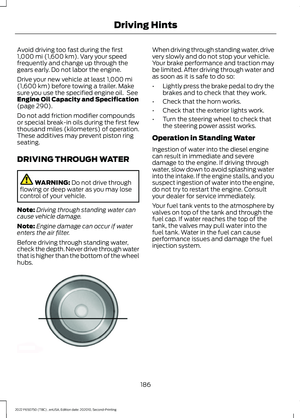

Driving Through Water ..............................
186
Roadside Emergencies

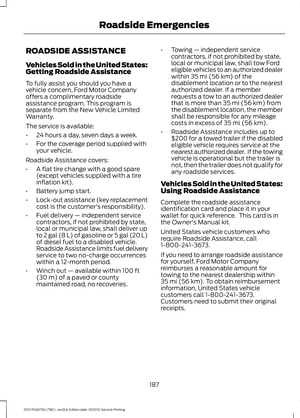

Roadside Assistance ..................................
187

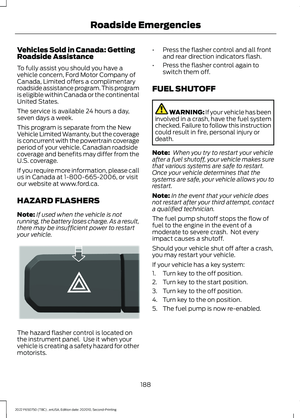

Hazard Flashers ...........................................
188
Fuel Shutoff ..................................................
188

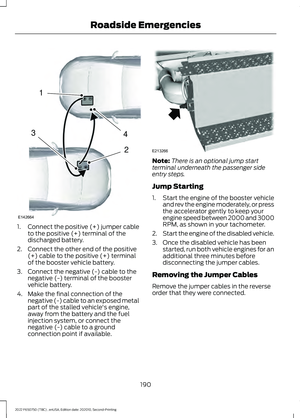

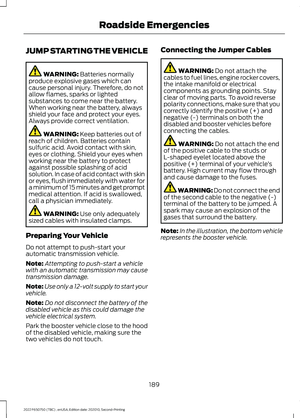

Jump Starting the Vehicle ........................
189

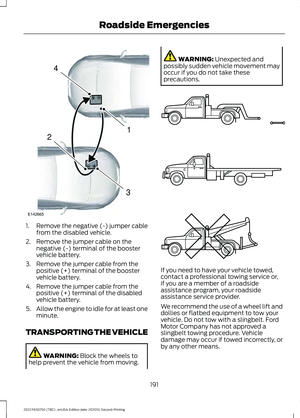

Transporting the Vehicle ............................
191

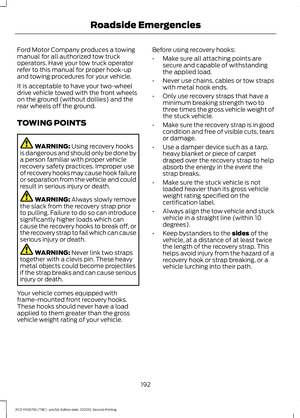

Towing Points ................................................
192
Customer Assistance
Getting the Services You Need ...............
193

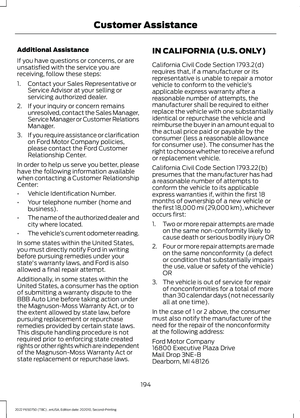

In California (U.S. Only) ............................
194
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .....................
195

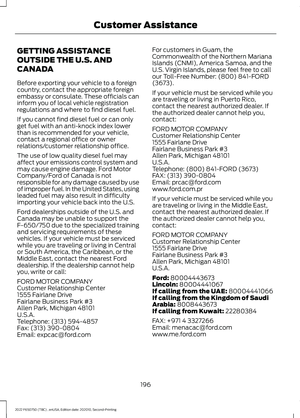

Getting Assistance Outside the U.S. and Canada .......................................................
196
Ordering Additional Owner's Literature ........................................................................\
.
197
3
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Table of Contents

Reporting Safety Defects (U.S. Only)
........................................................................\
.197
Reporting Safety Defects (Canada Only) ........................................................................\
198

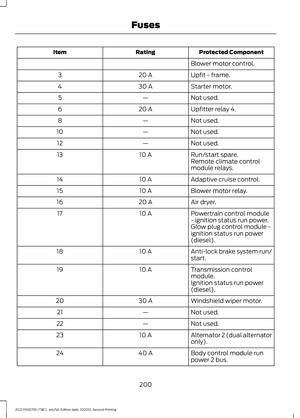

Fuses

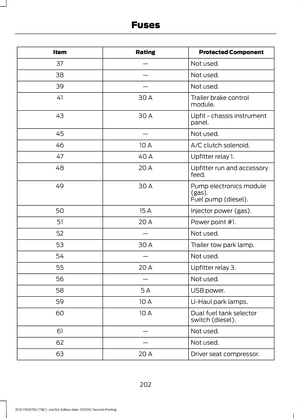

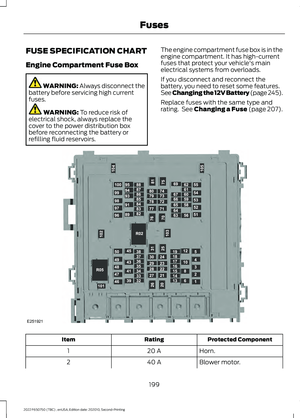

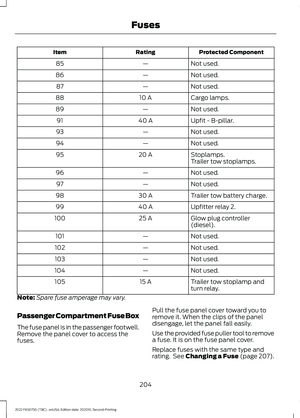

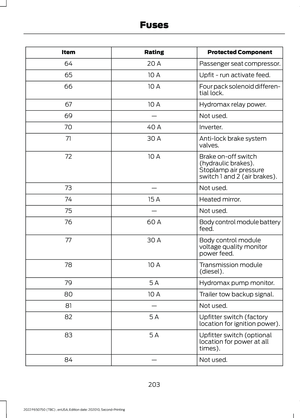

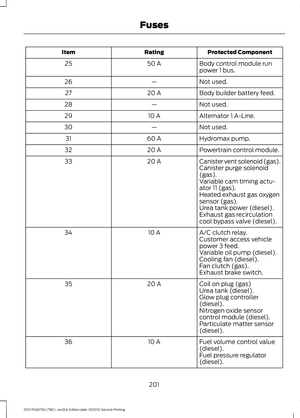

Fuse Specification Chart ..........................
199

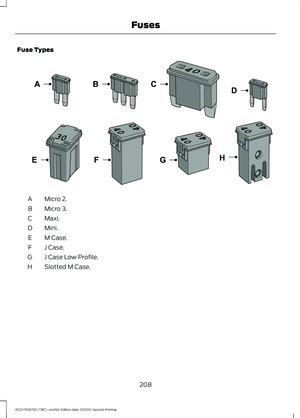

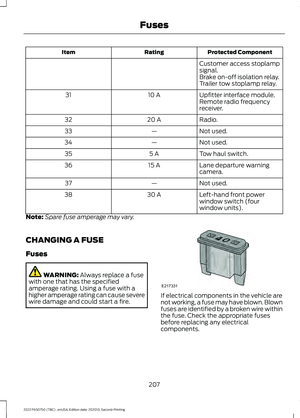

Changing a Fuse ..........................................
207

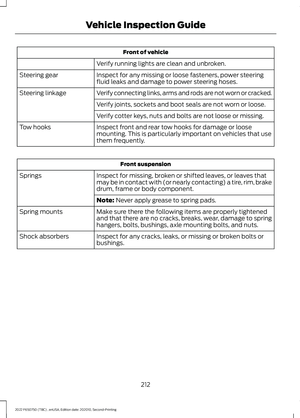

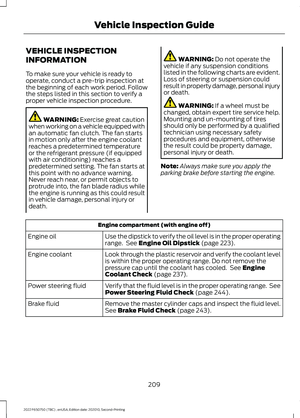

Vehicle Inspection Guide

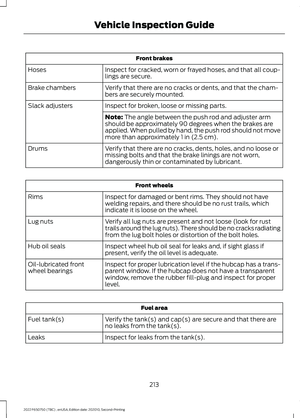

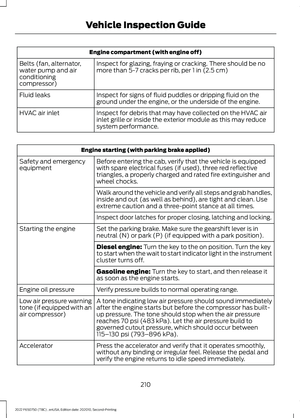

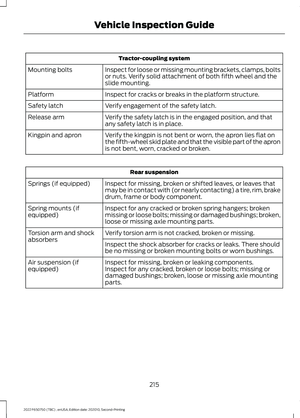

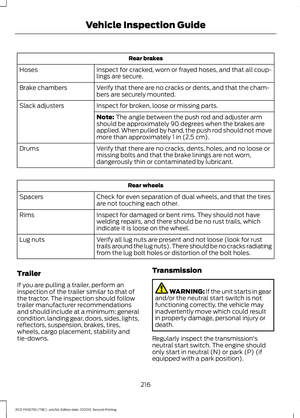

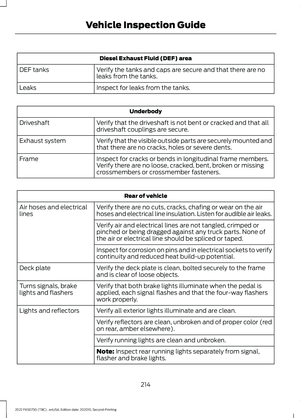

Vehicle Inspection Information .............

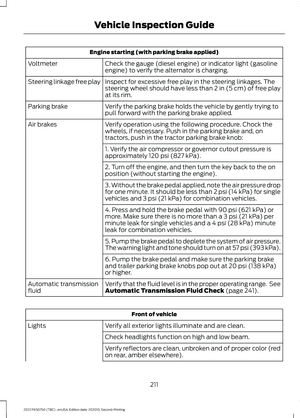

209
Maintenance
General Information ...................................
218

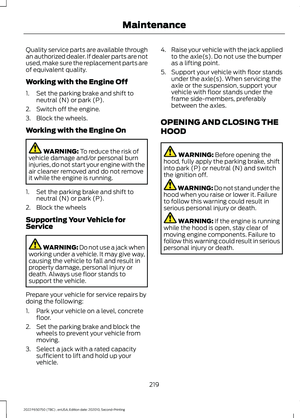

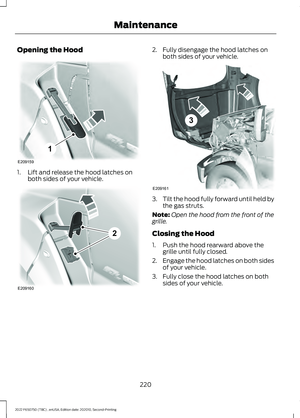

Opening and Closing the Hood ..............
219

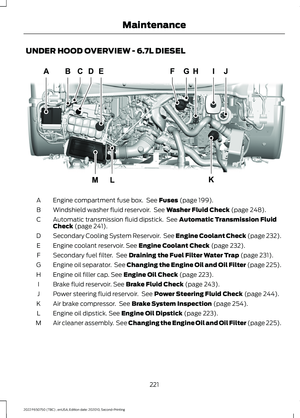

Under Hood Overview - 6.7L Diesel ......
221

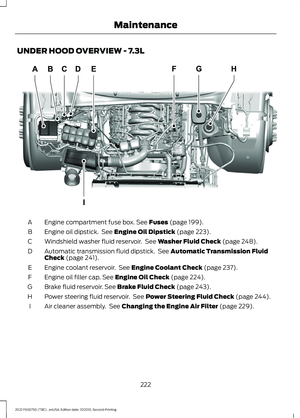

Under Hood Overview - 7.3L ...................
222

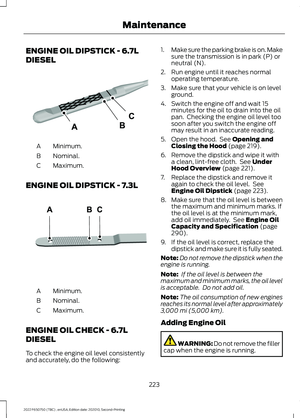

Engine Oil Dipstick - 6.7L Diesel ............
223
Engine Oil Dipstick - 7.3L ..........................
223
Engine Oil Check - 6.7L Diesel ................
223

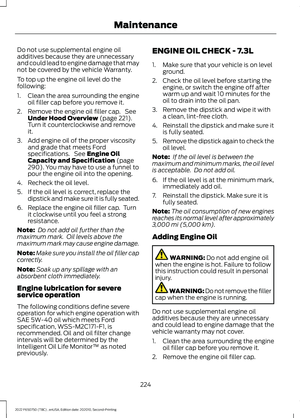

Engine Oil Check - 7.3L .............................
224
Changing the Engine Oil and Oil Filter ........................................................................\
225

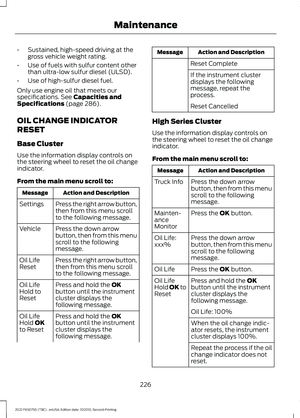

Oil Change Indicator Reset .....................
226

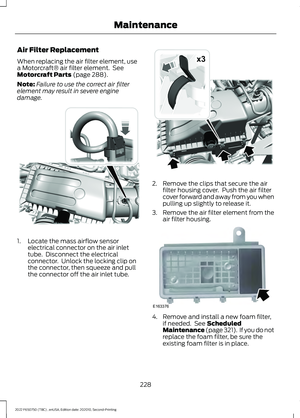

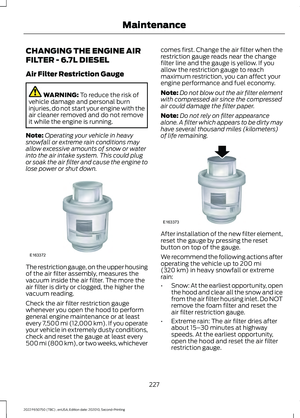

Changing the Engine Air Filter - 6.7L Diesel ...........................................................
227

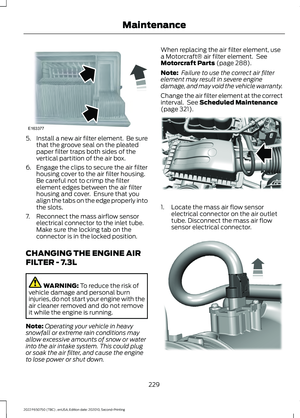

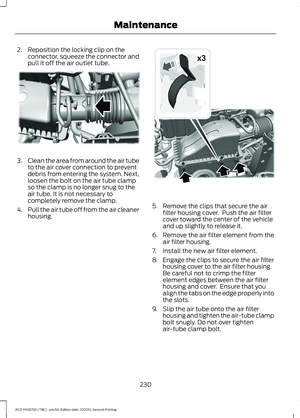

Changing the Engine Air Filter - 7.3L .....
229

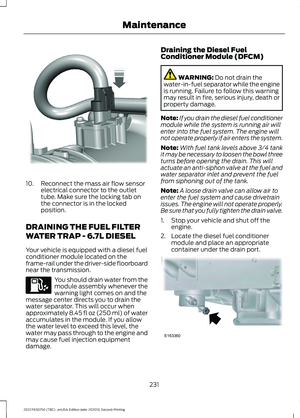

Draining the Fuel Filter Water Trap - 6.7L Diesel ............................................................
231

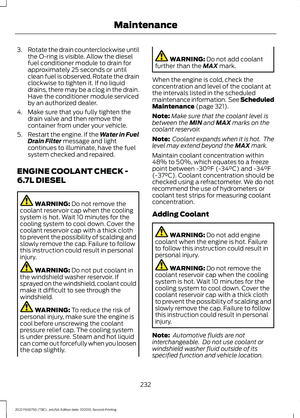

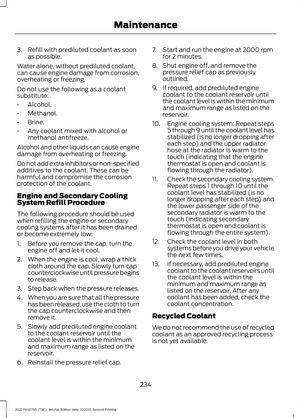

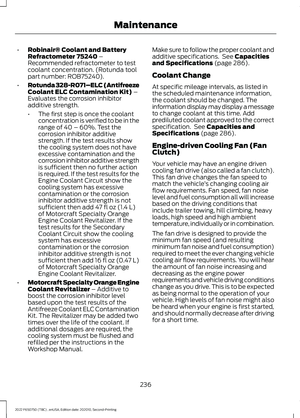

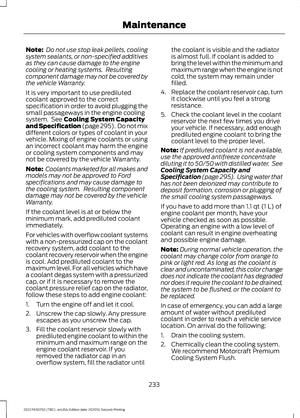

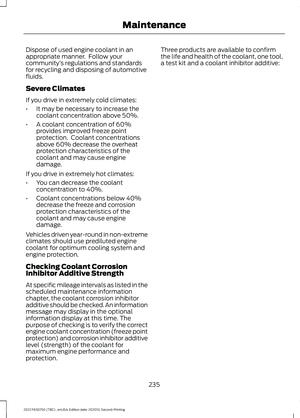

Engine Coolant Check - 6.7L Diesel ......
232

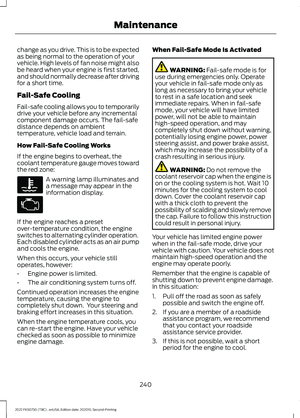

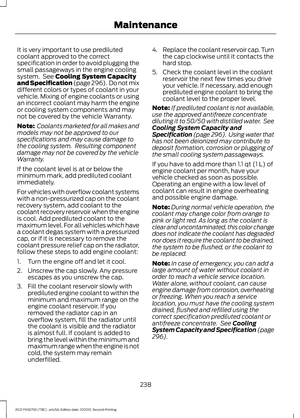

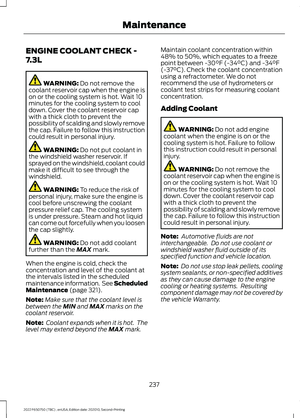

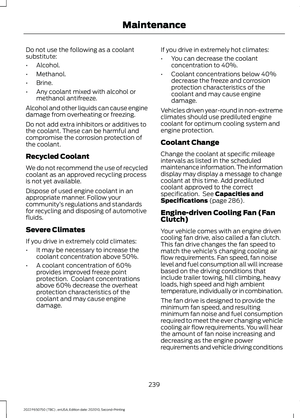

Engine Coolant Check - 7.3L ...................
237

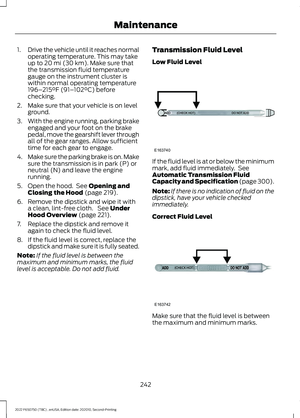

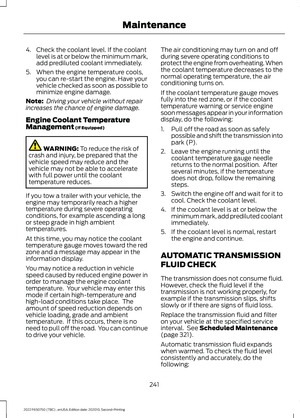

Automatic Transmission Fluid Check ........................................................................\
.
241

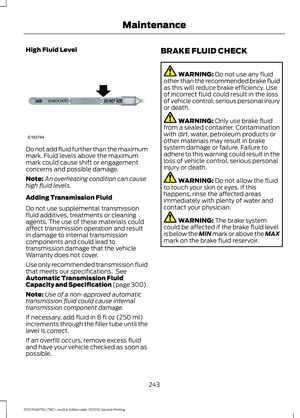

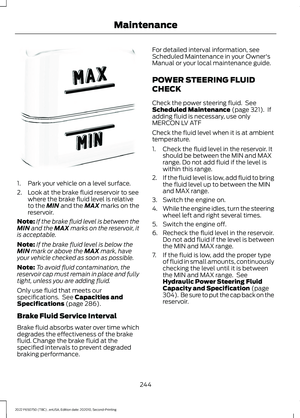

Brake Fluid Check .......................................
243
Power Steering Fluid Check ...................
244

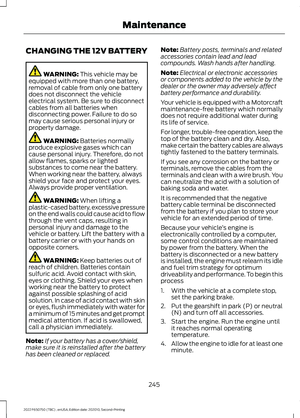

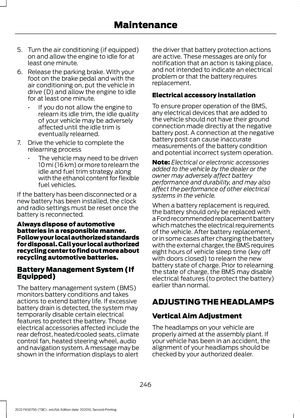

Changing the 12V Battery ........................
245

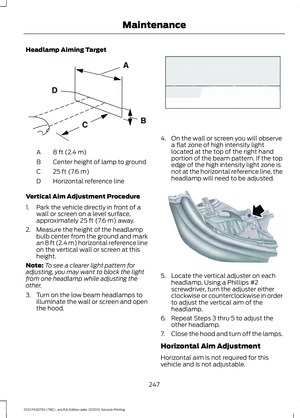

Adjusting the Headlamps .......................
246

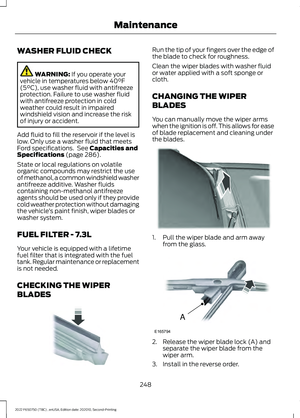

Washer Fluid Check ...................................
248
Fuel Filter - 7.3L ...........................................
248
Checking the Wiper Blades ....................
248
Changing the Wiper Blades ....................

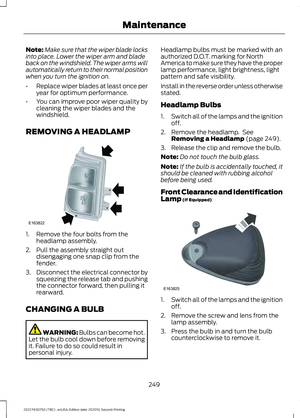

248Removing a Headlamp
............................
249
Changing a Bulb .........................................
249

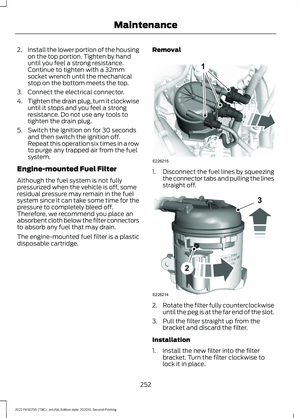

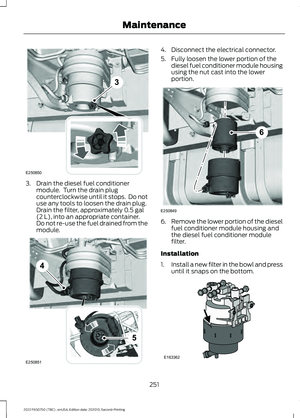

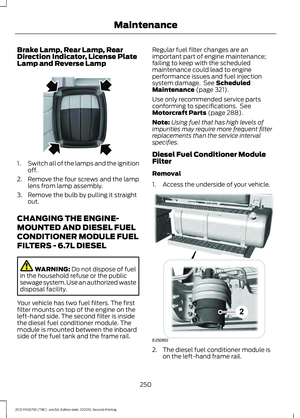

Changing the Engine-Mounted and Diesel Fuel Conditioner Module Fuel
Filters - 6.7L Diesel .................................
250

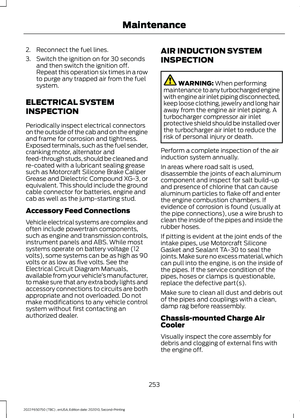

Electrical System Inspection ..................
253
Air Induction System Inspection ...........
253

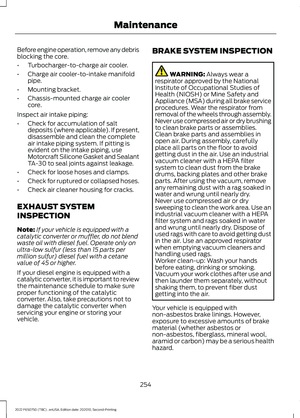

Exhaust System Inspection ....................
254

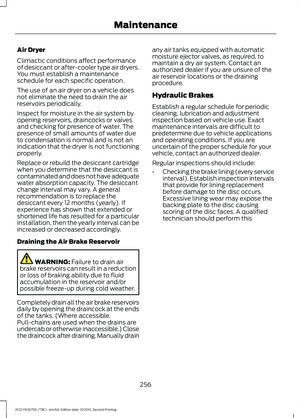

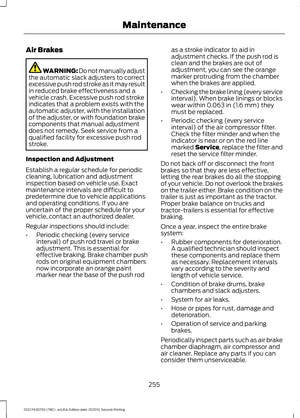

Brake System Inspection .........................
254

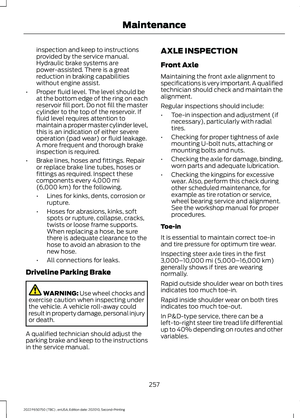

Axle Inspection .............................................
257

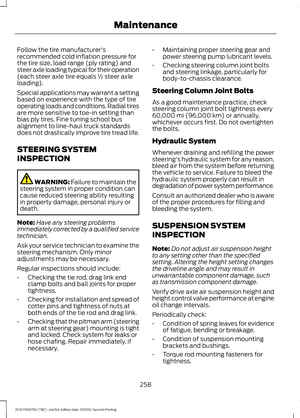

Steering System Inspection ...................
258
Suspension System Inspection .............
258

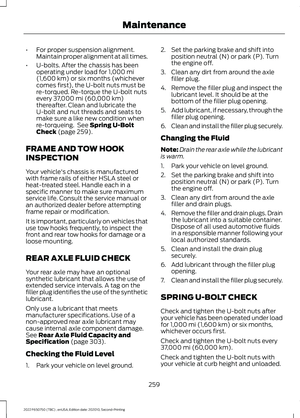

Frame and Tow Hook Inspection .........
259
Rear Axle Fluid Check ...............................
259

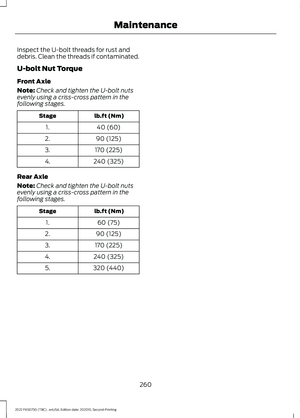

Spring U-Bolt Check ..................................
259
Vehicle Care

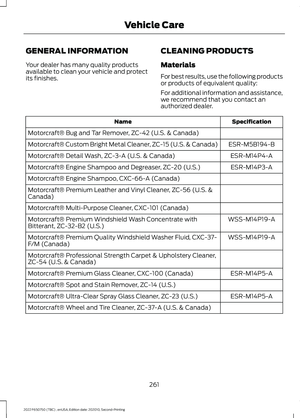

General Information ...................................
261
Cleaning Products .......................................
261

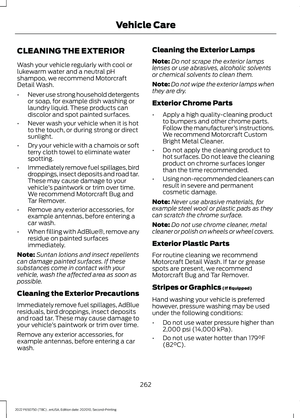

Cleaning the Exterior .................................
262

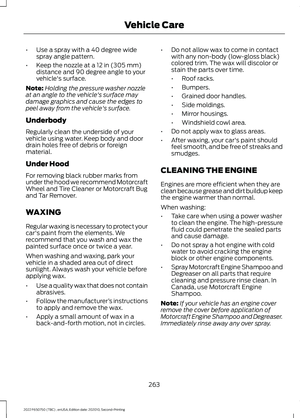

Waxing ............................................................
263
Cleaning the Engine ...................................
263

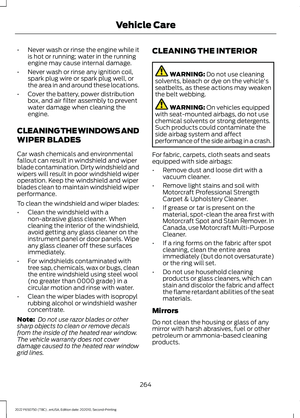

Cleaning the Windows and Wiper Blades ........................................................................\
264
Cleaning the Interior ..................................
264

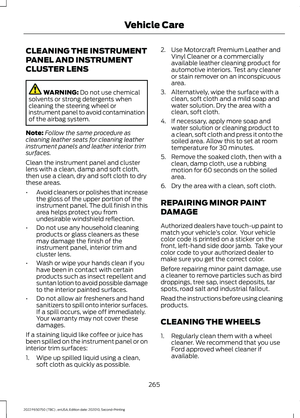

Cleaning the Instrument Panel and Instrument Cluster Lens ......................
265
Repairing Minor Paint Damage .............
265
Cleaning the Wheels .................................
265

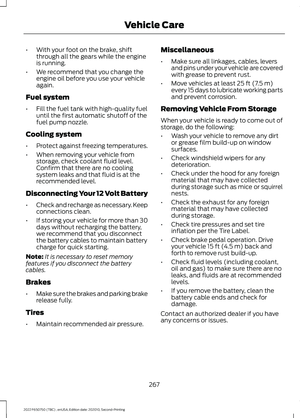

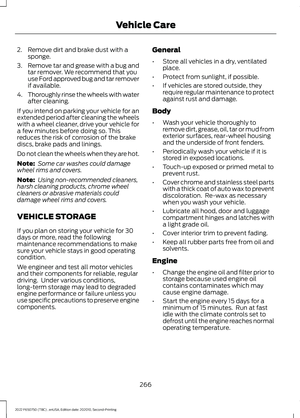

Vehicle Storage ...........................................
266
Wheels and Tires

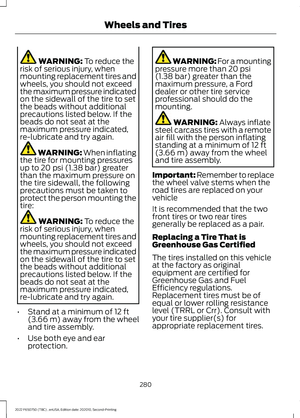

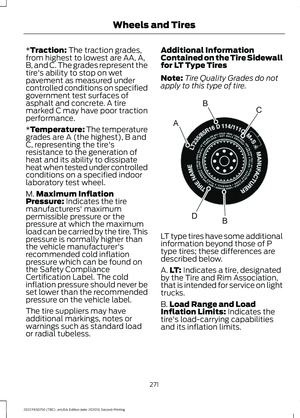

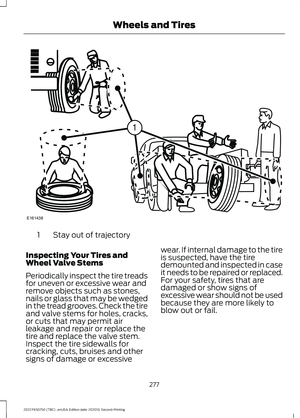

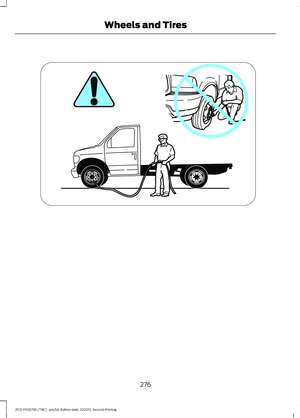

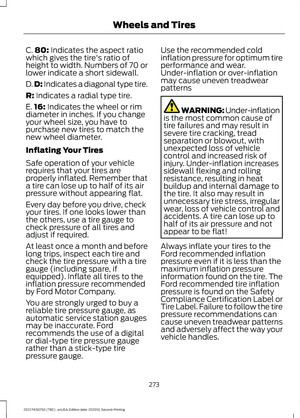

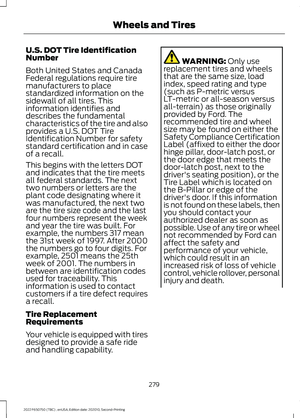

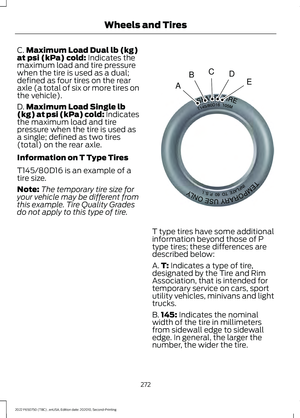

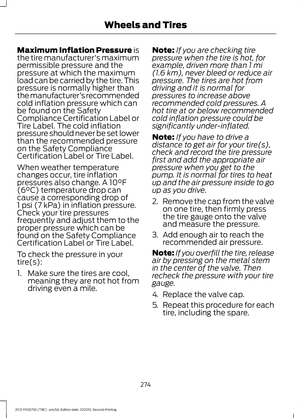

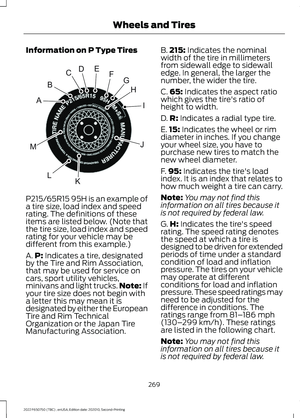

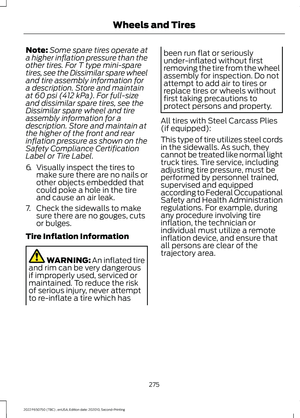

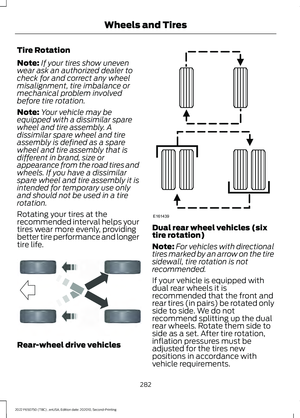

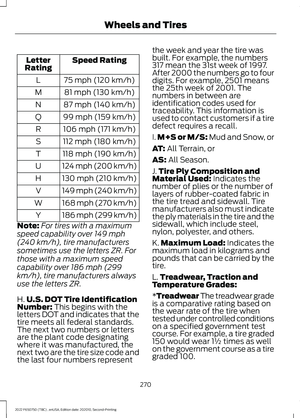

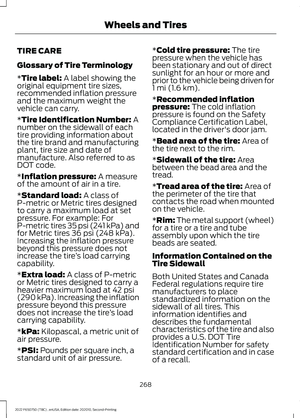

Tire Care .........................................................
268

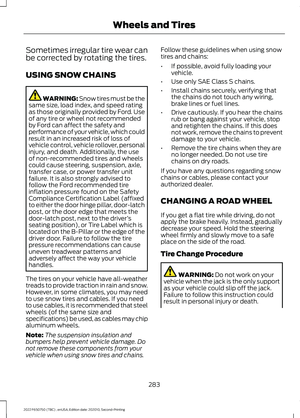

Using Snow Chains ....................................
283

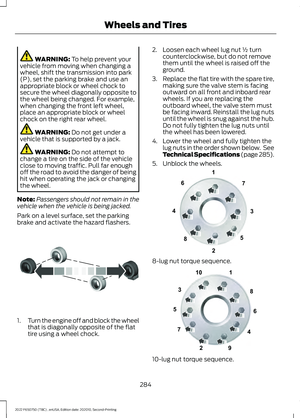

Changing a Road Wheel ..........................
283

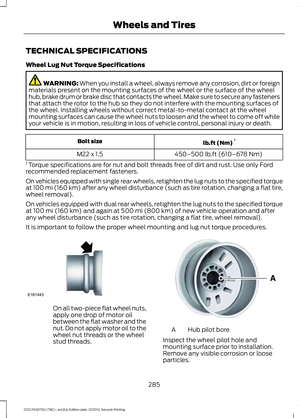

Technical Specifications ..........................
285
Capacities and Specifications

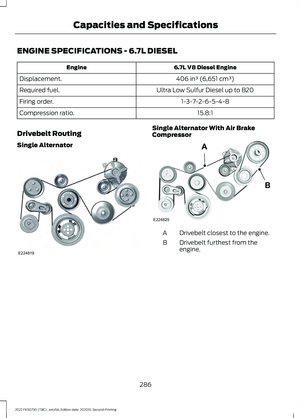

Engine Specifications - 6.7L Diesel ......
286
4
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Table of Contents

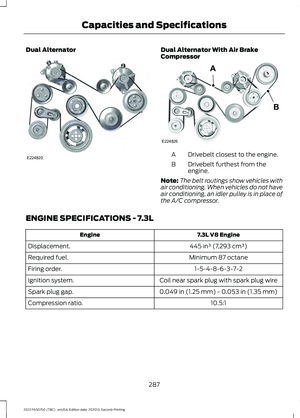

Engine Specifications - 7.3L
....................287

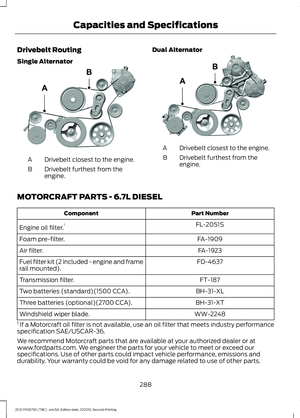

Motorcraft Parts - 6.7L Diesel ................
288

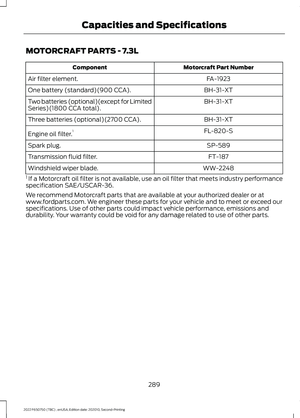

Motorcraft Parts - 7.3L ..............................
289

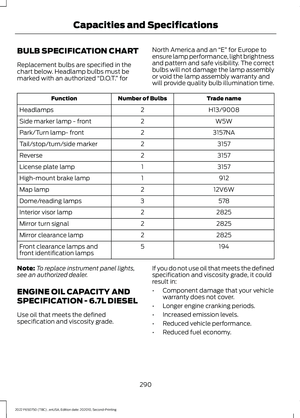

Bulb Specification Chart .........................
290

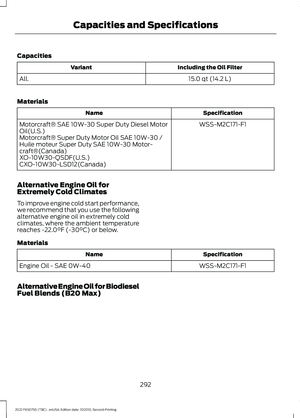

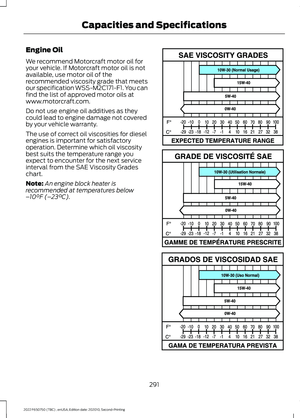

Engine Oil Capacity and Specification - 6.7L Diesel .................................................
290

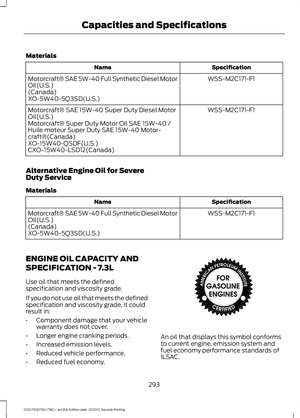

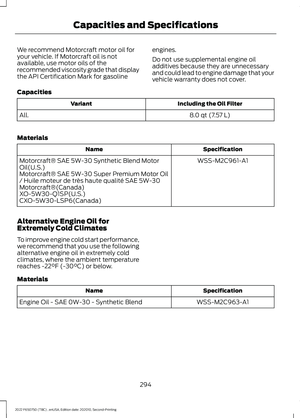

Engine Oil Capacity and Specification - 7.3L ...............................................................
293

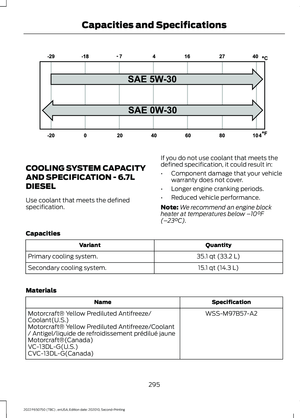

Cooling System Capacity and Specification - 6.7L Diesel ..................
295

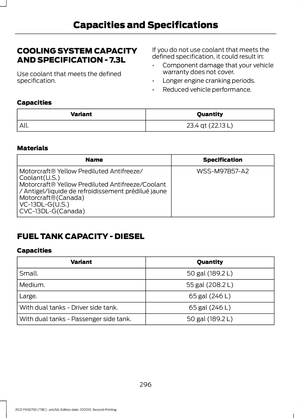

Cooling System Capacity and Specification - 7.3L ................................
296
Fuel Tank Capacity - Diesel ....................
296

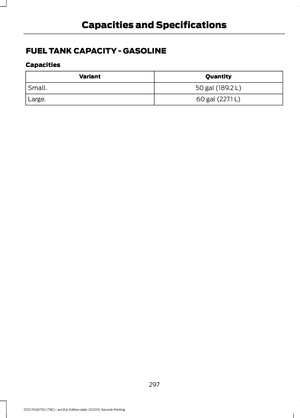

Fuel Tank Capacity - Gasoline ...............
297

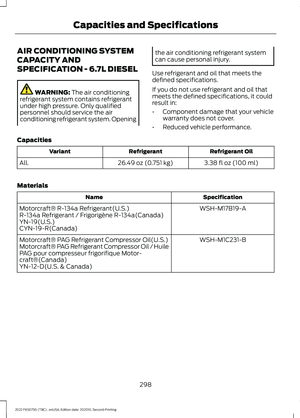

Air Conditioning System Capacity and Specification - 6.7L Diesel ..................
298
Air Conditioning System Capacity and Specification - 7.3L ................................
299
Washer Fluid Specification .....................
299

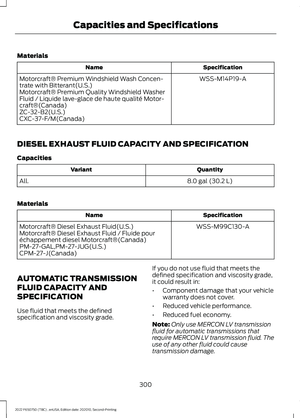

Diesel Exhaust Fluid Capacity and Specification ...........................................
300
Automatic Transmission Fluid Capacity and Specification ...................................
300

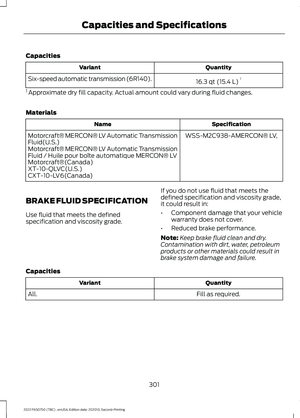

Brake Fluid Specification ..........................
301

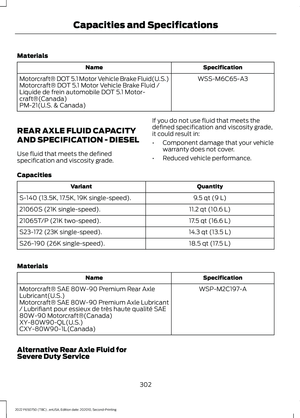

Rear Axle Fluid Capacity and Specification - Diesel ............................
302

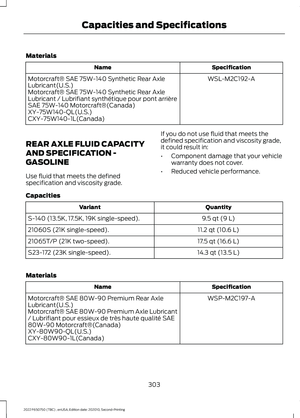

Rear Axle Fluid Capacity and Specification - Gasoline ......................
303

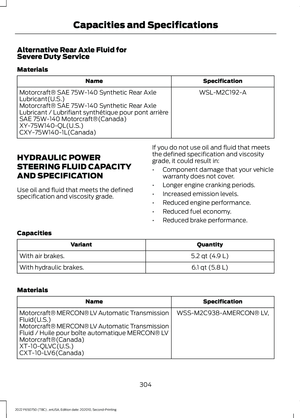

Hydraulic Power Steering Fluid Capacity and Specification ...................................
304
Vehicle Identification

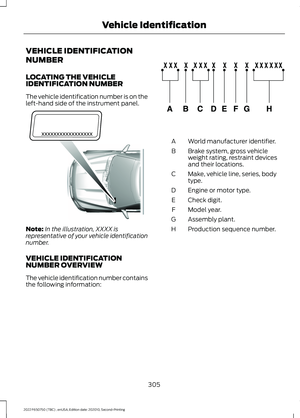

Vehicle Identification Number ..............
305

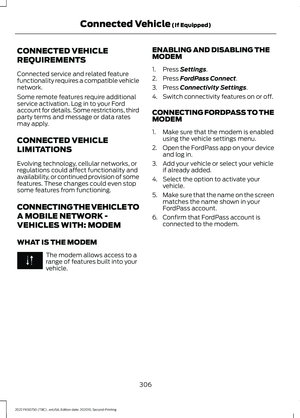

Connected Vehicle
Connected Vehicle Requirements .......
306
Connected Vehicle Limitations .............
306
Connecting the Vehicle to a Mobile Network - Vehicles With: Modem .....
306

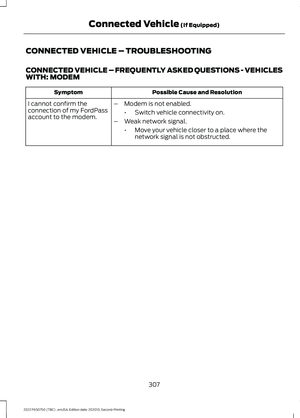

Connected Vehicle – Troubleshooting ........................................................................\
307 Audio System

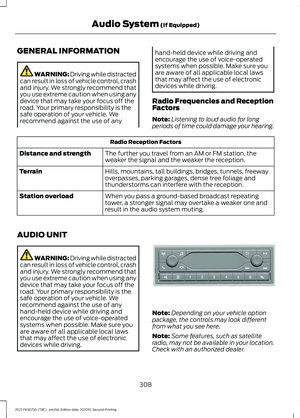

General Information
..................................
308

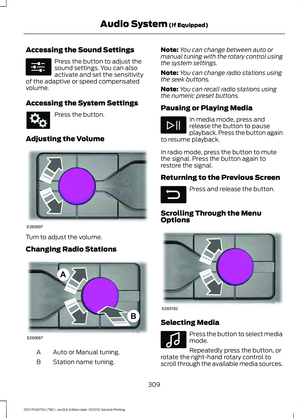

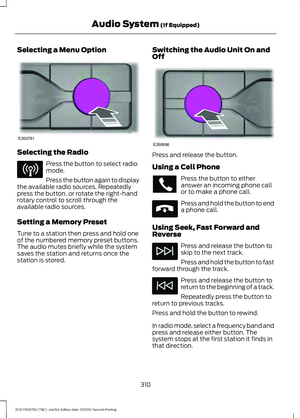

Audio Unit .....................................................
308

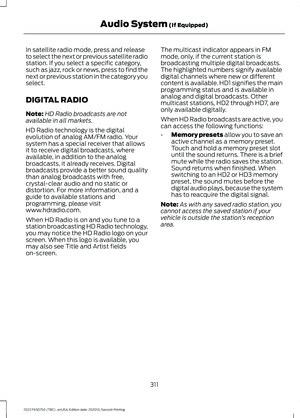

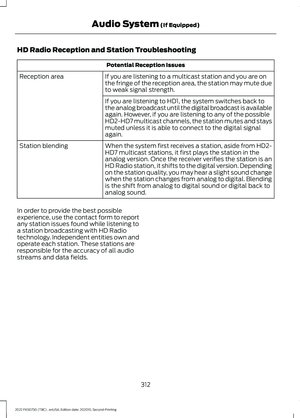

Digital Radio ...................................................
311

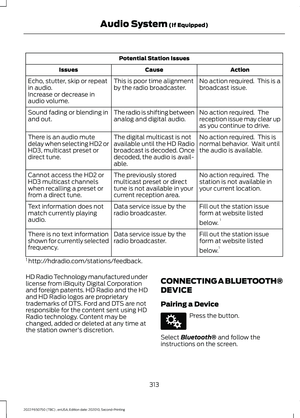

Connecting a Bluetooth® Device ..........
313

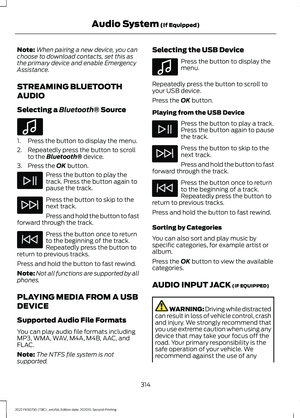

Streaming Bluetooth Audio .....................
314
Playing Media From a USB Device ........
314

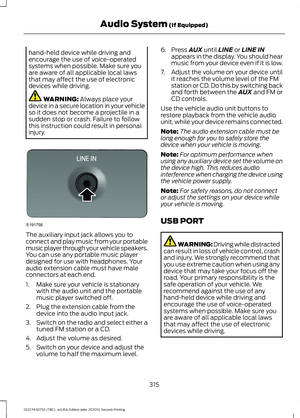

Audio Input Jack ...........................................
314
USB Port .........................................................
315

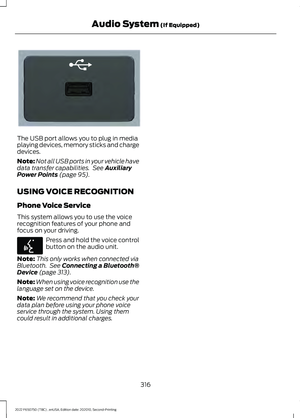

Using Voice Recognition ...........................
316
Accessories

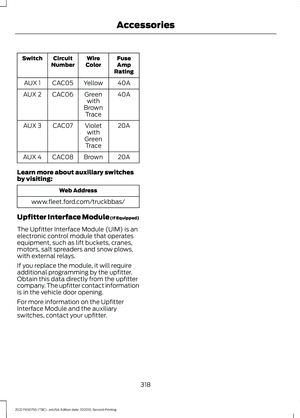

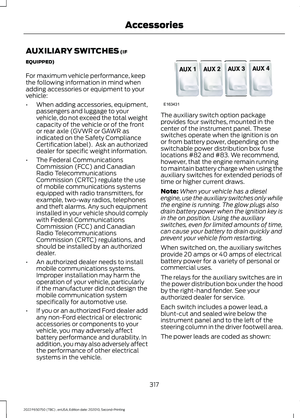

Auxiliary Switches ........................................
317
Ford Protect
Ford Protect ...................................................
319
Scheduled Maintenance

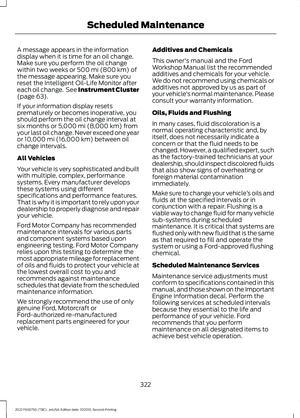

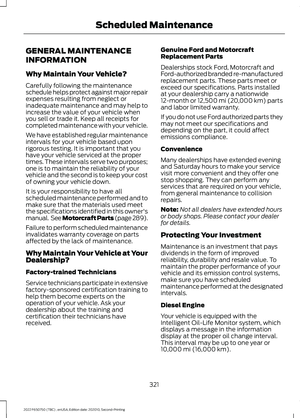

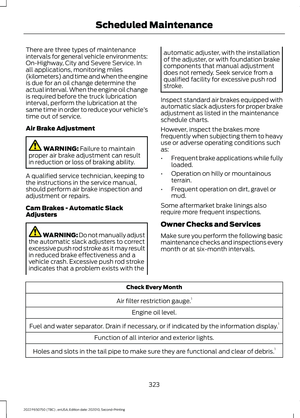

General Maintenance Information ........
321

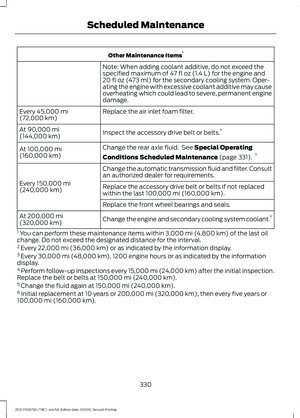

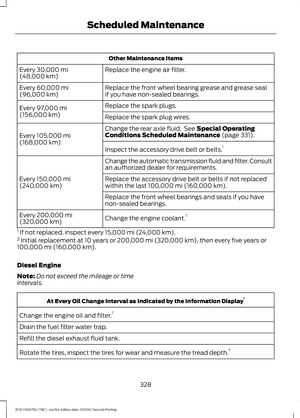

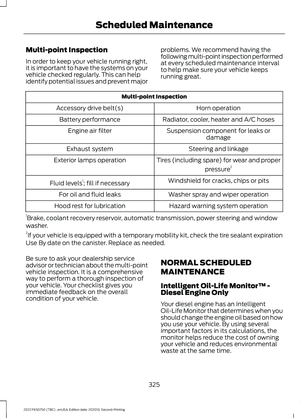

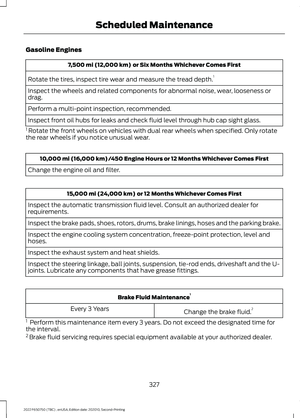

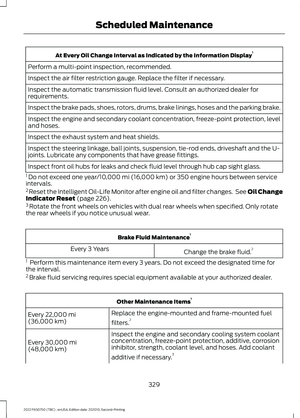

Normal Scheduled Maintenance ..........

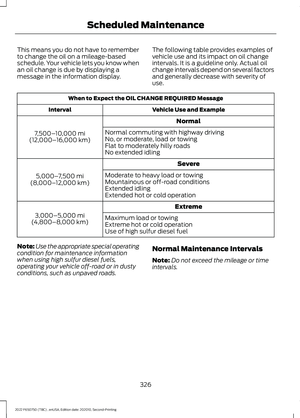

325

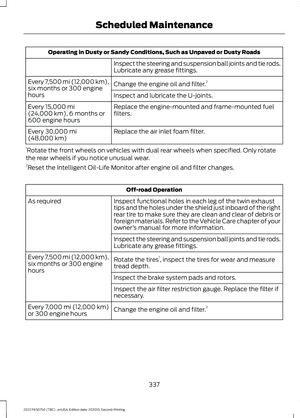

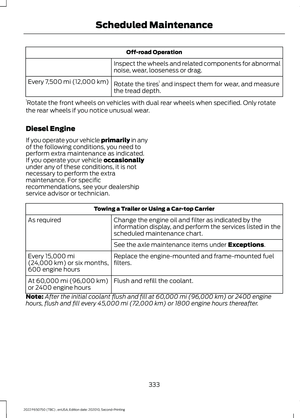

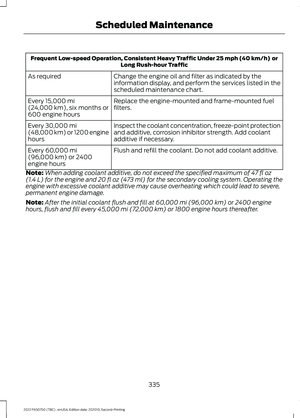

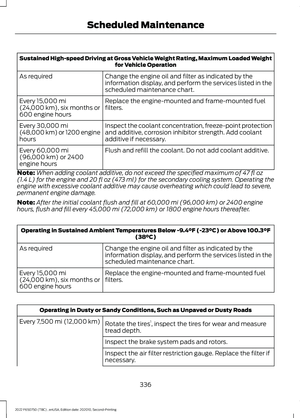

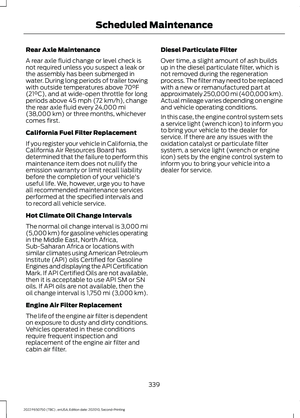

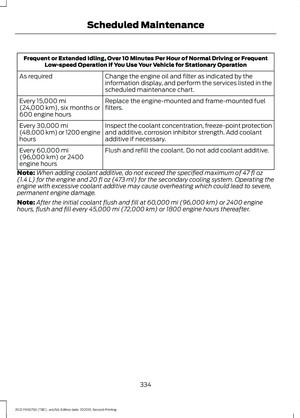

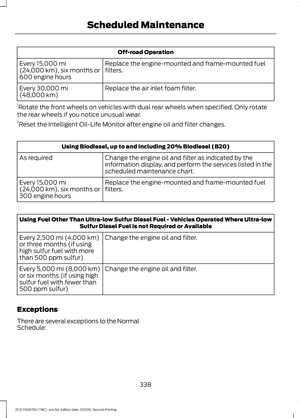

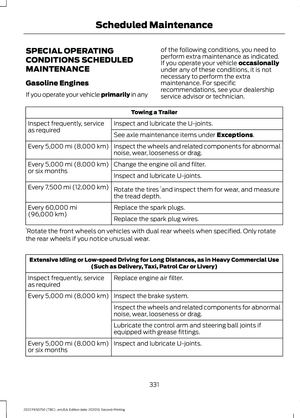

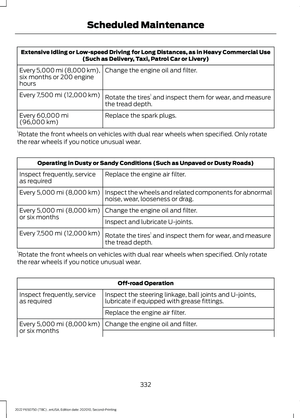

Special Operating Conditions Scheduled Maintenance ..............................................
331
Customer Information

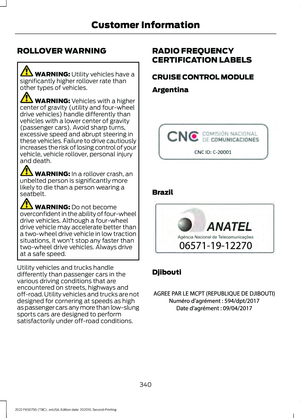

Rollover Warning ........................................
340

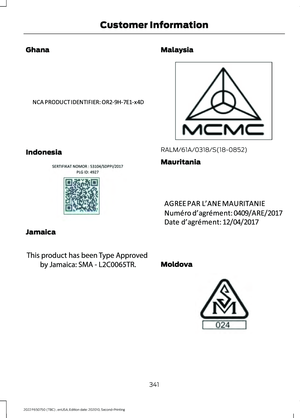

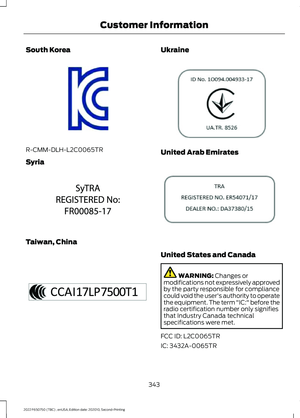

Radio Frequency Certification Labels .......................................................................
340
Appendices

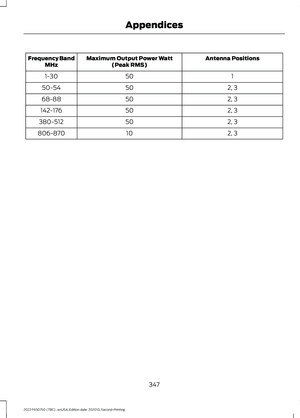

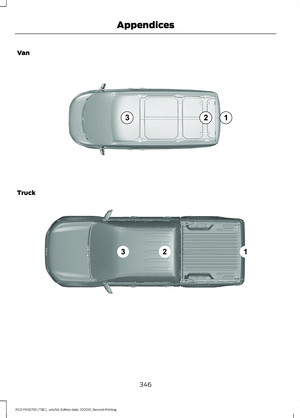

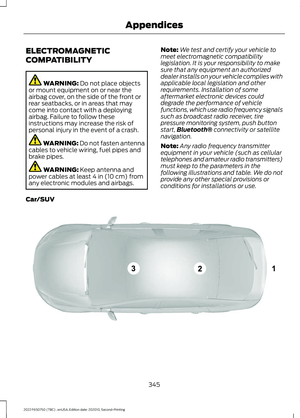

Electromagnetic Compatibility .............
345
End User License Agreement ................
348
5
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Table of Contents
