Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
274 Vehicle Care
Checking Brake Fluid
With the vehicle in P (Park) on a level
surface, the brake fluid level should be
between the minimum and maximum marks
on the brake fluid reservoir.
There are only two reasons why the brake
fluid level in the reservoir may go down:
.Normal brake lining wear. When new
linings are installed, the fluid level goes
back up.
.A fluid leak in the brake hydraulic system.
Have the brake hydraulic system fixed.
With a leak, the brakes will not
work well.
Always clean the brake fluid reservoir cap
and the area around the cap before
removing it.
Do not top off the brake fluid. Adding fluid
does not correct a leak. If fluid is added
when the linings are worn, there will be too
much fluid when new brake linings are
installed. Add or remove fluid, as necessary,
only when work is done on the brake
hydraulic system.
{Warning
If too much brake fluid is added, it can
spill on the engine and burn, if the
engine is hot enough. You or others could
be burned, and the vehicle could be
damaged. Add brake fluid only when
work is done on the brake hydraulic
system.
When the brake fluid falls to a low level,
the brake warning light comes on. See Brake
System Warning Light 0101.
Brake fluid absorbs water over time which
degrades the effectiveness of the brake fluid.
Replace brake fluid at the specified intervals
to prevent increased stopping distance. See
Maintenance Schedule 0329.
What to Add
Use only GM approved DOT 4 brake fluid
from a clean, sealed container. See
Recommended Fluids and Lubricants 0337.
{Warning
The wrong or contaminated brake fluid
could result in damage to the brake
system. This could result in the loss of
(Continued)
Warning (Continued)
braking leading to a possible injury.
Always use the proper GM approved
brake fluid.
Caution
If brake fluid is spilled on the vehicle's
painted surfaces, the paint finish can be
damaged. Immediately wash off any
painted surface.
Battery - North America
The original equipment battery is
maintenance free. Do not remove the cap
and do not add fluid.
Refer to the replacement number shown on
the original battery label when a new
battery is needed. For replacement of the
battery, see your dealer.
Stop/Start System
The vehicle has a Stop/Start system to shut
off the engine to help conserve fuel. See
Stop/Start System0202. It has an Absorbed

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
Vehicle Care 315
The good battery negative (–) terminal and
good battery positive (+) terminal are on
the battery of the vehicle providing the
jump start.
The discharged battery positive (+) terminal
is under a trim cover. Open the cover to
expose the terminal.1. Check the other vehicle. It must have a 12-volt battery with a negative ground
system.
Caution
If the other vehicle does not have a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
a vehicle that has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in P (Park) with an automatic
transmission, or Neutral with a manual
transmission.
Caution
If any accessories are left on or plugged
in during the jump starting procedure,
they could be damaged. The repairs
would not be covered by the vehicle
warranty. Whenever possible, turn off or
unplug all accessories on either vehicle
when jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both vehicles, except
the hazard warning flashers if needed.
{Warning
An electric fan can start up even when
the engine is not running and can injure
you. Keep hands, clothing, and tools
away from any underhood electric fan.
{Warning
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a flashlight if you need
more light.
(Continued)
Warning (Continued)
Battery fluid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on
your skin, flush the place with water and
get medical help immediately.
{Warning
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Connect one end of the red positive (+) cable to the discharged battery
positive (+) terminal.
6. Connect the other end of the red positive (+) cable to the good battery
positive (+) terminal.
7. Connect one end of the black negative (–) cable to the good battery negative
(–) terminal.
8. Connect the other end of the black negative (–) cable to the discharged
battery negative (–) grounding point.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
322 Vehicle Care
Caution
Using wax on low gloss black finish
stripes can increase the gloss level and
create a non-uniform finish. Clean low
gloss stripes with soap and water only.
Air Intakes
Clear debris from the air intakes, between
the hood and windshield, when washing the
vehicle.
Shutter System
The vehicle may have a shutter system
designed to help improve fuel economy.
Keep the shutter system clear of debris,snow and ice. If the check engine light is
activated, please check to see if the shutter
system is clear of debris, snow or ice.
Windshield and Wiper Blades
Clean the outside of the windshield with
glass cleaner.
Clean rubber blades using a lint-free cloth or
paper towel soaked with windshield washer
fluid or a mild detergent. Wash the
windshield thoroughly when cleaning the
blades. Bugs, road grime, sap, and a buildup
of vehicle wash/wax treatments may cause
wiper streaking.
Replace the wiper blades if they are worn or
damaged. Damage can be caused by
extreme dusty conditions, sand, salt, heat,
sun, snow, and ice.
Weatherstrips
Apply weatherstrip lubricant on
weatherstrips to make them last longer, seal
better, and not stick or squeak. Lubricate
weatherstrips at least once a year. Hot, dry
climates may require more frequent
application. Black marks from rubber
material on painted surfaces can be removed
by rubbing with a clean cloth. See
Recommended Fluids and Lubricants
0337.
Tires
Use a stiff brush with tire cleaner to clean
the tires.
Caution
Using petroleum-based tire dressing
products on the vehicle may damage the
paint finish and/or tires. When applying a
tire dressing, always wipe off any
overspray from all painted surfaces on
the vehicle.
Wheels and Wheel Trim
Use a soft, clean cloth with mild soap and
water to clean the wheels. After rinsing
thoroughly with clean water, dry with a
soft, clean towel. A wax may then be
applied.
Caution
Chrome wheels and chrome wheel trim
may be damaged if the vehicle is not
washed after driving on roads that have
been sprayed with magnesium chloride or
calcium chloride. These are used on roads
for conditions such as dust and ice.
Always wash the chrome with soap and
water after exposure.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21

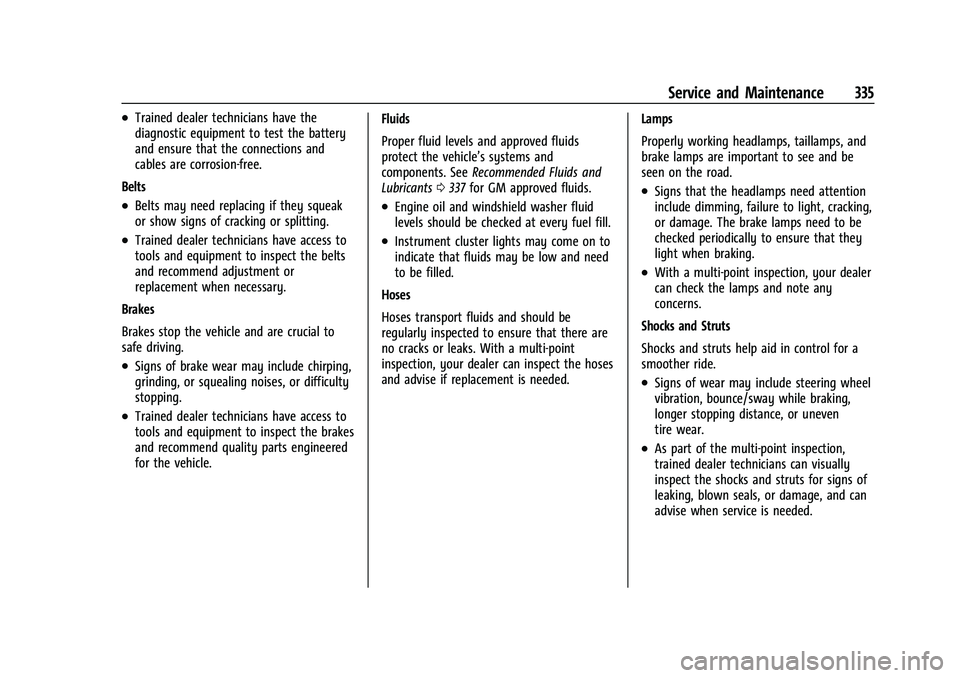

Service and Maintenance 335
.Trained dealer technicians have the
diagnostic equipment to test the battery
and ensure that the connections and
cables are corrosion-free.
Belts
.Belts may need replacing if they squeak
or show signs of cracking or splitting.
.Trained dealer technicians have access to
tools and equipment to inspect the belts
and recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle. Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See
Recommended Fluids and
Lubricants 0337 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed. Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
364 Index
IndexA
About Driving the Vehicle . . . . . . . . . . . . . . . . . .2
Accessories and Modifications . . . . . . . . . . . 256
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 206
Adaptive Cruise Control . . . . . . . . . . . . . . . . . . .218
Add-On Electrical Equipment . . . . . . . . . . . . . 254
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Additional Maintenance and Care . . . . . . . . 334
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 38
Agreements Trademarks and License . . . . . . . . . . . . . . . . 173
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . 265
Air Conditioning . . . . . . . . . . . . . . . . . . . . . 182, 184
Air Filter
Life System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Air Filter, Passenger Compartment . . . . . . . 188
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
How Does an Airbag Restrain? . . . . . . . . . . 56
Passenger Sensing System . . . . . . . . . . . . . . 57
What Makes an Airbag Inflate? . . . . . . . . . 56
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
When Should an Airbag Inflate? . . . . . . . . 55
Where Are the Airbags? . . . . . . . . . . . . . . . . 53 Airbags
Adding Equipment to the Vehicle . . . . . . . 61
Passenger Status Indicator . . . . . . . . . . . . . . 99
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 98
Servicing Airbag-Equipped Vehicles . . . . . . 60
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Alarm
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 25
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Rear Cross Traffic . . . . . . . . . . . . . . . . . . . . . . 233
Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 239
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 292
All-Wheel Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 276
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Antenna
Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Antilock Brake System (ABS) . . . . . . . . . . . . . . 212 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 102
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Apple CarPlay and Android Auto . . . . . . . . . 163
Armrest
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Assistance Program, Roadside . . . . . . . . . . . . 348

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
Index 365
Assistance Systems for Driving . . . . . . . . . . 233
Assistance Systems for Parking andBacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . . . . . . 202
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Emergency Braking (AEB) . . . . . . . . . . . . . . 236
Headlamp System . . . . . . . . . . . . . . . . . . . . . 125
Parking Assist (APA) . . . . . . . . . . . . . . . . . . . 231
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 265
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 210
Shift Lock Control Function Check . . . . . . 276
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Avoiding Untrusted Media Devices . . . . . . . 139
B
Battery Exterior Lighting Battery Saver . . . . . . . . 129
Load Management . . . . . . . . . . . . . . . . . . . . . 129
Power Protection . . . . . . . . . . . . . . . . . . . . . . 129
Battery - North America . . . . . . . . . . . . . 274, 314
Blade Replacement, Wiper . . . . . . . . . . . . . . . 277 Bluetooth
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 159, 160
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . .142
Brake Electric Boost . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Parking, Electric . . . . . . . . . . . . . . . . . . . . . . . . 212
System Warning Light . . . . . . . . . . . . . . . . . 101
Brake Pad Life System . . . . . . . . . . . . . . . . . . . 273
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Pad Life System . . . . . . . . . . . . . . . . . . . . . . . 273
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Automatic Emergency (AEB) . . . . . . . . . . . 236
Braking System
Front Pedestrian (FPB) . . . . . . . . . . . . . . . . . 237
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 199
Bulb Replacement Front Turn Signal and Fog Lamps . . . . . . 281
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 279
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 279
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Headlamps and Sidemarker Lamps . . . . . 279
Taillamps, Turn Signal,Sidemarker, Stoplamps, and
Backup Lamps . . . . . . . . . . . . . . . . . . . 282, 284
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 304
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . . . . . . 256
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . . . . . . .274, 314, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 228
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 342
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 208
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 195
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Management System . . . . . . . . . . . . . . . . . . . 81
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center Console Storage . . . . . . . . . . . . . . . . . . . 79
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Charging System Light . . . . . . . . . . . . . . . . . . . . 99

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
366 Index
CheckEngine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Child Restraints Infants and Young Children . . . . . . . . . . . . . 63
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74, 75
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Climate Control Systems . . . . . . . . . . . . . . . . . .182 Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 182
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 184
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . 93
Collision Damage Repair . . . . . . . . . . . . . . . . . . 351
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 313
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Connected Services
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 Connected Services (cont'd)
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 361
Control Traction and Electronic Stability . . . . . . . 214
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 192
Controls
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 132
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 97
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182, 184
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Courtesy Transportation Program . . . . . . . . 350
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Coverage Explanations . . . . . . . . . . . . . . . . . . . .154
Covers Rear Compartment/Storage Panel . . . . . . . 80
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cruise Control, Adaptive . . . . . . . . . . . . . . . . . .218
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 347 Customer Assistance (cont'd)
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Text Telephone (TTY) Users . . . . . . . . . . . . 347
Customer Information Publications Ordering Information . . . . . 352
Customer Satisfaction Procedure . . . . . . . . . 345
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . . 351
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 355
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 355
Database Coverage Explanations . . . . . . . . . .154
Daytime Running Lamps (DRL) . . . . . . . . . . . . 125
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . . 191
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 363
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . . 191
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15481080) - 2022 - CRC - 6/1/21
Index 367
Door (cont'd)Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 344
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . . 211, 276
Driver Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Driver Assistance Systems . . . . . . . . . . . . . . . 227
Driver Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Driver Information Center (DIC) . . . . . .107, 109
Driving Assistance Systems . . . . . . . . . . . . . . . . . . . . 233
Better Fuel Economy . . . . . . . . . . . . . . . . . . . 190
Characteristics and Towing Tips . . . . . . . . 246
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Hill and Mountain Roads . . . . . . . . . . . . . . 194
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 196
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 193
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 193
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 197
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Driving the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .2
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184E
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . . . . 212
Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . 212
Electric Parking Brake Light . . . . . . . . . . . . . . 102
Electrical Equipment, Add-On . . . . . . . . . . . . 254
Electrical SystemEngine Compartment Fuse Block . . . . . . . 287
Fuses and Circuit Breakers . . . . . . . . . . . . . 286
Instrument Panel Fuse Block . . . . . . . . . . . 289
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Rear Compartment Fuse Block . . . . . . . . . 291
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Engine
Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 265
Check Light (Malfunction Indicator) . . . . 100
Compartment Overview . . . . . . . . . . . . . . . . 259
Coolant Temperature Gauge . . . . . . . . . . . . 97
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 267
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 344
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 264
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . 105
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 116
Running While Parked . . . . . . . . . . . . . . . . . 208
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201 Engine Air Filter Life System . . . . . . . . . . . . . 265
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . 252
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 355
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 208
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 50
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 123
Exterior Lighting Battery Saver . . . . . . . . . . 129
F
Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 265
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Flashers, Hazard Warning . . . . . . . . . . . . . . . . 126
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Fluid Automatic Transmission . . . . . . . . . . . . . . . 265
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Folding Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Forward Collision Alert (FCA) System . . . . 233
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
