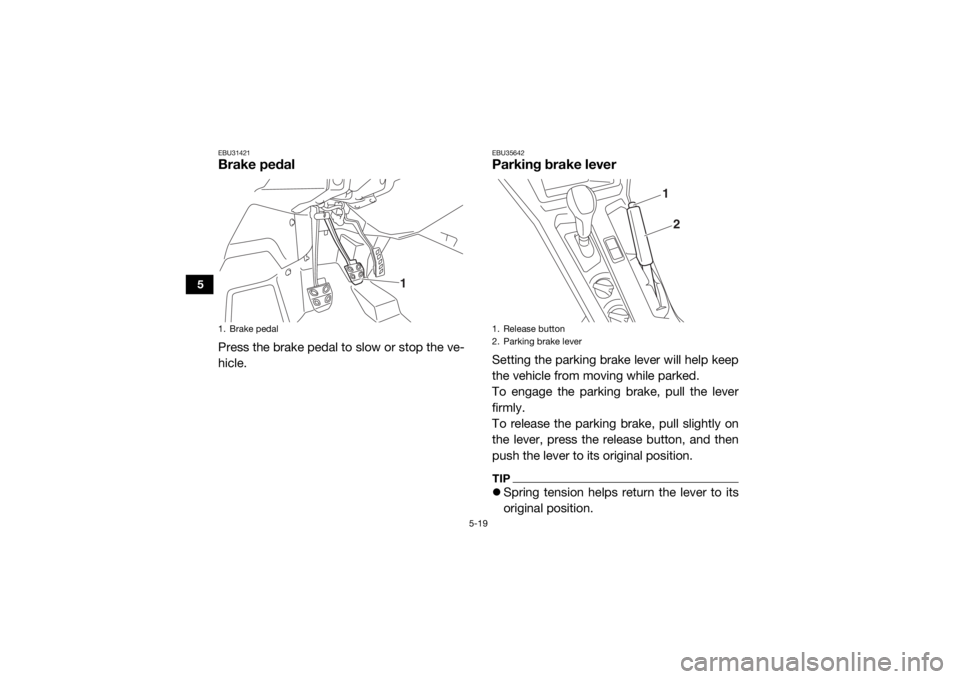

EBU31421Brake pedalPress the brake pedal to slow or stop the ve-
hicle.
EBU35642Parking brake leverSetting the parking brake lever will help keep
the vehicle from moving while parked.
To engage the parking brake, pull the lever
firmly.
To release the parking brake, pull slightly on
the lever, press the release button, and then
push the lever to its original position.TIPSpring tension helps return the lever to its
original position.
1. Brake pedal
1
1. Release button
2. Parking brake lever
12
UB5J7CE0.book Page 19 Thursday, November 26, 2020 1:37 PM

5-25
5
EBU31503Glove compartmentStore lightweight or frequently used items,
such as your driving gloves or vehicle docu-
ments, in this compartment.
NOTICEECB02071To protect from damage, do not put metal
items, like tools, or sharply edged items di-
rectly in the glove compartment. If they
must be stored, wrap them in appropriate
cushioning material. EBU38570Storage compartments
1. Unlock.
2. Open.Glove compartment load limit: 4.5 kg (9 lb)
1
2
1. Storage compartment
1
UB5J7CE0.book Page 25 Thursday, November 26, 2020 1:37 PM

5-44
5
This model has an auxiliary DC jack located at
the left side of the glove compartment. A 12-
V accessory with the proper plug, such as a
radio or smartphone charger, can be used
when the engine is running and the headlights
are off.1. Start the engine. (See page 7-2.)
2. Turn the headlights off. (See page 5-16.)
3. Open the auxiliary DC jack cap.
4. Make sure the accessory is off.
5. Insert the accessory power plug.
6. Turn the accessory on.TIP Turn off the accessory before plugging in-
to/unplugging from the jack.
 When the auxiliary DC jack is not being
used, cover it with the cap.
NOTICEECB02251Do not use accessories requiring more
than the stated maximum capacity. Do-
ing so may overload the circuit and cau-
se the fuse to blow.
 If accessories are used while the head-
lights are on and/or without the engine
running, the battery may discharge.
 Do not use an automotive cigarette light-
er or other accessories with a plug that
gets hot, because the jack can be dam-
aged.
Auxiliary DC jack maximum capacity:
10.0 A (120 W)
UB5J7CE0.book Page 44 Thursday, November 26, 2020 1:37 PM

6-2
6
Engine oil• Check oil level.
• Fill with oil to proper level if necessary.
6-6, 9-16
Drivetrain • Check front differential, transmission case, and rear final
gear for leakage. 6-6, 6-6, 6-6, 9-27,
9-30, 9-32
Coolant • Check coolant level in reservoir.
• Fill with coolant if necessary. 6-6, 9-34
Accelerator pedal • Check free play and for proper operation. 6-7
Seat belts • Check for proper operation and belt wear. 6-7
Passenger handhold • Check for stability and proper fastening. 6-7, 8-8
Steering • Check for proper operation. 6-7
Shift lever • Check for proper operation. 6-8
Fittings and fasteners • Check all fittings and fasteners. 6-8
Instruments, lights and
switches • Check for proper operation.
4-3, 5-2, 6-8, 9-65,
9-65
Wheels and tires • Check tire pressure and for wear and damage. 6-8, 9-56, 9-57
Axle boots • Check for damage. 9-36
ITEM
ROUTINE PAGE
UB5J7CE0.book Page 2 Thursday, November 26, 2020 1:37 PM

6-4
6
Clutch fluid
Depress and release the clutch pedal five
times. Check to see if any fluid is leaking out
of the hoses, reservoir, or master cylinder.
Check the clutch fluid level and correct if nec-
essary. (See page 9-47.)TIPIf any leakage is found, or if the clutch pedal
offers little resistance, have a Yamaha dealer
service the vehicle. EBU36972FuelMake sure there is sufficient fuel in the tank.
Refuel if necessary.
WARNING
EWB02522Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce the risk of injury
when refueling, follow these instructions.
1. Before refueling, turn off the engine andbe sure that no one is sitting in the vehi-
cle.
Never refuel while smoking, or while in
the vicinity of sparks, open flames, or
other sources of ignition such as the pilot
lights of water heaters and clothes dry-
ers.
2. Do not overfill the fuel tank. Because fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill
out of the fuel tank.
3. Wipe up any spilled fuel immediately.
4. Be sure the fuel tank cap is closed se- curely.
WARNING
EWB02532Gasoline is poisonous and can cause inju-
ry or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale a
lot of gasoline vapor, or get some gasoline
in your eyes, see your doctor immediately.
UB5J7CE0.book Page 4 Thursday, November 26, 2020 1:37 PM

6-8
6
EBU35690Shift leverThe shift lever should move smoothly both
forward and backwards and return to its orig-
inal position after a gear change is made.
Check the shift lever and transmission for
roughness before starting off.TIPThe engine may need to be started for the
transmission to engage gears. EBU31832Fittings and fastenersAlways check the tightness of chassis fittings
and fasteners before starting off. Take the ve-
hicle to a Yamaha dealer or refer to the Servi-
ce Manual for correct tightening torque.EBU31840Instruments, lights and switchesCheck that all instruments, lights and switch-
es are working properly. Correct if necessary.
EBU31851Control cablesWhen driving in cold weather, always make
sure all control cables work smoothly before
starting off. WARNING! Control cables can
freeze in cold weather and you could be
unable to control the vehicle.
[EWB03280]
EBU37895
TiresCheck and adjust the tire pressure before
each ride. Check tires for wear and damage.
Tire pressure1. Tire pressure gauge
1
UB5J7CE0.book Page 8 Thursday, November 26, 2020 1:37 PM

7-2
7
10–20 hours:
Avoid prolonged operation above 6300 r/min.
After break-in:
The vehicle may now be operated normally.EBU35342Starting the engine1. Turn the key to “ ” (on).NOTICEECB02291The coolant temperature warning light and
engine trouble warning light should come
on, then go off.
The EPS warning light should come on,
then go off when the engine is started.
To avoid possible damage, do not operate
the vehicle if a warning light does not work
as described above. 2. Press the brake pedal.
3. Shift the transmission into neutral.
When the transmission is in the neutral
position, the transmission gear display
shows “N” and the neutral indicator
light should come on.
 The engine can be started in any gear if
the clutch pedal is applied. However, it
is recommended to shift into neutral
before starting the engine.
4. With your foot off the accelerator pedal, start the engine by turning the key to “ ”
(start).
If the engine fails to start, release the key, and
then try starting it again. Wait a few seconds
before the next attempt. Each attempt should
be as short as possible, to preserve battery
energy. NOTICE: Do not crank the engine
more than 5 seconds on each attempt, or
starter damage could occur. Wait at least
5 seconds between each operation of the
electric starter to let it cool.
[ECB02140]
Do not turn the key to the “ ” (start) position
with the engine running; otherwise, damage
to the electric starter may result.
UB5J7CE0.book Page 2 Thursday, November 26, 2020 1:37 PM

7-3
7
TIPFor maximum engine life, never accelerate
hard when the engine is cold! EBU35413Shift lever operation and reverse driv-
ingThis vehicle has a 5-speed forward and 1-
speed reverse transmission. The transmis-
sion allows you to control the amount of pow-
er you have available at a given speed or for
starting, accelerating, climbing hills, etc.
To shift into neutral, release the accelerator
pedal, apply the clutch, and then repeatedly
move the shift lever forward until it stops.
When it stops, it will be in first gear. Move the
shift lever rearward slightly to reach the neu-
tral position, and then release the clutch.
NOTICEECB03040 Even with the transmission in the neutral
position, do not coast for long periods of
time with the engine off. The transmis-
sion is properly lubri cated only when the
engine is running. Inadequate lubrication
may damage the transmission.1. Shift lever
2. Neutral position
1
2
R 1
N 2
3
4
5
