2021 TOYOTA MIRAI trunk

1
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Active Sound Control (ASC) 16
Audio 28
Auto lock/unlock
1,2 14
Air conditioning/heating 34-35
Automatic transmission 14
Bird’s Eye View Camera with
Perimeter Scan 39
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 38
Clock 18
Cup holders 19
Door locks 16
Driving mode select switch 15
Electric parking brake 24
Electric sunshade 18
Front and Rear Parking Assist
with Automated Braking 40
Garage door opener (Homelink
®)3 21
Head-Up Display (HUD) 23
Heated/ventilated seats 33
Intuitive parking assist 41
Lights
1 & turn signals 26
Luggage security system 18
Multi-Information Display (MID)
2 22
Power outlet-12V DC 30
Power outlet-120V AC 30
Power windows 16
Qi wireless charger 31
RCD (Rear Camera Detection) 37
INDEX
Fuel cell compartment
maintenance 9
Fuel door release button & cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
Hydrogen Fuel Cell System 10-13
Water release (H
2O) switch 13
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Rear sunshade 19
Rear view monitor system 36
Seat adjustments-Front 20
Seats-Head restraints 20
Snow mode 15
Steering lock release 17
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 17
Toyota multi-operation touch 32
USB charge ports 29
USB media port 29
Vehicle Stability Control (VSC)/
TRAC OFF switch 36
Windshield wipers & washer 25
Emergency tire puncture repair kit 62
Floor mat installation 65
Rear door child safety locks 60
Safety Connect
® 60
Seat belts 61
Seat belts-Shoulder belt anchor 61
Star Safety System
™ 64-65
Tire Pressure Monitoring
(warning) System (TPMS) 63
Trunk-Internal release 61
TOYOTA SAFETY SENSE™ 2.5+ (TSS 2.5+)
Automatic High Beams (AHB) 57-58
Full-Speed Range Dynamic
Radar Cruise Control (DRCC) 54-56
Lane Departure Alert with
Steering Assist (LDA w/SA) 46-49
Lane Tracing Assist (LTA) 50-53
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense
™ 2.5+ (TSS 2.5+) 42
Road Sign Assist (RSA) 58-59
Sensors 43
BLUETOOTH® DEVICE
PAIRING SECTION 66-68

2
OVERVIEWInstrument panel
Steering wheel controls
Telephone switch2
Voice command switch2
Audio control switches2Audio volume
control switch2
Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
“POWER” button
Meters/Multi-Information Display (MID)
VSC OFF switch Power outlet-120V AC
1
Hood lock release lever
Trunk opener switch
Fuel tank door release switch
Windshield wiper
de-icer switch
ASC (Active Sound Control) switch
1
Bird’s Eye View Camera ON/OFF switch1,2
“ODO/TRIP” switch
Automatic High Beams (AHB) switch
Power tilt and telescopic steering
control switch
1
Tilt and telescopic
steering release lever1
Instrument panel light control switches
HUD (Head-Up Display) switch
1
Meter control switches
Full-Speed Range Dynamic Radar Cruise Control
(DRCC) vehicle-to-vehicle distance switch
Lane Tracing Assist (LTA)/Lane Departure Alert
with Steering Assist (LDA w/SA) switch
Headlights/turn signals control Windshield wiper and washer control

3
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Snow mode switch
Driving mode select switch “P” position switch
Electric parking brake
switch
Brake hold switch
Water release (H2O) switch
Luggage security system
(disable trunk opener) switch
1If equipped.2For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Air conditioning/heating control panel
Emergency flasher switch
Audio/Navigation system
2,
Air conditioning/heating controls

6
Keyless entry
OVERVIEW
Push
Push and hold
Push
ONCE: Driver door TWICE: All doors
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping any passenger door handle will unlock all doors.
Please refer to the Owner’s Manual for more details on how to program\
the doors.
NOTE: Doors may also be locked/unlocked using remote.
Carry Smart Key remote
Grasp
Driver door unlock*
TRUNK LID
Carry Smart Key remote
Unlock
Push
UNLOCKING
LOCKING
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Carry Smart Key remote
All-door lock
Touch

18
FEATURES & OPERATIONSLuggage security system
To disable the trunk opener switch,
turn the main switch.
To protect luggage stored in the trunk against theft, the luggage securi\
ty system
can be set to on.
When the main switch is off, the trunk lid cannot be opened even with th\
e wireless
remote control or the entry function.
On Off
Trunk opener main switch (in the glove box)
Clock
Electric sunshade (if equipped)
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select the desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
Select to change the time zone.
Select to set daylight saving
time On/Off/Auto.
Select to set to automatic
GPS adjustment of clock.
Select to set the 24 hour
time format on/off.
Lightly press either side of the switch while opening/closing is in prog\
ress, the
electric sunshade stops partway.
Open
Close

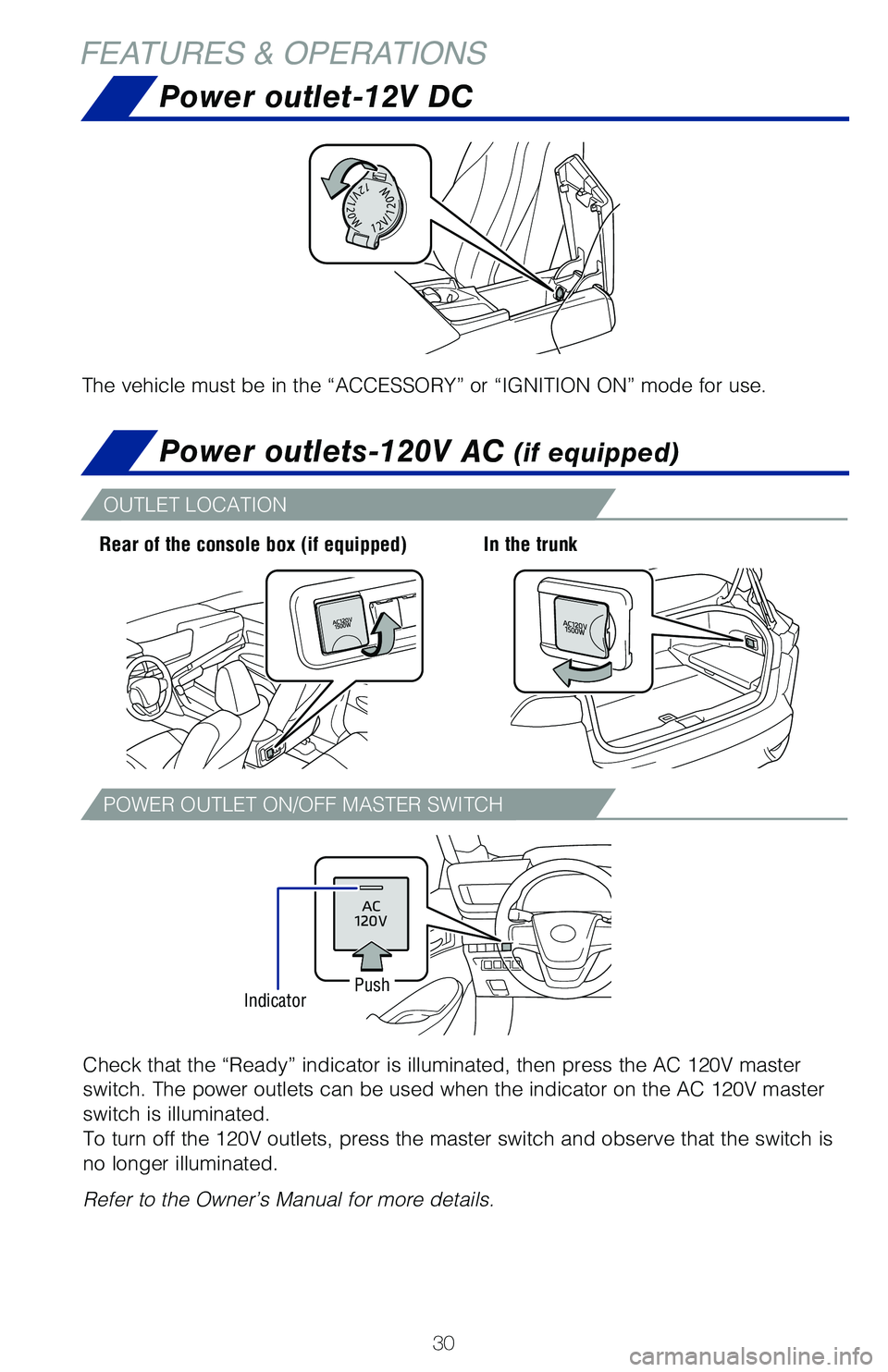

30
FEATURES & OPERATIONS
Power outlet-12V DC
The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode\
for use.
Power outlets-120V AC (if equipped)
Check that the “Ready” indicator is illuminated, then press the AC\
120V master
switch. The power outlets can be used when the indicator on the AC 120V \
master
switch is illuminated.
To turn off the 120V outlets, press the master switch and observe that t\
he switch is
no longer illuminated.
Refer to the Owner’s Manual for more details.
Rear of the console box (if equipped) In the trunk
OUTLET LOCATION
POWER OUTLET ON/OFF MASTER SWITCH
IndicatorPush

61
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seat belts
Seat belts-Shoulder belt anchor
Keep as low on
hips as possible
Take up slack
Too high
Push up, or squeeze
lock release to lower
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Pull
Trunk-Internal release
