TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situ\
ations, in
certain conditions. TSS 2.0 is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.\
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Quick overview-Toyota Safety Sense™ 2.0
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help
keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert
the driver with an audio and visual alert, urging them to take a break.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate.
Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward-
facing camera to provide information to the driver via the display.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the forward-facing camera to help recognize a preceding
pedestrian or bicyclist, and provide an alert, mitigation and/or
avoidance support in certain conditions.
Dynamic Radar Cruise Control (DRCC)* or
Full-Speed Range Dynamic Radar Cruise Control (DRCC)**
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.
Full-Speed Range DRCC is the same as regular DRCC except the
available speed range is extended down to 0 MPH.
Lane Tracing Assist (LTA)**
LTA contains all the features of LDA described above and additionally
is designed to help keep the vehicle in the center of a lane by assisting
the driver in steering control when using Full-Speed Range DRCC**.
* Available only on vehicles with manual transmissions

** Available only on vehicles with continuously variable transmissions

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Grille-mounted radar Forward-facing camera
Sensors
TSS 2.0 combines a forward-facing camera mounted in front of the inside rea\
r view
mirror and a grille-mounted radar mounted in the front grille. These sensors s\
upport the
driver assist systems.
The Pre-Collision System uses a grille-mounted radar and forward-facing cam\
era to
help detect a vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control perf\
ormance
that this system can provide, do not overly rely on this system. This system\
will not
prevent collisions or lessen collision damage or injury in every situation. Do \
not use
PCS instead of normal braking operations under any circumstances. Do not at\
tempt to
test the operation of the Pre-Collision System yourself, as the system may n\
ot operate
or engage, possibly leading to an accident. In some situations, such as wh\
en driving
in inclement weather such as heavy rain, fog, snow or a sandstorm or while\
driving
on a curve and for a few seconds after driving on a curve, a vehicle or pe\
destrian or
bicyclist may not be detected by the grille-mounted radar and forward-facing came\
ra,
preventing the system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in \
which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is hi\
gh, a buzzer
will sound and a warning message will be displayed on the Multi-Information \
Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additi\
onal braking
force using Brake Assist. This system may prime the brakes and may apply grea\
ter
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
CHANGING PCS ALERT TIMING
DISABLING PRE-COLLISION SYSTEM (PCS)
Far Middle
(default) Near
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “ (PCS)” and then press “.” The setting
screen is displayed.
(3) Press “
” switches and select “Adjust alert timing” and then press “” to
select the desired setting. Each time it is pressed, the response to the PCS a\
lert
timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
(1) Press “
” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “ (PCS)” and then press “.” The setting
screen is displayed.
(3) Press “
” switches and select “PCS” and then press “” to select the desired
setting.
(4) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON mode.
Refer to the Toyota Owner’s Manual for additional information on PCS opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
LANE DEPARTURE ALERT
LDA function display
Operation display
of steering wheel
operation support LDA indicator
Lane markers/road edge
(2)
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
The LDA function displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible\
lane
markers or the road are detected. A side flashes orange to alert the driver whe\
n the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers or the road
are not detected or the function is temporarily canceled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.

30

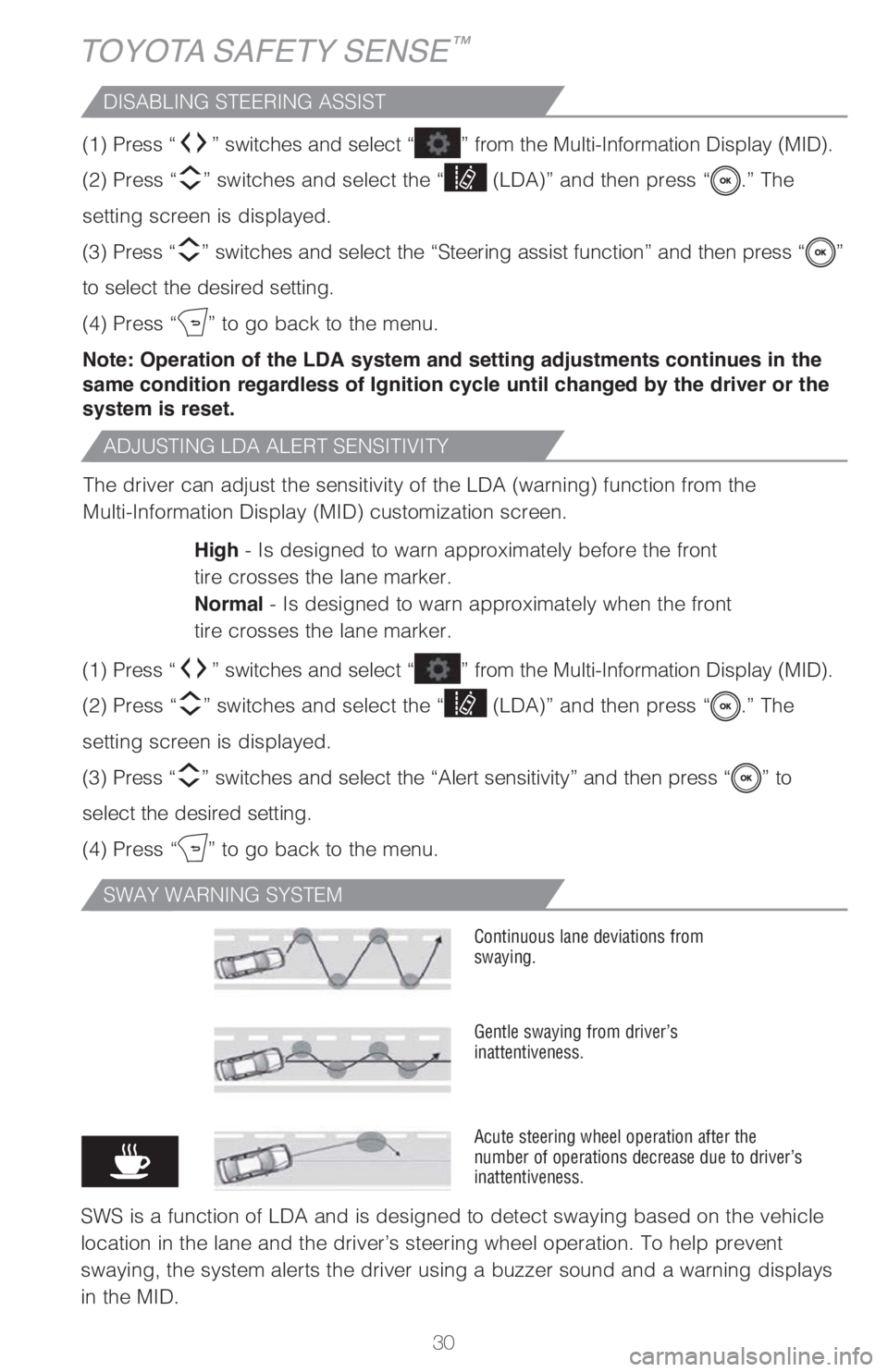

ADJUSTING LDA ALERT SENSITIVITY
DISABLING STEERING ASSIST
The driver can adjust the sensitivity of the LDA (warning) function from \
the
Multi-Information Display (MID) customization screen.High - Is designed to warn approximately before the front
tire crosses the lane marker.
Normal - Is designed to warn approximately when the front
tire crosses the lane marker.
TOYOTA SAFETY SENSE™
SWAY WARNING SYSTEM
SWS is a function of LDA and is designed to detect swaying based on the veh\
icle
location in the lane and the driver’s steering wheel operation. To help preve\
nt
swaying, the system alerts the driver using a buzzer sound and a warning display\
s
in the MID.
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LDA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Alert sensitivity” and then press “” to
select the desired setting.
(4) Press “
” to go back to the menu.
(1) Press “
”
switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LDA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Steering assist function” and then press\
“”
to select the desired setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.

31
DISABLING LDA SWAY WARNING ALERT
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LDA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Vehicle sway warning sensitivity” and th\
en
press “
” to select the desired setting.
(4) Press “
” to go back to the menu.
(1) Press “
”
switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LDA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Vehicle sway warning function” and then
press “
” to select the desired setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
ADJUSTING SWAY ALERT SENSITIVITY

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
LANE TRACING ASSIST
LTA function display
Operation display
of steering wheel
operation support Follow-up
cruising display
LTA indicator
Lane markers
(2)
(1)
Lane Tracing Assist (LTA) indicator flashes orange when operating.
The LTA function displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the LTA indicator when visible\
lane
markers on the road are detected. A side flashes orange to alert the driver whe\
n the
vehicle deviates from its lane.
(2) The system displays outlines on the LTA indicator when lane markers on the road
are not detected or the function is temporarily canceled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LTA may not
function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LTA opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.

34
TOYOTA SAFETY SENSE™
ADJUSTING LTA ALERT SENSITIVITY
DISABLING STEERING ASSIST
The driver can adjust the sensitivity of the LTA (warning) function from \
the
Multi-Information Display (MID) customization screen.High - Is designed to warn approximately before the front
tire crosses the lane marker.
Normal - Is designed to warn approximately when the front
tire crosses the lane marker.
(1) Press “
”
switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LTA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Steering assist function” and then press\
“”
to select the desired setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LTA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
(1) Press “
” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ (LTA)” and then press “.” The
setting screen is displayed.
(3) Press “
” switches and select the “Alert sensitivity” and then press “” to
select the desired setting.
(4) Press “
” to go back to the menu.
