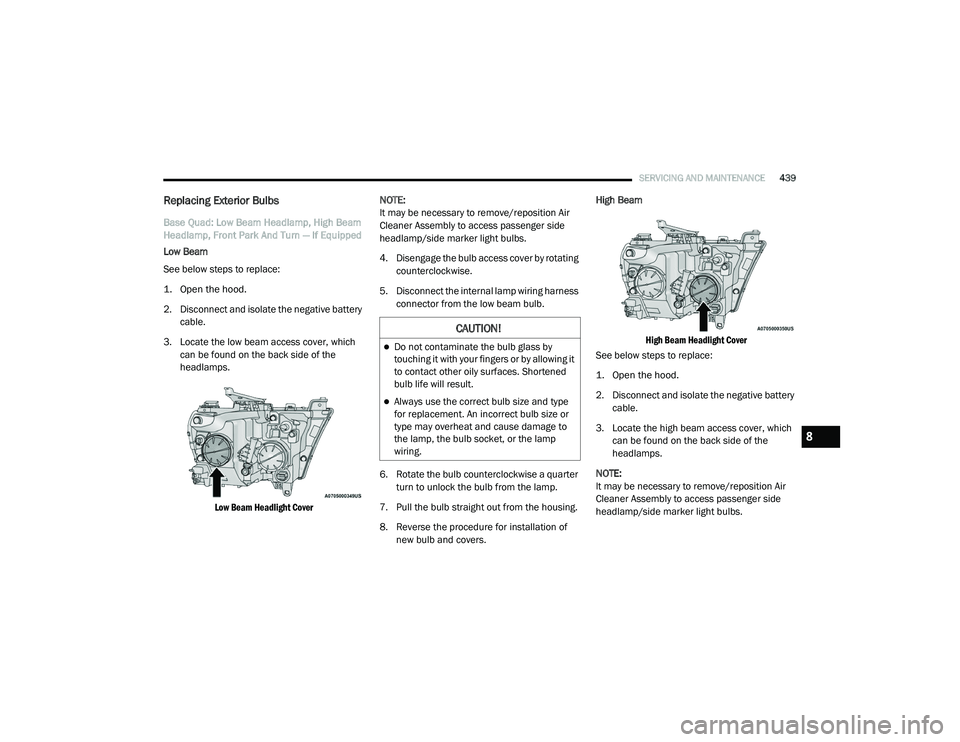

SERVICING AND MAINTENANCE439
Replacing Exterior Bulbs
Base Quad: Low Beam Headlamp, High Beam
Headlamp, Front Park And Turn — If Equipped
Low Beam
See below steps to replace:
1. Open the hood.
2. Disconnect and isolate the negative battery
cable.
3. Locate the low beam access cover, which can be found on the back side of the
headlamps.
Low Beam Headlight Cover
NOTE:
It may be necessary to remove/reposition Air
Cleaner Assembly to access passenger side
headlamp/side marker light bulbs.
4. Disengage the bulb access cover by rotating
counterclockwise.
5. Disconnect the internal lamp wiring harness connector from the low beam bulb.
6. Rotate the bulb counterclockwise a quarter turn to unlock the bulb from the lamp.
7. Pull the bulb straight out from the housing.
8. Reverse the procedure for installation of new bulb and covers. High Beam
High Beam Headlight Cover
See below steps to replace:
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Locate the high beam access cover, which can be found on the back side of the
headlamps.
NOTE:
It may be necessary to remove/reposition Air
Cleaner Assembly to access passenger side
headlamp/side marker light bulbs.
CAUTION!
Do not contaminate the bulb glass by
touching it with your fingers or by allowing it
to contact other oily surfaces. Shortened
bulb life will result.
Always use the correct bulb size and type
for replacement. An incorrect bulb size or
type may overheat and cause damage to
the lamp, the bulb socket, or the lamp
wiring.
8
21_DT_OM_EN_USC_t.book Page 439
440SERVICING AND MAINTENANCE
4. Reach behind the headlamp and disengage
the access cover by rotating counter -
clockwise.
5. Disconnect the internal lamp wiring harness connector from the high beam bulb.
6. Rotate the bulb counterclockwise a quarter turn to unlock the bulb from the lamp.
7. Pull the bulb straight out from the housing.
8. Reverse the procedure for installation of new bulb and cover. Front Park And Turn
See below steps to replace:
1. Open the hood.
2. Disconnect and isolate the negative battery
cable.
3. Locate the park and turn socket, which can be found on the back side of the
headlamps.
Park And Turn Socket
4. Reach behind the headlamp and unlock the park and turn socket from the lamp by
rotating counterclockwise a quarter turn.
5. Pull the bulb straight out from the housing. 6. Separate the bulb from the socket without
twisting.
7. Reverse the procedure for installation of new bulb and covers.
Side Marker Lamp
See below steps to replace:
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Locate the side marker lamp, which can be found on the back side of the headlamps.
Side Marker Lamp
CAUTION!
Do not contaminate the bulb glass by
touching it with your fingers or by allowing it
to contact other oily surfaces. Shortened
bulb life will result.
Always use the correct bulb size and type
for replacement. An incorrect bulb size or
type may overheat and cause damage to
the lamp, the bulb socket, or the lamp
wiring.
