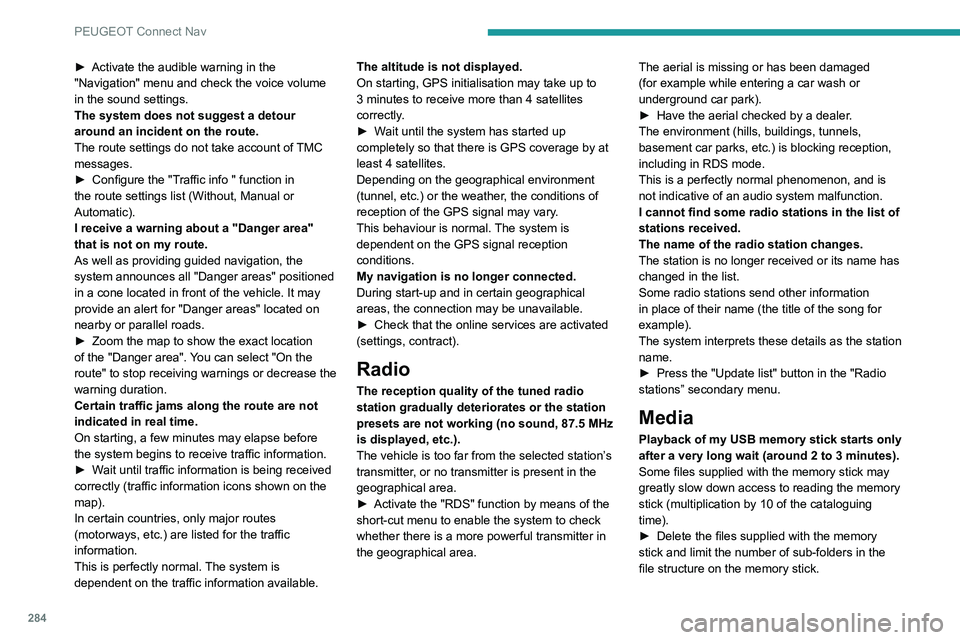

PEUGEOT Connect Nav
► Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of
TMC
messages.
►

Configure the "T
raffic info " function in
the route settings list (Without, Manual or
Automatic).
I receive a warning about a "Danger area"
that is not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available. The altitude is not displayed.
On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station
presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area. The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►


Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
► Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
► Start playback from the device.
Track names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
► Check that the telephone has Bluetooth
switched on.
► Check in the telephone settings that it is
"visible to all".
► Deactivate then reactivate the telephone’s
Bluetooth function.

285
PEUGEOT Connect Nav

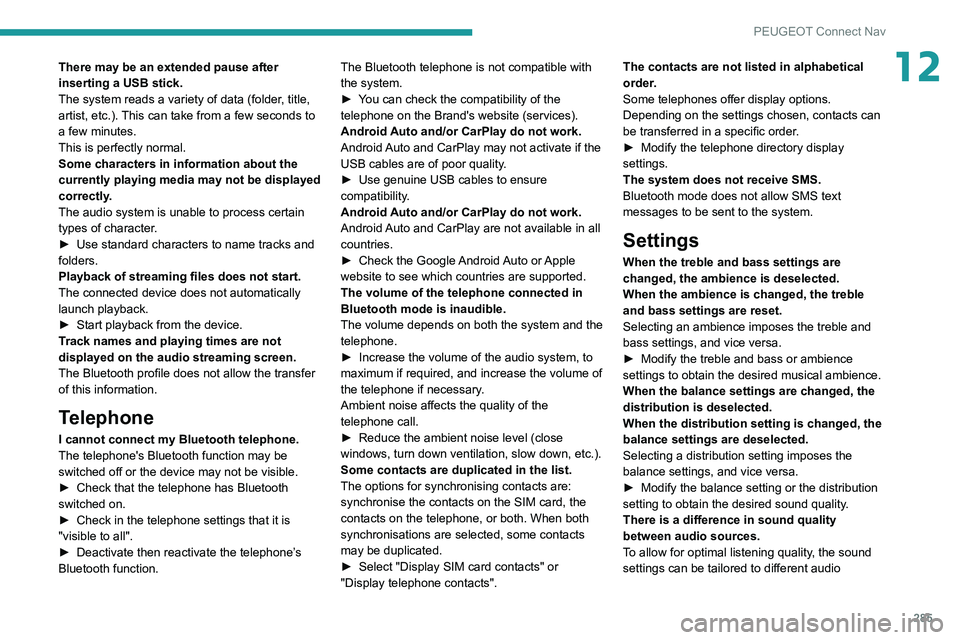

12There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telephone’
s
Bluetooth function. The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check the compatibility of the
telephone on the Brand's website (services).
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►
Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the Google
Android Auto or Apple
website to see which countries are supported.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
► Reduce the ambient noise level (close
windows, turn down ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts". The contacts are not listed in alphabetical
order

.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►
Modify the telephone directory display
settings.
The system does not receive SMS.
Bluetooth mode does not allow SMS text
messages to be sent to the system.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio

287
Alphabetical index
180° rear vision 176
A
ABS 101
Accelerated charging unit (Wallbox)
182
Accessories

98
Access to the 3rd row

58, 60
Access to the spare wheel

209
Active Safety Brake

166–168
AdBlue®

20, 197
AdBlue® tank

198
Additive, Diesel

195–196
Adjusting head restraints

51
Adjusting seat

49–50
Adjusting the air distribution

80–81
Adjusting the air flow

80–81
Adjusting the date

28, 260, 282
Adjusting the height and reach of
the steering wheel

53
Adjusting the lumbar support

49
Adjusting the seat angle

49–50
Adjusting the seat belt height

105
Adjusting the temperature

80–81
Adjusting the time

28, 259, 283
Advanced Grip Control

103–104
Advice on care and maintenance

180, 201
Advice on driving

8, 136–137
Airbags

107–110, 112
Airbags, curtain

109–110
Airbags, front

108–109, 112
Airbags, lateral 108–110
Air conditioning
79–80, 81–84, 82
Air conditioning, digital

83
Air conditioning, dual-zone automatic

80–81
Air conditioning, manual

80, 82
Air intake

80–82
Air vents

79
Alarm

46–47
Android Auto connection

256, 274
Anti-lock braking system (ABS)

101
Anti-pinch

75
Antitheft / Immobiliser

30
Apple CarPlay connection

256, 273
Applications

274
Area, loading

31, 38–39, 73
Armrest, front

51
Assistance call

99
Assistance, emergency braking

101, 168
Audible warning

100
Audio streaming (Bluetooth)

243, 255, 278
B
Battery 220
Battery, 12 V
189, 195–196, 219–222
Battery, ancillaries

219–220
Battery, charging

221–222
Battery, remote control

36–37, 85
Bench seat, one-piece, fixed

58–59
Blind, panoramic roof

75
Blind spot monitoring system

172
Blind spot sensors 171
Blinds, side
75
BlueHDi

20, 195, 203
Bluetooth (hands-free)

243–244, 257, 279
Bluetooth (telephone)

257–258, 279–280
Bodywork

201
Bonnet

192
Boot

45
Boot lid

34–35, 36, 45
Brake discs

197
Brake lamps

215, 217
Brakes

196–197
Braking

150
Braking assistance system

101
Braking, automatic emergency

166–168
Braking, dynamic emergency

143–144
Brightness

259
Bulbs

212
Bulbs (changing)

212, 215
C
Cable, audio 277
Cable, Jack
277
Capacity, fuel tank

178–179
Cap, fuel filler

178–179
Care of the bodywork

201
CD

242
CD, MP3

242
Central locking

29, 34, 38
Changing a bulb

212, 215, 217

288
Alphabetical index
Changing a bulb (side-hinged doors) 215
Changing a fuse
217–219
Changing a wheel

208
Changing a wiper blade

96
Changing the remote control battery

36
Changing to free-wheeling

223
Charge level indicator (Electric)

22
Charging cable

183
Charging cable (Electric)

182
Charging connector (Electric)

181, 186–188
Charging flap (Electric)

181, 186–188
Charging system (Electric)

5, 9, 26, 180, 193
Charging the traction battery
(Electric)

22, 180, 186–188
Checking the engine oil level

19
Checking the levels

193–195
Checking tyre pressures (using the kit)

205,
207–208
Checks

193, 195–197
Checks, routine

195–197
Child lock

134–135
Child lock on rear windows

135
Children

107, 113, 122–124, 131, 131–133, 131–132
Children (safety)

134
Child seats

107, 110–114, 119–121, 132
Child seats, conventional

112–114, 119–121
Child seats, i-Size

131–132
Child seats, ISOFIX

122–124, 131, 131–132, 132
Cleaning (advice)

180, 201–202
Closing the boot

45Closing the doors 29, 34, 44–45
Collision Risk Alert
166–167
Compressor, tyre inflation

205
Configuration, vehicle

26
Connected applications

274
Connection, Bluetooth

244, 257–258,
274–275, 279–280
Connection, Wi-Fi network

275
Connectivity

273
Consumption figures

27
Container, AdBlue®

198
Control, emergency boot release

36
Control, emergency door

29, 35–36
Control, heated seats

52
Control stalk, lighting

89
Control stalk, wipers

94–95
Control unit

182–183
Courtesy lamp

87
Courtesy lamp, front

87–88, 216
Courtesy lamp, rear

87–88, 216
Courtesy lamps

87–88, 216
Cover, load space

72
Crew cab, fixed

66–68
Crew cab, folding

68
Cruise control

156, 158–159, 161–163
Cruise control, adaptive

158, 163, 165–166
Cruise control by speed limit
recognition

158–159
Cruise control, dynamic with Stop
function

158–159D
DAB (Digital Audio Broadcasting) -
Digital radio
240–241, 254, 277
Date (setting)

28, 260, 282
Daytime running lamps

90, 213–214
Deactivating the passenger airbag

108, 112
Deactivation of DSC (ESC)

102
Deadlocking

34–35
Deferred charging

27, 188
Deferred charging (Electric)

26–27, 181, 186
Defrosting

54, 82–83
Demisting

82–83
Demisting, rear

83
Demisting, rear screen

83
Dimensions

233
Dipstick

19, 193
Direction indicators

90, 213–215, 217
Display, head-up

155–156
Domestic charging

183
Domestic charging (Electric)

187–188, 231
Door pockets

70
Doors, rear

44–45
Doors, side

40
Doors, side-hinged

34–35, 44–45, 215
Driver’s attention warning

170
Drive selector (Electric)

149, 196
Driving

136–137
Driving aids camera (warnings)

154
Driving aids (recommendations)

154
Driving economically

8
Driving modes

150

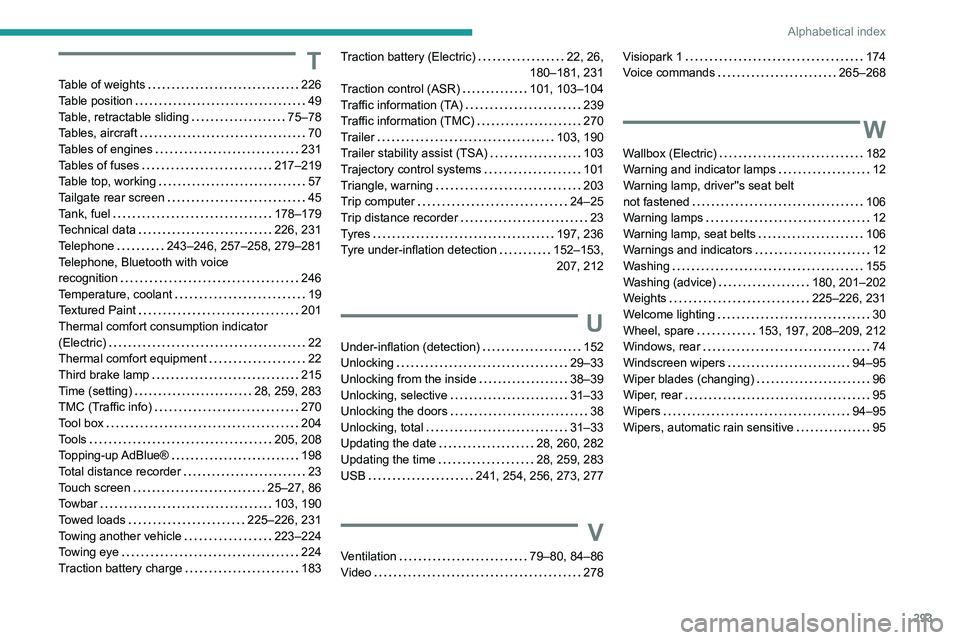

293
Alphabetical index
T
Table of weights 226
Table position
49
Table, retractable sliding

75–78
Tables, aircraft

70
Tables of engines

231
Tables of fuses

217–219
Table top, working

57
Tailgate rear screen

45
Tank, fuel

178–179
Technical data

226, 231
Telephone

243–246, 257–258, 279–281
Telephone, Bluetooth with voice
recognition

246
Temperature, coolant

19
Textured Paint

201
Thermal comfort consumption indicator
(Electric)

22
Thermal comfort equipment

22
Third brake lamp

215
Time (setting)

28, 259, 283
TMC (Traffic info)

270
Tool box

204
Tools

205, 208
Topping-up AdBlue®

198
Total distance recorder

23
Touch screen

25–27, 86
Towbar

103, 190
Towed loads

225–226, 231
Towing another vehicle

223–224
Towing eye

224
Traction battery charge

183
Traction battery (Electric) 22, 26,
180–181, 231
Traction control (ASR)

101, 103–104
Traffic information (TA)

239
Traffic information (TMC)

270
Trailer

103, 190
Trailer stability assist (TSA)

103
Trajectory control systems

101
Triangle, warning

203
Trip computer

24–25
Trip distance recorder

23
Tyres

197, 236
Tyre under-inflation detection

152–153, 207, 212
U
Under-inflation (detection) 152
Unlocking
29–33
Unlocking from the inside

38–39
Unlocking, selective

31–33
Unlocking the doors

38
Unlocking, total

31–33
Updating the date

28, 260, 282
Updating the time

28, 259, 283
USB

241, 254, 256, 273, 277
V
Ventilation 79–80, 84–86
Video
278
Visiopark 1 174
Voice commands
265–268
W
Wallbox (Electric) 182
Warning and indicator lamps
12
Warning lamp, driver''s seat belt
not fastened

106
Warning lamps

12
Warning lamp, seat belts

106
Warnings and indicators

12
Washing

155
Washing (advice)

180, 201–202
Weights

225–226, 231
Welcome lighting

30
Wheel, spare

153, 197, 208–209, 212
Windows, rear

74
Windscreen wipers

94–95
Wiper blades (changing)

96
Wiper, rear

95
Wipers

94–95
Wipers, automatic rain sensitive

95
