2021 PEUGEOT EXPERT Owners Manual

PEUGEO
PEUGEO
HANDBOOK

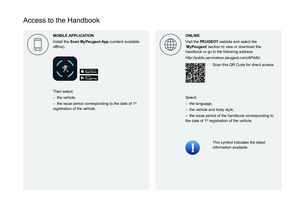

Access to the Handbook
MOBILE
Install the Scan (content available
00521089004C00510048000C0011 ONLINE
Visit the PEUGEOT website and select the
‘MyPeugeot’ section to view or download the
handbook or go to the following address:
004B005700570053001D00120012005300580045004F004C004600110056004800550059004C0046004800450052005B0011005300480058004A00480052005700110046005200500012002400330047004700450012
003600460044005100030057004B004C005600030034003500030026005200470048000300490052005500030047004C005500480046005700030044004600460048005600560011
0037004B004C005600030056005C005000450052004F0003004C00510047004C0046004400570048005600030057004B00480003004F004400570048005600570003
004C0051004900520055005000440057004C005200510003004400590044004C004F00440045004F00480011
Then select:
–
the vehicle,
–


the issue period corresponding to the date of 1st
registration of the vehicle. Select:
–
the language,
–
the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.

Welcome
Thank you for choosing a Peugeot Expert/e-Expert or a Peugeot
Traveller/e-Traveller.
This document presents the key information and recommendations required
for you to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with this document and the Maintenance
and Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
equipment and accessories without having to update this document.
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicleLocation of equipment/button indicated using a
black area
002C0047004800510057004C00BF004600440057004C00520051
This allows you to identify the special features of the vehicle: Va n
Crew cab with manual child lock
Crew cab with electric child lock
Combi, Business, Active, Allure, Business VIP

2

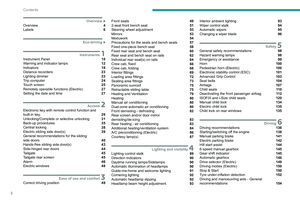

Contents







 ■
OverviewOverview 4
Labels 6
 ■

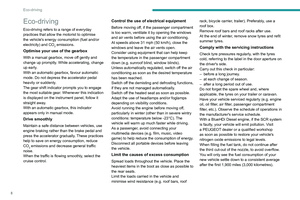

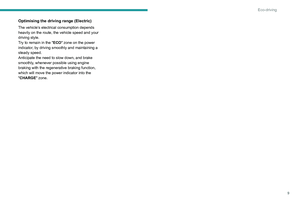

Eco-driving

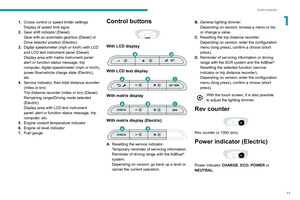

1InstrumentsInstrument Panel 10

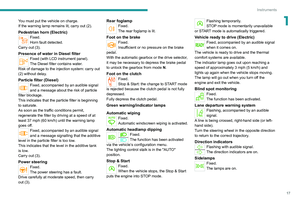

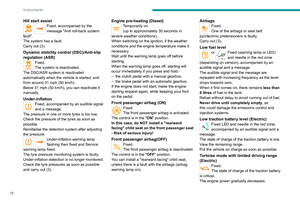

Warning and indicator lamps 12

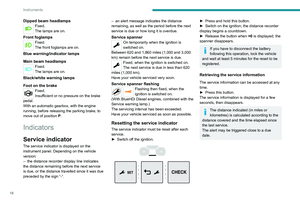

Indicators 18
Distance recorders 23
Lighting dimmer 23
Trip computer 24

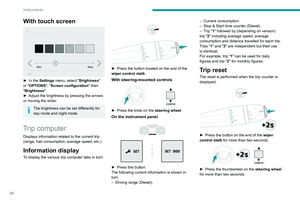

Touch screen 25
Remotely operable functions (Electric) 27
Setting the date and time 27

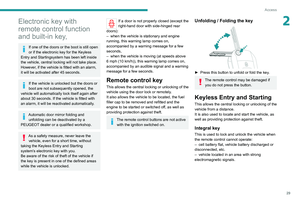

2AccessElectronic key with remote control function and
built-in key, 29

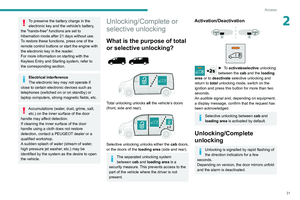

Unlocking/Complete or selective unlocking 31
Back-up procedures 35

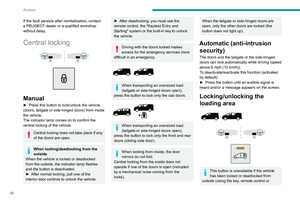

Central locking 38
Electric sliding side door(s) 39
General recommendations for the sliding
side doors
40
Hands-free sliding side door(s) 43

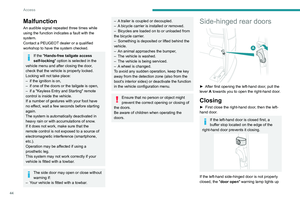

Side-hinged rear doors 44

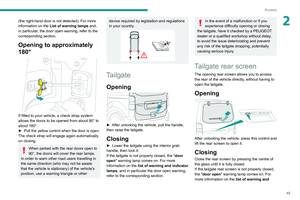

Tailgate 45
Tailgate rear screen 45
Alarm 46

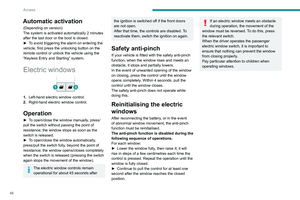

Electric windows 48
3Ease of use and comfortCorrect driving position 49
Front seats 49
2-seat front bench seat 51
Steering wheel adjustment 53
Mirrors 53

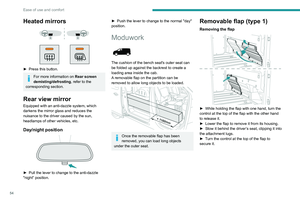

Moduwork 54

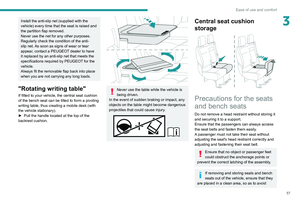

Precautions for the seats and bench seats 57
Fixed one-piece bench seat 58
Fixed rear seat and bench seat 60
Rear seat and bench seat on rails 62

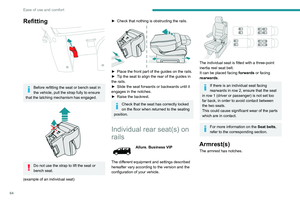

Individual rear seat(s) on rails 64
Crew cab, fixed 66

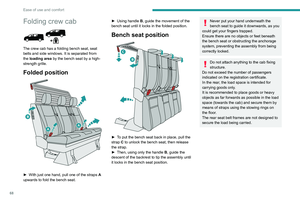

Crew cab, folding 68
Interior fittings 69
Loading area fittings 72
Seating area fittings 73
Panoramic sunroof 75

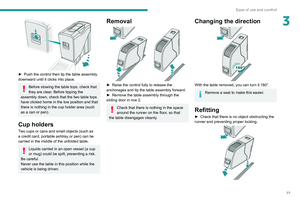

Retractable sliding table 75

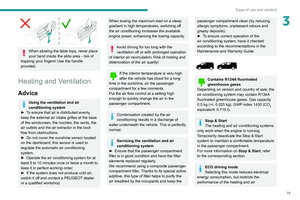

Heating and Ventilation 79

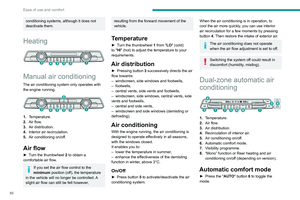

Heating 80
Manual air conditioning 80
Dual-zone automatic air conditioning 80

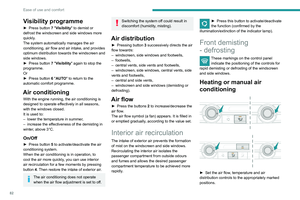

Front demisting - defrosting 82
Rear screen and/or door mirror
demisting/de-icing
83
Rear heating - air conditioning 83

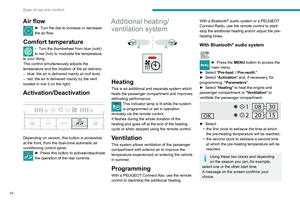

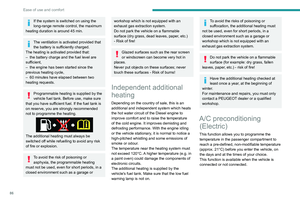

Additional heating/ventilation system 84
A/C preconditioning (Electric) 86

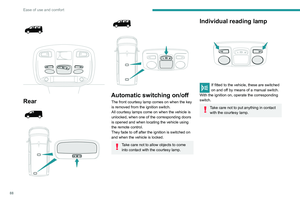

Courtesy lamp(s) 87
4Lighting and visibilityLighting control stalk 89

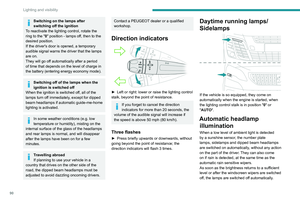

Direction indicators 90
Daytime running lamps/Sidelamps 90
Automatic illumination of headlamps 90

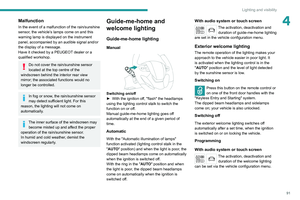

Guide-me-home and welcome lighting 91

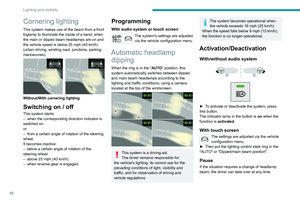

Cornering lighting 92
Automatic headlamp dipping 92

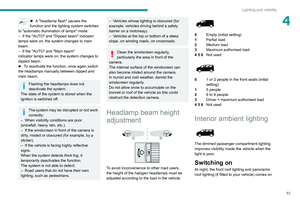

Headlamp beam height adjustment 93
Interior ambient lighting 93

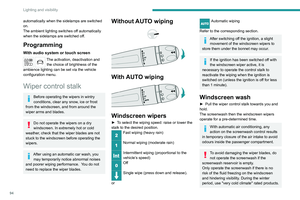

Wiper control stalk 94
Automatic wipers 95
Changing a wiper blade 96
5SafetyGeneral safety recommendations 98
Hazard warning lamps 98
Emergency or assistance 99
Horn 100
Pedestrian horn (Electric) 100

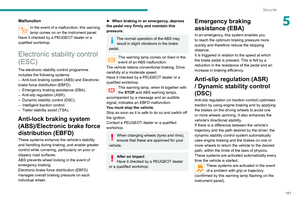

Electronic stability control (ESC) 101
Advanced Grip Control 103

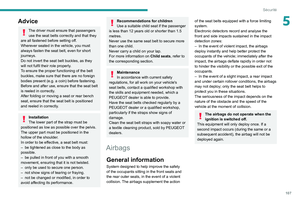

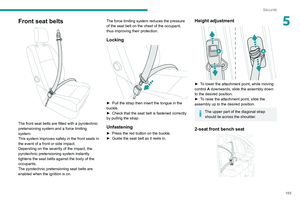

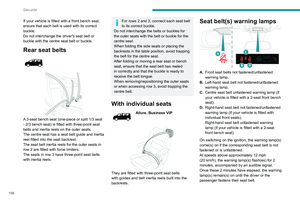

Seat belts 104

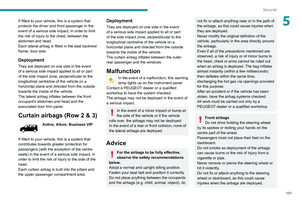

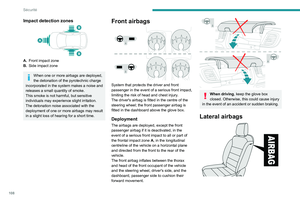

Airbags 107
Child seats 11 0
Deactivating the front passenger airbag 11 2

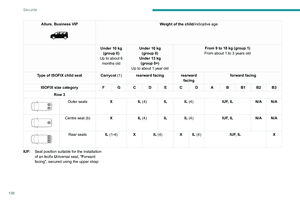

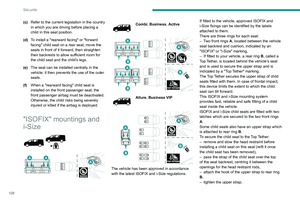

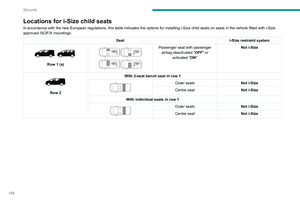

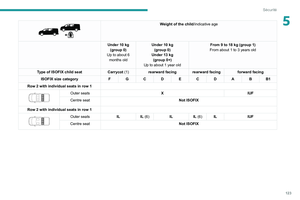

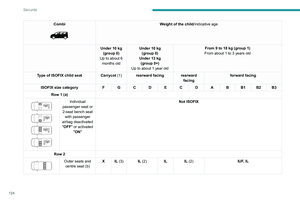

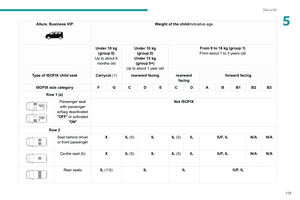

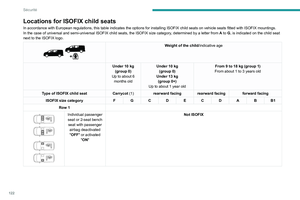

ISOFIX and i-Size child seats 120

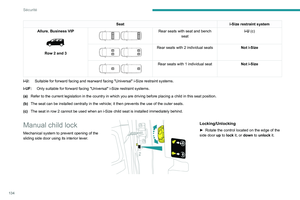

Manual child lock 134
Electric child lock 135
Child lock on rear windows 135
6DrivingDriving recommendations 136

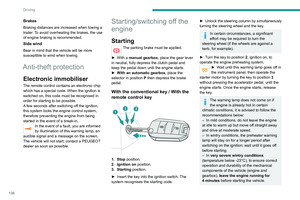

Starting/switching off the engine 138
Manual parking brake 141
Electric parking brake 142
Hill start assist 144

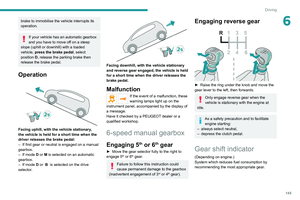

6-speed manual gearbox 145
Gear shift indicator 145

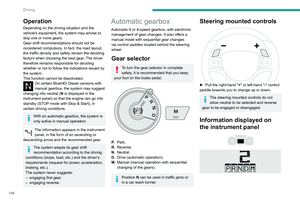

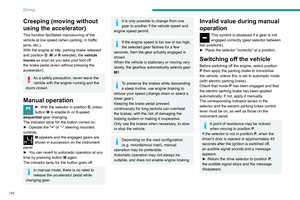

Automatic gearbox 146
Drive selector (Electric) 149

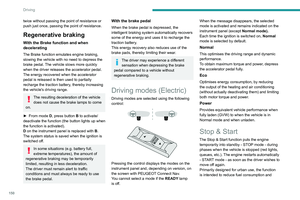

Driving modes (Electric) 150

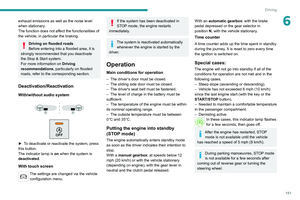

Stop & Start 150

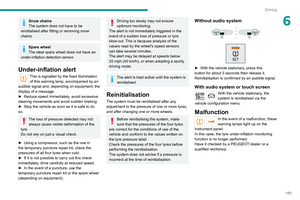

Tyre under-inflation detection 152

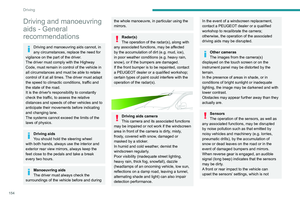

Driving and manoeuvring aids - General
recommendations
154

3
Contents

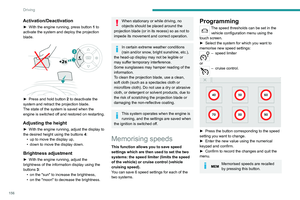

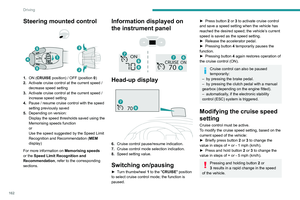

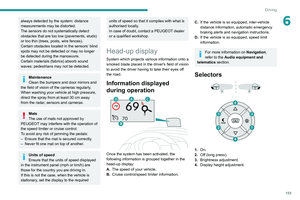

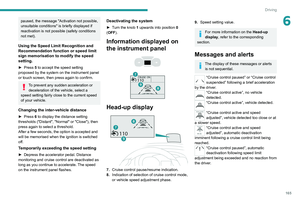

Head-up display 155
Memorising speeds 156

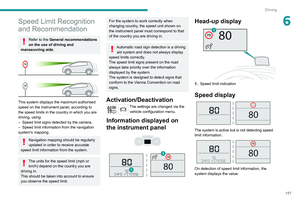

Speed Limit Recognition and
Recommendation
157

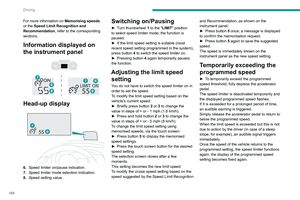

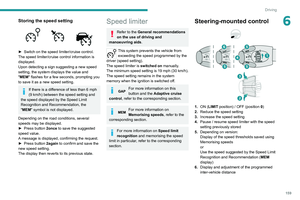

Speed limiter 159

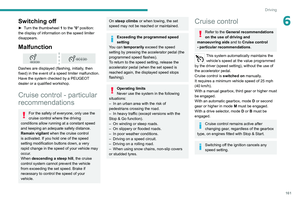

Cruise control - particular recommendations 161
Cruise control 161

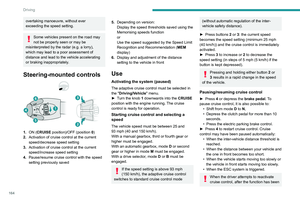

Adaptive Cruise Control 163
Active Safety Brake with Distance Alert and
Intelligent emergency braking assistance
166
Lane departure warning system 169
Distraction detection 170

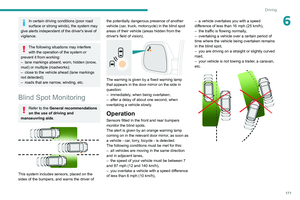

Blind Spot Monitoring 171

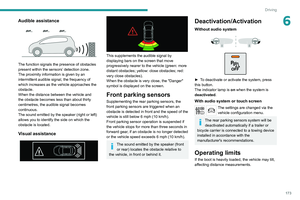

Parking sensors 172

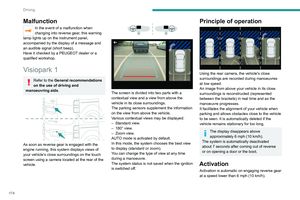

Visiopark 1 174

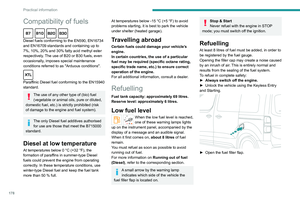

7Practical informationCompatibility of fuels 178
Refuelling 178
Diesel misfuel prevention 179

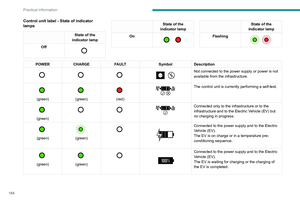

Charging system (Electric) 180

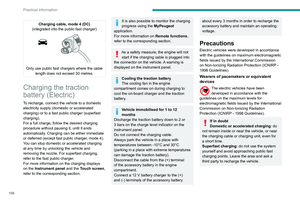

Charging the traction battery (Electric) 186

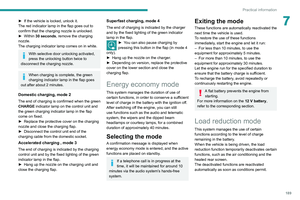

Energy economy mode 189
Snow chains 190
Towing device 190

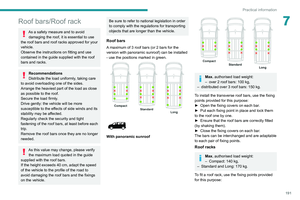

Roof bars/Roof rack 191

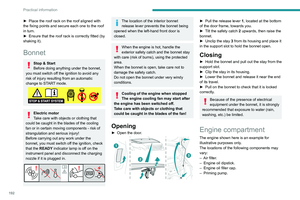

Bonnet 192

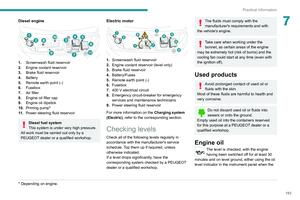

Engine compartment 192

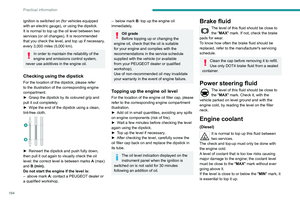

Checking levels 193
Checks 195

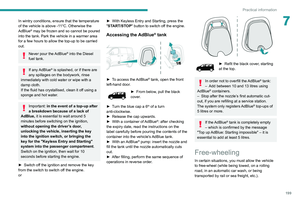

AdBlue® (BlueHDi) 197
Free-wheeling 199

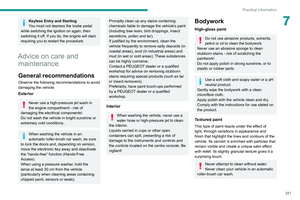

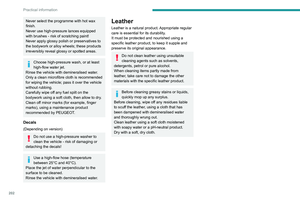

Advice on care and maintenance 201
8In the event of a breakdownWarning triangle 203
Running out of fuel (Diesel) 203

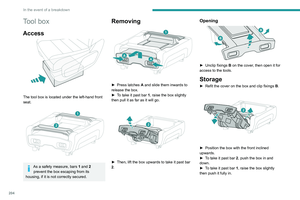

Tool box 204

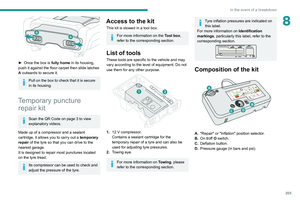

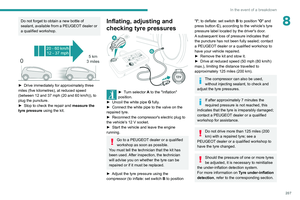

Temporary puncture repair kit 205

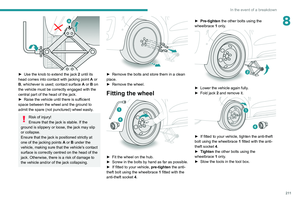

Spare wheel 208
Changing a bulb 212

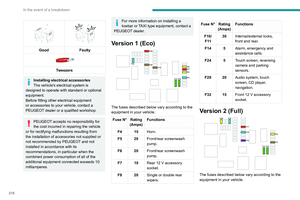

Changing a fuse 217

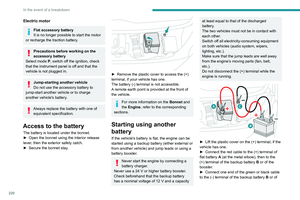

12

V battery

/ Accessory battery 219

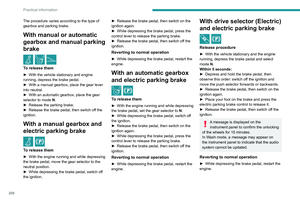

Towing 223

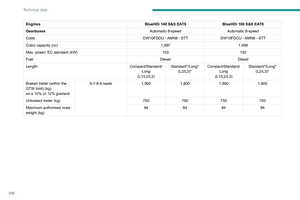

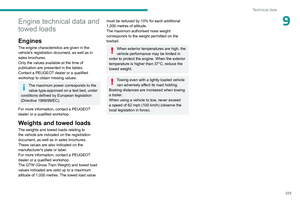

9Technical dataEngine technical data and towed loads 225

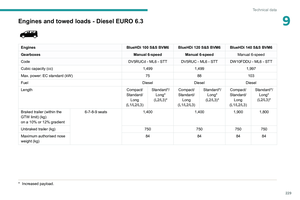

Diesel engines 226

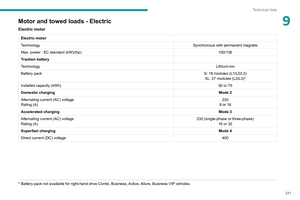

Electric motor 231

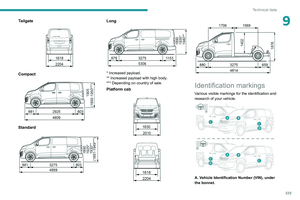

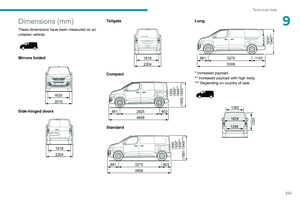

Dimensions 233
Identification markings 235
10Bluetooth® audio systemFirst steps 237
Steering mounted controls 238
Menus 238
Radio 239

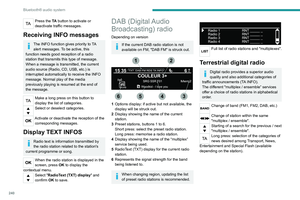

DAB (Digital Audio Broadcasting) radio 240
Media 241

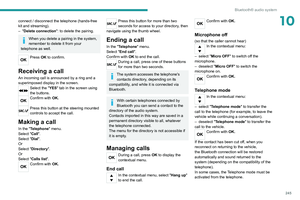

Telephone 243
Frequently asked questions 246

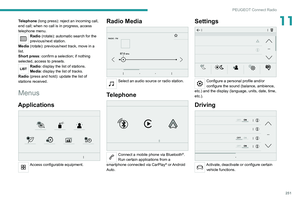

11PEUGEOT Connect RadioFirst steps 249
Steering mounted controls 250
Menus 251
Applications 252

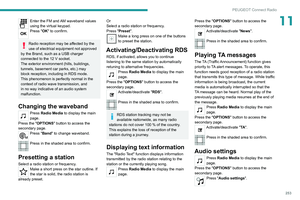

Radio 252
DAB (Digital Audio Broadcasting) radio 254
Media 254

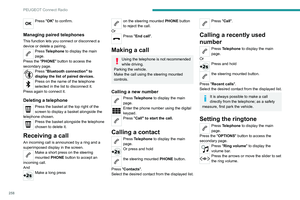

Telephone 256

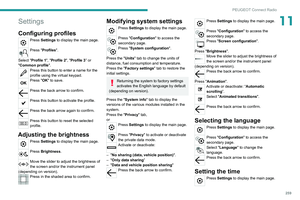

Settings 259
Frequently asked questions 260
12PEUGEOT Connect NavFirst steps 262
Steering mounted controls 263
Menus 263

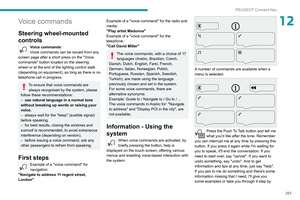

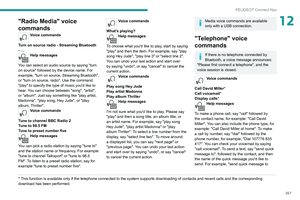

Voice commands 265

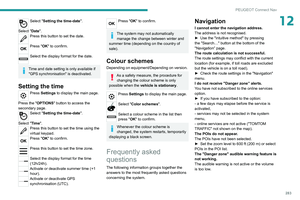

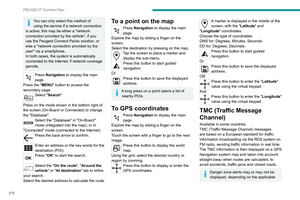

Navigation 268
Connected navigation 271
Applications 273
Radio 276
DAB (Digital Audio Broadcasting) radio 277
Media 277
Telephone 279
Settings 281
Frequently asked questions 283
 ■

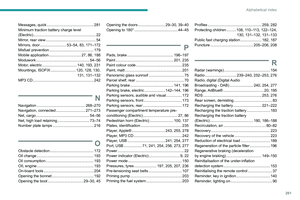

Alphabetical index
bit.ly/helpPSA
Access to additional videos

4

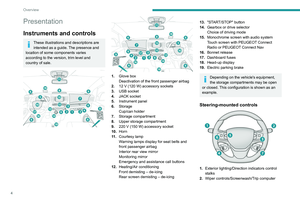

Overview
Presentation
Instruments and controls
These illustrations and descriptions are intended as a guide. The presence and
location of some components varies
according to the version, trim level and
country of sale.




1. Glove box
Deactivation of the front passenger airbag
2. 12
V (120 W) accessory sockets
3. USB socket
4. JACK socket
5. Instrument panel
6. Storage
Cup/can holder
7. Storage compartment
8. Upper storage compartment
9. 220
V (150 W) accessory socket
10.Horn
11

.Courtesy lamp
Warning lamps display for seat belts and
front passenger airbag
Interior rear view mirror
Monitoring mirror
Emergency and assistance call buttons
12. Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing
13."START/STOP" button
14. Gearbox or drive selector
Choice of driving mode
15. Monochrome screen with audio system
Touch screen with PEUGEOT Connect
Radio or PEUGEOT Connect Nav
16. Bonnet release
17. Dashboard fuses
18. Head-up display
19. Electric parking brake
Depending on the vehicle's equipment,
the storage compartments may be open
or closed. This configuration is shown as an
example.
Steering-mounted controls

1. Exterior lighting/Direction indicators control
stalks
2. Wiper controls/Screenwash/Trip computer
3.Audio system setting controls
4. Controls for Cruise control/Speed limiter/
Adaptive Cruise Control
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Audio system setting controls
Central control bar



1. Locking/unlocking from the inside
2. Left-hand electric sliding side door
3. Electric child lock
4. Right-hand electric sliding side door
5. Cab/loading area selectivity
6. Hazard warning lamps
7. DSC/ASR system
8. Tyre under-inflation detection
9. Stop & Start (Diesel)

5
Overview
3.Audio system setting controls
4. Controls for Cruise control/Speed limiter/
Adaptive Cruise Control
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Audio system setting controls
Central control bar



1. Locking/unlocking from the inside
2. Left-hand electric sliding side door
3. Electric child lock
4. Right-hand electric sliding side door
5. Cab/loading area selectivity
6. Hazard warning lamps
7. DSC/ASR system
8. Tyre under-inflation detection
9. Stop & Start (Diesel)
Side control bar



1. Advanced Grip Control
2. Head-up display
3. Parking sensors
4. Additional heating/ventilation system (Diesel)
5. Alarm
6. Headlamp beam height adjustment
7. Lane departure warning system
8. Blind spot monitoring system
9. Automatic headlamp dipping
Electric motor

1.Charging connectors
2. Traction battery
3. Accessory battery
4. On-board charger
5. Electric motor
6. Charging cable
The charging connectors 1 enable 3
types of
charging:
–

Domestic charging in mode 2 using a
domestic socket and associated charging cable
6

.
–

Accelerated charging in mode 3 using an
accelerated charging unit (W

allbox).
–

Superfast charging in mode 4 using a fast
public charger

.
The 400
V traction battery 2 uses Lithium-Ion
technology. It stores and supplies the energy
required for the operation of the electric motor,

6
Overview
air conditioning and heating. Its charge level is
represented by an indicator and a reserve power
warning lamp on the instrument panel.
The 12 V accessory battery 3 powers the
vehicle’s conventional electrical system. It is
recharged automatically by the traction battery
via the on-board charger.
The on-board charger 4 provides domestic
charging (mode 2) and accelerated charging
(mode 3) of the traction battery as well as
recharging of the 12 V accessory battery.
The electric motor
5 provides propulsion in
accordance with the selected driving mode and
driving conditions. It recovers energy during
vehicle braking and deceleration
phases.
Labels

Side-hinged rear doors section.





Moduwork section.

Rear seat and bench seat on rails section.



Precautions for seats and bench seats
section.


Retractable sliding table section.

Additional heating/ventilation section.
