2021 PEUGEOT EXPERT technical data

226
Technical data
Engines and towed loads - Diesel EURO 6.2

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 120 S&S EAT8
Gearboxes Manual 6-speedManual 6-speedAutomatic 8-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FEU - AMN8 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 758888
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,800 2,000 1,800 2,000 2,300 2,500
Unbraked trailer (kg) 750750750750750750
Maximum authorised nose
weight (kg) 72
80728092100
* Increased payload.

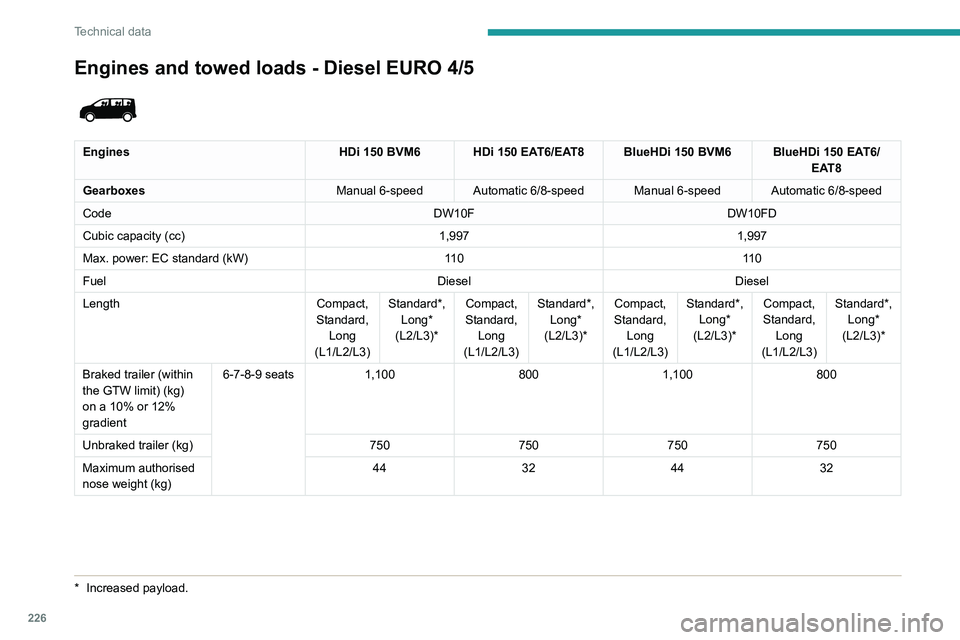

Engines and towed loads - Diesel EURO 4/5
* Increased payloa d.


Engines HDi 150 BVM6 HDi 150 EAT6/EAT8 BlueHDi 150 BVM6 BlueHDi 150 EAT6/
EAT8
Gearboxes Manual 6-speed Automatic 6/8-speed Manual 6-speed Automatic 6/8-speed
Code DW10FDW10FD
Cubic capacity (cc) 1,9971,997
Max. power: EC standard (kW) 11 011 0
Fuel DieselDiesel
Length Compact,
Standard, Long
(L1/L2/L3) Standard*,
Long*
(L2/L3)* Compact,
Standard, Long
(L1/L2/L3) Standard*,
Long*
(L2/L3)* Compact,
Standard, Long
(L1/L2/L3) Standard*,
Long*
(L2/L3)* Compact,
Standard, Long
(L1/L2/L3) Standard*,
Long*
(L2/L3)*
Braked trailer (within
the GTW limit) (kg)
on a 10% or 12%
gradient 6-7-8-9 seats
1,100 8001,100 800
Unbraked trailer (kg) 750750750750
Maximum authorised
nose weight (kg) 44
324432

227
Technical data
9Engines and towed loads - Diesel EURO 6.2

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 120 S&S EAT8
Gearboxes Manual 6-speedManual 6-speedAutomatic 8-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FEU - AMN8 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 758888
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,800 2,000 1,800 2,000 2,300 2,500
Unbraked trailer (kg) 750750750750750750
Maximum authorised nose
weight (kg) 72
80728092100
* Increased payloa d.

228
Technical data
Engines and towed loads - Diesel EURO 6.3

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 140 S&S BVM6
Gearboxes Manual 6-speedManual 6-speed Manual 6-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FDDU - ML6 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 7588103
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,4001,4001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484
* Increased payload.

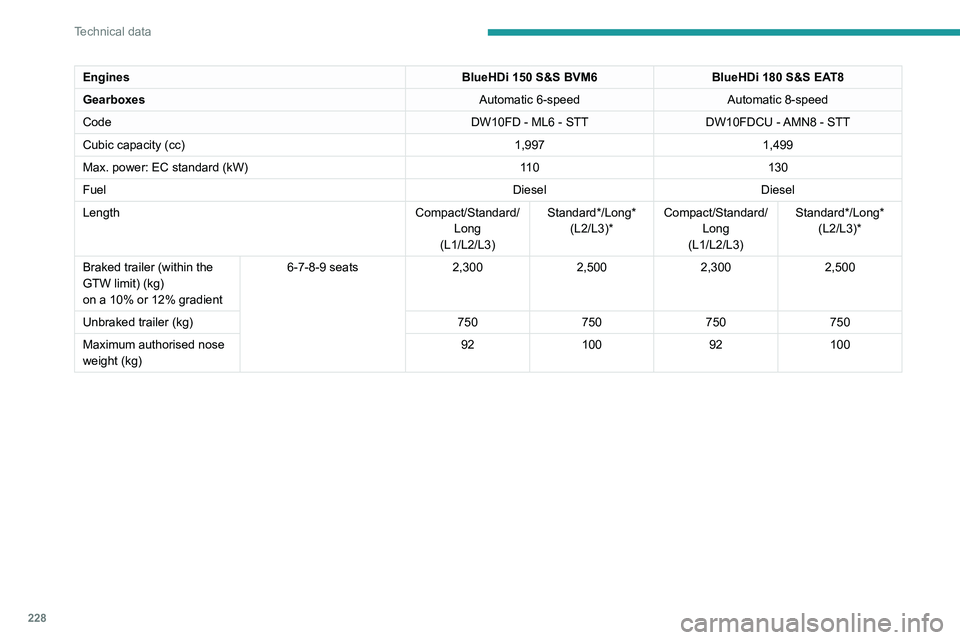

Engines BlueHDi 150 S&S BVM6BlueHDi 180 S&S EAT8
Gearboxes Automatic 6-speedAutomatic 8-speed
Code DW10FD - ML6 - STTDW10FDCU - AMN8 - STT
Cubic capacity (cc) 1,9971,499
Max. power: EC standard (kW) 11 0130
Fuel DieselDiesel
Length Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)* Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
2,3002,5002,3002,500
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 92
100 92100

229
Technical data
9Engines and towed loads - Diesel EURO 6.3

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 140 S&S BVM6
Gearboxes Manual 6-speedManual 6-speed Manual 6-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FDDU - ML6 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 7588103
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,4001,4001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484
* Increased payloa d.

230
Technical data
Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100/136
Traction battery
Technology Lithium-Ion
Battery pack S: 18 modules (L1/L2/L3)
XL: 27 modules (L2/L3)*
Installed capacity (kWh) 50 or 75
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
* Battery pack not available for right-hand drive Combi, Business, Active, Allure, Business VIP vehicles.
Engines BlueHDi 140 S&S EAT8BlueHDi 180 S&S EAT8
Gearboxes Automatic 8-speedAutomatic 8-speed
Code DW10FDDU - AMN8 - STTDW10FDCU - AMN8 - STT
Cubic capacity (cc) 1,9971,499
Max. power: EC standard (kW) 103130
Fuel DieselDiesel
Length Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)* Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,9001,8001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484

231
Technical data
9Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100/136
Traction battery
Technology Lithium-Ion
Battery pack S: 18 modules (L1/L2/L3)
XL: 27 modules (L2/L3)*
Installed capacity (kWh) 50 or 75
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
* Battery pack not available for right-hand drive Combi, Business, Active, Allure, Business VIP vehicles.

232
Technical data
Dimensions (mm)
These dimensions have been measured on an unladen vehicle.


Mirrors folded

Side-hinged doors

Towed loads

Model codes: ZZKXZ
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,000
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 60


Model codes:V1ESZ/V1EZZ/VZESZ/VZEZZ
Code: MEL ZAE BATT S/
MEL ZAE BATT XL
Length Compact, Standard, Long
(L1/L2/L3)
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 5-6-7-8-9 seats
1,000
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 60

233
Technical data
9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.


Mirrors folded

Side-hinged doors

Tailgate

Compact

Standard

Long

* Increased payload.
** Increased payload with high body.
*** Depending on country of sale.
