2021 PEUGEOT EXPERT display

282
PEUGEOT Connect Nav

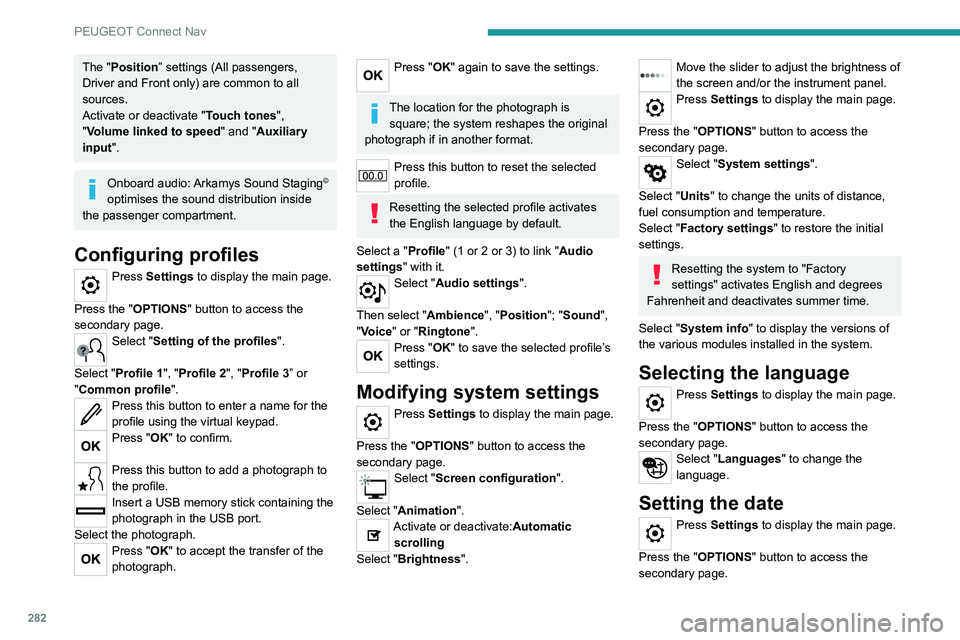

The "Position” settings (All passengers,
Driver and Front only) are common to all
sources.
Activate or deactivate "Touch tones ",
"Volume linked to speed " and "Auxiliary
input ".
Onboard audio: Arkamys Sound Staging©
optimises the sound distribution inside
the passenger compartment.
Configuring profiles
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting of the profiles".
Select "Profile 1", "Profile 2", "Profile 3” or
"Common profile ".
Press this button to enter a name for the
profile using the virtual keypad.
Press "OK" to confirm.
Press this button to add a photograph to
the profile.
Insert a USB memory stick containing the
photograph in the USB port.
Select the photograph.
Press "OK" to accept the transfer of the
photograph.
Press "OK" again to save the settings.
The location for the photograph is square; the system reshapes the original
photograph if in another format.
Press this button to reset the selected
profile.
Resetting the selected profile activates
the English language by default.
Select a "Profile" (1 or 2 or 3) to link "Audio
settings" with it.
Select "Audio settings".
Then select "Ambience", "Position"; "Sound ",
"Voice" or "Ringtone ".
Press "OK" to save the selected profile’s
settings.
Modifying system settings
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Screen configuration".
Select "Animation".
Activate or deactivate:Automatic scrolling
Select "Brightness".
Move the slider to adjust the brightness of
the screen and/or the instrument panel.
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "System settings".
Select "Units" to change the units of distance,
fuel consumption and temperature.
Select "Factory settings" to restore the initial
settings.
Resetting the system to "Factory
settings" activates English and degrees
Fahrenheit and deactivates summer time.
Select "System info" to display the versions of
the various modules installed in the system.
Selecting the language
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Languages" to change the
language.
Setting the date
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Date".
Press this button to set the date.
Press "OK" to confirm.
Select the display format for the date.
Time and date setting is only available if "GPS synchronisation" is deactivated.
Setting the time
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Time".
Press this button to set the time using the
virtual keypad.
Press "OK" to confirm.
Press this button to set the time zone.
Select the display format for the time
(12h/24h).
Activate or deactivate summer time (+1 hour).
Activate or deactivate GPS synchronisation (UTC).

283
PEUGEOT Connect Nav

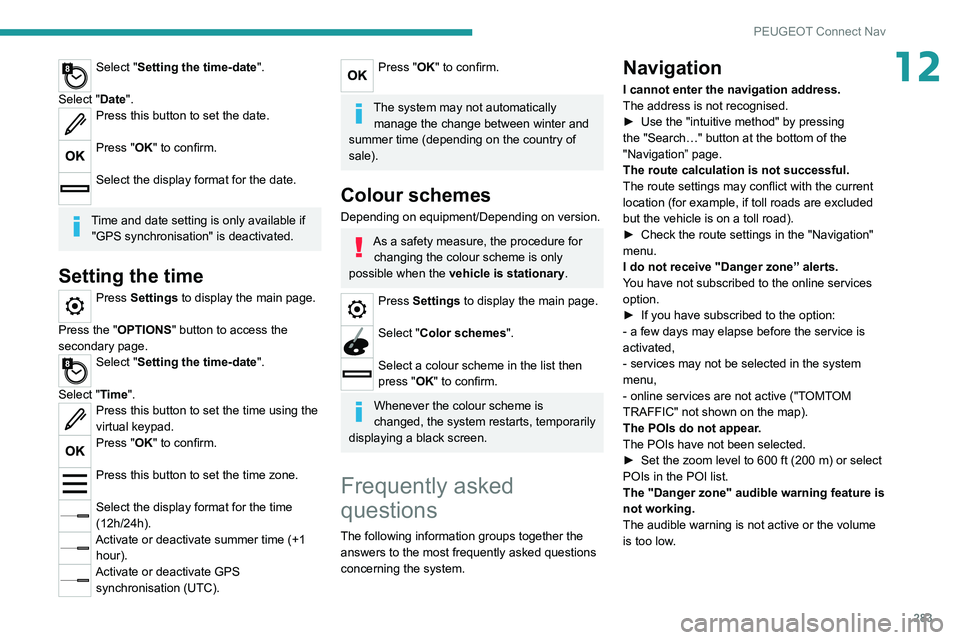

12Select "Setting the time-date".
Select "Date".
Press this button to set the date.
Press "OK" to confirm.
Select the display format for the date.
Time and date setting is only available if "GPS synchronisation" is deactivated.
Setting the time
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Time".
Press this button to set the time using the
virtual keypad.
Press "OK" to confirm.
Press this button to set the time zone.
Select the display format for the time
(12h/24h).
Activate or deactivate summer time (+1 hour).
Activate or deactivate GPS synchronisation (UTC).
Press "OK" to confirm.
The system may not automatically manage the change between winter and
summer time (depending on the country of
sale).
Colour schemes
Depending on equipment/Depending on version.
As a safety measure, the procedure for changing the colour scheme is only
possible when the vehicle is stationary.
Press Settings to display the main page.
Select "Color schemes ".
Select a colour scheme in the list then
press "OK" to confirm.
Whenever the colour scheme is
changed, the system restarts, temporarily
displaying a black screen.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning the system.
Navigation
I cannot enter the navigation address.
The address is not recognised.
►

Use the "intuitive method" by pressing
the "Search…" button at the bottom of the
"Navigation” page.
The route calculation is not successful.
The route settings may conflict with the current
location (for example, if toll roads are excluded
but the vehicle is on a toll road).
►


Check the route settings in the "Navigation"
menu.
I do not receive "Danger zone” alerts.
Y

ou have not subscribed to the online services
option.
►

If you have subscribed to the option:
- a few days may elapse before the service is
activated,
- services may not be selected in the system
menu,
- online services are not active ("T

OMTOM
TRAFFIC" not shown on the map).
The POIs do not appear.
The POIs have not been selected.
►

Set the zoom level to 600 ft (200 m) or select
POIs in the POI list.
The "Danger zone" audible warning feature is
not working.
The audible warning is not active or the volume
is too low

.

284
PEUGEOT Connect Nav
► Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of
TMC
messages.
►

Configure the "T
raffic info " function in
the route settings list (Without, Manual or
Automatic).
I receive a warning about a "Danger area"
that is not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available. The altitude is not displayed.
On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station
presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area. The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►


Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
► Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
► Start playback from the device.
Track names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
► Check that the telephone has Bluetooth
switched on.
► Check in the telephone settings that it is
"visible to all".
► Deactivate then reactivate the telephone’s
Bluetooth function.

285
PEUGEOT Connect Nav
12There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telephone’
s
Bluetooth function. The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check the compatibility of the
telephone on the Brand's website (services).
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►
Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the Google
Android Auto or Apple
website to see which countries are supported.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
► Reduce the ambient noise level (close
windows, turn down ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts". The contacts are not listed in alphabetical
order

.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►
Modify the telephone directory display
settings.
The system does not receive SMS.
Bluetooth mode does not allow SMS text
messages to be sent to the system.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio

288
Alphabetical index
Changing a bulb (side-hinged doors) 215
Changing a fuse
217–219
Changing a wheel

208
Changing a wiper blade

96
Changing the remote control battery

36
Changing to free-wheeling

223
Charge level indicator (Electric)

22
Charging cable

183
Charging cable (Electric)

182
Charging connector (Electric)

181, 186–188
Charging flap (Electric)

181, 186–188
Charging system (Electric)

5, 9, 26, 180, 193
Charging the traction battery
(Electric)

22, 180, 186–188
Checking the engine oil level

19
Checking the levels

193–195
Checking tyre pressures (using the kit)

205,
207–208
Checks

193, 195–197
Checks, routine

195–197
Child lock

134–135
Child lock on rear windows

135
Children

107, 113, 122–124, 131, 131–133, 131–132
Children (safety)

134
Child seats

107, 110–114, 119–121, 132
Child seats, conventional

112–114, 119–121
Child seats, i-Size

131–132
Child seats, ISOFIX

122–124, 131, 131–132, 132
Cleaning (advice)

180, 201–202
Closing the boot

45Closing the doors 29, 34, 44–45
Collision Risk Alert
166–167
Compressor, tyre inflation

205
Configuration, vehicle

26
Connected applications

274
Connection, Bluetooth

244, 257–258,
274–275, 279–280
Connection, Wi-Fi network

275
Connectivity

273
Consumption figures

27
Container, AdBlue®

198
Control, emergency boot release

36
Control, emergency door

29, 35–36
Control, heated seats

52
Control stalk, lighting

89
Control stalk, wipers

94–95
Control unit

182–183
Courtesy lamp

87
Courtesy lamp, front

87–88, 216
Courtesy lamp, rear

87–88, 216
Courtesy lamps

87–88, 216
Cover, load space

72
Crew cab, fixed

66–68
Crew cab, folding

68
Cruise control

156, 158–159, 161–163
Cruise control, adaptive

158, 163, 165–166
Cruise control by speed limit
recognition

158–159
Cruise control, dynamic with Stop
function

158–159D
DAB (Digital Audio Broadcasting) -
Digital radio
240–241, 254, 277
Date (setting)

28, 260, 282
Daytime running lamps

90, 213–214
Deactivating the passenger airbag

108, 112
Deactivation of DSC (ESC)

102
Deadlocking

34–35
Deferred charging

27, 188
Deferred charging (Electric)

26–27, 181, 186
Defrosting

54, 82–83
Demisting

82–83
Demisting, rear

83
Demisting, rear screen

83
Dimensions

233
Dipstick

19, 193
Direction indicators

90, 213–215, 217
Display, head-up

155–156
Domestic charging

183
Domestic charging (Electric)

187–188, 231
Door pockets

70
Doors, rear

44–45
Doors, side

40
Doors, side-hinged

34–35, 44–45, 215
Driver’s attention warning

170
Drive selector (Electric)

149, 196
Driving

136–137
Driving aids camera (warnings)

154
Driving aids (recommendations)

154
Driving economically

8
Driving modes

150

289

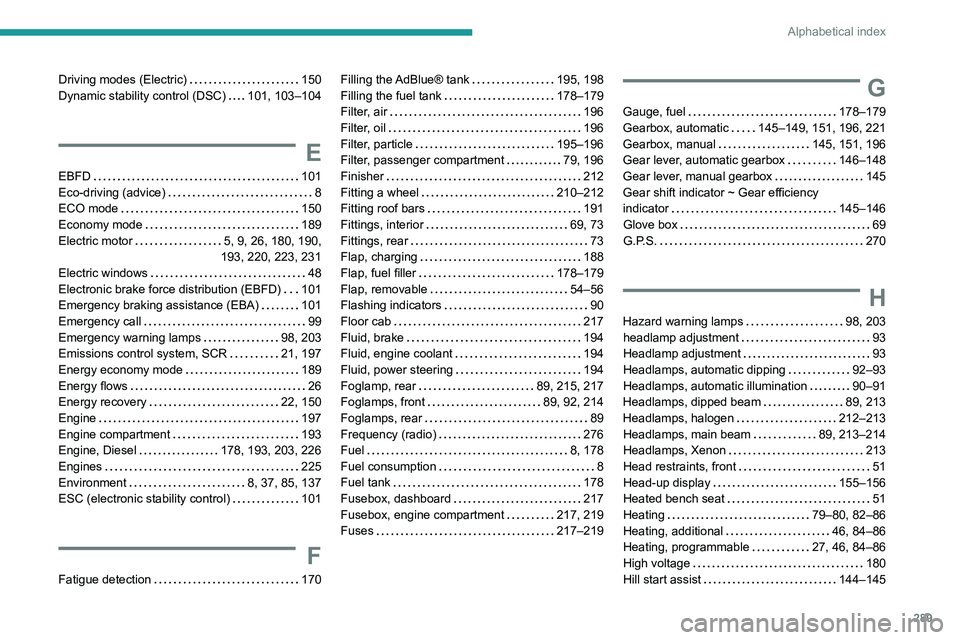

Alphabetical index
Driving modes (Electric) 150
Dynamic stability control (DSC)
101, 103–104
E
EBFD 101
Eco-driving (advice)
8
ECO mode

150
Economy mode

189
Electric motor

5, 9, 26, 180, 190,
193, 220, 223, 231
Electric windows

48
Electronic brake force distribution (EBFD)

101
Emergency braking assistance (EBA)

101
Emergency call

99
Emergency warning lamps

98, 203
Emissions control system, SCR

21, 197
Energy economy mode

189
Energy flows

26
Energy recovery

22, 150
Engine

197
Engine compartment

193
Engine, Diesel

178, 193, 203, 226
Engines

225
Environment

8, 37, 85, 137
ESC (electronic stability control)

101
F
Fatigue detection 170
Filling the AdBlue® tank 195, 198
Filling the fuel tank
178–179
Filter, air

196
Filter, oil

196
Filter, particle

195–196
Filter, passenger compartment

79, 196
Finisher

212
Fitting a wheel

210–212
Fitting roof bars

191
Fittings, interior

69, 73
Fittings, rear

73
Flap, charging

188
Flap, fuel filler

178–179
Flap, removable

54–56
Flashing indicators

90
Floor cab

217
Fluid, brake

194
Fluid, engine coolant

194
Fluid, power steering

194
Foglamp, rear

89, 215, 217
Foglamps, front

89, 92, 214
Foglamps, rear

89
Frequency (radio)

276
Fuel

8, 178
Fuel consumption

8
Fuel tank

178
Fusebox, dashboard

217
Fusebox, engine compartment

217, 219
Fuses

217–219G
Gauge, fuel 178–179
Gearbox, automatic
145–149, 151, 196, 221
Gearbox, manual

145, 151, 196
Gear lever, automatic gearbox

146–148
Gear lever, manual gearbox

145
Gear shift indicator ~ Gear efficiency
indicator

145–146
Glove box

69
G.P.S.

270
H
Hazard warning lamps 98, 203
headlamp adjustment
93
Headlamp adjustment

93
Headlamps, automatic dipping

92–93
Headlamps, automatic illumination

90–91
Headlamps, dipped beam

89, 213
Headlamps, halogen

212–213
Headlamps, main beam

89, 213–214
Headlamps, Xenon

213
Head restraints, front

51
Head-up display

155–156
Heated bench seat

51
Heating

79–80, 82–86
Heating, additional

46, 84–86
Heating, programmable

27, 46, 84–86
High voltage

180
Hill start assist

144–145
