2021 Peugeot 308 bluetooth

214
PEUGEOT Connect Nav
Press Radio Media to display the main
page.
Select "SOURCES".
Select Video to start the video.
To remove the USB memory stick, press the pause button to stop the video, then
remove the memory stick.
The system can play video files in the MPEG-4
Part 2, MPEG-2, MPEG-1, H.264, H.263, VP8,
WMV and RealVideo formats.
Streaming Bluetooth®
Streaming allows you to listen to the audio feed
from your smartphone.
The Bluetooth profile must be activated.
First adjust the volume on the portable device (to
a high level).
Then adjust the volume of the audio system.
If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in streaming mode, the
smartphone is considered to be a media
source.
Connecting Apple® players
Connect the Apple® player to the USB port using
a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device connected (artists/
albums/genres/playlists/audio books/
podcasts).
The default classification used is by artist. To
modify the classification used, return to the
first level of the menu then select the desired
classification (playlists for example) and
confirm to go down through the menu to the
desired track.
The version of software in the audio system may
not be compatible with the generation of the
Apple
® player.
Information and advice
The system supports USB mass storage
devices, BlackBerry® devices and Apple® players
via the USB ports. The adapter cable is not
supplied.
Devices are managed using the audio system
controls.
Other devices, not recognised on connection,
must be connected to the auxiliary socket using
a jack cable (not supplied) or via Bluetooth
streaming, if compatible.
The audio system will only play audio files with
".wma", ".aac", ".flac", ".ogg" and ".mp3" file
extensions, at bit rates between 32 Kbps and
320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other file types (".mp4", etc.) can be read.
All ".wma" files must be standard WMA 9 files.
The supported sampling rates are 32, 44 and
48 KHz.
To avoid reading and display problems, we
recommend choosing file names less than 20
characters long that do not contain any special
characters (e.g. “ ? .
; ù).
Use only USB memory sticks in FAT32 format
(File Allocation Table).
We recommend using the original USB
cable for the portable device.
Telephone
Pairing a Bluetooth®
telephone
The services available depend on the
network, the SIM card and the
compatibility of the Bluetooth devices used.
Consult the telephone user guide and the
service provider to check which services are
available.
The Bluetooth function must be activated and the telephone configured as "Visible
to all” (in the telphone settings).
To complete the pairing, whichever procedure is
used (from the telephone or from the system),

215
PEUGEOT Connect Nav
11ensure that the code is the same in the system
and in the telephone.
If the pairing procedure fails, we
recommend deactivating and then
reactivating the Bluetooth function on the
telephone.
Procedure from the telephone
Select the system name in the list of
detected devices.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press Telephone to display the main
page.
Press "Bluetooth search".
Or
Select "Search".
The list of detected telephones is
displayed.
Select the name of the chosen telephone
in the list.
Connection sharing
The system offers to connect the telephone with
3 profiles:
–
"Telephone" (hands-free kit, telephone only),
–
“Streaming" (streaming: wireless playing of
audio files on the telephone),
–
"Mobile internet data ".
The "Mobile internet data " profile must
be activated for connected navigation,
after first activating smartphone connection
sharing.
Select one or more profiles.
Press "OK" to confirm.
Depending on the type of telephone, you may by
prompted to accept the transfer of contacts and
messages.
The ability of the system to connect just one profile depends on the telephone.
All three profiles may connect by default.
The profiles compatible with the system are: HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
Visit the Brand's website for more information
(compatibility, additional help, etc.).
Automatic reconnection
On returning to the vehicle, if the last telephone
connected is present again, it is automatically
recognised and within about 30 seconds
after switching on the ignition, the pairing is
established automatically (Bluetooth activated).
To modify the connection profile:
Press Telephone to display the main
page. Press the "OPTIONS
" button to access the
secondary page.
Select "Bluetooth connection" to display
the list of paired devices.
Press the "Details" button.
Select one or more profiles.
Press "OK" to confirm.
Managing paired telephones
This function lets you connect or disconnect a
device or delete a pairing.
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Bluetooth connection" to display
the list of paired devices.
Press on the name of the telephone
selected in the list to disconnect it.
Press again to connect it.
Deleting a telephone
Select the basket at top right of the
screen to display a basket alongside the
telephone chosen.
Press the basket alongside the telephone
chosen to delete it.

220
PEUGEOT Connect Nav
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►
W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available.
The altitude is not displayed.
On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►

Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder

, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►

Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.

221
PEUGEOT Connect Nav

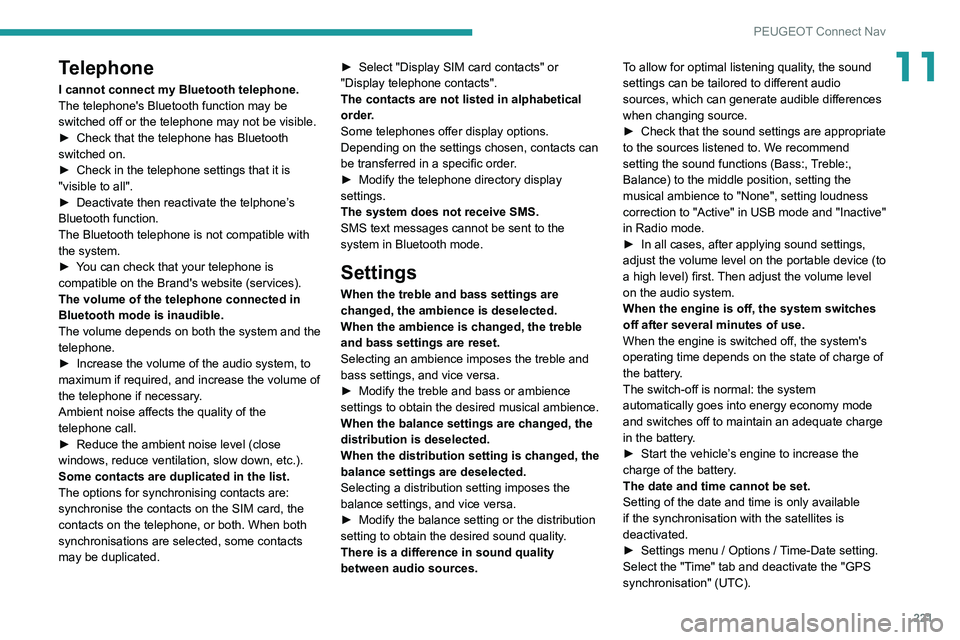

11Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►
Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telphone’
s
Bluetooth function.
The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check that your telephone is
compatible on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►

Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary

.
Ambient noise affects the quality of the
telephone call.
►

Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated. ►


Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order

.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system does not receive SMS.
SMS text messages cannot be sent to the
system in Bluetooth mode.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources. To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►

Check that the sound settings are appropriate
to the sources listened to. W
e recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►
In all cases, after applying sound settings,
adjust the volume level on the portable device (to
a high level) first.
Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.
►

Settings menu / Options /
Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).

222
Alphabetical index
3D digital instrument panel 7
A
ABS 62
Accessories
26, 58, 84
Active Safety Brake

112–114
AdBlue®

15, 146
AdBlue® tank

147
Additive, Diesel

144
Adjusting headlamps

54
Adjusting head restraints

30
Adjusting seat

30–31
Adjusting the air distribution

44–46
Adjusting the air flow

44–46
Adjusting the date

195, 218
Adjusting the height and reach of
the steering wheel

33
Adjusting the lumbar support

31
Adjusting the seat angle

31
Adjusting the temperature

44–46
Adjusting the time

195, 218
Advice on care and maintenance

148
Advice on driving

6, 81
Affaire version

182
Airbags

66, 68, 70
Airbags, curtain

67–68
Airbags, front

67–68, 70
Airbags, lateral

67–68
Air conditioning

43, 43–44
Air conditioning, automatic

44–46
Air conditioning, digital 47
Air conditioning, manual
43–44
Air intake

46
Air vents

42
Alarm

26–28
Android Auto connection

210
Anti-lock braking system (ABS)

62
Anti-pinch

28–29, 47–48
Antitheft / Immobiliser

23
Apple CarPlay connection

191, 209
Applications

210
Armrest

37
Armrest, front

38–39
Armrest, rear

39
Assistance call

59–60
Assistance, emergency braking

62, 113
Audible warning

61
Audio streaming (Bluetooth)

190, 214
B
Battery 139, 169
Battery, 12 V
144, 169–172
Battery, charging

170–171
Battery, remote control

23–25
Bicycle carrier

26
Blanking screen (snow shield)

133, 135
Blind, panoramic roof

47–48
Blind spot monitoring system, active

120
Blind spot sensors

119–120
BlueHDi

15, 174
Bluetooth (hands-free) 192–193, 214–215
Bluetooth (telephone)
192–193, 214–215
Bodywork

149
Bonnet

141
Boot

20, 25
Boot light

40
Brake discs

145–146
Brake lamps

164–166
Brakes

145–146
Braking assistance system

62
Braking, automatic emergency

112–114
Braking, dynamic emergency

86–88
Brightness

194
Bulbs (changing)

160–161, 164–166
C
Cable, audio 213
Cable, Jack
213
Capacity, fuel tank

131–132
Cap, fuel filler

131–132
Care of the bodywork

149
CD

190
CD, MP3

190
Central locking

20–22
Changing a bulb

160–161, 164–166
Changing a fuse

166–168
Changing a wheel

150, 157–158
Changing a wiper blade

55–56
Changing the remote control battery

24–25
CHECK

17

223
Alphabetical index
Checking the engine oil level 14
Checking the levels
142–143
Checking tyre pressures
(using the kit)

151, 153–156
Checks

141–142, 144–146
Checks, routine

144–146
Child lock

79
Children

65, 74–76
Children (safety)

79
Child seats

65, 68–72, 79
Child seats, conventional

71
Child seats, ISOFIX

74–76
Cleaning (advice)

148–149
Closing the boot

20, 25
Closing the doors

20–22, 25
Collision Risk Alert

112–113
Commercial

182
Connected applications

210
Connection, Bluetooth

192–193,
210–211, 214–215
Connection, MirrorLink

191–192
Connection, Wi-Fi network

2 11
Connectivity

209
Container, AdBlue®

147
Control, electric windows

28–29
Control, emergency boot release

26
Control, emergency door

23
Control, heated seats

32
Controls, steering mounted

93–96
Control stalk, lighting

50
Control stalk, wipers

54–57
Courtesy lamps

48–49Cover, load space 40–42
Cruise control
103, 105–110, 112
Cruise control, adaptive

107–108
Cruise control by speed limit recognition

103
Cruise control, dynamic with
Stop function

103, 108–110
Cup holder

37
D
DAB (Digital Audio Broadcasting) -
Digital radio
189, 213
Date (setting)

195, 218
Daytime running lamps

51, 161–162
Deactivating the passenger airbag

67, 70
Deactivation of DSC (ESC)

62
Deadlocking

20, 22
Defrosting

47
Demisting

47
Demisting, rear

33–34
Demisting, rear screen

33–34
Denon (audio system)

41–42
Dials and gauges

7
Digital instrument panel

7
Dimensions

181–182
Dipstick

14, 142
Direction indicators

53, 161–166
Display screen, instrument panel

97
Doors

25
Driver’s attention warning

11 5
Driver Sport Pack

96–97
Driving 81
Driving abroad
51
Driving aids camera (warnings)

101
Driving aids (recommendations)

100
Driving economically

6
Driving positions (storing)

32
Dynamic pack

96–97
Dynamic (sport)

96–97
Dynamic stability control (DSC)

62
E
EBFD 62
Eco-driving (advice)
6
Economy mode

139
Electric windows

28
Electronic brake force distribution (EBFD)

62
Emergency braking assistance (EBA)

62
Emergency call

59–60
Emergency switching off

85
Emergency warning lamps

41, 58
Emissions control system, SCR

16, 146
Energy economy mode

139
Engine compartment

141–142
Engine, Diesel

131, 142, 174, 179
Engine, petrol

141, 177, 179
Engines

176–177, 179
Environment

6, 24
ESC (electronic stability control)

62
