2021 MERCEDES-BENZ GLB SUV display

heavy load and can
result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges.
% The cont rast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if, for
ex ample, pixel er rors considerably restrict its
use.
See the no tes on cleaning the 360° Camera
(/ page 324).
Calling up t
Calling up t he vie
he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 241).#
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 238). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o. th
eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again.
Switc
Switc hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer
he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover. %
The camera co ver closes automatically aTer
some time or aTer an ignition cycle. P P
ar
ar king Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system with ultrasound. It monitors
th e area around your vehicle using multiple sen-
sors on the front bumper and on there ar bumper.
Pa rking Assist PARKTRONIC show syo uth e dis-
ta nce between your vehicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
In the standard setting, an intermittent warning
to ne sounds from a distance of app roximately
0.3 m toan obs tacle in front and appr oximately
1.0 m toan obs tacle behind. A continuous warn-
ing tone sounds from a distance of app roximately Driving and parking
241 241

0.2 m. Using
theWarn early all-round setting in
th e multimedia system, thewa rning tones for
front and side impact pro tection can be set to
sound at a greater distance of appr oximately
1.0 m in front and 0.6 m on the sides
(/ page 245).
% The Warn early all-round setting is always
active in there ar of theve hicle.
P
P ar
ar king Assis
king Assis t P
t PARK
ARK TR

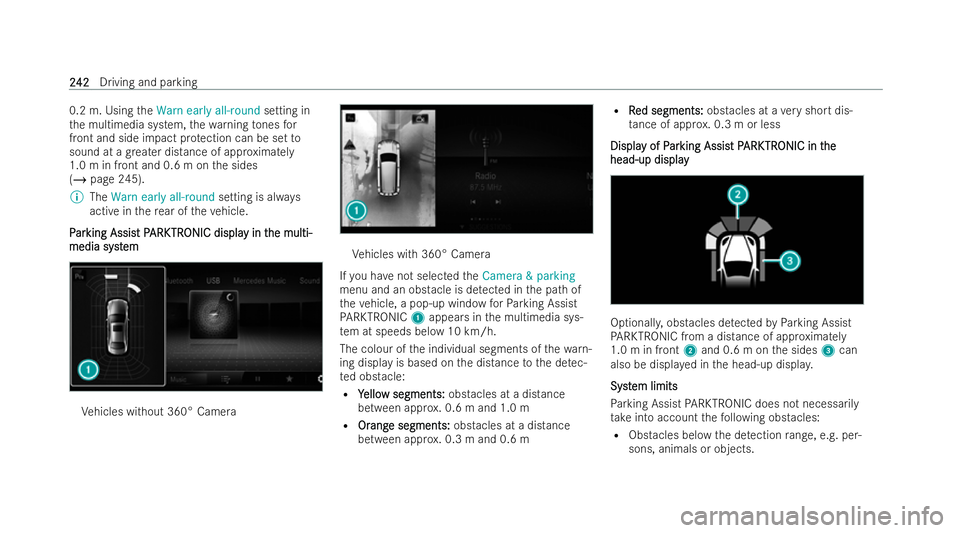

TRONIC displa
ONIC displa y in t
y in the multi-
he multi-
media syst
media syst em
em Ve
hicles without 360° Camera Ve
hicles with 360° Camera
If yo u ha venot selected theCamera & parking
menu and an obstacle is de tected in the path of
th eve hicle, a pop-up wind ow forPa rking Assist
PA RKTRONIC 1appears in the multimedia sys-
te m at speeds below 10 km/h.
The colour of the individual segments of thewa rn-
ing display is based on the distance tothe de tec-
te d obstacle:
R Y
Y ello
ello w segments:
w segments: obstacles at a distance
between appr ox. 0.6 m and 1.0 m
R Or
Orang
ang e segments:
e segments: obstacles at a distance
between appro x. 0.3 m and 0.6 m R
R
Red segments:
ed segments: obstacles at a very short dis-
ta nce of app rox. 0.3 m or less
Displa
Displa y of P
y of Par
arking Assis
king Assis t P
t PARK
ARK TR
TRONIC in t
ONIC in t he
he
head-up displ ay
head-up displ ay Optionall
y,obstacles de tected byParking Assist
PA RKTRONIC from a distance of app roximately
1.0 m in front 2and 0.6 m on the sides 3can
also be displa yed in the head-up displa y.
Syst
Syst em limits
em limits
Pa rking Assist PARKTRONIC does not necessarily
ta ke into account thefo llowing obstacles:
R Obstacles below the de tection range, e.g. per-
sons, animals or objects. 242
242
Driving and parking

when
Parking Assist PARKTRONIC sounds a warn-
ing tone. #
Select Audio fadeout during warning tones .#
Switch the function on or o.. A
A
ctiv
ctiv e P
e Par
arking Assist
king Assist F
F
unction of A
unction of A ctiv
ctive P
e Par
arking Assist
king Assist
Ac tive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
th e assistance of there ve rsing camera and 360°
Camera. When you are driving forw ards up to
appr oximately 35 km/h, the system automatically
measures parking spaces on bo thsides of the
ve hicle.
Ac tive Parking Assist o.ers thefo llowing func-
tions:
R Country
Country -dependent
-dependent: :parking in parking spaces
parallel tothero ad
R Parking in parking spaces perpendicular tothe
ro ad (optionally either forw ards or reve rse)
R Exiting parking spaces if you ha vepar ked
using Active Parking Assist As soon as all
requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of
th ero ad de tected parking spaces are located.
They are then shown in the media displa y.
The parking space can be selected as desired.
Depending on the location of the parking space,
th e parking direction (rear wards or forw ards) can
also be selected as desired.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
When you are entering or exiting a parking space,
th e procedure is assisted byacceleration, braking,
steering and gear changes.
V
V ehicles wit ehicles wit h manual tr
h manual tr ansmission:
ansmission: the active
brake application and automatic gear change are
only available on vehicles with automatic trans-
mission. You must therefore brake theve hicle and
ch ange gear yourself when parking or exiting a
parking space. Ac
tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You apply the parking brake.
R V
V ehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: you
engage transmission position j.
R ESP ®
inter venes.
R You open the doors or theta ilgate while driv-
ing.
Syst
Syst em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ov erhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected 246
246
Driving and parking

during measurement of
the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, such as snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y. Only use
Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions such as ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15%.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high.
R Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, such as:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces. P
P ar
ar king wit
king wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
% Depending on theve hicle's equipment, the
button may also be located at a di.erent posi-
tion in the centre console. #
Press button 1. Driving and parking
247 247

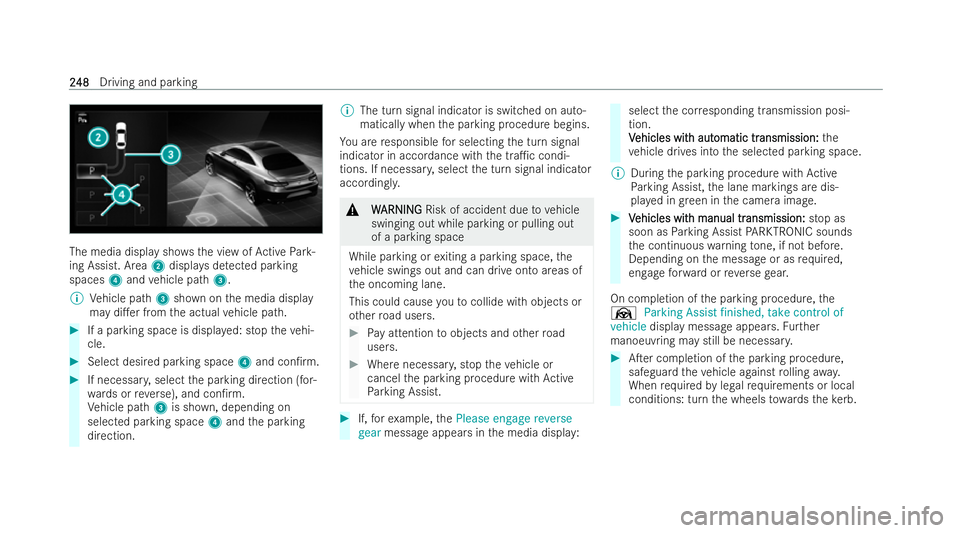

The media display sh
owsth e view of Active Park-
ing Assist. Area 2displa ysdetected parking
spaces 4and vehicle path 3.
% Vehicle path 3shown on the media display
may di.er from the actual vehicle path. #
If a parking space is displ ayed: stop theve hi-
cle. #
Select desired parking space 4and con/rm. #
If necessar y,select the parking direction (for-
wa rds or reve rse), and con/ rm.
Ve hicle path 3is shown, depending on
selected parking space 4and the parking
direction. %
The turn signal indicator is switched on auto-
matically when the parking procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y. &
W
WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage reverse
gear message appears in the media displa y: select
the cor responding transmission posi-
tion.
V V ehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: the
ve hicle drives into the selected parking space.
% During the parking procedure with Active
Pa rking Assist, the lane markings are dis-
pla yed in green in the camera image. #
V
Vehicles wit
ehicles wit h manual tr
h manual tr ansmission:
ansmission: stop as
soon as Parking Assist PARKTRONIC sounds
th e continuous warning tone, if not before.
Depending on the message or as requ ired,
engage forw ard or reve rsege ar.
On completion of the parking procedure, the
Ø Parking Assist finished, take control of
vehicle display message appears. Further
manoeuvring may still be necessar y. #
ATer completion of the parking procedure,
safeguard theve hicle against rolling away.
When requ ired bylegal requ irements or local
conditions: turn the wheels towa rdsth eke rb. 248
248
Driving and parking

%
You can stop theve hicle and change the
transmission position during the parking pro-
cedure. The system then calculates a new
ve hicle path. If no new vehicle path is availa-
ble, the system can change the transmission
position again or cancel the parking proce-
dure.
Exiting a par
Exiting a par king space wit
king space wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been par ked with Active Park-
ing Assist.
Please no tethat you are responsible forth eve hi-
cle and sur roundings during the entire parking
procedure. #
Start theve hicle. #
Press but ton1.
The media display sh owsth e view of Active
Pa rking Assist. #
Ifth eve hicle has been par ked perpendicular
to the direction of tr avel: in area 2, select
direction of tr avel 3 Left orRight.
% The vehicle path shown on the media display
may di.er from the actual vehicle path. #
Con/rm direction of exit3 todrive out of the
parking space.
% The turn signal indicator is switched on auto-
matically when theex iting procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y. Driving and parking
249
249

R
If an incor rect transmission position is
engaged.
Drive Away Assist is active under thefo llowing
conditions:
R IfPa rking Assist PARKTRONIC is activated.
R Ifyo u shiT the transmission position tok or
h when theve hicle is stationar y.
R Ifth e de tected obs tacle is less than appr ox.
1.0 m away.
R Ifth e manoeuvring assistance function is acti-
va ted in the multimedia system.
Syst
Syst em limits
em limits
The per form ance of Drive AwayAssist is limited
on inclines.
When driving with a trailer, Drive AwayAssist is
not available.
% Also obser vethe system limits of Parking
Assist PARKTRONIC (/ page 241).
F
F unction of Cr unction of Cr oss
ossTr
Tr a1c
a1c Alert
Alert
% Cross Tra1c Ale rtis only available forve hicles
with Blind Spot Assist or Active Blind Spot
Assist. Cross
Tra1c Ale rtcan warndrivers of any cross-
ing tra1c when reve rsing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent totheve hicle. If a
critical situation is de tected, theL symbol
appears in the media display and theve hicle can
be braked automaticall y.
If th era dar sensors are obstructed byvehicles or
ot her objects, de tection is not possible.
Cross Tra1c Ale rtis active under thefo llowing
conditions:
R ifth eve hicle is reve rsing at a walking pace.
R manoeuvring assista nce is activated
(/ page 251).
% Also obser vethe inst ructions on Blind Spot
Assist and Active Blind Spot Assist
(/ page 230).
Syst
Syst em limits
em limits
Cross Tra1c Ale rtis not available on inclines.
Cross Tra1c Ale rtis not available when driving
with a trailer. A
A ctiv
ctiv ating/deactiv
ating/deactiv ating manoeuvr
ating manoeuvr ing assist
ing assistant
ant
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Activate/deactivate Manoeuvring assistance.
% Manoeuvring assistant must be acti veforthe
function of Drive AwayAssist (/ page 250)
and Cross Tra1c Ale rt (/ page 251). T
T
r
railer hitch
ailer hitch N
No
ot
tes on tr
es on tr ailer oper
ailer oper ation
ation *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Obser
vethefo llowing no tes on theto ngue weight:
R Do not use a tongue weight that exceeds or
fa lls below the permissible tongue weight
R Use a tongue weight as close as possible to
th e maximum tongue weight Driving and parking
251
251

F
F
olding t
olding t he ball nec
he ball nec k out
k out #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold out from under there ar
bumper.
Indicator lamp 1will 0ash. #
Pull the ball neck in the direction of the ar row
until it engages audibly in a vertical position.
Indicator lamp 1onthe ball neck release
switch will go out.
If th e ball neck is not securely loc ked in place,
th eTrailer coupling Check lockmessage will
appear on the inst rument displa y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. Make sure
that the ball on the ball neck is clean.
Check that it is either greased or dry (g rease-
free), depending on the inst ructions forth e trailer.
F
F olding t olding t he ball nec
he ball nec k in
k in #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold up under there ar
bumper.
Indicator lamp 1will 0ash. #
Push the ball neck in the direction of the
ar ro w until it engages audibly behind the
bumper.
Indicator lamp 1will go out and the message
on the inst rument display will disappear.
Obser vethe information about the displa yson the
inst rument cluster:
R Indicator and warning lamps (/ page 442)
R Display message s (/page 385) Coupling up/uncoupling a tr Coupling up/uncoupling a tr
ailer
ailer R
R
eq
eq uir
uir ements:
ements:
R The ball neck is extended and engaged in a
securely loc ked position. Driving and parking
253
253
