2021 MERCEDES-BENZ GLB SUV display

R

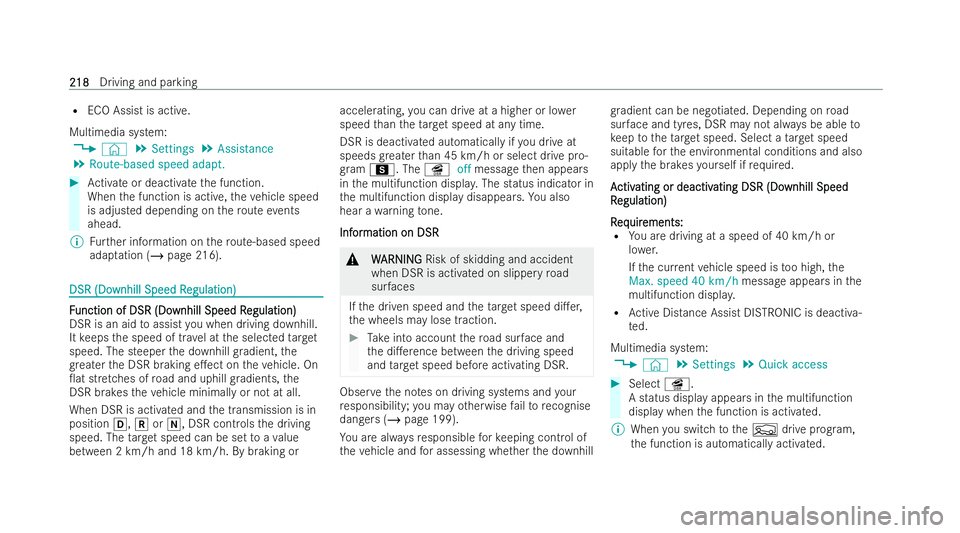

ECO Assist is active.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Route-based speed adapt. #
Activate or deactivate the function.
When the function is active, theve hicle speed
is adjusted depending on thero ute events
ahead.
% Further information on the route-based speed
adap tation (/ page 216). DSR (Do
DSR (Do
wnhill Speed R
wnhill Speed R egulation)
egulation)F
F
unction of DSR (Do
unction of DSR (Do wnhill Speed R
wnhill Speed Regulation)
egulation)
DSR is an aid toassist you when driving downhill.
It ke eps the speed of tr avel at the selected target
speed. The steeper the downhill gradient, the
gr eater the DSR braking e.ect on theve hicle. On
0at st retches of road and uphill gradients, the
DSR brakes theve hicle minimally or not at all.
When DSR is activated and the transmission is in
position h,kori, DSR controls the driving
speed. The targetspeed can be set toava lue
between 2 km/h and 18 km/h. By braking or accelerating,
you can drive at a higher or lo wer
speed than thetarg etspeed at any time.
DSR is deacti vated automatically if you drive at
speeds greater than 45 km/h or select drive pro-
gr am C. The îoffmessage then appears
in the multifunction displa y.The status indicator in
th e multifunction display disappears. You also
hear a warning tone.
Inf
Inf or
ormation on DSR
mation on DSR &
W
WARNI NG
ARNI NGRisk of skidding and accident
when DSR is activated on slippery road
sur faces
If th e driven speed and thetarg etspeed di.er,
th e wheels may lose traction. #
Take into account thero ad sur face and
th e di.erence between the driving speed
and targetspeed before activating DSR. Obser
vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 199).
Yo u are alw aysre sponsible forke eping control of
th eve hicle and for assessing whe ther the downhill gr
adient can be neg otiated. Depending on road
sur face and tyres, DSR may not alw ays be able to
ke ep tothetarg etspeed. Select a targetspeed
suitable forth e environmental conditions and also
apply the brakes yourself if requ ired.
A
A ctiv
ctiv ating or deactiv
ating or deactiv ating DSR (Do
ating DSR (Downhill Speed
wnhill Speed
R
R egulation)
egulation)
R
R eq
eq uir
uir ements:
ements:
R You are driving at a speed of 40 km/h or
lo we r.
If th e cur rent vehicle speed is too high, the
Max. speed 40 km/h message appearsinthe
multifunction displa y.
R Active Distance Assist DISTRONIC is deactiva-
te d.
Multimedia system: 4 © 5
Settings 5
Quick access #
Select î.
A status display appears in the multifunction
display when the function is activated.
% When you switch totheF drive prog ram,
th e function is automatically activated. 218
218
Driving and parking

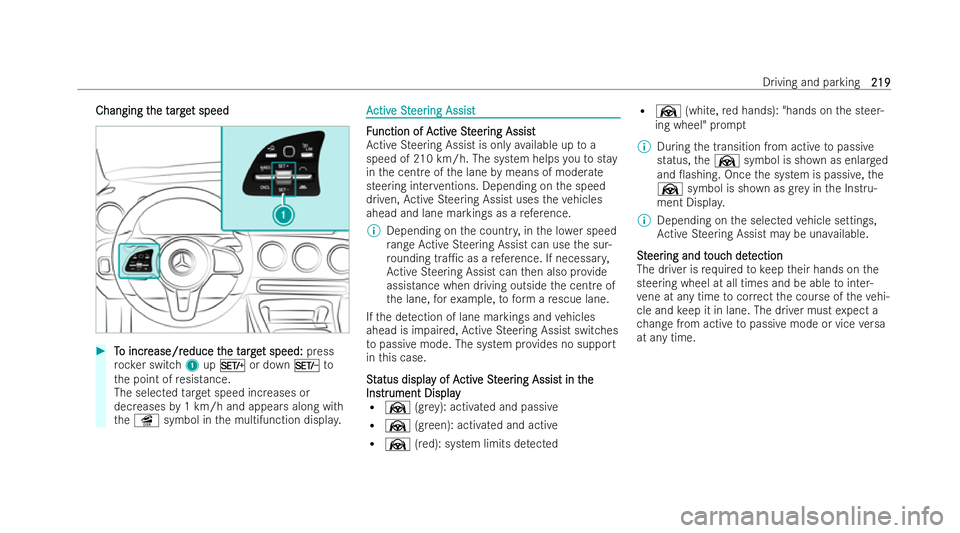

Changing t
Changing t
he t
he t arge
ar get speed t speed #
T
To incr
o incr ease/r
ease/r educe t
educe t he t
he targe
ar ge t speed:
t speed: press
ro ck er switch 1upM or down Nto
th e point of resis tance.
The selected targetspeed increases or
decreases by1 km/h and appears along with
th eî symbol in the multifunction displa y. A
A
ctiv
ctiv eSt
e St eer
eer ing Assist
ing Assist F
F
unction of A
unction of A ctiv
ctiveSt
e St eer
eer ing Assist
ing Assist
Ac tive Steering Assist is only available up to a
speed of 210 km/h. The system helps youto stay
in the centre of the lane bymeans of moderate
steering inter ventions. Depending on the speed
driven, Active Steering Assist uses theve hicles
ahead and lane markings as a refere nce.
% Depending on the countr y,in the lo wer speed
ra nge Active Steering Assist can use the sur-
ro unding tra1c as a refere nce. If necessar y,
Ac tive Steering Assist can then also pr ovide
assistance when driving outside the centre of
th e lane, forex ample, toform are scue lane.
If th e de tection of lane markings and vehicles
ahead is impaired, Active Steering Assist switches
to passive mode. The system pr ovides no support
in this case.
St
St atus displa
atus displa y of A
y of Activ
ctiveSt
e St eer
eer ing Assis
ing Assist in t t in the
he
Ins
Instr trument Display
ument Display
R Ø (gre y): acti vated and passive
R Ø (gre en): activated and active
R Ø (red): system limits de tected R
Ø (white, red hands): "hands on the steer-
ing wheel" prom pt
% During the transition from active topassive
status, theØ symbol is shown as enlar ged
and 0ashing. Once the system is passive, the
Ø symbol is shown as grey inthe Instru-
ment Displa y.
% Depending on the selected vehicle settings,
Ac tive Steering Assist may be una vailable.
S S t teer
eer ing and t
ing and t ouc
ouc h det
h det ection
ection
The driver is requ ired tokeep their hands on the
stee ring wheel at all times and be able tointer-
ve ne at any time tocor rect the course of theve hi-
cle and keep it in lane. The driver must expect a
ch ange from active topassive mode or vice versa
at any time. Driving and parking
219
219

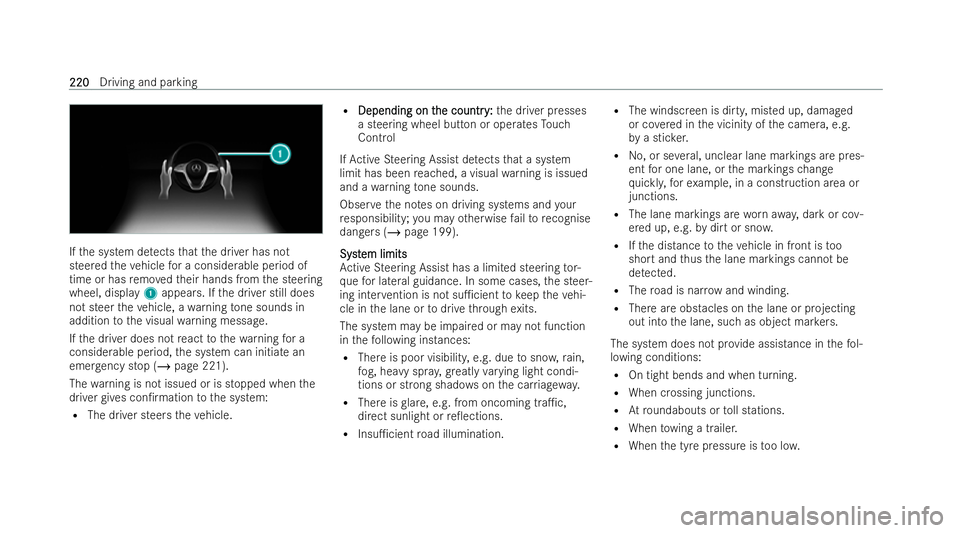

If
th e system de tects that the driver has not
steered theve hicle for a considerable period of
time or has remo vedth eir hands from the steering
wheel, display 1appears. If the driver still does
not steer theve hicle, a warning tone sounds in
addition tothe visual warning message.
If th e driver does not react tothewa rning for a
considerable period, the system can initiate an
emer gency stop (/ page 221).
The warning is not issued or is stopped when the
driver gives con/ rmation tothe system:
R The driver steers theve hicle. R
Depending on t
Depending on t he country
he country:
:th e driver presses
a steering wheel button or operates Touch
Control
If Ac tive Steering Assist de tects that a system
limit has been reached, a visual warning is issued
and a warning tone sounds.
Obser vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 199).
Syst
Syst em limits
em limits
Ac tive Steering Assist has a limited steering tor-
qu efo r lateral guidance. In some cases, the steer-
ing inter vention is not su1cient tokeep theve hi-
cle in the lane or todrive thro ugh exits.
The system may be impaired or may not function
in thefo llowing instances:
R There is poor visibility, e.g. due tosno w,rain,
fo g, heavy spr ay,gr eatly varying light condi-
tions or strong shadow s onthe car riag ewa y.
R There is glare, e.g. from oncoming tra1c,
di re ct sunlight or re0ections.
R Insu1cient road illumination. R
The windscreen is dirty, mis ted up, damaged
or co vered in the vicinity of the camera, e.g.
by a stic ker.
R No, or se veral, unclear lane markings are pres-
ent for one lane, or the markings change
qu ickl y,forex ample, in a construction area or
junctions.
R The lane markings are wornawa y,dark or co v-
ered up, e.g. bydirt or sno w.
R Ifth e distance totheve hicle in front is too
short and thus the lane markings cannot be
de tected.
R The road is nar row and winding.
R There are obs tacles on the lane or projecting
out into the lane, such as object mar kers.
The system does not pr ovide assistance in thefo l-
lowing conditions:
R On tight bends and when turning.
R When crossing junctions.
R Atroundabouts or toll stations.
R When towing a trailer.
R When the tyre pressure is too lo w. 220 220
Driving and parking

&

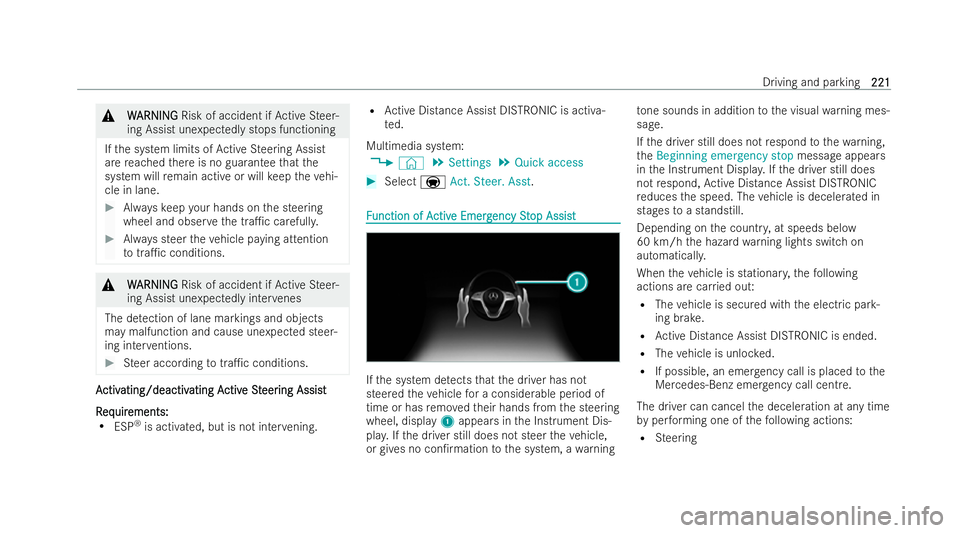

W
W ARNI NG
ARNI NGRisk of accident if Active Steer-
ing Assist unexpectedly stops functioning
If th e system limits of Active Steering Assist
are reached there is no guarantee that the
system will remain active or will keep theve hi-
cle in lane. #
Alwayske ep your hands on the steering
wheel and obser vethe tra1c carefull y. #
Always steer theve hicle paying attention
to tra1c conditions. &
W
W ARNI NG
ARNI NGRisk of accident if Active Steer-
ing Assist unexpectedly inter venes
The de tection of lane markings and objects
may malfunction and cause unexpected steer-
ing inter ventions. #
Steer according totra1c conditions. A A
ctiv
ctiv ating/deactiv
ating/deactiv ating A
ating Activ
ctiveSt
e St eer
eer ing Assist
ing Assist
R
R eq
eq uir
uir ements:
ements:
R ESP ®
is activated, but is not inter vening. R
Active Distance Assist DISTRONIC is acti va-
te d.
Multimedia system: 4 © 5
Settings 5
Quick access #
Select aAct. Steer. Asst . F
F
unction of A
unction of A ctiv
ctive Emerg
e Emerg encySt
ency Stop Assist
op Assist If
th e system de tects that the driver has not
steered theve hicle for a considerable period of
time or has remo vedth eir hands from the steering
wheel, display 1appears in the Instrument Dis-
pla y.Ifth e driver still does not steer theve hicle,
or gives no con/rmation tothe system, a warning to
ne sounds in addition tothe visual warning mes-
sage.
If th e driver still does not respond tothewa rning,
th eBeginning emergency stop message appears
in the Instrument Displa y.Ifth e driver still does
not respond, Active Distance Assist DISTRONIC
re duces the speed. The vehicle is decelerated in
stages toa standstill.
Depending on the countr y,at speeds below
60 km/h the hazard warning lights switch on
automaticall y.
When theve hicle is stationar y,thefo llowing
actions are car ried out:
R The vehicle is secured with the electric par k-
ing brake.
R Active Distance Assist DISTRONIC is ended.
R The vehicle is unloc ked.
R If possible, an emer gency call is placed tothe
Mercedes-Benz eme rgency call centre.
The driver can cancel the deceleration at any time
by per form ing one of thefo llowing actions:
R Steering Driving and parking
221 221

R
Braking or accelerating
R Deacti vating Active Distance Assist
DISTRONIC A
A
ctiv
ctiv e Br
e Br ak
ake Assist
e Assist F
F
unction of A
unction of A ctiv
ctiv e Br
e Br ak
ake Assist
e Assist
Ac tive Brake Assist consists of thefo llowing func-
tions:
R Distance warning function
R Autonomous braking function
R Situation-dependent braking assistance
R V
V ehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance P
ance Pack
ackag
age:
e: Eva-
sive Steering Assist and cornering function
Ac tive Brake Assist can help youto minimise the
ri sk of a collision with vehicles, cyclists or pedes-
trians or toreduce the e.ects of such a collision.
If Ac tive Brake Assist has de tected a risk of colli-
sion, a warning tone sounds and theL dis-
ta nce warning lamp lights up in the instrument
cluster. V
V ehicles wit
ehicles wit h PRE-S
h PRE-SAFE
AFE®
®
:
:depending on the coun-
tr y, an additional haptic warning occurs in the
fo rm of slight, repeated tensioning of the seat
belt.
If yo u do not react tothewa rning, autonomous
braking can be initiated in critical situations.
In especially critical situations, Active Brake Assist
can initiate autonomous braking directl y.In this
case, thewa rning lamp and warning tone occur
simultaneously with the braking application.
If yo u apply the brake yourself in a critical situa-
tion or apply the brake during autonomous brak-
ing, situation-dependent braking assistance
occurs. The brake pressure increases up tomaxi-
mum full-s top braking if necessar y.
Obser vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 199). If autonomous braking or situation-dependent
braking assistance has occur
red, display 1
appears in the Instrument Display and then auto-
matically goes out aTer a short time.
If th e autonomous braking function or the situa-
tion-dependent braking assistance is triggered,
additional pr eventive measures for occupant pro-
te ction (PRE- SAFE®
) may also be initiated. &
W WARNING ARNING Risk of an accident caused by
limited de tection per form ance of Active
Brake Assist
Ac tive Brake Assist cannot alw ays clear lyiden-
tify objects and complex tra1c situations. 222
222 Driving and parking

be
exceeded before a warning is issued. You can
specify whe ther thewa rning is tobe just a visual
wa rning or an acoustic one as well.
Displa
Displa y in t
y in the Ins
he Instr trument Display
ument Display
% The illustrations show the Instrument Display
in the widescreen cockpit. 1
Perm issible speed
2 Perm issible speed when there is a restriction
3 Additional sign with restriction
If Speed Limit Assist cannot de term ine the cur-
re nt maximum permissible speed (e.g. due to
missing signs), thefo llowing display appears in
th e Instrument Displa y: This is displa
yed continuously if theve hicle is in a
country where Speed Limit Assist is not suppor-
te d. Speed Limit Assist is not available in all coun-
tries.
Syst
Syst em limits em limits
The system may be impaired or may not function
in thefo llowing situations:
R Ifth ere is poor visibility, e.g. due toinsu1cient
illumination of thero ad, highly variable shade
conditions, rain, sno w,fog or heavy spr ay.
R Ifth ere is glare, e.g. from oncoming tra1c,
direct sunlight or re0ections.
R Ifth e windscreen in the area of the multifunc-
tion camera is dirty, or if the camera is misted
up, damaged or co vered.
R Ifth e tra1c signs are hard todetect, e.g. due
to dirt, snow or insu1cient lighting, or
because they are co vered. R
Ifyo u turn sharply when passing tra1c signs
outside the camera's /eld of vision.
Se Se tting Speed Limit Assist
tting Speed Limit Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Speed Limit Assist
A
A djusting t
djusting t he type of w
he type of w ar
arning
ning #
Select Visual & audible ,Visual orNone.
A
A djus
djus ting t
ting t he w
he war
arning t
ning t hr
hreshold
eshold
This value de term ines the speed at which a warn-
ing is issued when exceeded. #
Select Warning threshold. #
Set the desired speed.
% If one of thefo llowing systems is activated,
th e speed de tected can be manual lyadop ted
as the speed limit:
R Active Distance Assist DISTRONIC
R Cruise control
R Variable limi ter
Fu rther information (/ page 214). Driving and parking
227
227

T
T
r
ra1c
a1c Sign Assist
Sign Assist F
F
unction of
unction of Tr
Tra1c
a1c Sign Assist
Sign Assist
Tr a1c Sign Assist de tects tra1c signs with the
multifunction camera (/ page 199). It assists
yo uby displaying de tected speed limits and over-
ta king restrictions in the Instrument Displa y.
Obser vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 199).
Since Tra1c Sign Assist also uses the data stored
in the navigation system, it can update the display
in thefo llowing situations without de tecting tra1c
signs.
If th e system de tects that you are driving onto a
section of road in the wrong direction of tr avel, it
triggers a warning.
The camera also de tects tra1c signs with a
re striction indicated byan additional sign (e.g.
when wet). These are only displa yed if a restric-
tion applies or if the system cannot clear lyde ter-
mine whe ther there striction applies. W
W ar ar ning when t
ning when t he maximum per
he maximum per missible speed is
missible speed is
ex
ex ceeded
ceeded
The system can warnyou if you unintentionally
ex ceed the maximum permissible speed. Todo
th is, you can specify in the multimedia system by
how much the maximum permissible speed can
be exceeded before a warning is issued. You can
specify whe ther thewa rning is tobe just a visual
wa rning or an acoustic one as well. Displa
Displa
y in t
y in the Ins
he Instr trument Display
ument Display Instrument Display in
theWi descreen Cockpit
1 Maximum permissible speed
2 Maximum permissible speed when there is a
re striction
3 Additional sign with restriction
% V
V ehicles wit
ehicles wit h a st
h a standar
andar d Ins
d Instrtrument Display
ument Display: :a
+
+ symbol next toa tra1c sign in the Instru-
ment Display indicates that additional tra1c
signs ha vebeen de tected. These can also be
displa yed in the media display and optionally
in the head-up displa y.228
228
Driving and parking

If
Tra1c Sign Assist cann otdeterm ine the maxi-
mum permissible speed (e.g. due tomissing
signs), thefo llowing display appears in the Instru-
ment Displa y: This is displa
yed continuously if theve hicle is in a
country where Tra1c Sign Assist is not suppor ted.
Tr a1c Sign Assist is not available in all countries.
% Also obser vethe information on display mes-
sages in Tra1c Sign Assist (/ page 385).
W
W ar
ar ning when appr
ning when appr oac
oaching pedes
hing pedes tr
trian cr
ian cr ossings
ossings
(v
(v ehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance P
ance Pack
ackag
age)
e)
The system can warnyou if you approach a
pedestrian crossing with your vehicle. The ¯
Watch for pedestrians message appears inthe
inst rument clus ter.
The warning occurs only if appropriate tra1c
signs or lane markings are de tected and pedes-
trians are present in the danger zone. Syst
Syst em limits
em limits
The system may be impaired or may not function
particular lyin thefo llowing situations:
R Ifth ere is poor visibility, e.g. due toinsu1cient
illumination of thero ad, highly variable shade
conditions, rain, sno w,fog or heavy spr ay.
R Ifth ere is glare, e.g. from oncoming tra1c,
direct sunlight or re0ections.
R Ifth e windscreen in the area of the multifunc-
tion camera is dirty, or if the camera is misted
up, damaged or co vered.
R Ifth e tra1c signs are hard todetect, e.g. due
to dirt, snow or insu1cient lighting, or
because they are co vered.
R Ifth e information in the navigation system's
digital map is incor rect or out-of-date.
R If signs are ambiguous, e.g. road signs in road-
wo rks or in adjacent lanes.
R Ifyo u turn sharply when passing tra1c signs
outside the camera's /eld of vision. Se Se
tting
tting Tr
Tra1c
a1c Sign Assist
Sign Assist
R
R eq
eq uir
uir ements:
ements:
R Onl
Only v
y vehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance P
ance Pack
ackag
age:
e:
Ac tive Distance Assist DISTRONIC and ECO
Assist must be acti vatedfo rth e automatic
adoption of speed limits.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Traffic Sign Assist
A
A ctiv
ctiv ating or deactiv
ating or deactiv ating aut
ating automatic adop
omatic adop tion of
tion of
speed limits (onl
speed limits (onl y v
y vehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance
ance
P
P ack
ack ag
age)
e) #
Select Adopt limit. #
Switch the function on or o..
The speed limits de tected byTra1c Sign
Assist are automatically adop tedby Active
Distance Assist DISTRONIC.
% If one of thefo llowing systems is activated,
th e de tected speed can be manual lyadop ted
as the speed limit:
R Active Distance Assist DISTRONIC
R Cruise control Driving and parking
229
229
