Blo
wn fusesmus tbe replaced withfuses ofthe
same rating ,wh ich yo ucan recogni zeby the
colo rand fusera ting .The fuse rating sand fur‐
th er information tobe obser vedcan befound in
th efuse assignmen tdiagr am.
Fu se assignment diagram: onthefuse boxin
th ecar gocom partmen t(/ page320).
* NO
TEDama geormalfunct ionscaused
by mois ture Mois
turema ycause damagetotheelectr ical
sy stem orcause itto malfu nction. #
When thefuse boxis open, makesur e
th at no mois turecan enterthefuse
bo x. #
When closing thefuse box,mak esur e
th at theseal ofthelid isposition edcor‐
re ctly onthefuse box. If
th ene wlyinser tedfuse alsoblows,ha ve the
cau setrace dand rectif ied at aqu alif ied spec ial‐
is two rkshop.
Ensur eth efo llo wing beforere placing afuse:
R The vehicle issecur edagains tro lling away. R
Allelectr icalconsu mersar esw itched off.
R The igniti onissw itched off.
The electr icalfu ses arelocat ed invarious fuse
bo xes:
R Fuse boxin theengine compartmen ton the
dr iver's side (/page31 8)
R Fuse boxon thedr iver's side ofthecoc kpit
(/ page31 9)
R Fuse boxin thefront passeng erfoot we ll
(/ page31 9)
R Fuse boxin thecar gocom partmen ton the
ri ght- hand sideoftheve hicle, when viewe d
in thedir ect ion oftrav el (/ page320) Opening
andclosing thefus ebo xin the
engine compartmen t Re
quirement s:
R Adr yclo thand asc rewdr iver areav ailable.
Obse rveth eno teson electr icalfuses
(/ page31 7). Op
eni ng &
WARNIN GRisk ofinju ryfrom using the
winds hieldwiper swhile theengine hood
is open
When theengine hoodisopen andthewind‐
shield wipersar ese tin mo tion ,yo ucan be
tr apped bythewiper linkage. #
Alw aysswitc hof fth ewindshield wipers
and ignition beforeopening theengine
hood. 31
8
Brea kdo wnassista nce

#

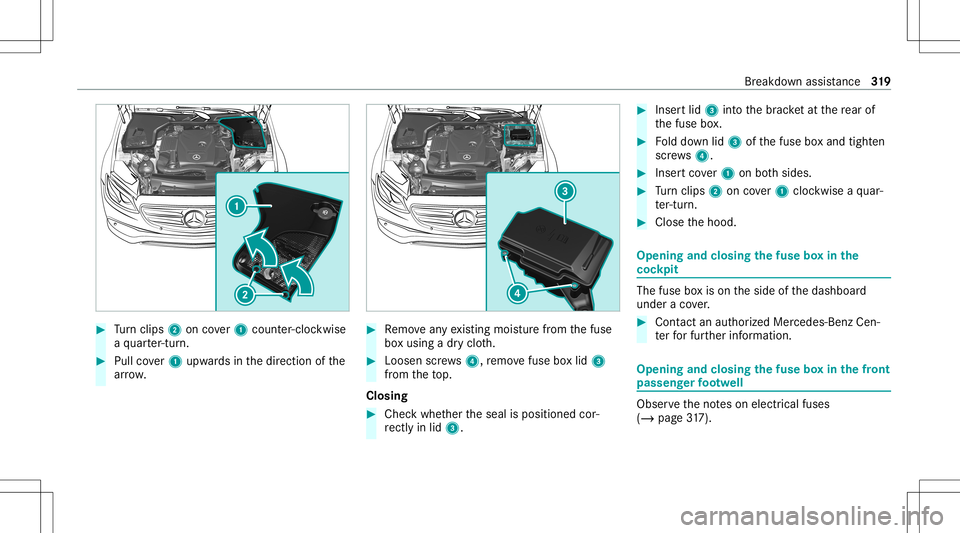

Turn clips 2 oncover1 count er-cloc kwise
a qu arter-tur n. #
Pullco ver1 upw ards inthedir ect ion ofthe
ar row . #
Remo veanyex istin gmois turefrom thefuse
bo xusing adr yclo th. #
Loosen screws4, remo vefuse boxlid 3
fr om theto p.
Closing #
Chec kwhe ther theseal isposition edcor‐
re ctly inlid 3. #
Inser tlid 3 intoth ebr ac ketat there ar of
th efuse box. #
Folddo wn lid3 ofthefuse boxand tight en
scr ews4. #
Inser tco ver1 onboth sides. #
Turn clips 2 oncover1 cloc kwise aqu ar‐
te r-tur n. #
Close thehood. Opening
andclosing thefus ebo xin the
coc kpit The
fuse boxis on theside ofthedashboar d
under aco ver. #
Con tact an author ized Mercedes-B enzCen‐
te rfo rfur ther information . Opening
andclosing thefus ebo xin thefront
pa sseng erfoot we ll Obser
vetheno teson electr icalfuses
(/ page31 7). Br
ea kdo wnassista nce 31
9

#

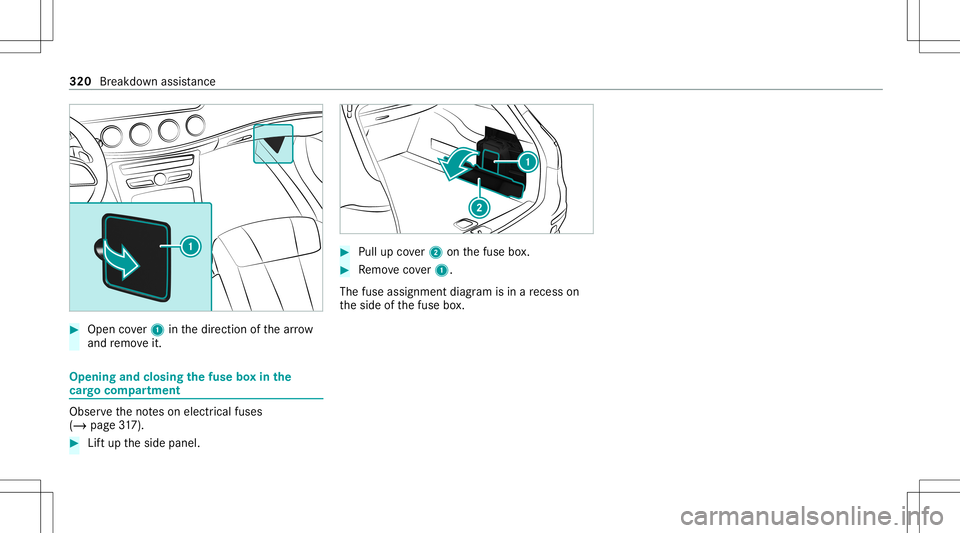

Open cover1 inthedir ect ion ofthear row
and remo veit. Opening
andclosing thefus ebo xin the
car gocom partmen t Ob
serveth eno teson electr icalfuses
(/ page31 7). #
Lift up theside panel. #
Pull upcover2 onthefuse box. #
Remo vecover1.
The fuse assignment diagram isin are cess on
th eside ofthefuse box. 320
