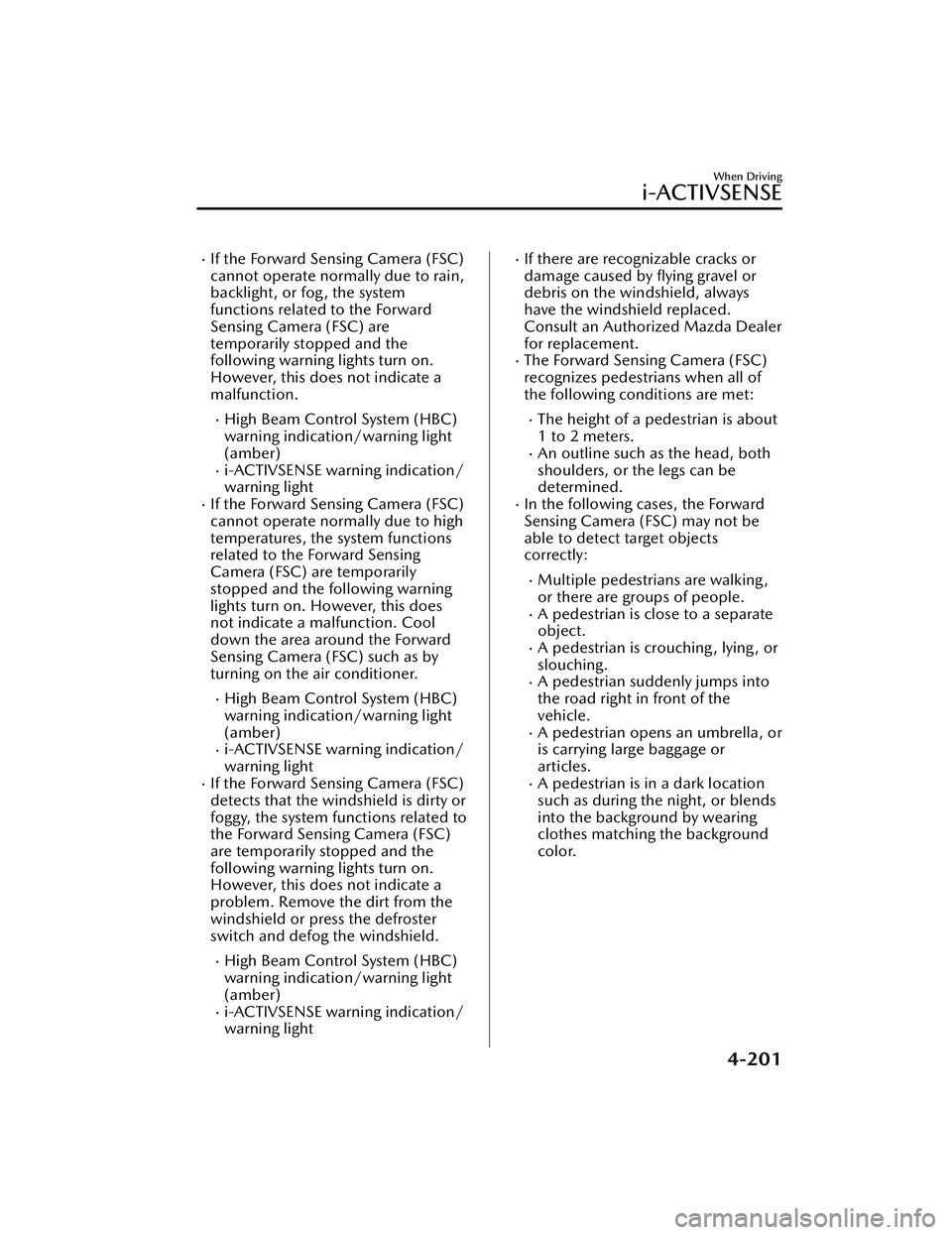

2021 MAZDA MODEL CX-30 camera

If the Forward Sensing Camera (FSC)
cannot operate normally due to rain,
backlight, or fog, the system
functions related to the Forward
Sensing Camera (FSC) are
temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
malfunction.
High Beam Control System (HBC)
warning indication/warning light
(amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
cannot operate normally due to high
temperatures, the system functions
related to the Forward Sensing
Camera (FSC) are temporarily
stopped and the following warning
lights turn on. However, this does
not indicate a malfunction. Cool
down the area around the Forward
Sensing Camera (FSC) such as by
turning on the air conditioner.
High Beam Control System (HBC)
warning indication/warning light
(amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
detects that the windshield is dirty or
foggy, the system functions related to
the Forward Sensing Camera (FSC)
are temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
problem. Remove the dirt from the
windshield or press the defroster
switch and defog the windshield.
High Beam Control System (HBC)
warning indication/warning light
(amber)
i-ACTIVSENSE warning indication/
warning light
If there are recognizable cracks or
damage caused by flying gravel or
debris on the windshield, always
have the windshield replaced.
Consult an Authorized Mazda Dealer
for replacement.
The Forward Sensing Camera (FSC)
recognizes pedestrians when all of
the following conditions are met:
The height of a pedestrian is about
1 to 2 meters.
An outline such as the head, both
shoulders, or the legs can be
determined.
In the following cases, the Forward
Sensing Camera (FSC) may not be
able to detect target objects
correctly:
Multiple pedestrians are walking,
or there are groups of people.
A pedestrian is close to a separate
object.
A pedestrian is crouching , lying , or
slouching.
A pedestrian suddenly jumps into
the road right in front of the
vehicle.
A pedestrian opens an umbrella, or
is carrying large baggage or
articles.
A pedestrian is in a dark location
such as during the night, or blends
into the background by wearing
clothes matching the background
color.
When Driving
i-ACTIVSENSE
4-201
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Rear/Rear corner/RearSide Ultrasonic Sensor
*
▼ Rear/Rear corner/Rear Side
Ultrasonic Sensor
The ultrasonic sensors function by
emitting ultrasonic waves which are
reflected

off obstructions at the rear
and the returning ultrasonic waves are
picked up by the ultrasonic sensors.
1. Rear ultrasonic sensor
2. Rear corner ultrasonic sensor
3. Rear side ultrasonic sensor

The ultrasonic sensors are mounted in
the rear bumper.
Front Camera/Side
Cameras/Rear Camera
*
▼ Front Camera/Side Cameras/Rear
Camera
Your vehicle is equipped with a front
camera, side cameras, and a rear
camera. The 360°View Monitor uses
each camera.
Refer to 360°View Monitor on page
4-165.
The front camera, side cameras, and
rear camera shoot images of the area
surrounding the vehicle.
Each camera is installed to the
following positions.
1. Side cameras
2. Front camera
3. Rear camera
When Driving
i-ACTIVSENSE
*Some models.4-207
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

Driver MonitoringCamera
*
▼Driver Monitoring Camera
The driver monitoring camera detects
changes in the driver's facial features
and estimates the amount of
accumulated fatigue and sleepiness of
the driver.
1. Driver monitoring camera
NOTE
Driver Monitoring (DM) and the
earlier collision warning may not
operate normally under the following
conditions.
The driver monitoring camera is
covered with something.
You are driving the vehicle while
leaning on the steering wheel.
You are wearing glasses or
sunglasses.
A cap or hat you are wearing
partially blocks the driver
monitoring camera's view of your
eyes, you have long bangs partially
covering your eyes, or a part of
your face is invisible due to a face
mask.
The lighting conditions change
significantly (such as backlight,
light from the side, or direct light
from the setting sun, and the
headlights of on-coming vehicles).
You are driving the vehicle with
your head excessively tilted to one
side or the other.
You are moving around extensively.Your face or your eyes frequently
turn in direction other than straight
ahead (direction of travel).
Your line of sight moves or directly
after it has moved.
There is a large difference between
your line of sight and the direction
your face is pointed.
You are driving the vehicle with
your head largely tilted to one side.
When Driving
i-ACTIVSENSE
4-208*Some models.
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Rear View Monitor*
▼Rear View Monitor
The rear view monitor provides visual
images of the rear of the vehicle when
reversing.
WARNING
Always drive carefully confirming the
safety of the rear and the surrounding
conditions by looking directly with
your eyes:
Reversing the vehicle by only looking at
the screen is dangerous as it may cause
an accident or a collision with an
object. The rear view monitor is only a
visual assist device
when reversing the
vehicle. The images on the screen may
be different from the actual conditions.
CAUTION

Do not use the rear view monitor
under the following conditions:
Using the rear view monitor under
the following conditions is
dangerous and could result in injury
or vehicle damage or both.
 Icy or snow-covered roads.
 Tire chains or a temporary spare
tire is installed.
 The trunk lid is not fully closed.
 The vehicle is on a road incline.
 When the display is cold, images
may course across the monitor or the
screen and may be dimmer than
usual, which could cause difficulty in
confirming the surrounding
conditions of the vehicle. Always
drive carefully confirming the safety
of the rear and the surrounding
conditions by looking directly with
your eyes.
 Do not apply excessive force to the
camera. The camera position and
angle may deviate.
 Do not disassemble, modify, or
remove it as it may no longer be
waterproof.
 The camera cover is made of plastic.
Do not apply degreasing agents,
organic solvents, wax, or glass
coating agents to the camera cover.
If any are spilled on the cover, wipe
off with a soft cloth immediately.
 Do not rub the camera cover
forcefully with an abrasive or hard
brush. The camera cover or lens may
be scratched which might affect the
images.
NOTE
If water, snow, or mud is stuck on
the camera lens, wipe it
off using a
soft cloth. If it cannot be wiped off,
use a mild detergent.
If the camera temperature changes
rapidly (Hot to cold, cold to hot), the
rear view monitor may not operate
correctly.
When replacing the tires, consult an
Authorized Mazda Dealer. Replacing
the tires could result in deviation of
the guide lines which appear on the
display.
If the vehicle's front, side, or rear has
been involved in a collision, the
alignment of the rear view parking
camera (location, installation angle)
may have deviated. Always consult
an Authorized Mazda Dealer to have
the vehicle inspected.
If “No camera signal.” is indicated in
the display, there could be a
problem with the camera. Have your
vehicle inspected at an Authorized
Mazda Dealer.
When Driving
Rear View Monitor
*Some models.4-217
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

(Predicted vehicle path assist lines
display type)
If force is applied to the steering
wheel, the guide lines may not
display. Loosen your grip on the
steering wheel to allow the guide
lines to display.▼Rear View Parking Camera
Location
1. Rear view parking camera
When Driving
Rear View Monitor
4-218
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

NOTE
The displayable range varies depending on the vehicle and road conditions.If the camera lens is touched or there is any dirt on it, it could affect the screen
image. Wipe the lens using a soft cloth.
The displayable range is limited. Objects under the bumper or around the bumper
ends cannot be displayed.
The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).
Some optionally installed vehicle accessories may be picked up by the camera. Do
not install any optional parts that can interfere with the camera view, such as
illuminating parts or parts made of reflective material.
It may be difficult to see the display un
der the following conditions, however, it
does not indicate a malfunction.
In darkened areas.When the temperature around the lens is high/low.When the camera is wet such as on a rainy day or during periods of high
humidity.
When foreign material such as mud is stuck around the camera.When the camera lens reflects sunlight or headlight beams.The surroundings are illuminated by vehicle lights, fluorescent lights, or LED
lights (display may flicker).
Extremely small dark or white dots appear on the screen (dots may flicker).Image display may be delayed if the temperature around the camera is low.
When Driving
Rear View Monitor
4-220
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor,
but they may not actually be aligned on the ground.
Fixed assist lines display type
NOTE
Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).
1. Shift the shift lever (manual transmission) or the selector lever (automatic transmission) to reverse (R) position to switch the display to the rear view
monitor display.
2. Confirming the surrounding conditions, reverse the vehicle.
When Driving
Rear View Monitor
4-226
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Index
Cruise control switch.......... 4-209
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-209
Cup Holder.............................. 5-40
Customer Assistance (Canada)..... 8-7
Customer Assistance (Mexico)... 8-11
Customer Assistance (Puerto
Rico)........................................ 8-10
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-11
D
Daytime Running Lights............. 4-49
Defogger.................................. 4-55 Mirror.................................. 4-56
Rear window........................ 4-55
Dimensions.................................9-6
Display..................................... 4-12
Distance & Speed Alert (DSA).. 4-107 Indication on display...........4-108
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-42
Driver Attention Alert (DAA).... 4-108
Driver Monitoring Camera....... 4-208
Driver Monitoring (DM)...........4-110
Drive Selection..........................4-81
Driving In Flooded Area............. 3-54
Driving on Uneven Road............ 3-55
Driving Position Memory........... 2-10
Driving Tips...............................3-49 Automatic transmission......... 4-43
Break-in period.................... 3-49
Driving in flooded area......... 3-54
Driving on uneven road.........3-55
Floor mat............................. 3-51
Hazardous driving.................3-50
Overloading......................... 3-55
Rocking the vehicle...............3-52
Saving fuel and protection of the
environment.........................3-49
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-56
Winter driving...................... 3-52
Dynamic Stability Control
(DSC)....................................... 4-78 TCS/DSC indicator light........4-78
E
Electric Parking Brake (EPB)........ 4-64
Electric Parking Brake (EPB) Warning
Beep.........................................7-40
Emergency StartingPush-starting........................ 7-16
Starting a flooded engine...... 7-16
Emergency Towing Tiedown hooks..................... 7-20
Towing description............... 7-19
Emission Control System............ 3-31
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-15
Exhaust gas.......................... 3-31
Hood release....................... 6-13
Oil....................................... 6-17
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-20
Excessive Speed Warning........... 7-42
Exterior Care............................. 6-43 Aluminum wheel
maintenance........................ 6-48
Bright-metal maintenance..... 6-47
Maintaining the finish........... 6-44
Plastic part maintenance....... 6-48
F
Flasher
10-3
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
