2021 MAZDA MODEL CX-30 Owners Manual

1. Wipe the soiled area with a softcloth soaked in a mild detergent
(approx. 5%) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water
and wrung out well.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating.
When cleaning , do not use a hard or
rough-surface cloth, or cleaning
detergent. In addition, if a chemical
solvent gets on the active driving
display, wipe it off immediately. The
dust-proof sheet could be damaged
and the surface coating could be
scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning
the dust-proof sheet is recommended.
▼Panel Maintenance
If a panel becomes soiled, wipe it off
with a soft cloth soaked in clean water
and thoroughly wrung out.
If some areas require further cleaning,
use the following procedure:
1. Wipe the soiled area with a soft
cloth soaked in a mild detergent
(approx. 5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water
and wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be
scratched easily.
▼Cleaning the Window Interiors
If the windows become covered with
an oily, greasy, or waxy film, clean
them with glass cleaner. Follow the
directions on the container.
CAUTION

Do not scrape or scratch the inside
of the window glass. It could
damage the thermal filaments and
the antenna lines.
 When washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water, gently
wiping the thermal filaments and the
antenna lines.
Use of glass cleaning products could
damage the thermal filaments and
the antenna lines.
▼ Cleaning the Floor Mats
Rubber floor mats should be cleaned
with mild soap and water only.
WARNING
Do not use rubber cleaners, such as
tire cleaner or tire shine, when
cleaning rubber
floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
floor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transmission) pedal or
when getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-51).
Maintenance and Care
Appearance Care
*Some models.6-51
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

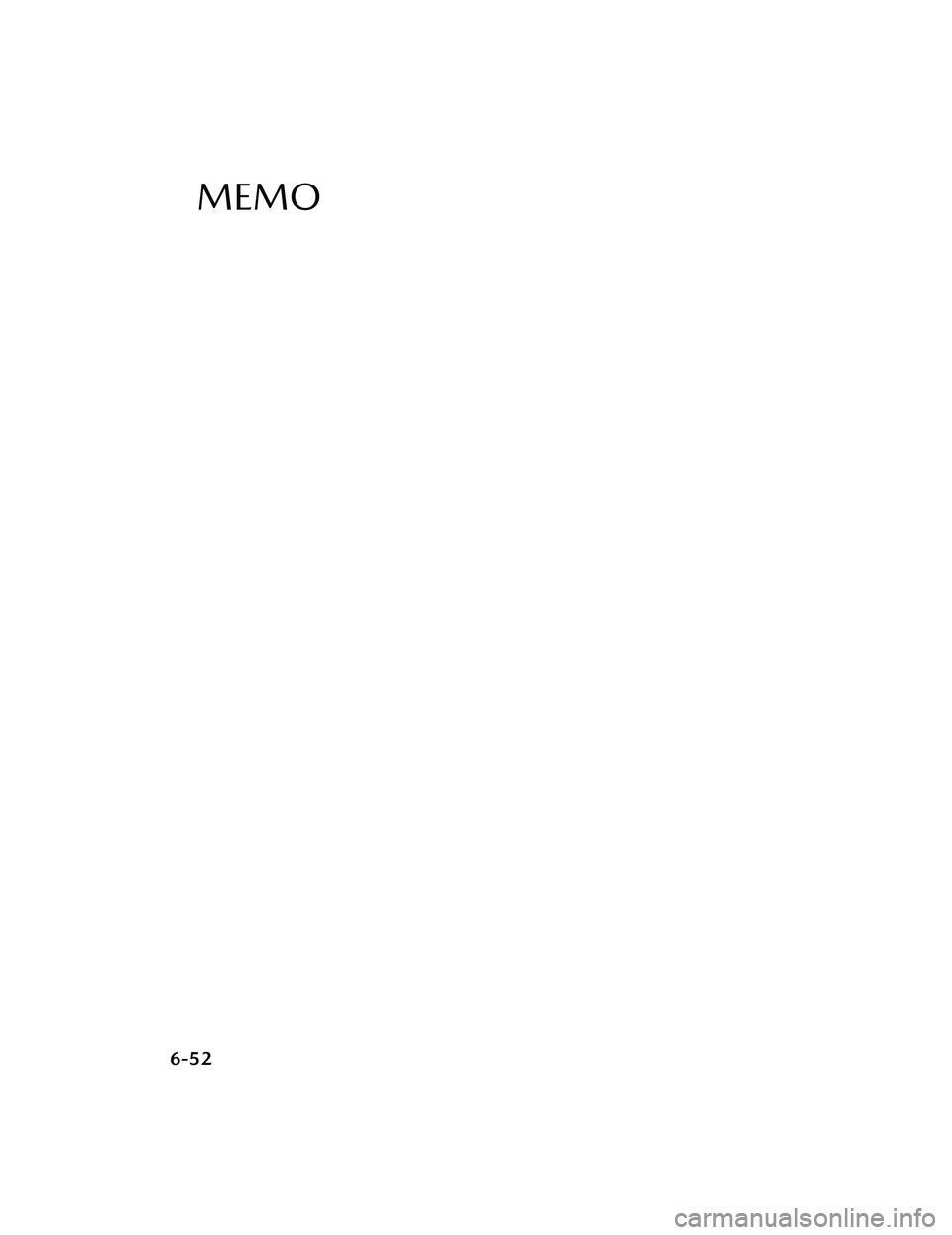

MEMO
6-52
CX-30_8JP5-EA-20K_Edition1_new2020-7-22 15:50:09

7If Trouble Arises
Helpful information on what to do if a problem arises with the
vehicle.
Parking in an Emergency............ 7-2 Parking in an Emergency......... 7-2
Flat Tire................................... 7-3 Spare Tire and Tool Storage ..........
............................................ 7-3
Changing a Flat Tire................7-5
Battery Runs Out..................... 7-13 Jump-Starting...................... 7-13
Emergency Starting................. 7-16 Starting a Flooded Engine..... 7-16
Push-Starting....................... 7-16
Overheating........................... 7-17 Overheating........................ 7-17
Emergency Towing.................. 7-19 Towing Description.............. 7-19
Tiedown Hooks
*.................. 7-20
Warning/Indicator Lights and
Warning Sounds..................... 7-22If a Warning Light Turns On or
Flashes................................ 7-22
Message Indicated on Multi-
information Display............. 7-34
Warning Sound is
Activated.............................7-37
When Liftgate Cannot be
Opened................................. 7-43 When Liftgate Cannot be
Opened.............................. 7-43
Active Driving Display Does Not
Operate................................. 7-44 If the Active Driving Display Does
Not Operate
*....................... 7-44
Windshield Wipers Operate at High
Speed.................................... 7-45 Windshield Wipers Operate at
High Speed......................... 7-45
*Some models.7-1
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Parking in an Emergency
▼Parking in an Emergency
The hazard warning lights should
always be used when you stop on or
near a roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.

Depress the hazard warning flasher
and all the turn signals will flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
The turn signals do not work when
the hazard warning lights are on.
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

Spare Tire and ToolStorage
▼Spare Tire and Tool Storage
Spare tire and tools are stored in the
locations illustrated in the diagram.
Ty p e A
1. Jack lever
2. Spare tire hold-down bolt
3. Tiedown eyelet
*
4. Jack
5. Spare tire
6. Flat tire bolt
7. Lug wrench

Ty p e B
1. Jack lever
2. Spare tire hold-down bolt
3. Tiedown eyelet
*
4. Jack
5. Spare tire
6. Lug wrench
▼
Jack
To r e m o v e t h e j a c k
1. Remove the luggage mat.

2. Remove the jack.
To s e c u r e t h e j a c k
Perform the removal procedure in
reverse.
Maintenance
Always keep the jack clean.Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
▼Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
If Trouble Arises
Flat Tire
*Some models.7-3
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tire to the front wheel and install the
temporary spare tire to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
 To avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
 Do not exceed 80 km/h (50 mph).
 Avoid driving over obstacles. Also,
do not drive through an automatic
car wash. This tire's diameter is
smaller than a conventional tire, so
the ground clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare
tire on any other vehicle, it has
been designed only for your
Mazda.
 Use only one temporary spare tire
on your vehicle at the same time.
To remove the spare tire
1. Remove the luggage mat.

2.(Vehicles with sub-woofer)
Uncouple the sub-woofer
connector.

NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
3. (Vehicles with sub-woofer)
Turn the spare tire hold-down bolt
counterclockwise and remove the
sub-woofer and the spare tire.

If Trouble Arises
Flat Tire
7-4
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

(Vehicles without sub-woofer)
Turn the spare tire hold-down bolt
counterclockwise and remove the
spare tire.

1. Spare tire hold-down bolt
NOTE
If the spare tire hold-down bolt
cannot be loosened, hold the edge
of the tire and turn it
counterclockwise until the spare
tire hold-down bolt rotates.
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing , verify that the
spare tire is stored securely.
Changing a Flat Tire
▼ Changing a Flat Tire
NOTE
If the following occurs while driving , it
could indicate a flat tire.
Steering becomes
difficult.The vehicle begins to vibrate
excessively.
The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and
out of the way of traffic to change the
tire.
Stopping in traffic or on the shoulder
of a busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion of
their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the right-of-way and firmly set the
parking brake.
If Trouble Arises
Flat Tire
7-5
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

2. Put a vehicle with an automatictransmission in Park (P), a manual
transmission in Reverse (R) or 1,
and turn off the engine.
3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle and away from the vehicle
and traffic.
5. Remove any luggage, the jack, tools, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When
blocking a wheel, place a tire block
both in front and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.
▼Removing a Flat Tire
WARNING
When jacking-up a vehicle, always
shift the shift lever to 1st or R position
(manual transmission vehicle) or shift
the selector lever to P position
(automatic transmission vehicle),
apply the parking brake, and place
wheel blocks in the position
diagonally opposed to the jack:
Changing a flat tire without using
wheel blocks is dangerous because the
vehicle may move and fall off the jack
even with the shift lever in 1st or R
position, or the selector lever is in P
position, which could result in an
accident.
1. If your vehicle is equipped with a
wheel cover, pry off the wheel
cover with the beveled end of the
jack lever.

NOTE
Force the end of the jack lever
firmly between wheel and cover, or
removal will be difficult.
If Trouble Arises
Flat Tire
7-6
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
